Wiring harness design in CATIA V5 - 3D modeling Week 5 & 6 Challenge

Report:

• first electrically define the electrical connectors given in both harnesses.
• then position the electrical connectors in the desired position given in layouts for both harnesses.
• Then get the two harness assembly in one product file for the harness routing.

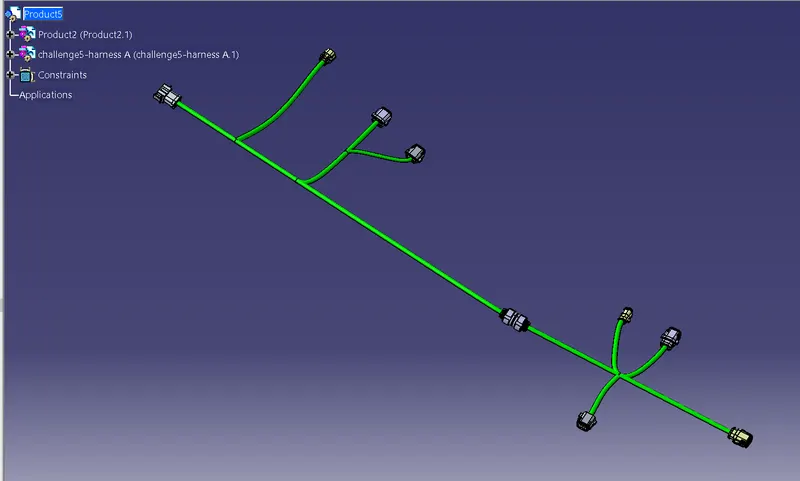

• then the route the both harnesses with respect to the layout given for the harnesses.
• After that connect the both harnesses by eletrical connection command in electrial assembly workbench.
