Project 1

Report:

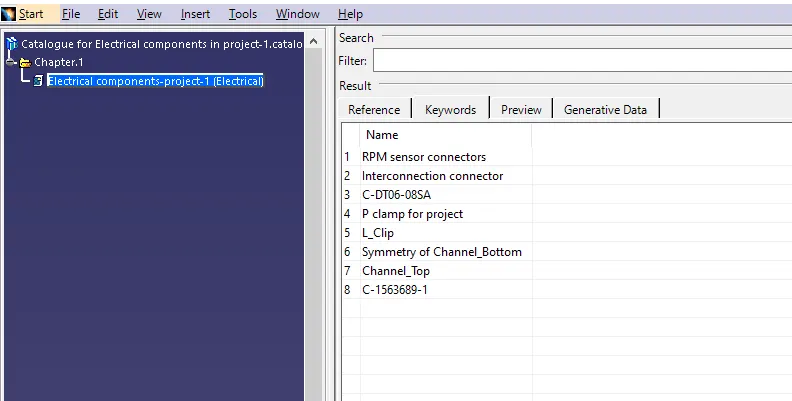

• First define the Electrical models to Electrical components with geometrical defienitions.
• And make separate product files for the mechanical and electrical components.

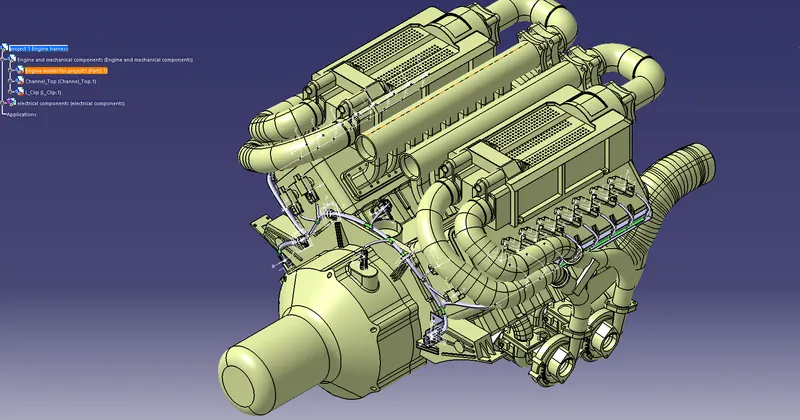

• Then place the electrical components and mechanical components in Engine in the desired locations.
• After that make Electrical components as Electrically defined components.

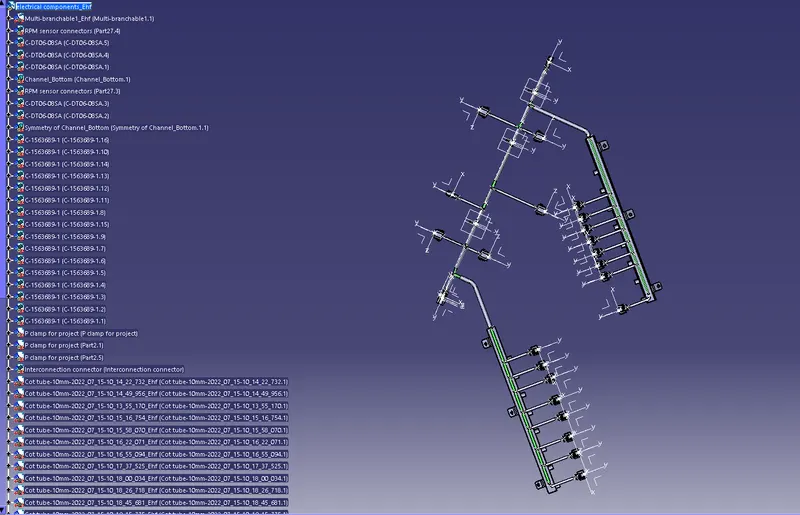

• Then make routing through the electrical connectors and clamps.
• And use COT tube covering over the bundle for protection.
• after routing make flattening for the wire harness.

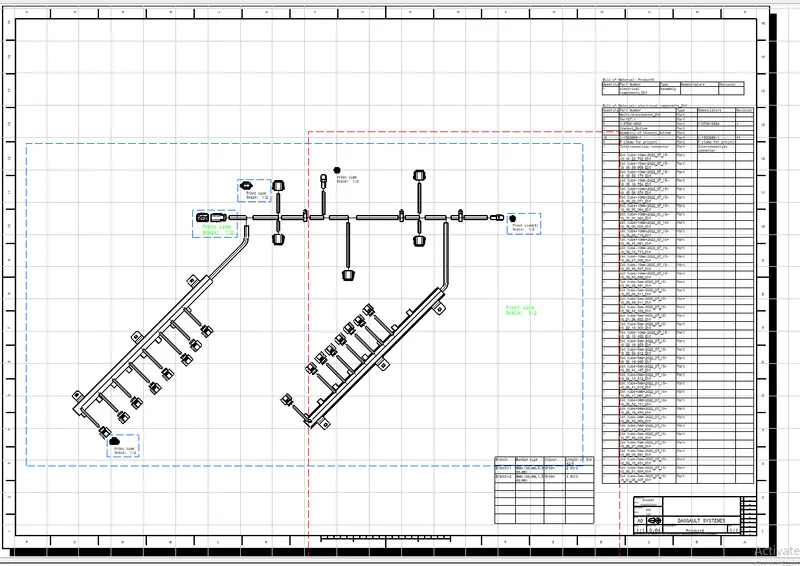

• And make drawing from the flattening.
