Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

oute the following harness layout in Electrical workbench. Make assumption for harness bundle diameters. Use Following connectors as shown in layout diagram.

Add protective covering on all branches connected to DT06-2S & DT06-4S connectors. Keep end extremity at 30mm (from connectors end)

Download connector 3D data from www.te.com

• DT06-4S
• DT06-6S
• DT06-2S
• DT06-08SA

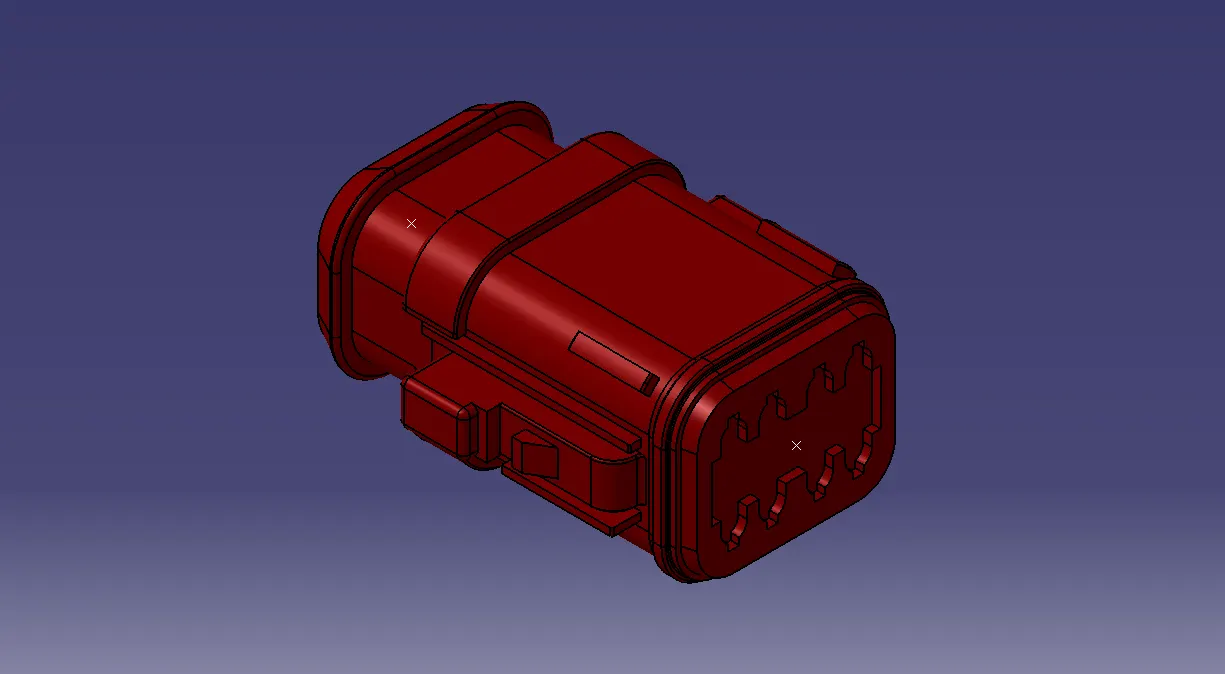

the above connector is DT --06-08SA

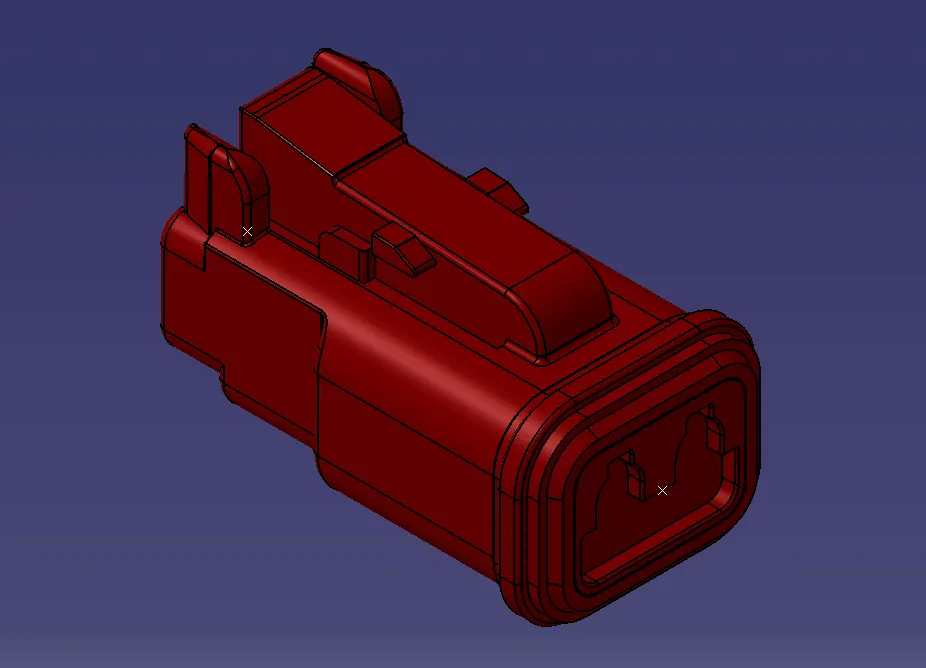

the above connector is DT --06-2s

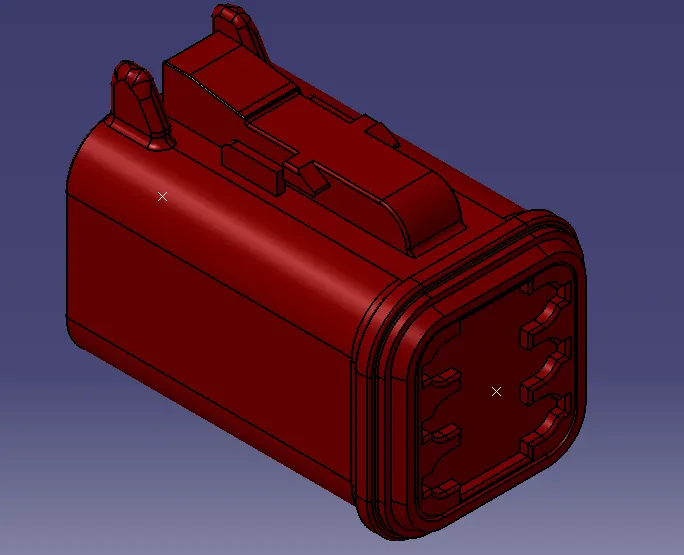

the above connector is DT --06-6S

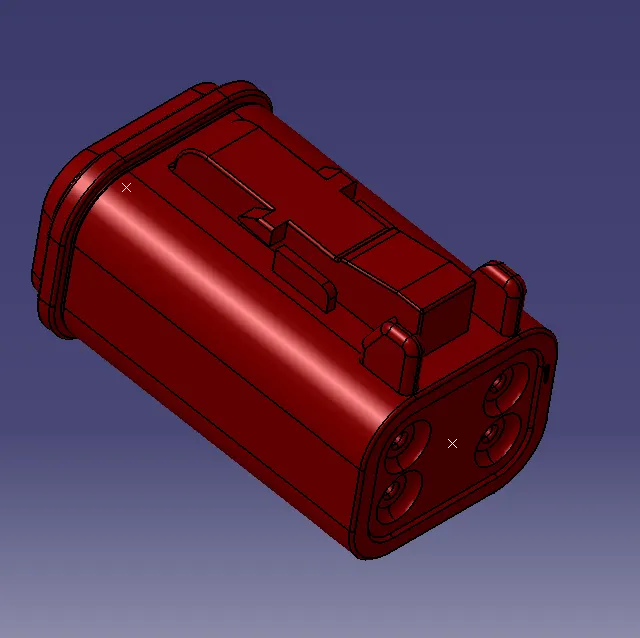

the above connector is DT --06-4S

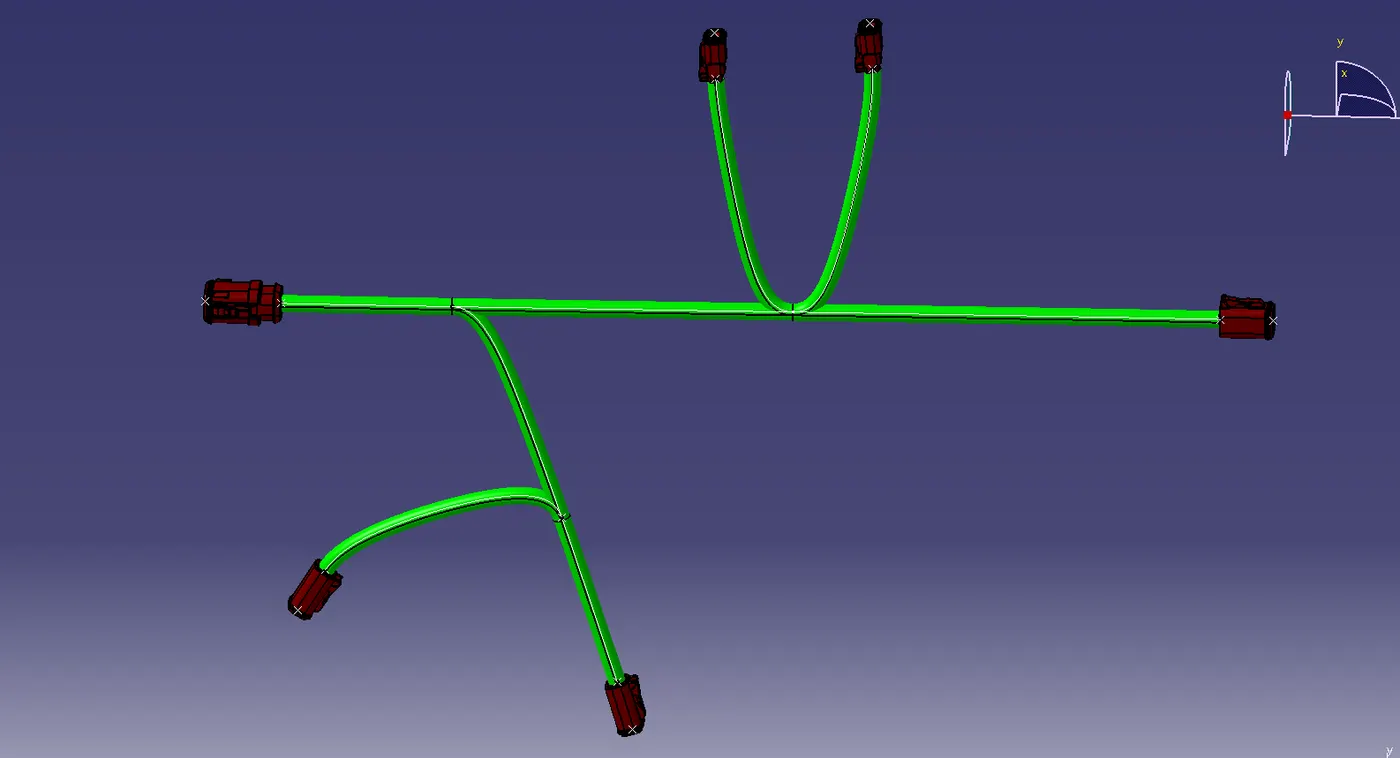

as the given data and reference wiring harness is done and file is attached below
