Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

AIM:

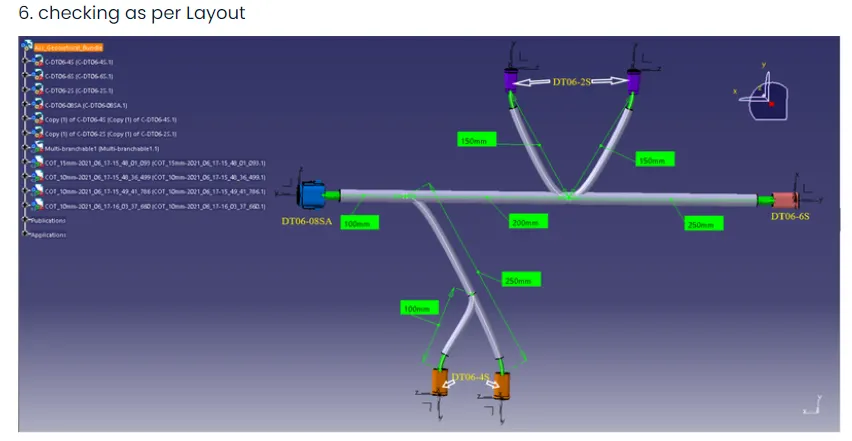

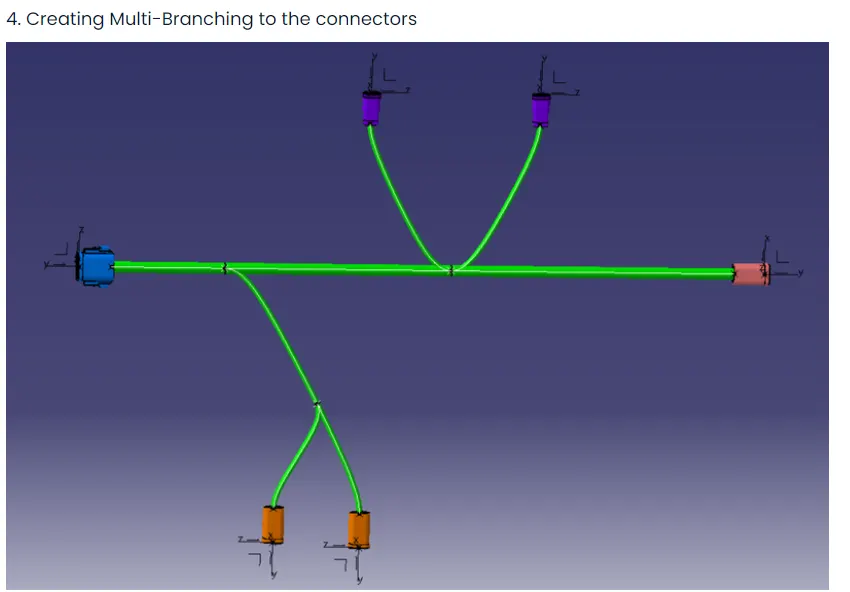

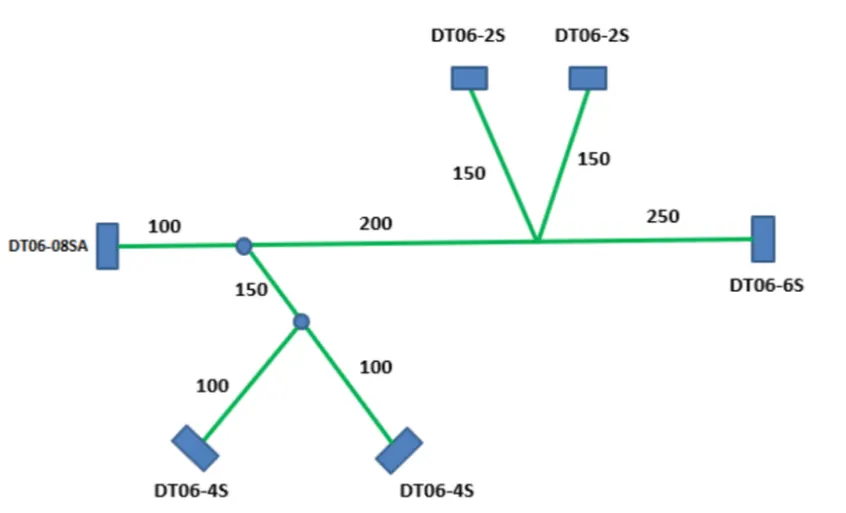

To Route the following harness layout in the Electrical Workbench.

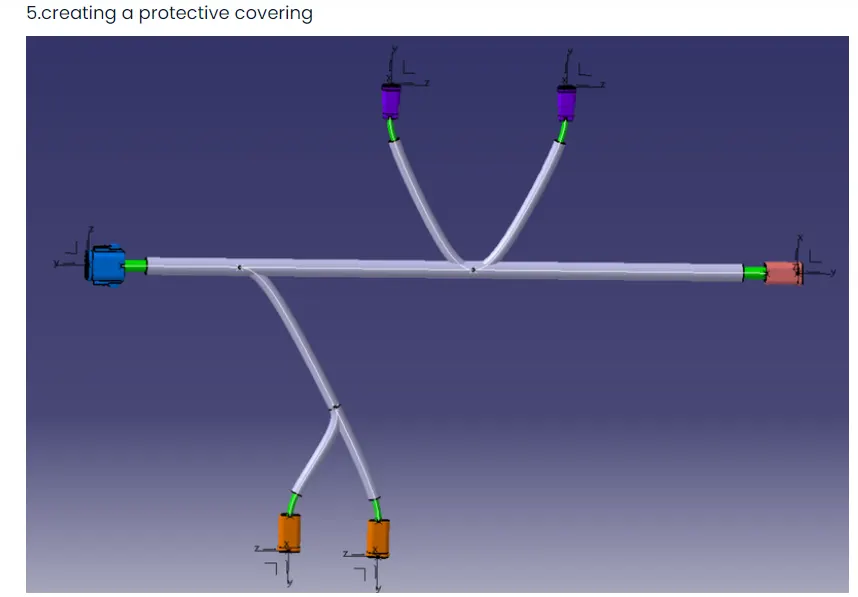

Add protective covering on all branches connected to DT06-2S & DT06-4S  connectors.

Given:

CAD data of the following connectors:

• DT0S-4S
• DTO6-6S
• DTOS-2S
• DTOS-08SA

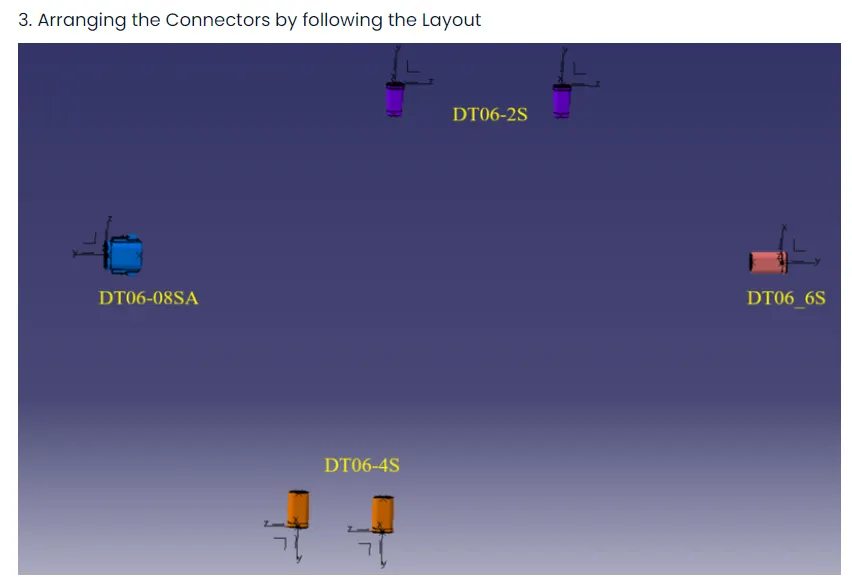

Connectors Layout Design:

steps to be followed:

• DT06-4S
• DT06-6S
• DT06-2S
• DT06-08SA

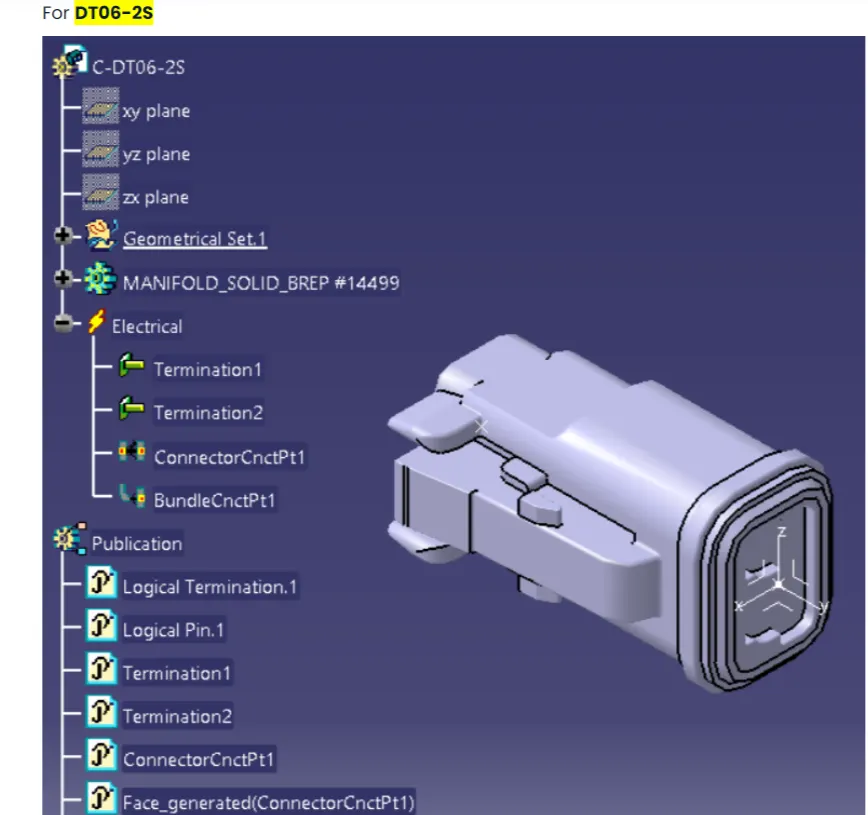

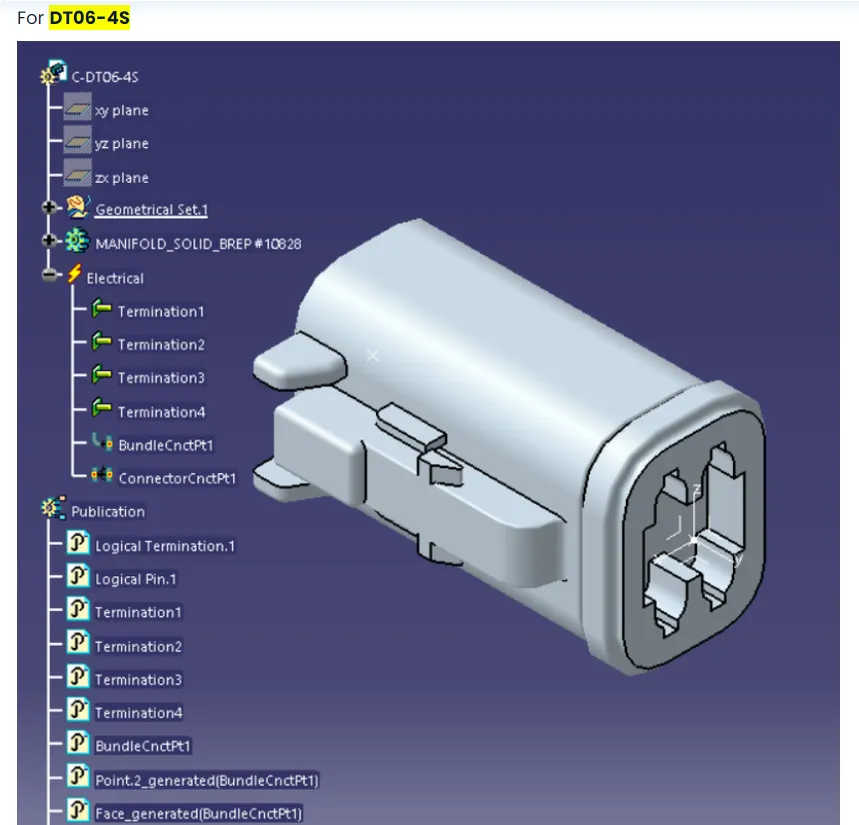

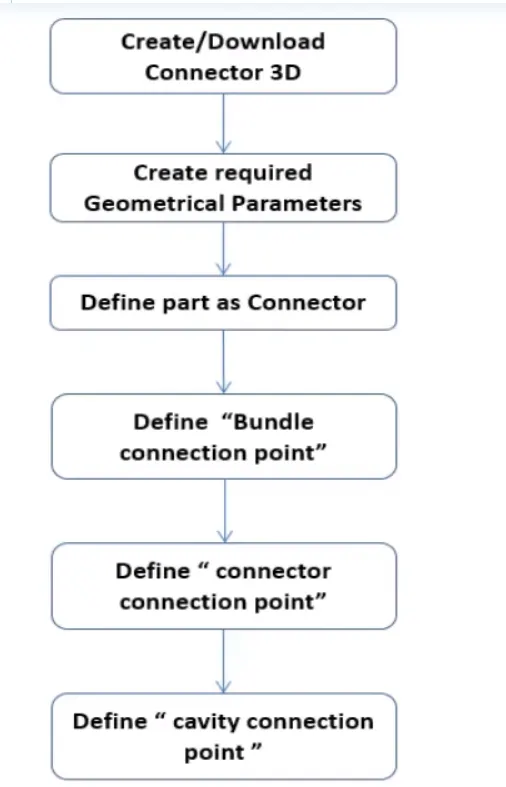

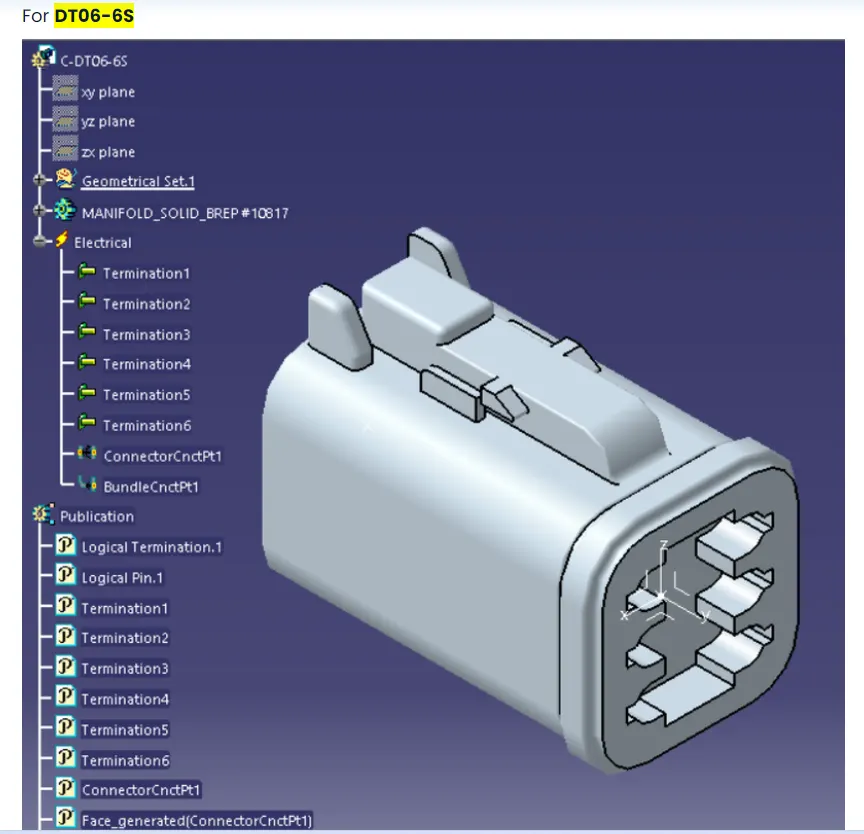

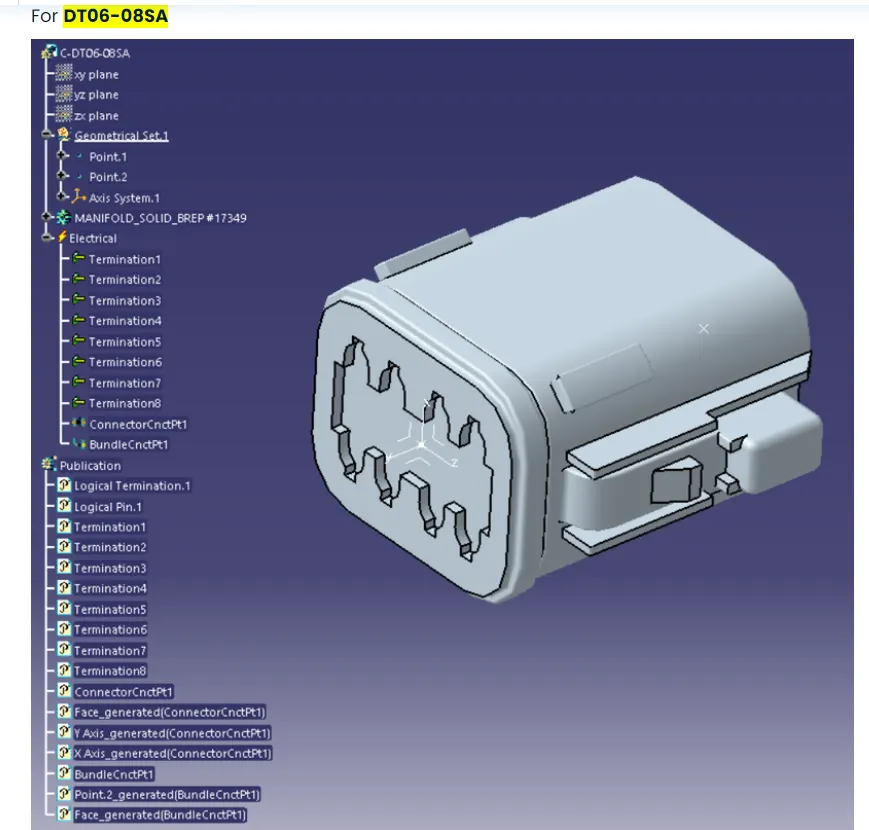

Connecting the mechanical part into the Electrical part for that i had followed the following steps.
