Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

                         WIRING HARNESS DESIGN IN CATIA V5-3D MODELLING

Aim:

          Route the following harness layout in elcectrical workbench.Make assumptions for HArness bundle diameters.Use following connectors as shown in layout diagram.

Download connector 3D Data from www.te.com

DT06-4S

DT06-6S

DT06-2S

DT06-08SA

Introduction:

            Wire Harness connectors and terminals are basic components found in a wire harness.A wire harness,sometimes reffered  to as a wire assembly,is a set of multiple wires or cables in their own protective covers or jackets that are bundled into a single wire harness.Wire harnesses keep eletronic or electrical systems organized to transmit signals,relay information or electrical power.

           Automobile wiring harness is the main part of automobile circuit network.As people on car safety,comfort,economy and emission requirement,car appliances configuration,funtion more and more ,so a connect the electrical wiring harness is becoming more and more complex,become a link with contemporary car trouble,and therefore in a car design and manufacturing  is more and more attention.How to improve the comprohensive performance of automobile wiring harness has become the focus of attention.

         The function of wire harness in the whole vehicle is to transmit or exchange the power signal or data signal of the electrical system to realize the function and requriments of the electriical system.

Connectors:

      Connectors are the electro mechanical devices used to form a continuous electronic signal to connect wire harnesses to apower source or circuit.On a basic level,connectors consists of male-ended plugs and female ended jacks that can be joined together to relay an electronic signal.They are the familiar mating pair of poralized multi pin connectors with wire leads.A male ended plastic housing housing with release fits into a snap mounted female  ended chassis mounting.The pair can be connected or disconnected easily and come in a variety of sizes,shapes,materials,quality and dimensions circular,header,pin,crimped,multitap-Which are dependent on the application.

Objective:

• Define the mechanical connectors electrically and store it in the catalogue.
• Prepare  the bundle routing for the connectors and orient the bundle in proper direction using rotate command.
• Add the protective coverings to the bundles created,where 30mm gap should be provided at start and end extrimities near to the connectors.

Design Procedure:

 1.Procedure of the connectors for defining it electrically:

   Download the required connectors from the source and convert the mechanical connectors electrically by using the electrical part design workbench by following steps.

• First Download the connectors and mounting clips from the given link source.
• Get into the mechanical part workbench to create requried geometrical parameters.Create connector connection point and budle connection point on the required sides of the CAD part.

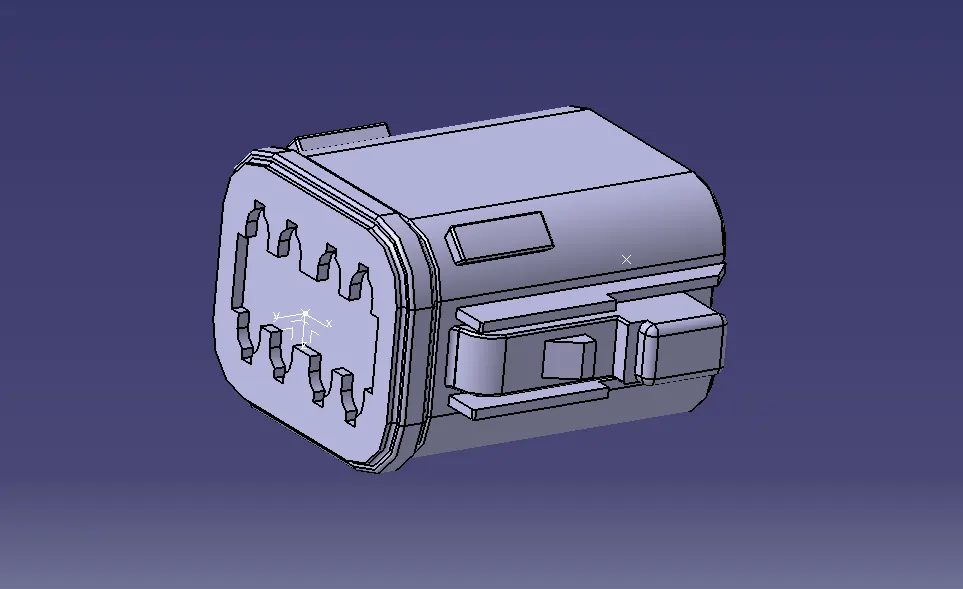

• Create axis system on the connector connection point such a way that the Y coordinate facing normal to the connector face X. Coordinate facing towards the locking mechanism and Z coordinate facing to the top.
• Create cavity connection point for connectors having the cavity for mounting clips.

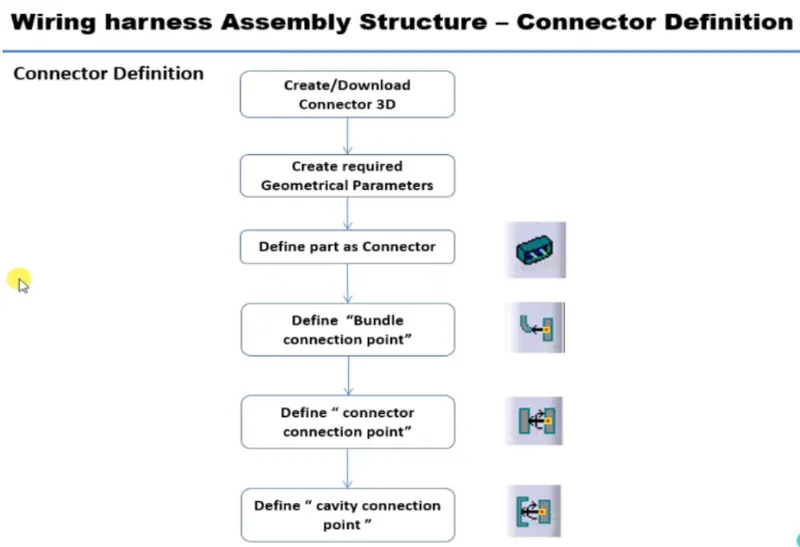

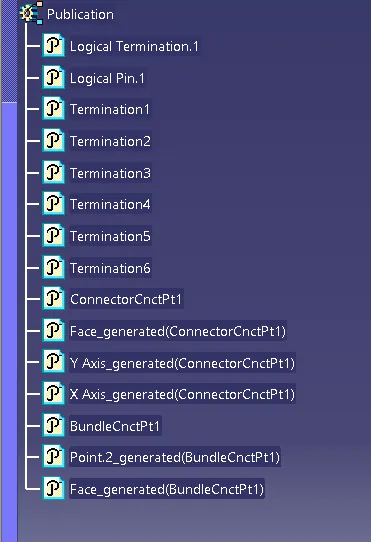

        Using the geometrical parameters created,

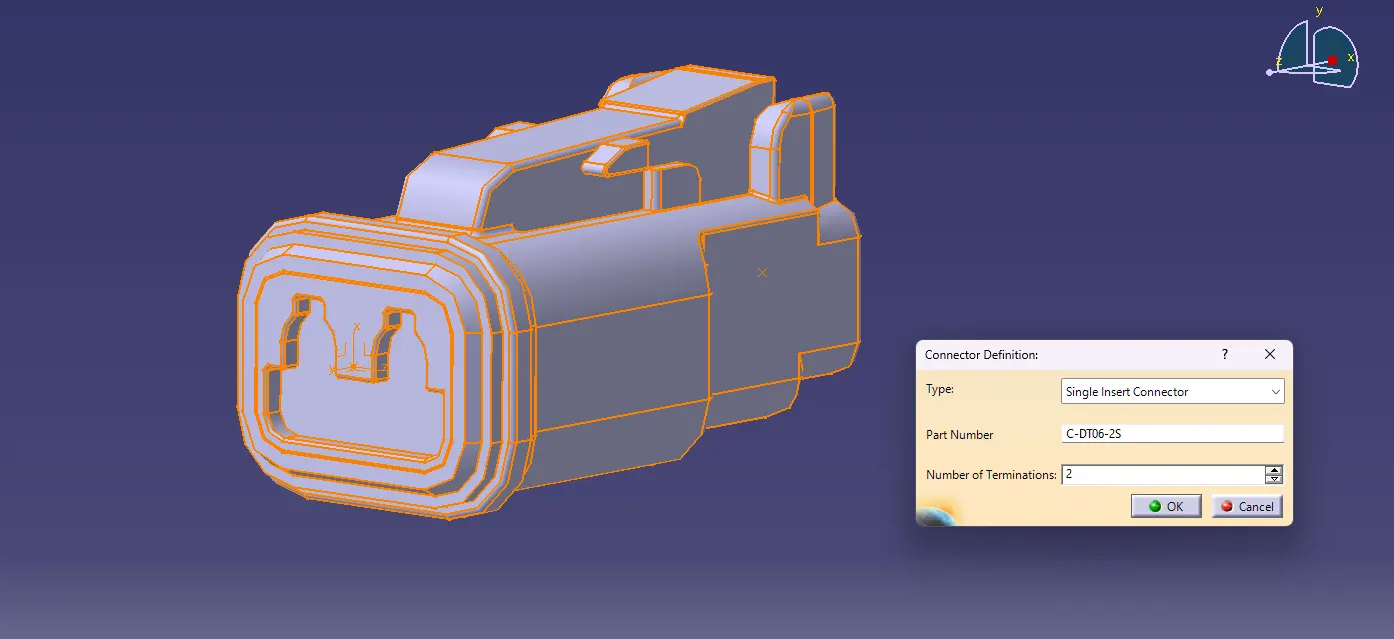

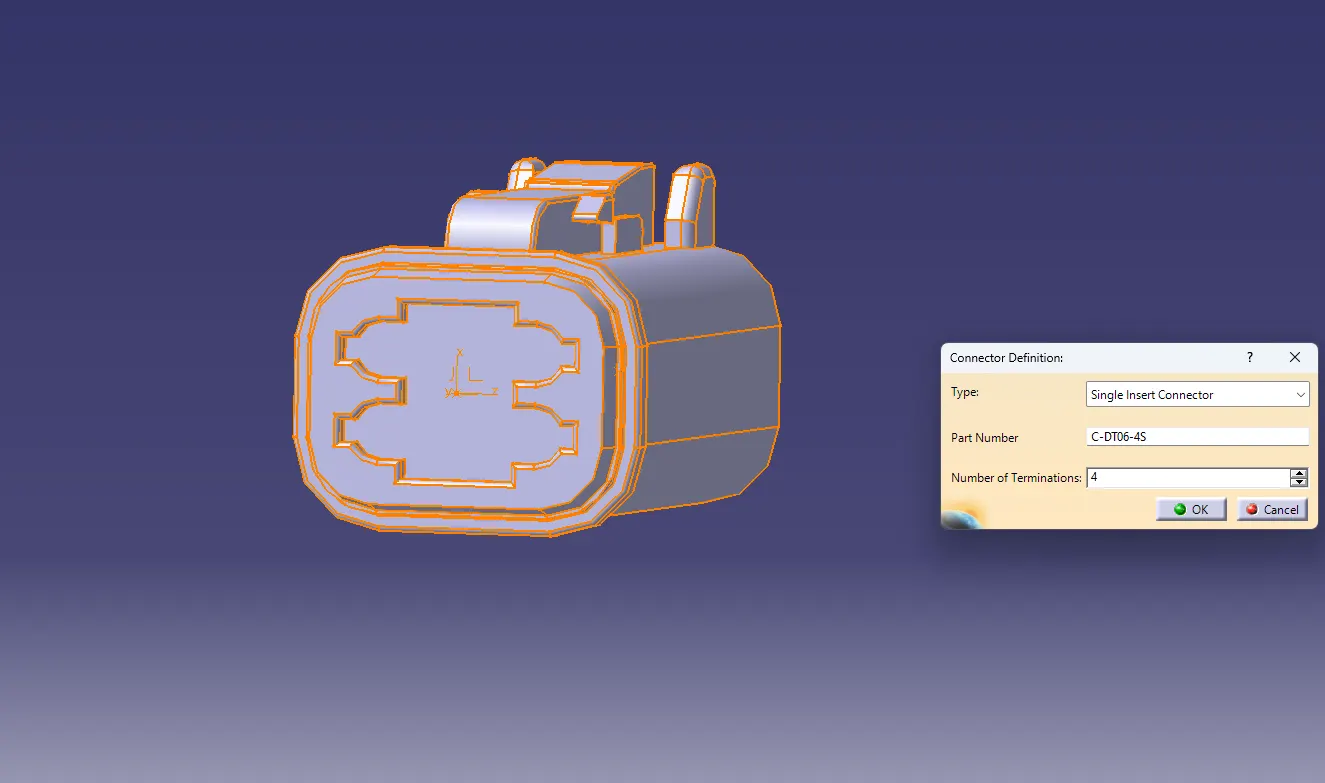

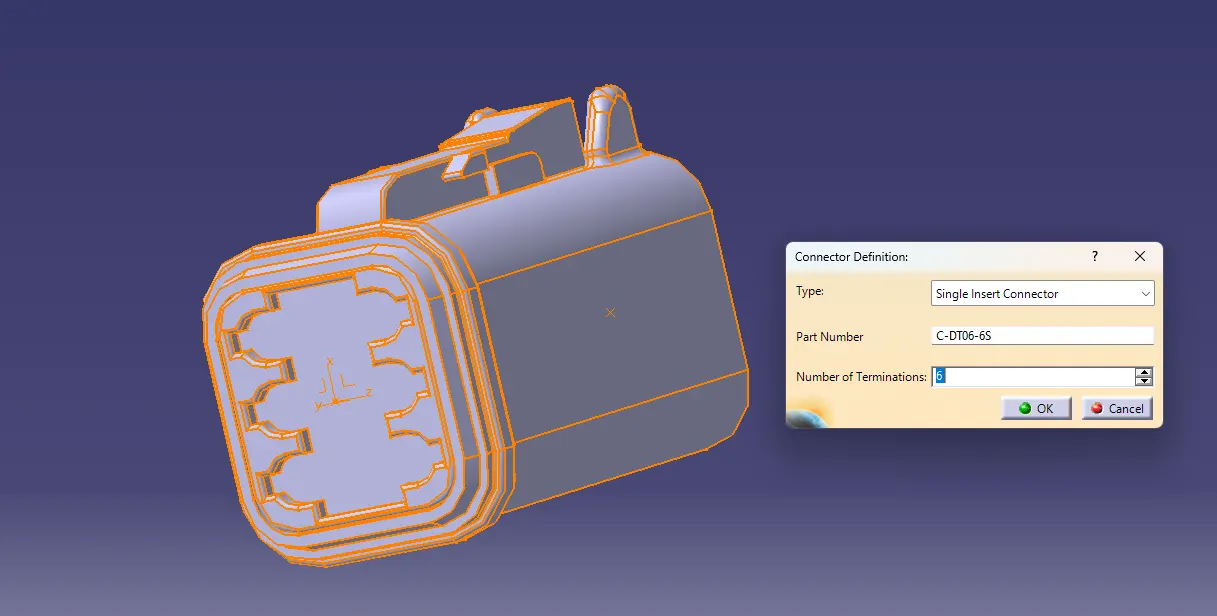

• Define part as electrical connector.

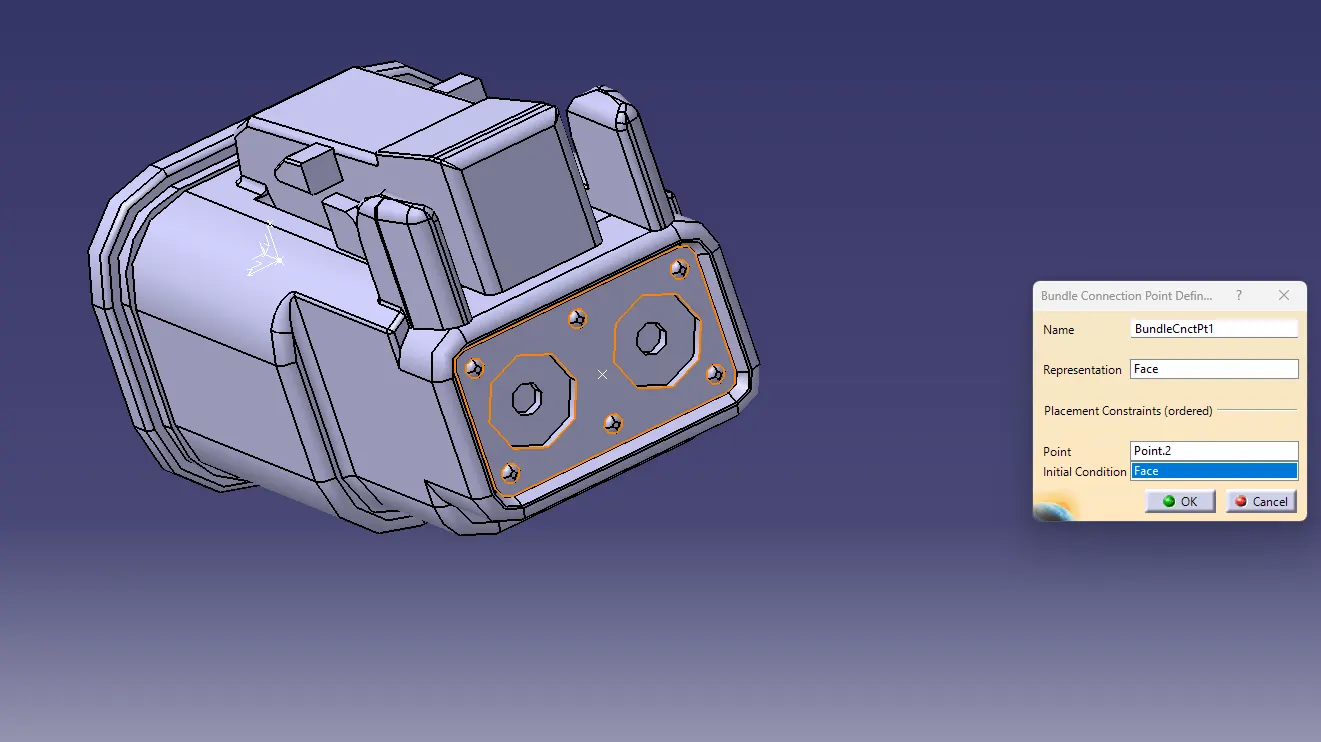

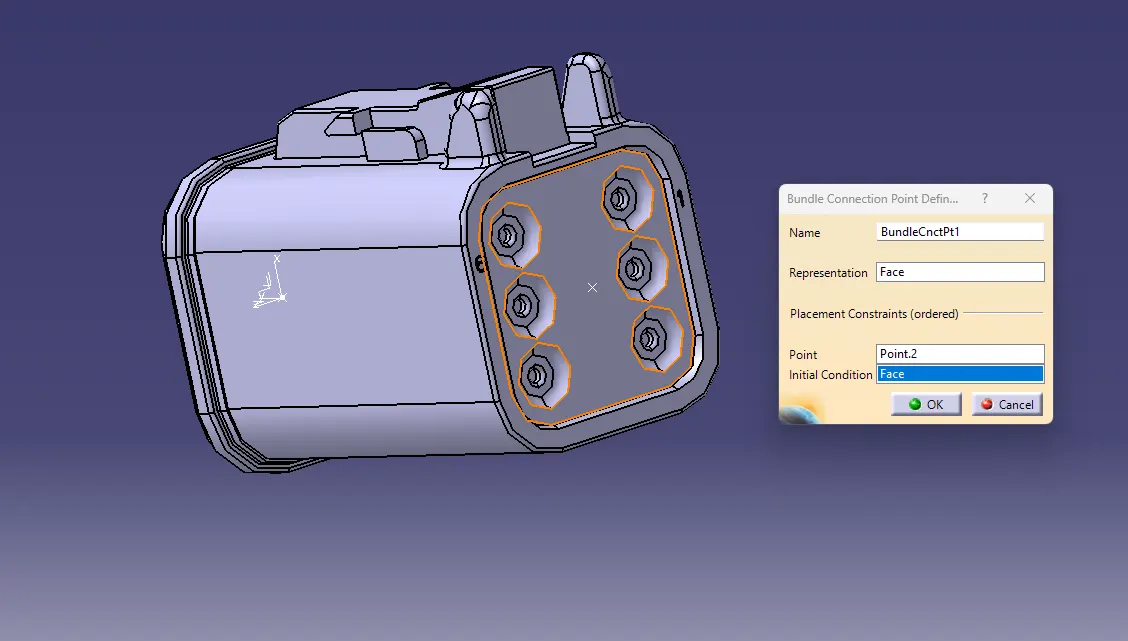

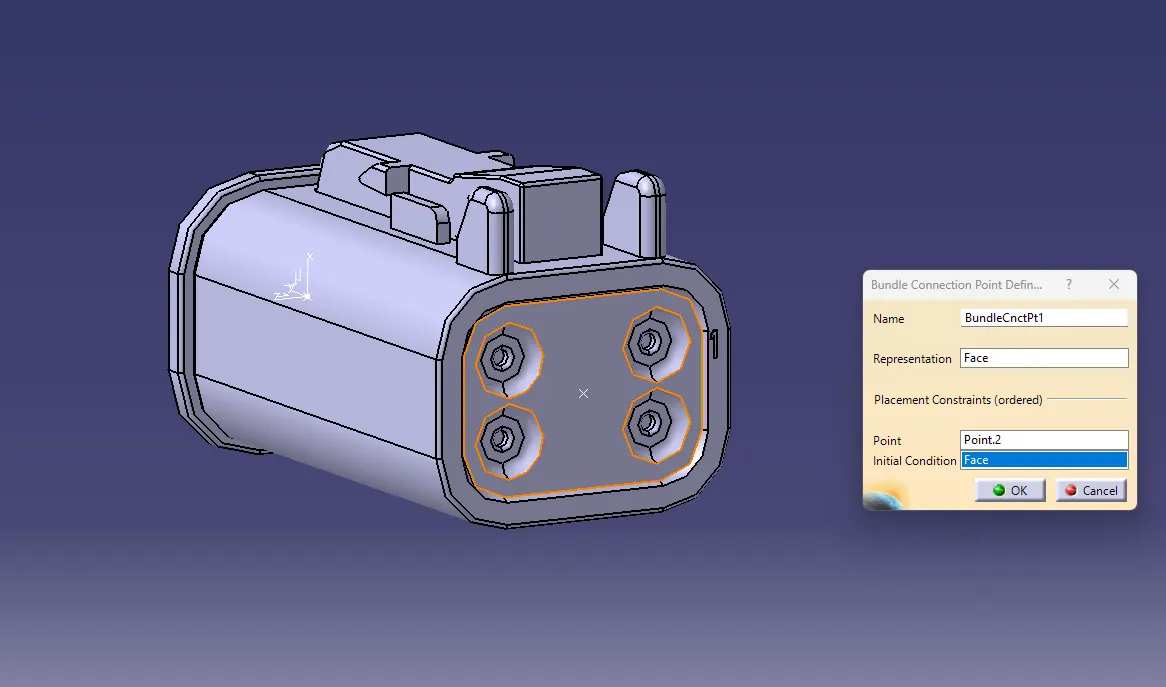

• Define bundle connection point.

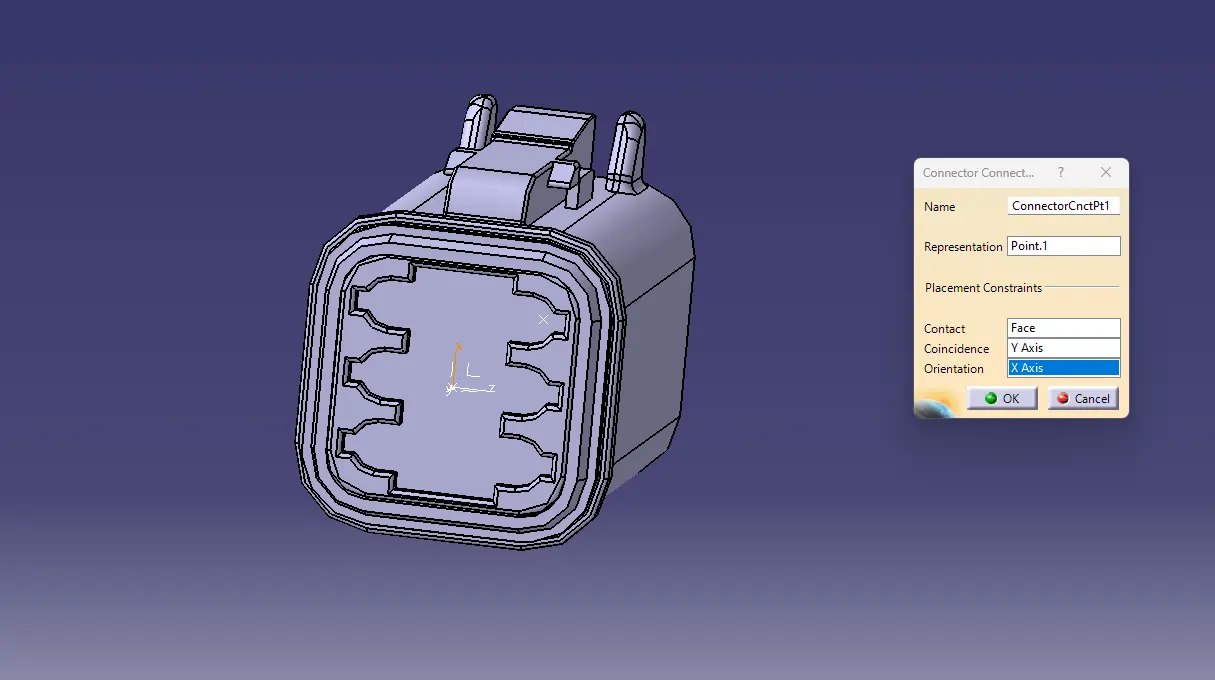

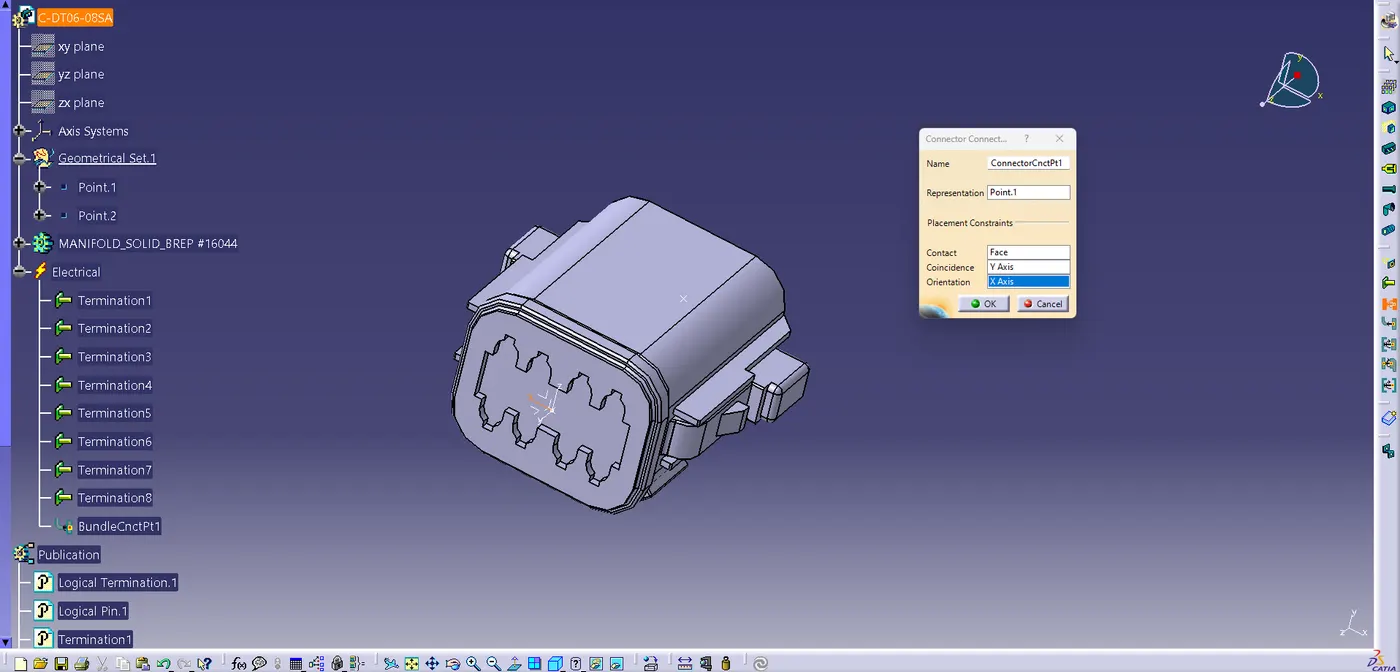

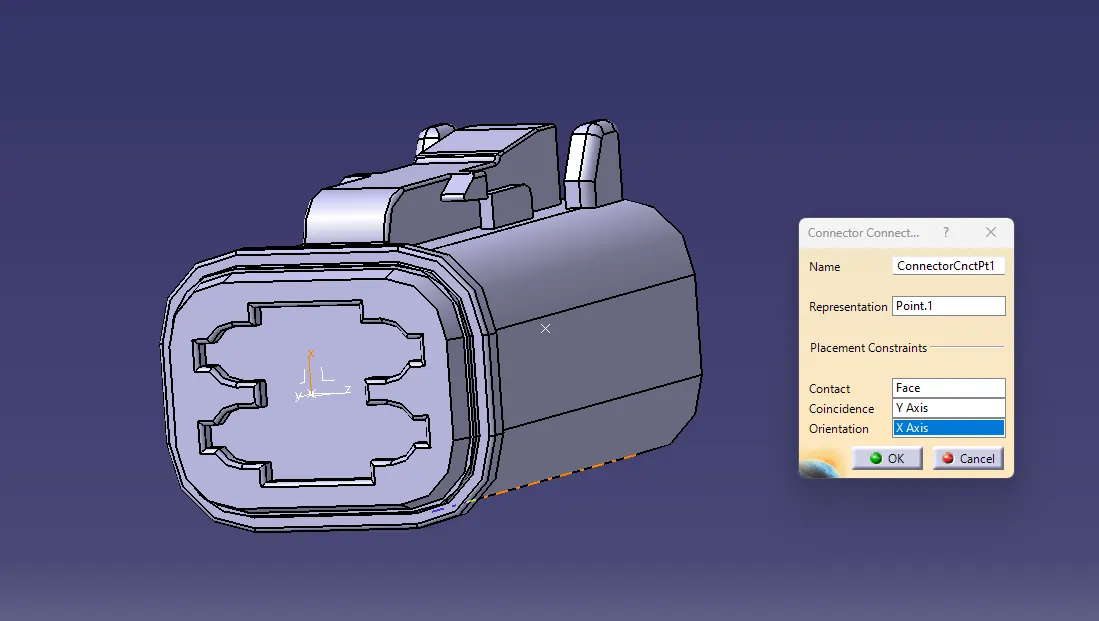

• Define connector connection point.
• Define cavity connection point.

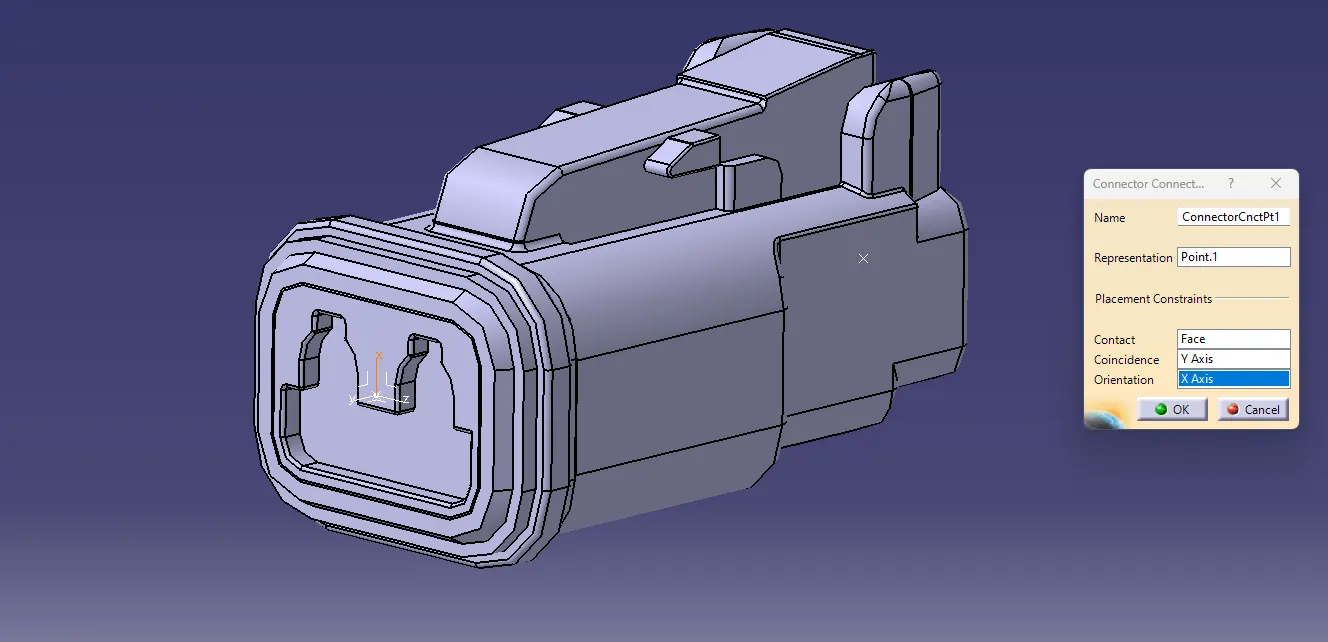

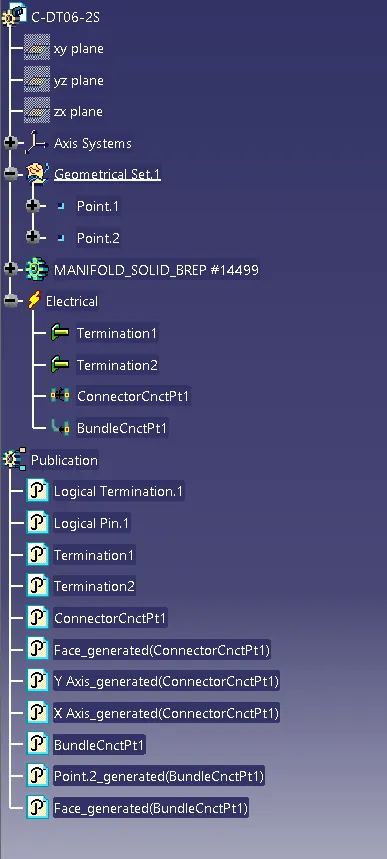

1.DT06-2S:

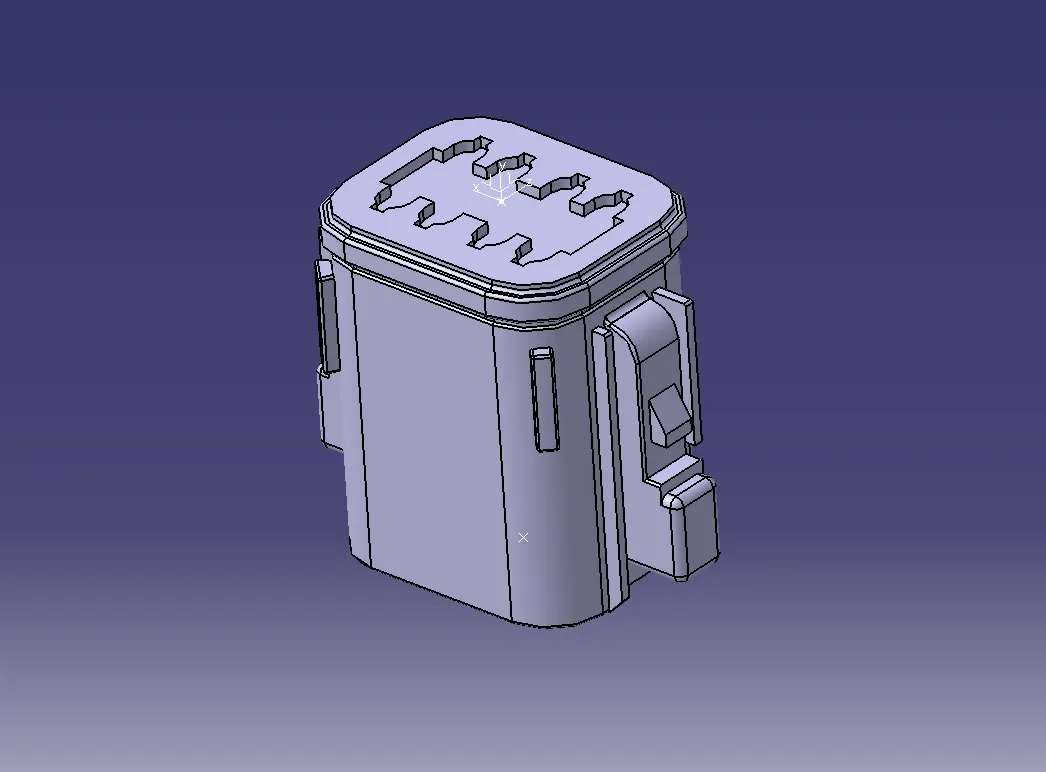

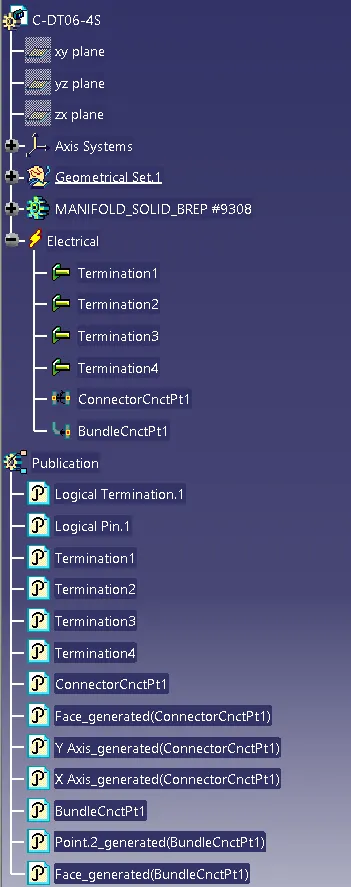

2.DT06-4S:

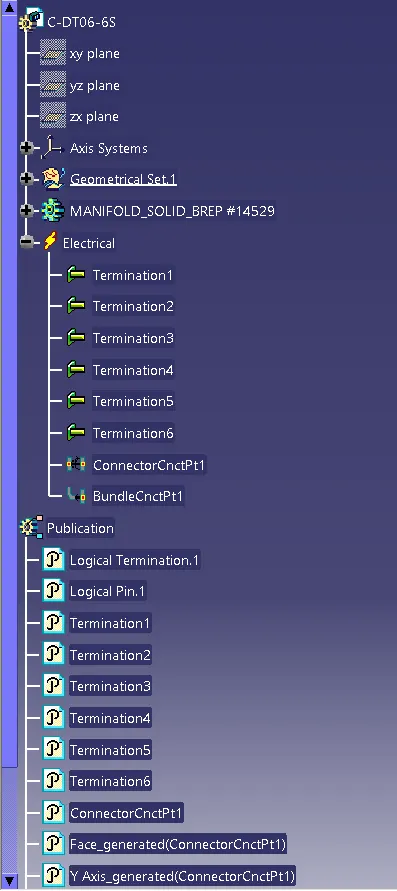

3.DT06-6S:

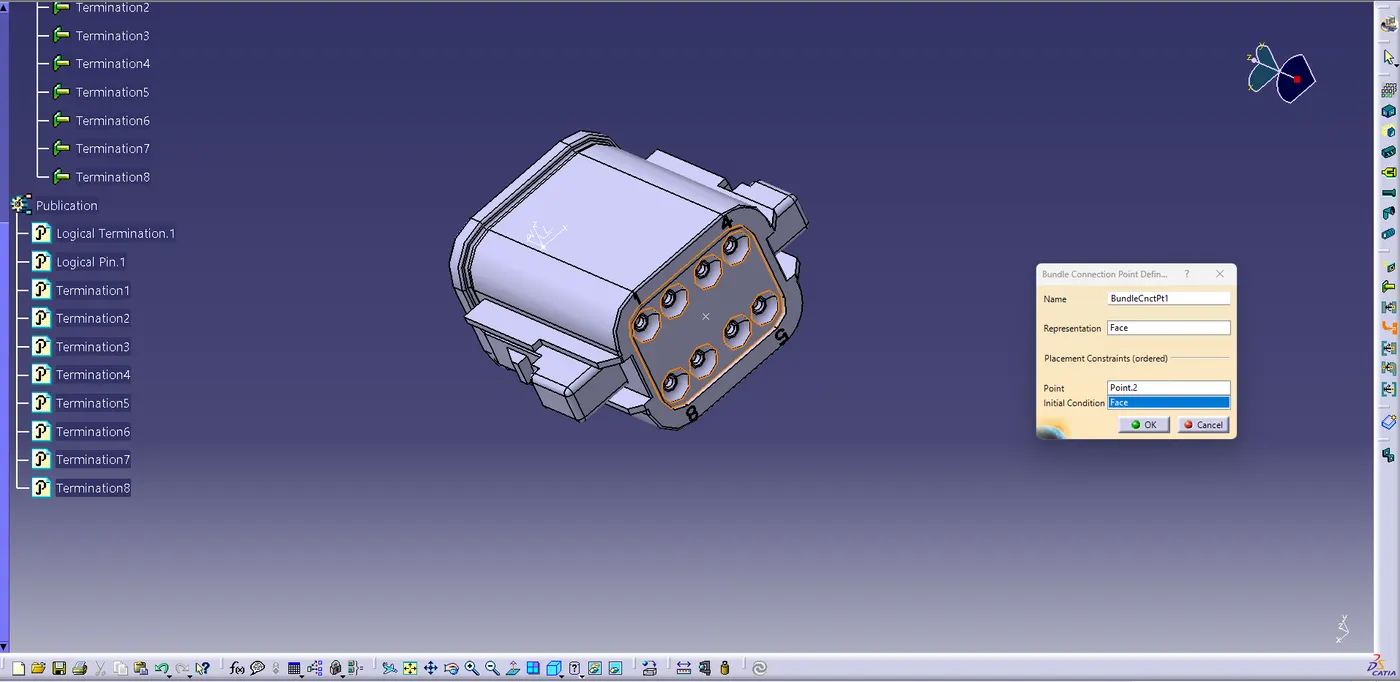

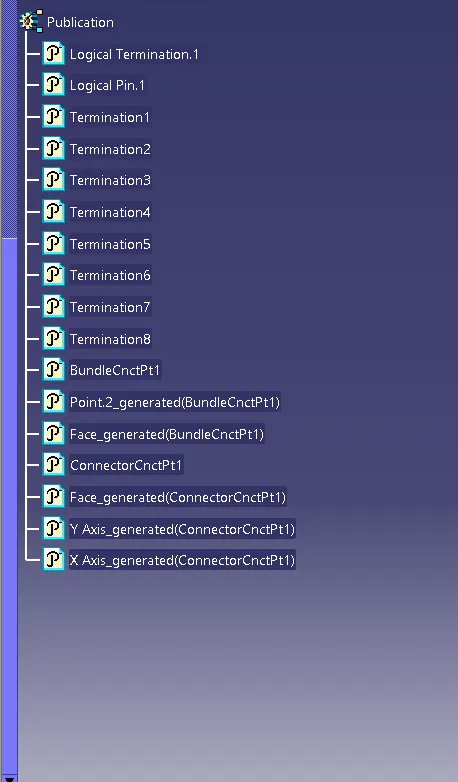

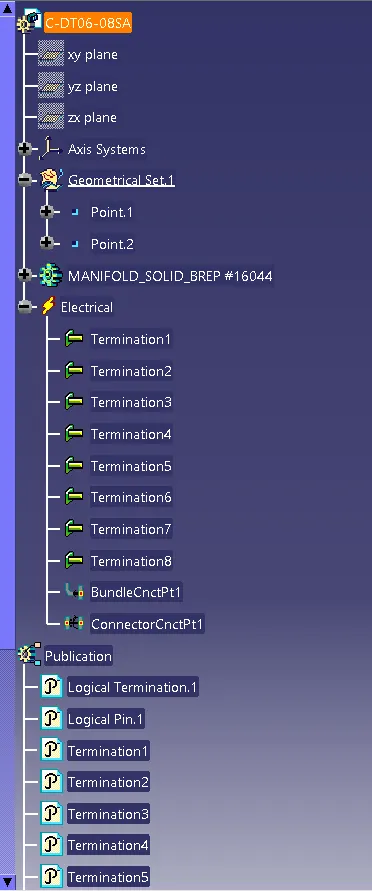

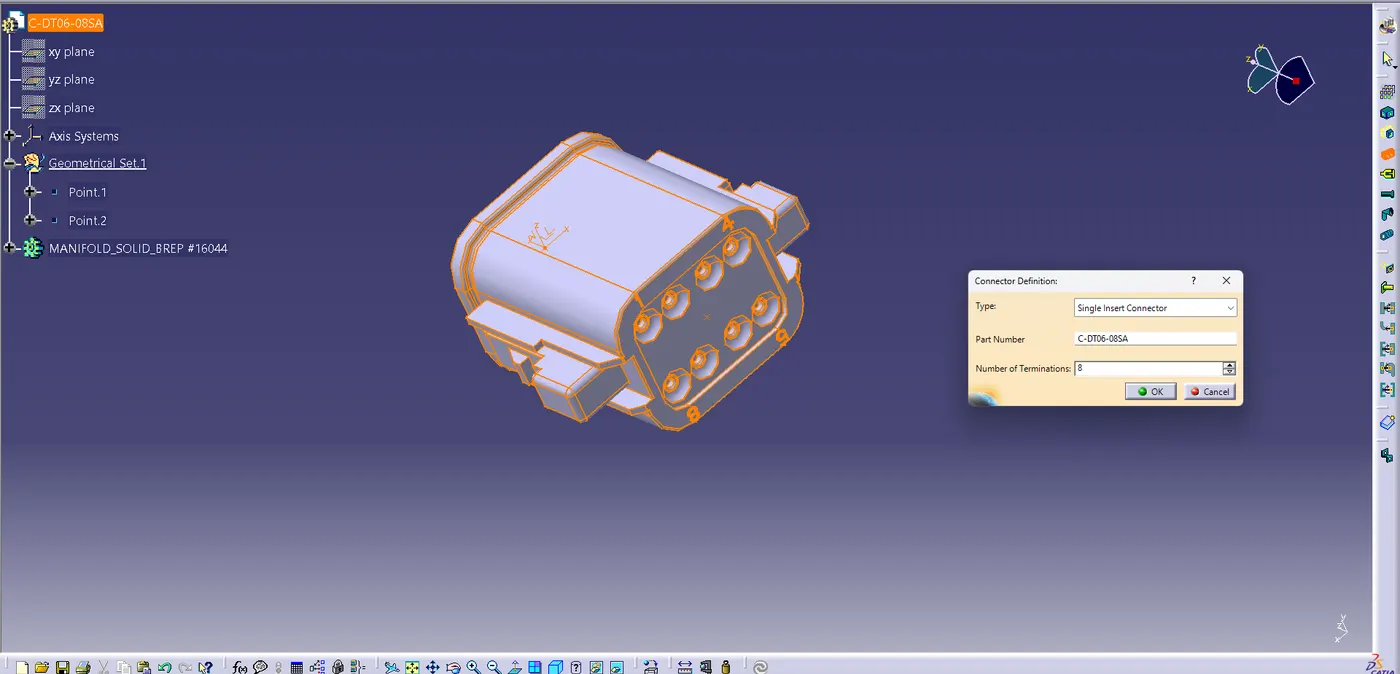

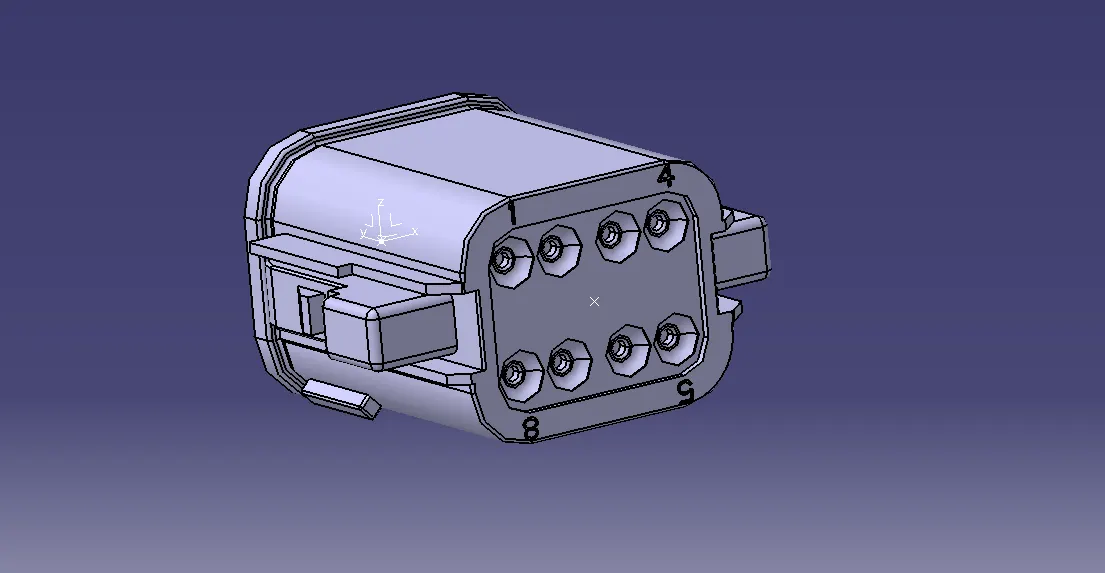

4.DT06-08SA:

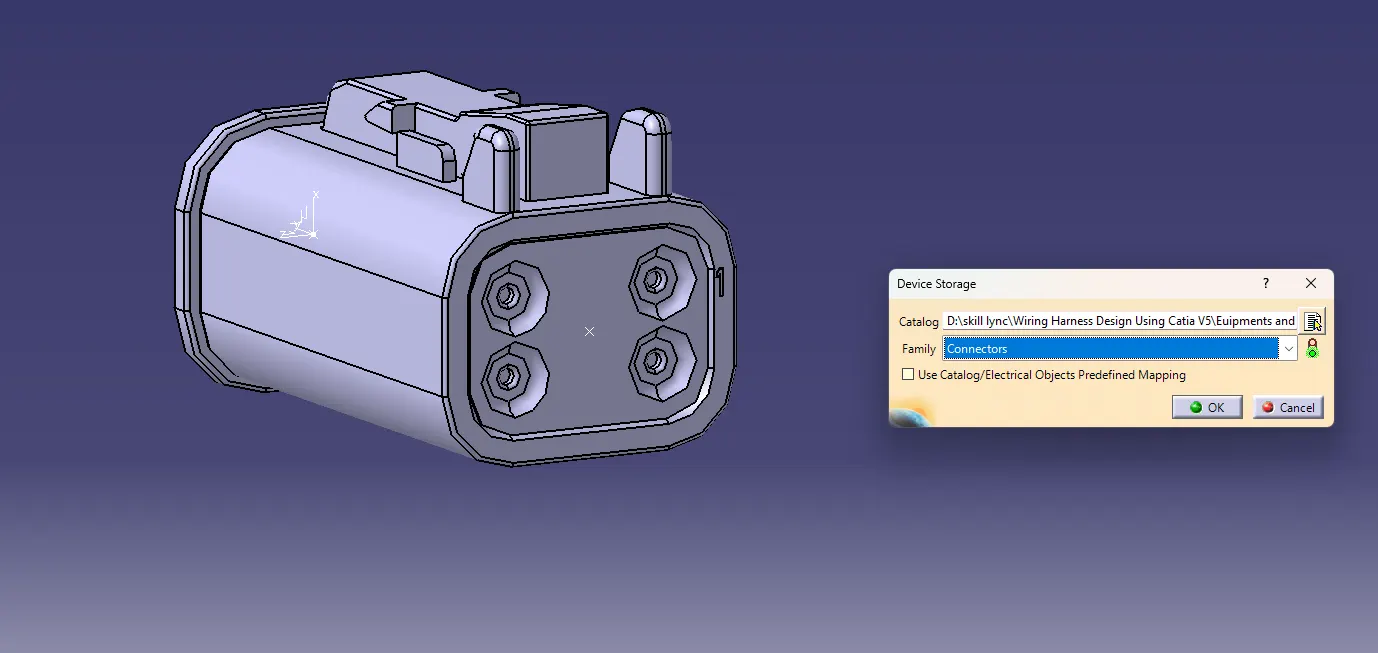

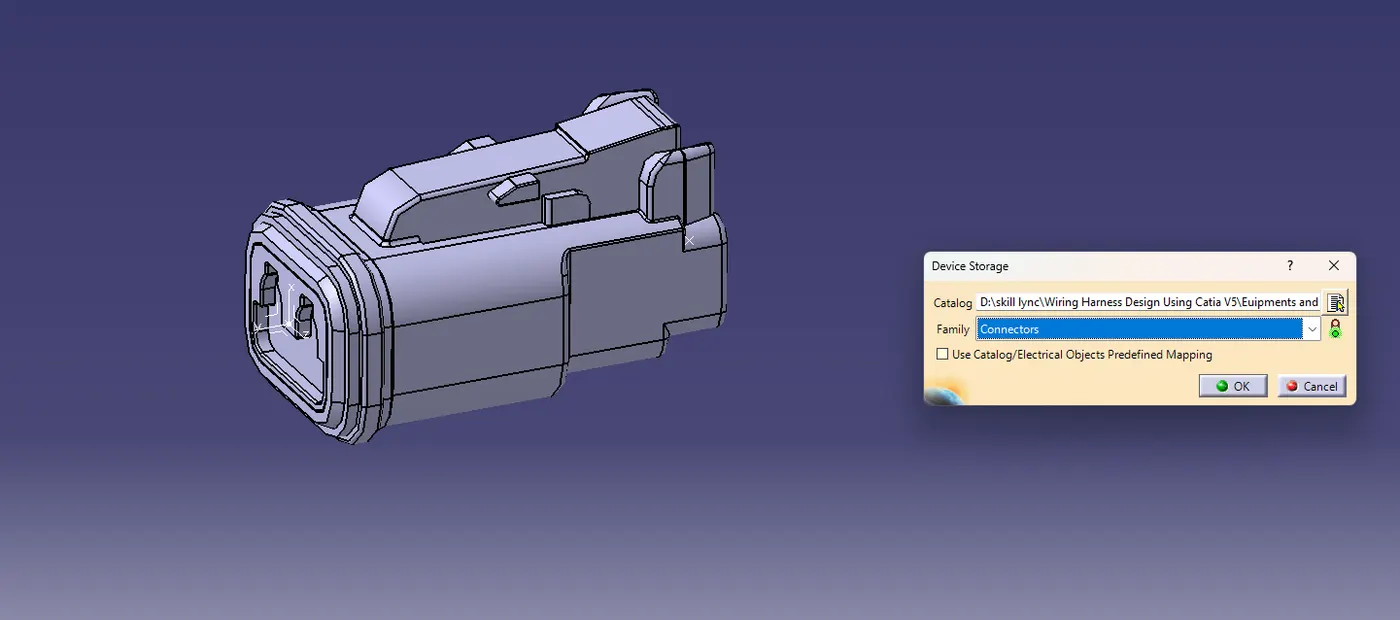

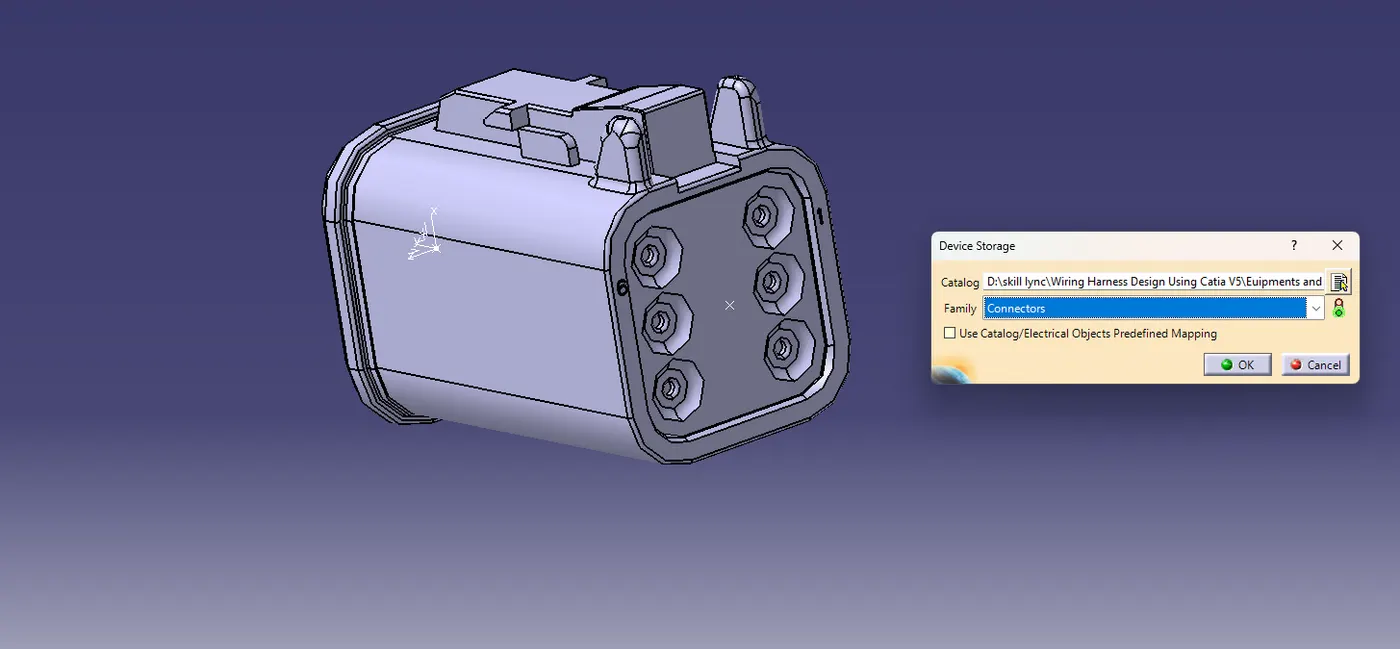

Add all the Electrically defined connectors to the connectors catalogue documents.

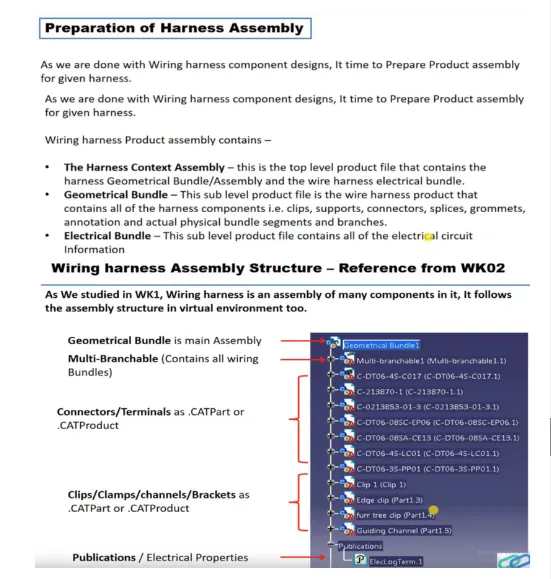

Assembly Workbench:

Input Diagram for proper allignment of connectors in the wiring harness assembly  is given below,

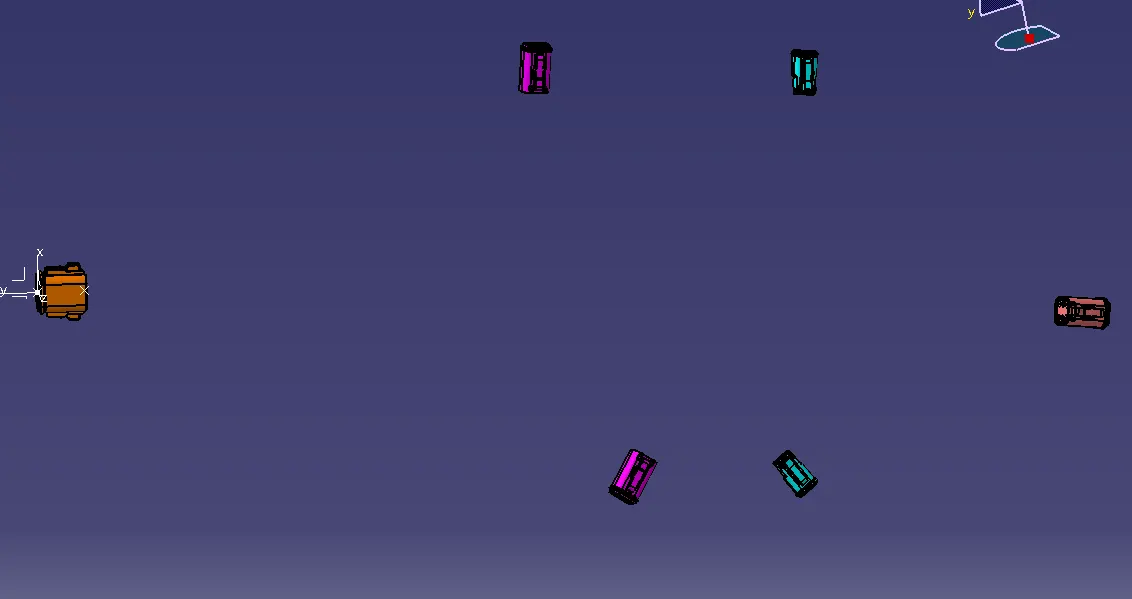

• Now add all the electrically defined connectors to the assembly workbench product file and positioning them according to the input drawing.

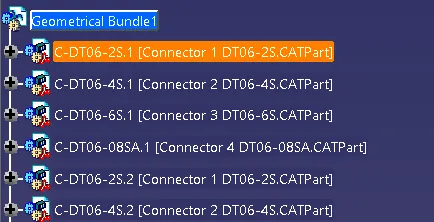

• Then in the Wiring Harness Assembly workbench we need to select the geometrical bundle and define the product electrically.

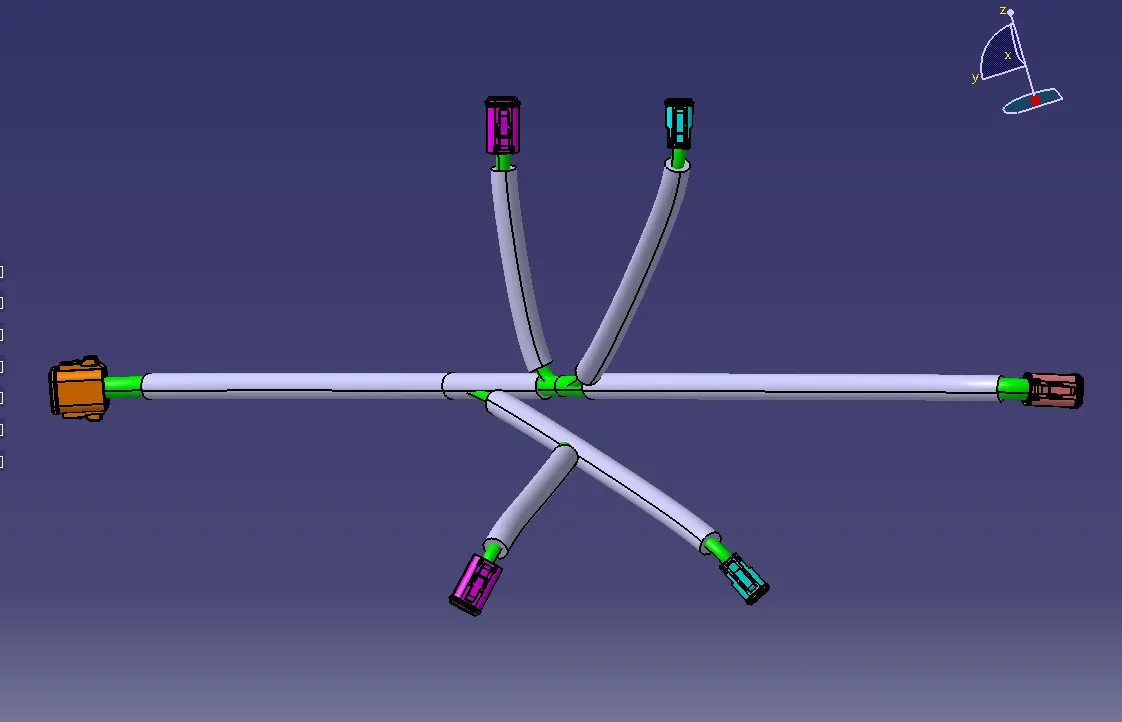

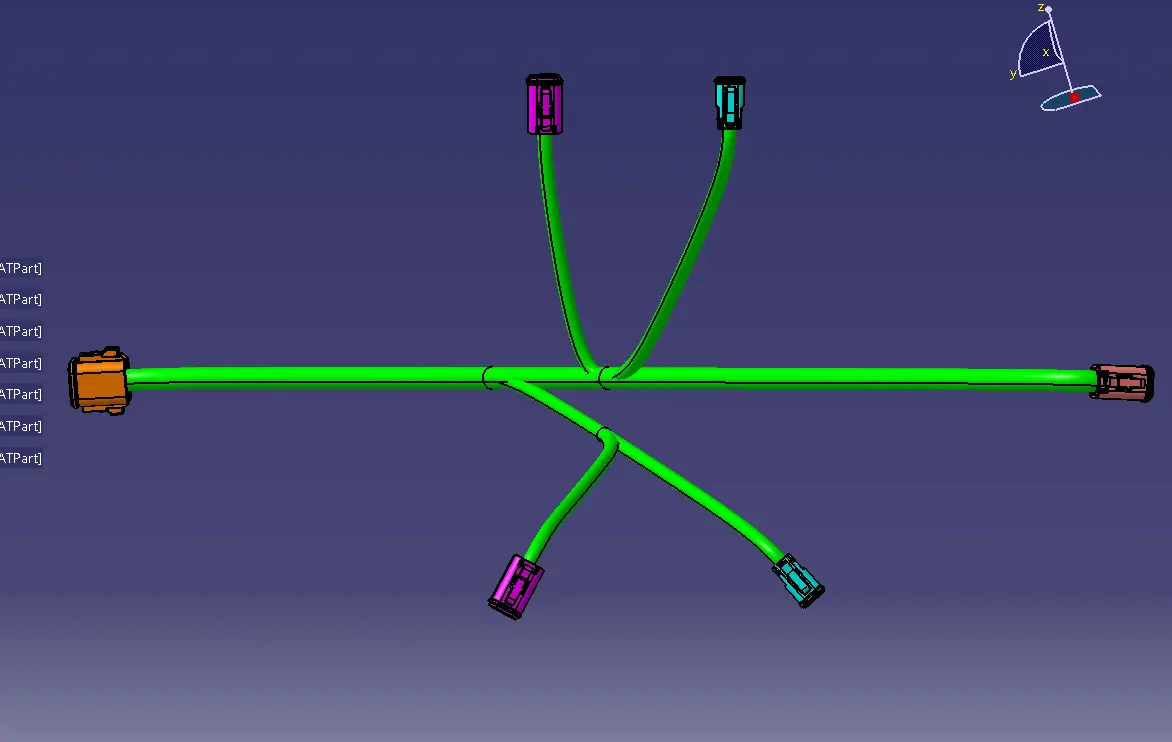

• Create main wiring harness bundle using the multi branchable option.
• Create branch points at requried spots for sub bundle segments.
• Now we can add the sub branch in the main trunk (branch).
• After creating the branches between the connectors,we can add the requried protective coverings on to the electrical harness assembly.
• COT tubes are already added to the challenge.

Conclusion:

  Thus all the connectors are electrically defined and wiring harness routing has been successfully created using CATIA V5 software.
