Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

All connectors have been defined electrically as shown below from the cataloue,

Report:

-Download the require 3D part in iges format

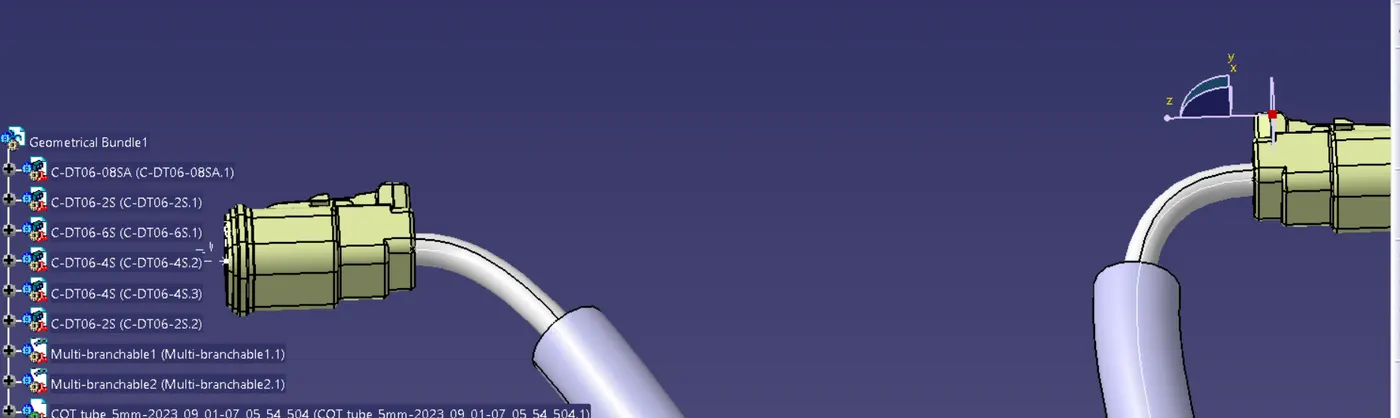

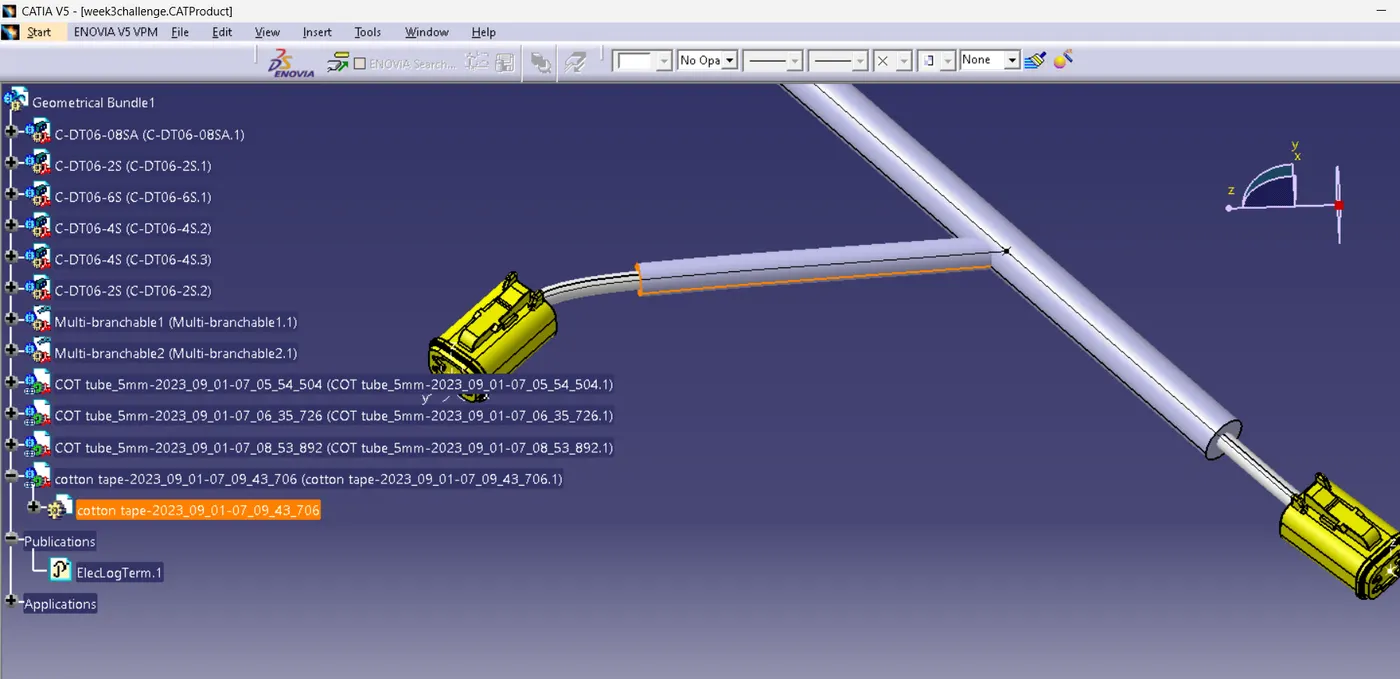

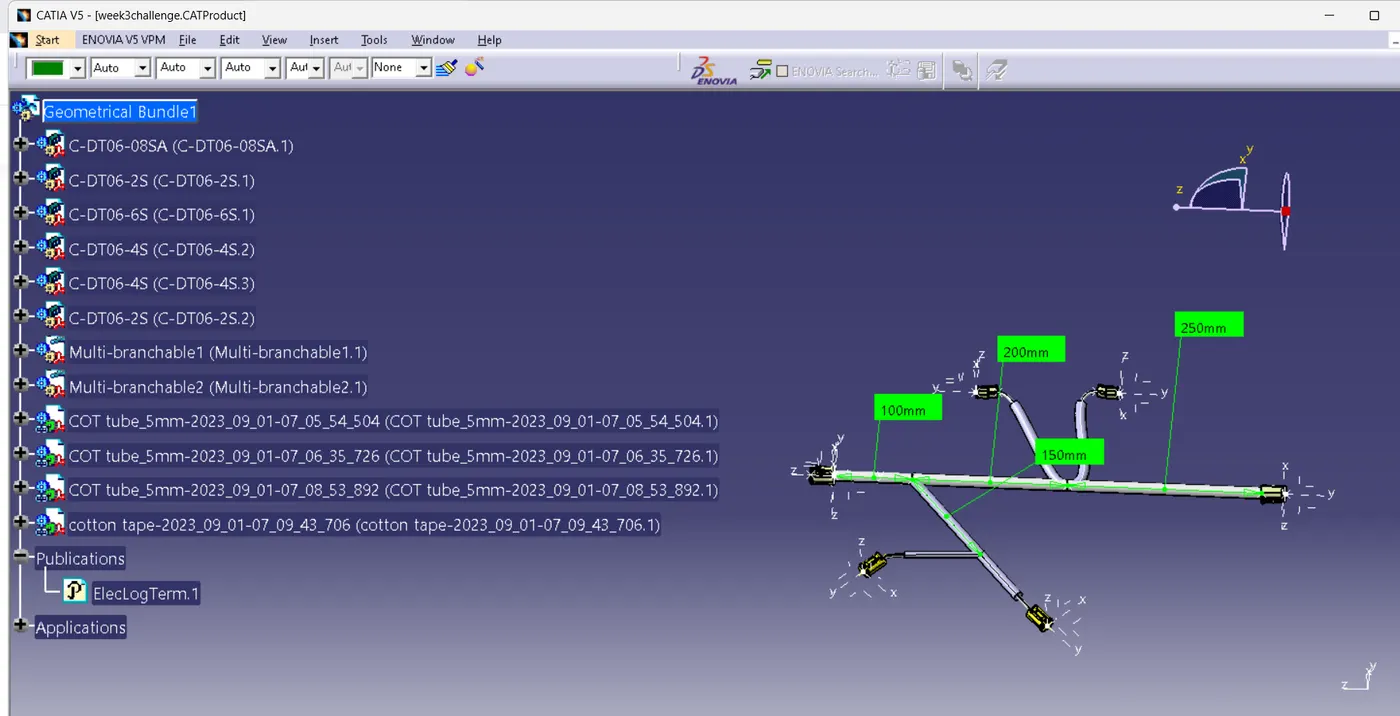

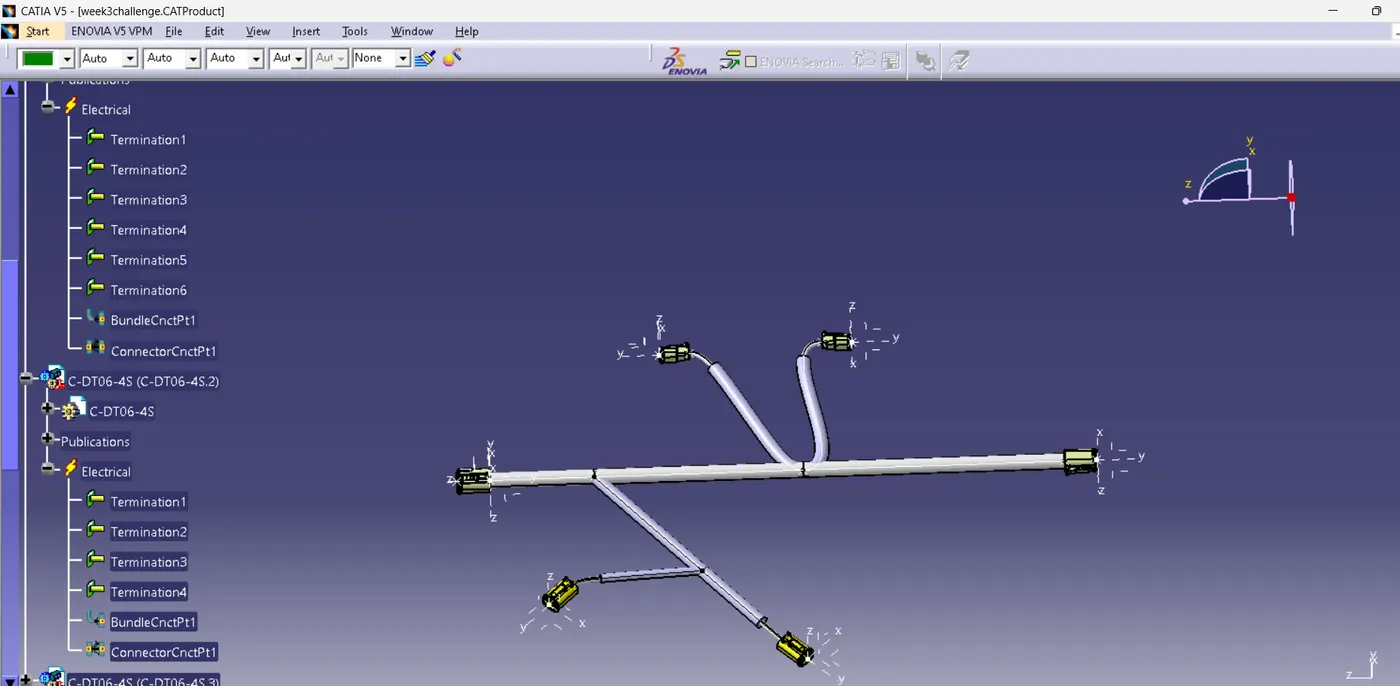

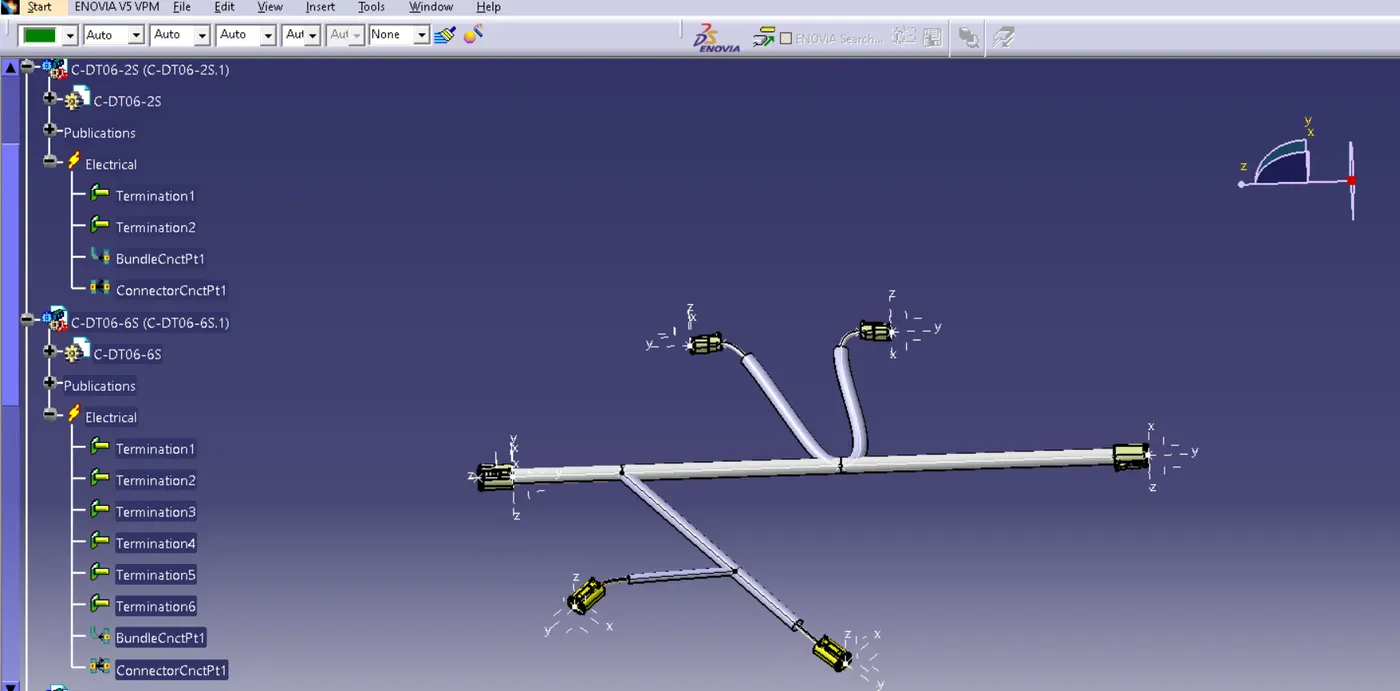

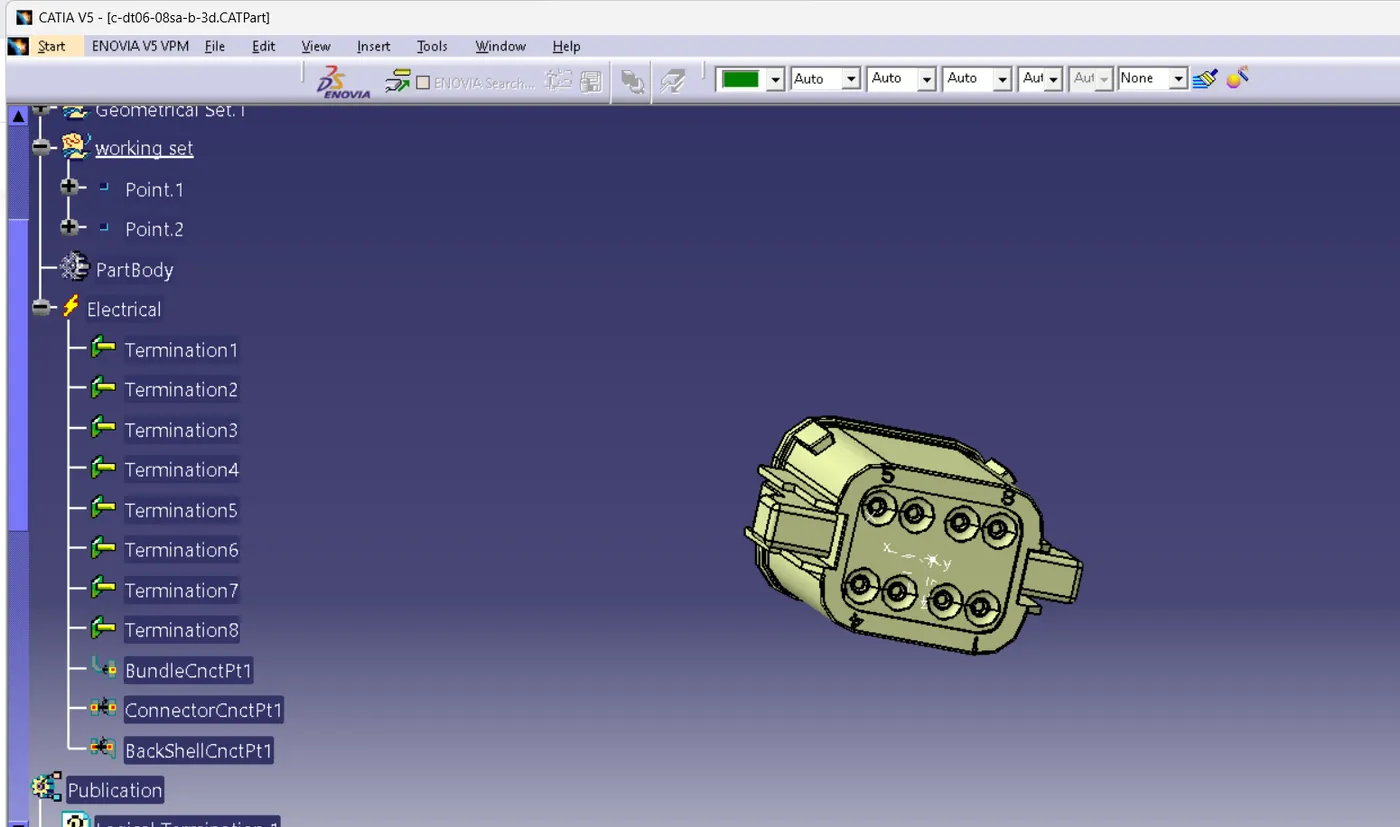

-Define the part in the electrical part design as a connector.

-Define the bundle connection point

-Define the connector connection point

To add parts into catalog, all the parts to be saved into a single folder.

Product file:

To create a product file

-Create the product file with the respective name

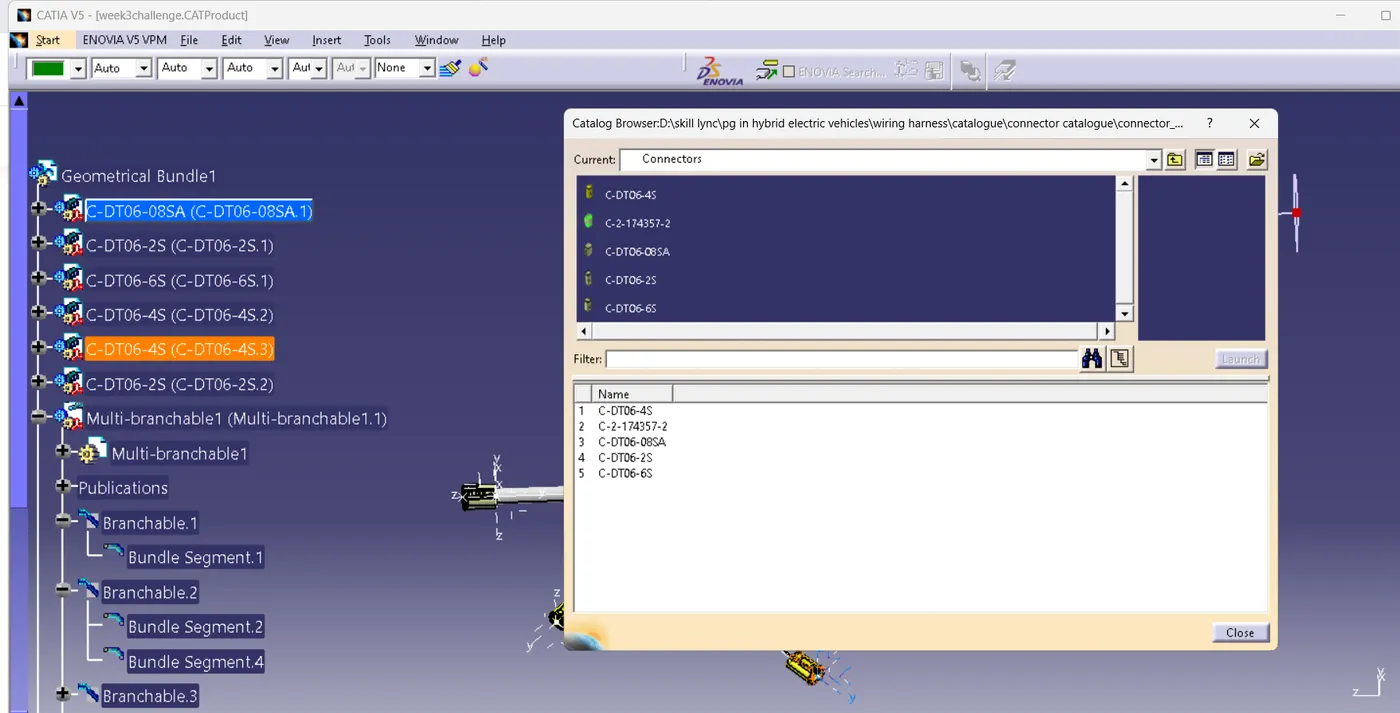

-choose Catalog browser to browse respective connector/protectuve parts as required.

-You can place the respective part at the respective location using a compass manipulation system.
