Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

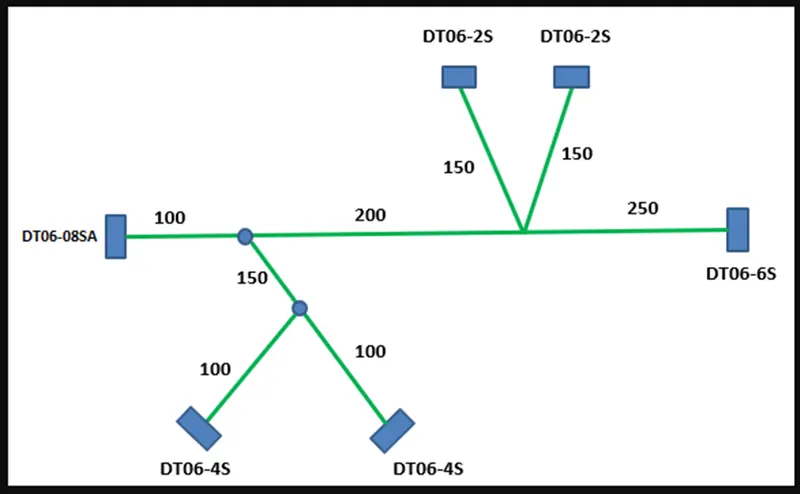

Q1. Route the following harness layout in Electrical workbench. Make assumption for harness bundle diameters. Use Following connectors as shown in layout diagram.

Add protective covering on all branches connected to DT06-2S & DT06-4S connectors. Keep end extremity at 30mm (from connectors end)

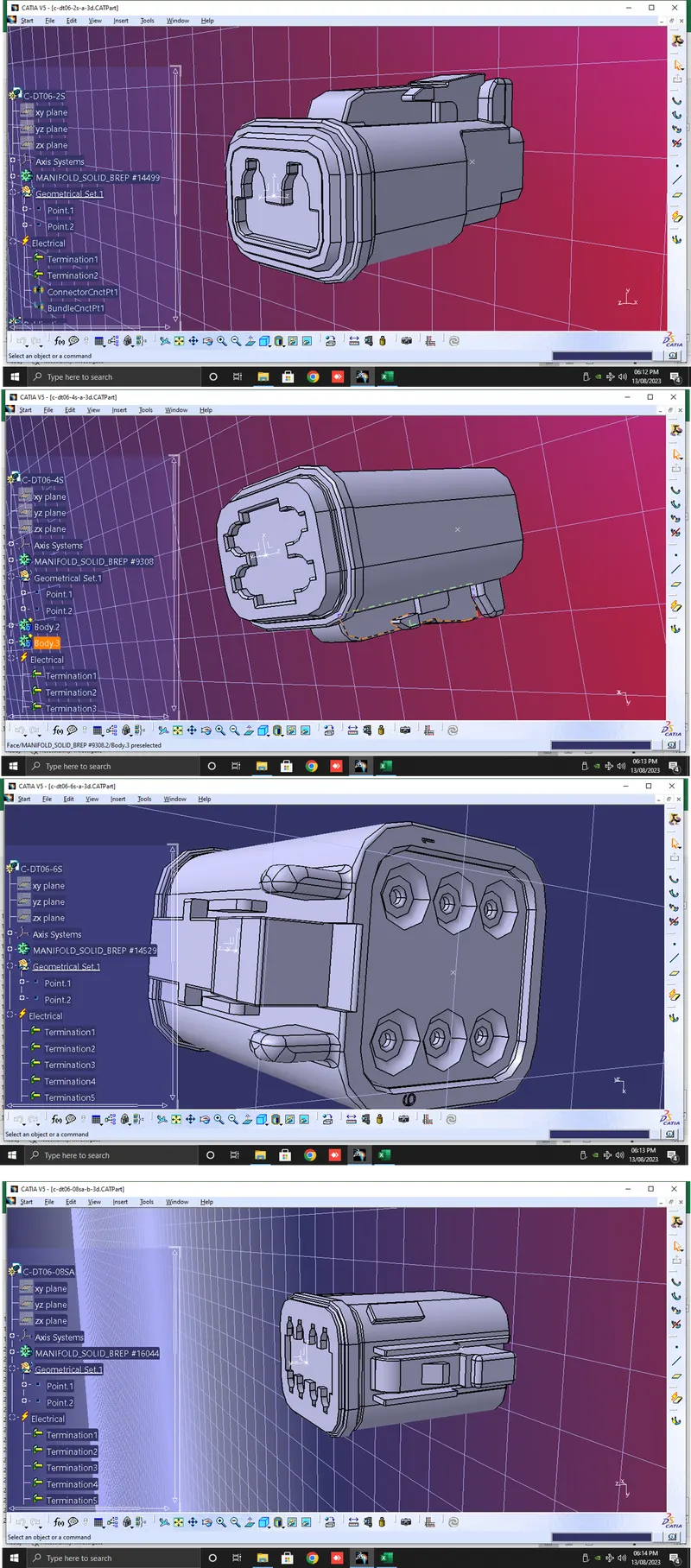

Download connector 3D data from www.te.com

• DT06-4S
• DT06-6S
• DT06-08SA

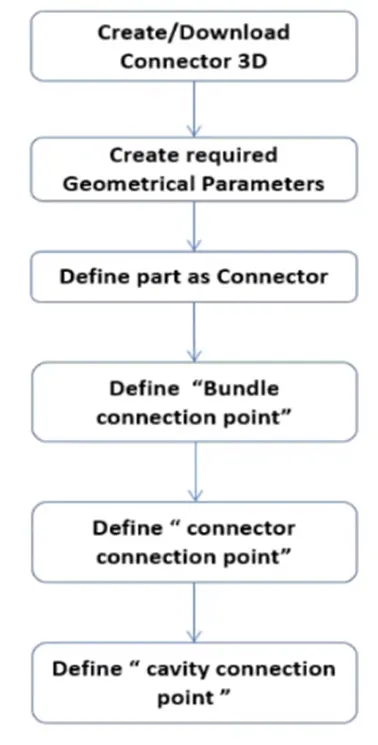

steps should be followed:

After doing the all the connectors as electrically define and the need to be positionong the connectors as per the layot given above.

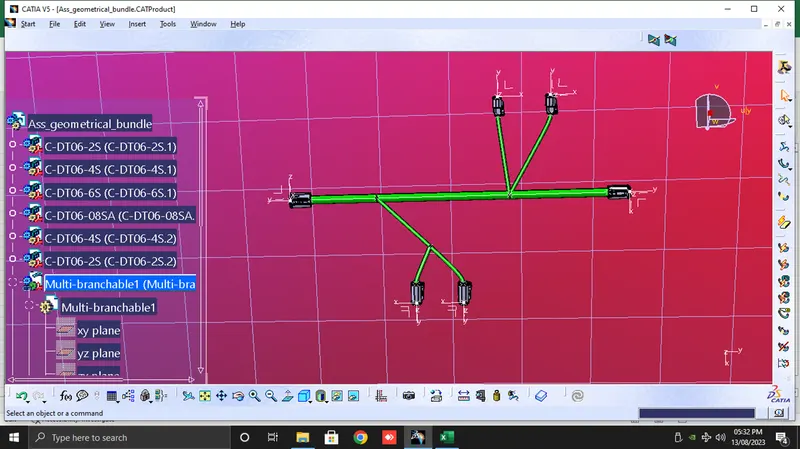

And then multi braching done to all connectors as per the lay out

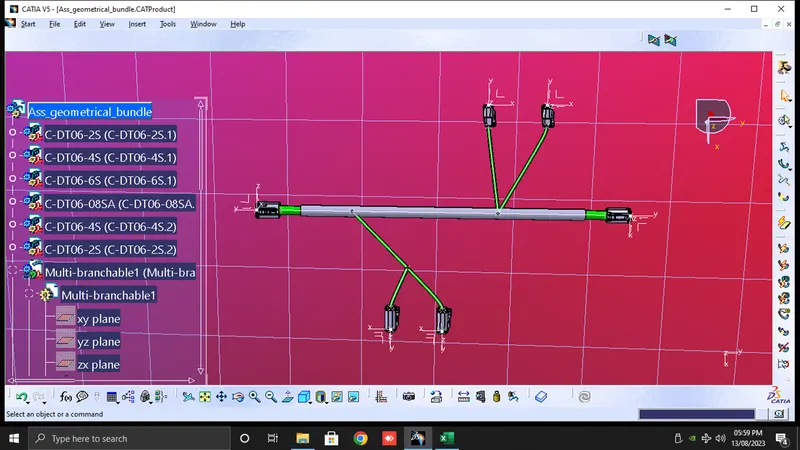

And creating the protective coverings to the wires
