Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

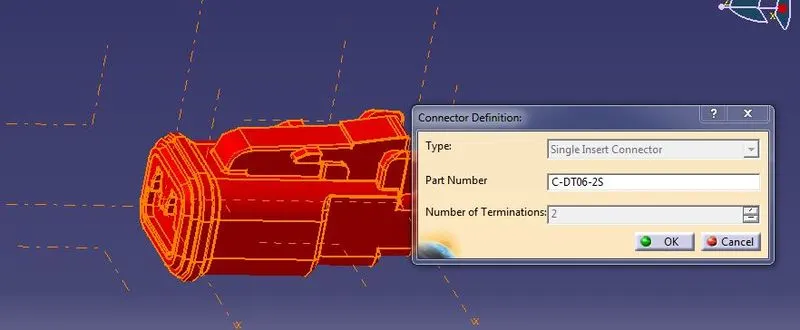

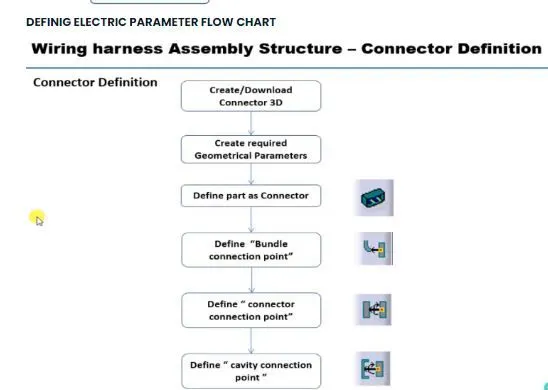

THE FOLLOWING CONNECTORS ARE DOWNLOADED AND CONVERT IT FROM MECHANICAL TO ELECTRICAL AND ADD INTO THE CONNECTOR CATLAGOUE.

BY FOLLOWING ABOVE STEPS 3D PART IS CONVERT TO ELECTRICAL AND ADDED TO CONNECTOR CATALOUGE.

LAYOUT

STEPS

IN ASSEMBLY DESIGN INSERT THE ALL REQURIMENT PART FROM THE CATALOGUE
CREATE THE LAYOUT IN PART DESIGN AND ADD IT IN PRODUCT
PRODUCT FILE IS DEFINED AS ELECTRICAL IN ELECTRICAL HARNESS ASSEMBLY

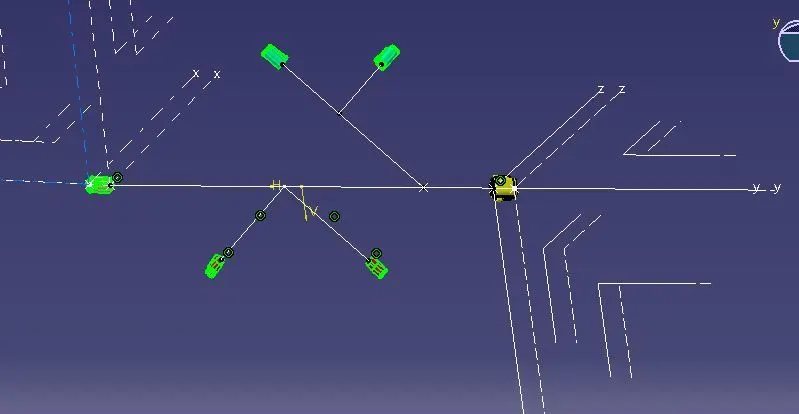

POSITION ALL THE CONNECTOR AS PER THE LAYOUT

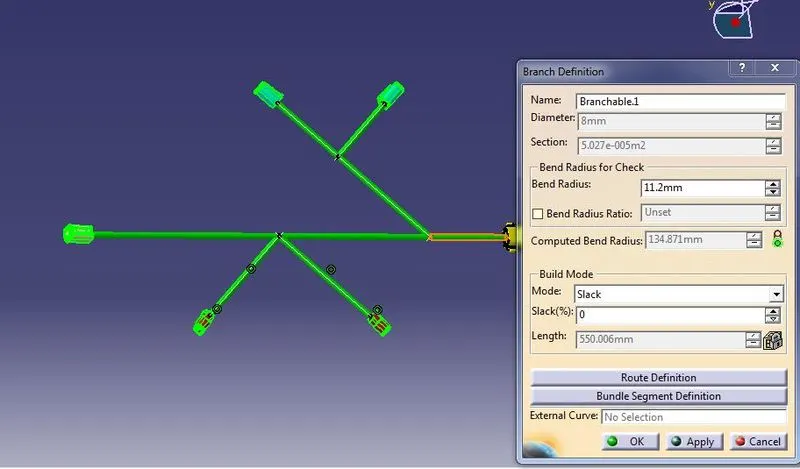

BRANCH DEFINITION IS DONE ,IN THAT DIAMETER AND ITS BENDING RADIUS ARE MENTIONED.

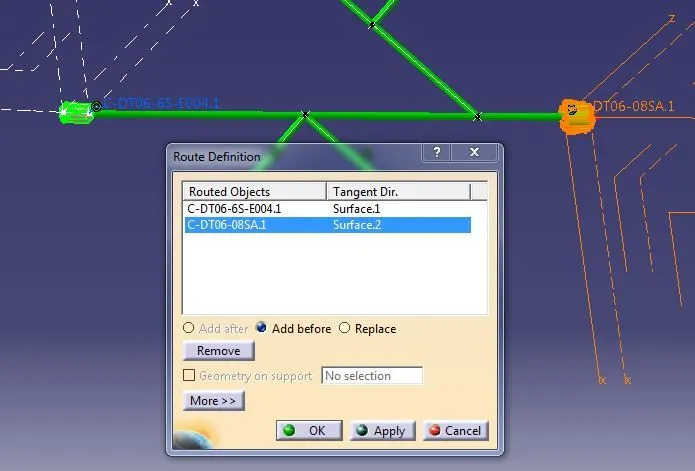

ROUTE DEFINITION IS DONE , FROM WHICH CONNECTOR TO WHICH CONNECTOR IS SELECTED
CREATE A BRANCH POINT AS PER LAYOUT REQURIMENT.
BRANCH DEFINITION AND ROUTING DEFINITION DONE FOR THE REMAINING CONNECTORS AND POINTS

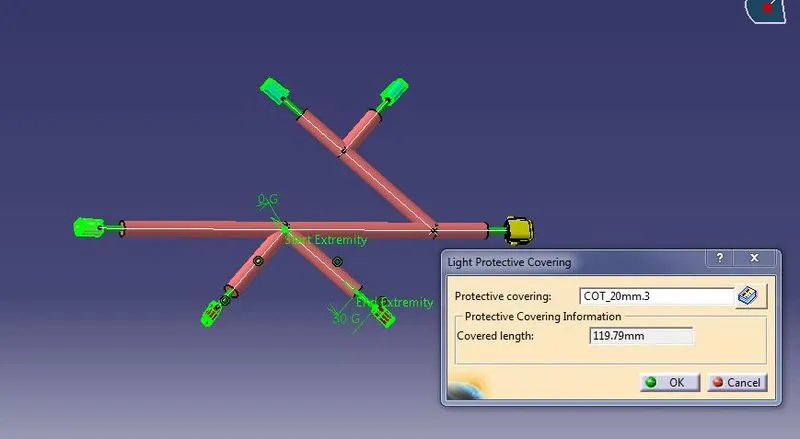

LIGHT PROTECTIVE COVER IS APPLIED FOR ALL THE BRANCHS , SELECT THE SUTIABLE COVER FROM THE CATALOUGE.
