Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

1) Download the .STP/.IGS file of the connectors from the TE CONNECTIVITY site.

CONNECTORS

1) DT06-4S

2) DT06-6S

3) DT06-2S

4) DT06-08SA

2) ELCTRICALLY DEFINE THE EACH CONNECTERS AND STORE THEM INTO THE CATALOG.

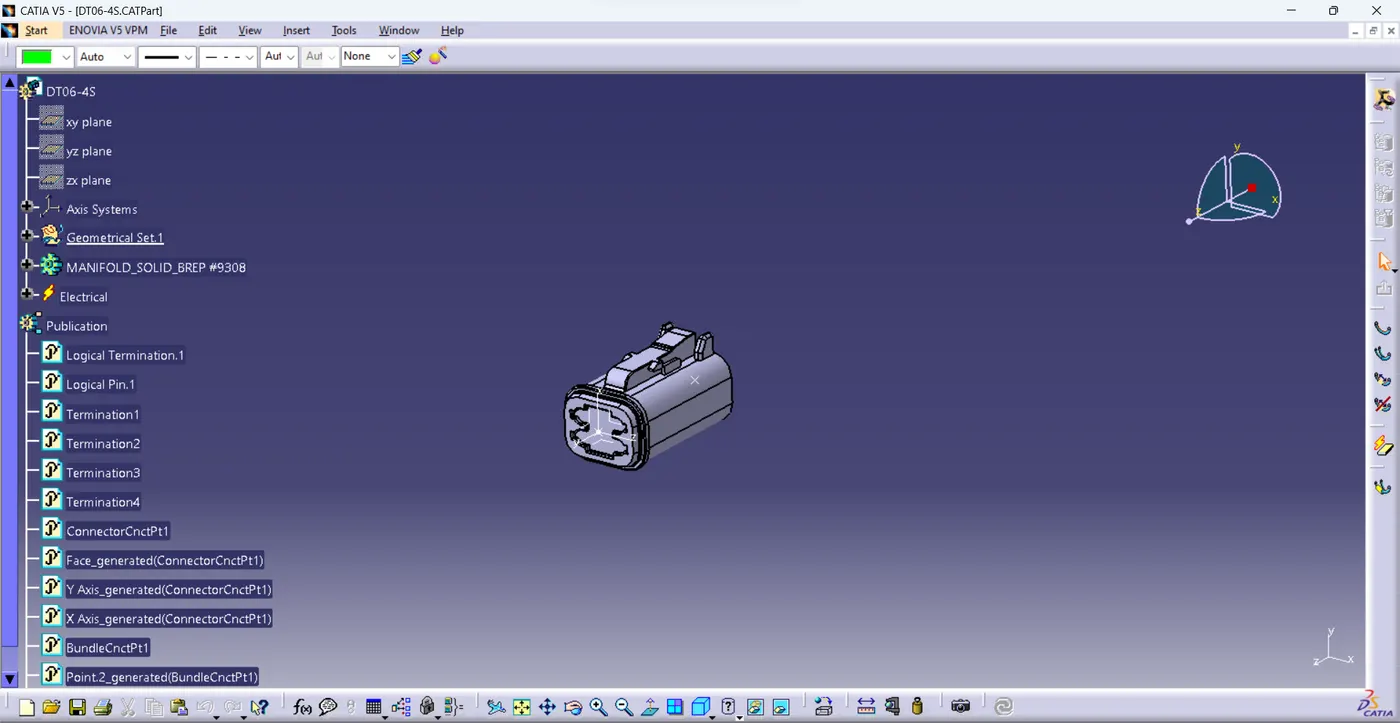

A) DT06-4S

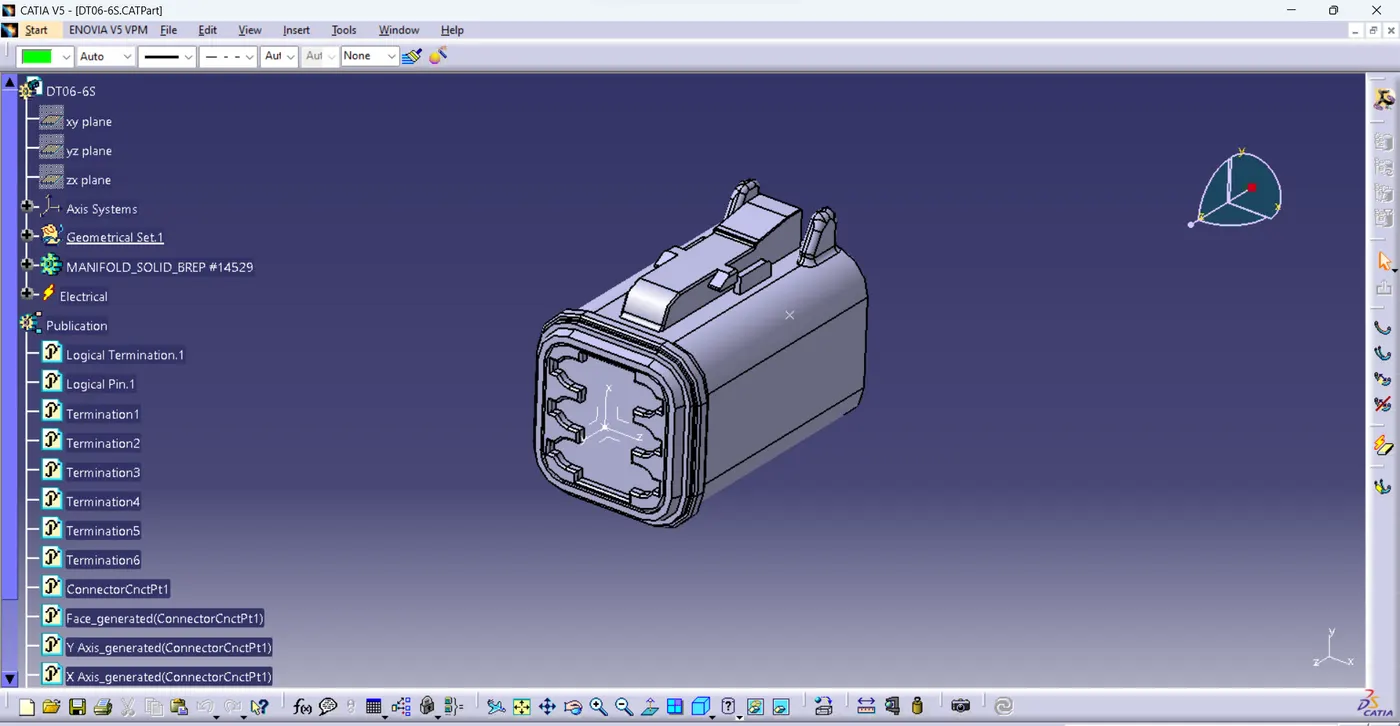

B) DT06-6S

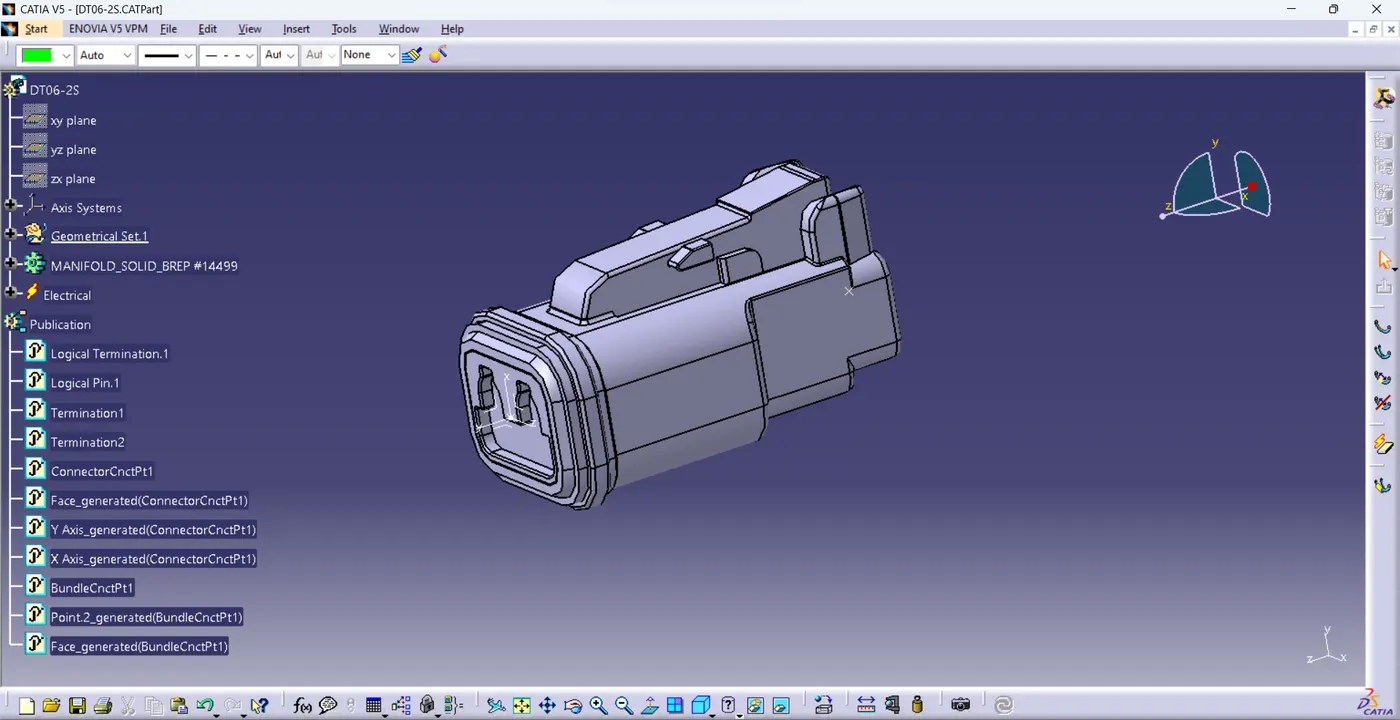

3) DT06-2S

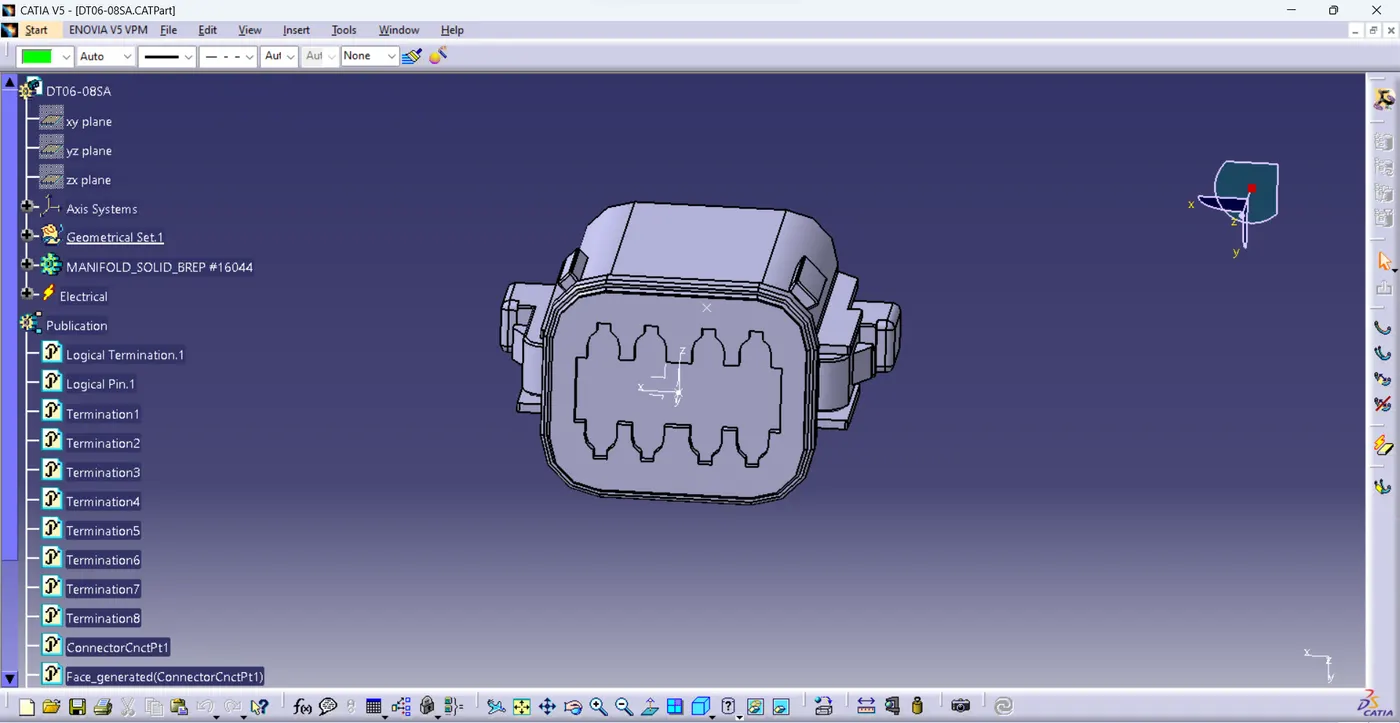

4) DT06-08SA

3) PLACE THE CONNECTORS AS PER THE DRAWING, BY USING SNAP, SMART MOVE, MANIPULATE FEATURES.

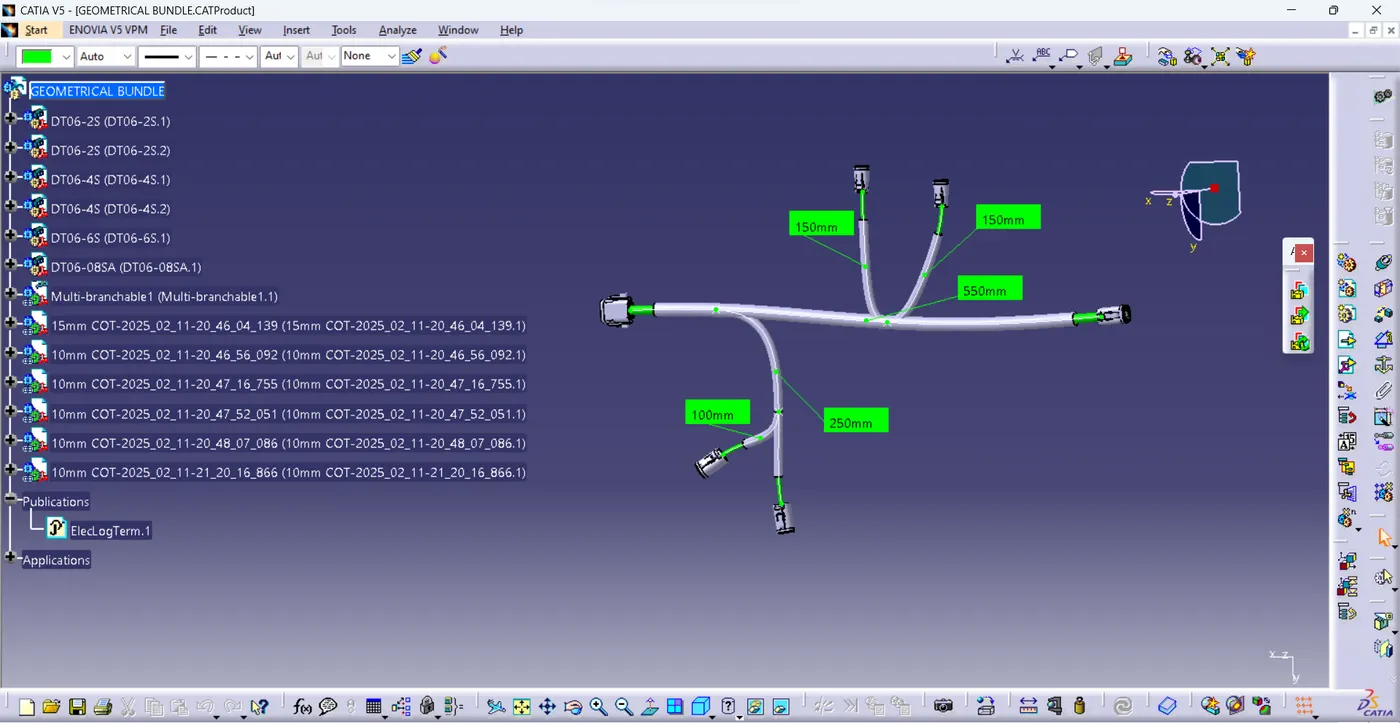

4) ROUTE THE HARNESS AS PER THE DRAWING WITH BUNDLE DIA OF 10MM, 5MM REPECTIVELY.

5) APPLY THE LENGTH FOR EACH BRANCH WHILE DEFING THE BUNDLE.

7) APPLY THE PROTECTIVE COVERING FOR EACH BRANCH.
