Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge
Q1. Route the following harness layout in Electrical workbench. Make assumption for harness bundle diameters. Use Following connectors as shown in layout diagram.
Add protective covering on all branches connected to DT06-2S & DT06-4S connectors. Keep end extremity at 30mm (from connectors end)
Download connector 3D data from www.te.com
- DT06-4S
- DT06-6S
- DT06-2S
- DT06-08SA
procedure for defining connector into elctrical part

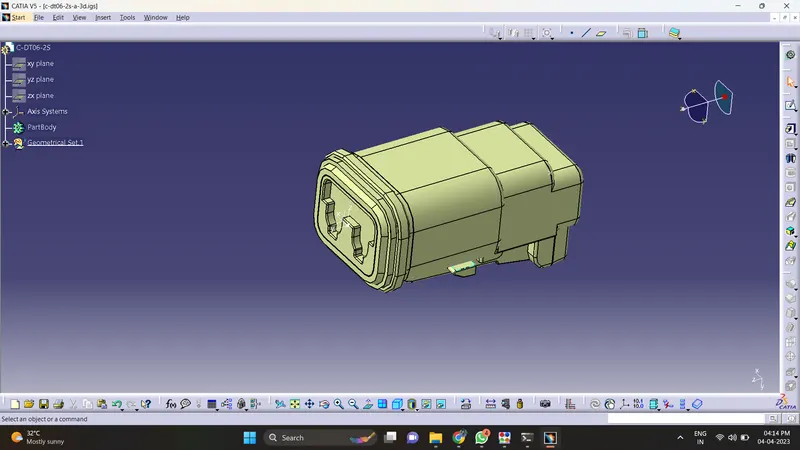

- Download the connector from the given link.
- Load the connector in mechanical part design and given point and axis by using point definition and axis definition.

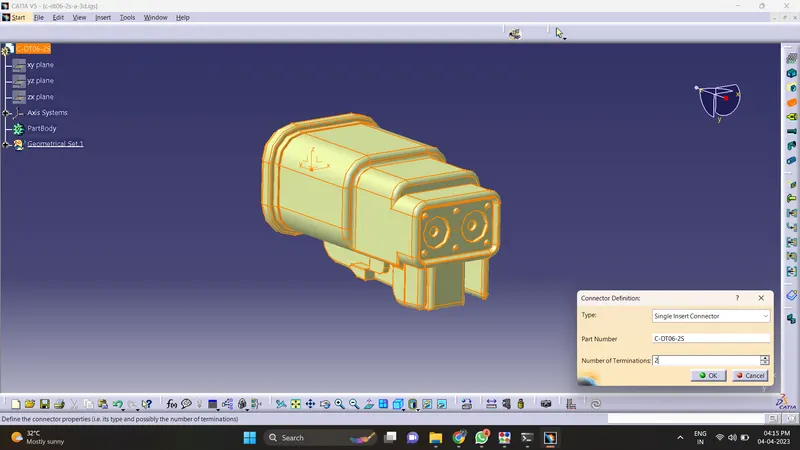

- Then go to the elecrical part design and define it as a connector.

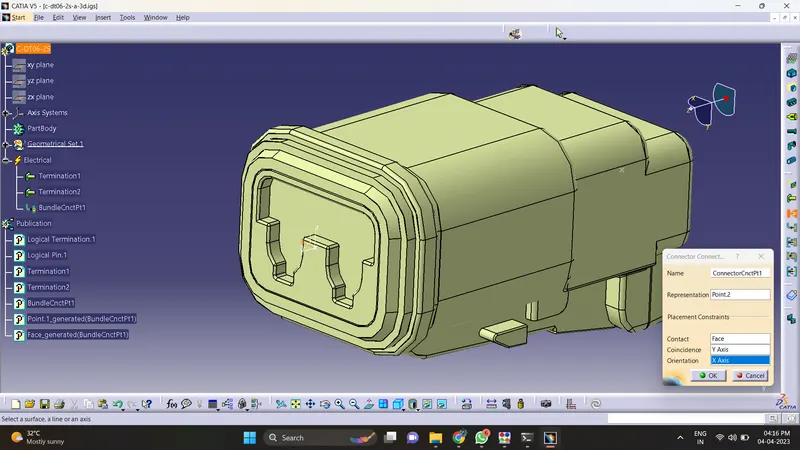

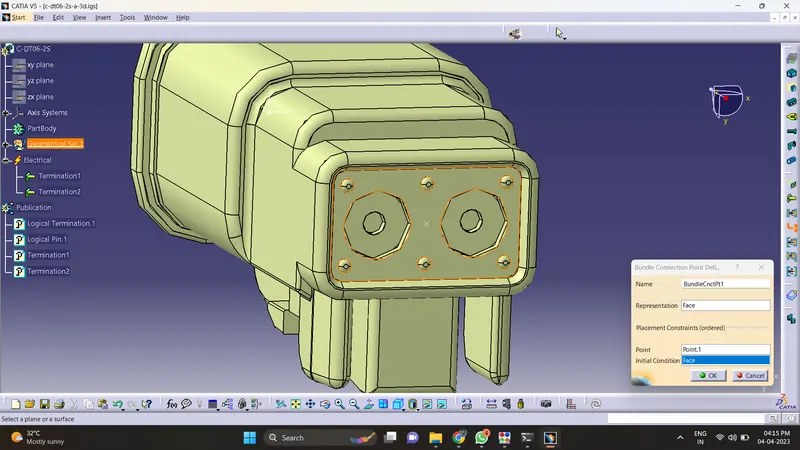

- Give bundle point and connector connection point.

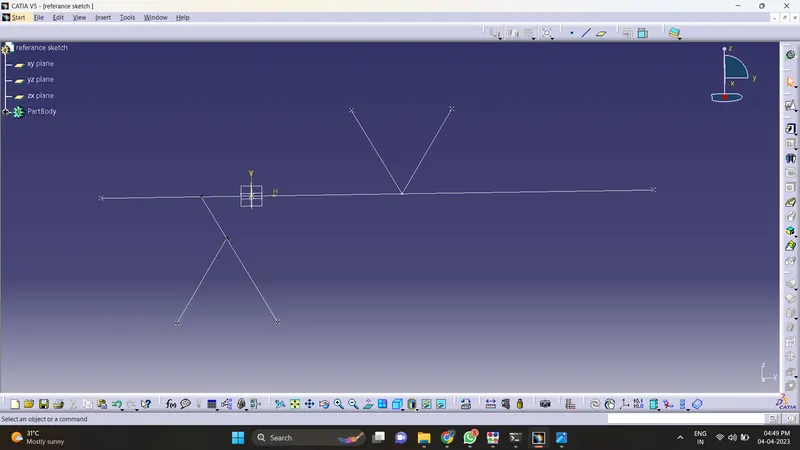

procedure to draw sketch
- Go to the file select new and then select part.
- In the part select any plane and draw the sketch by given mesaurement.
- As shown in the above diagram and save the sketch.
procedure for the elctrical assembly design

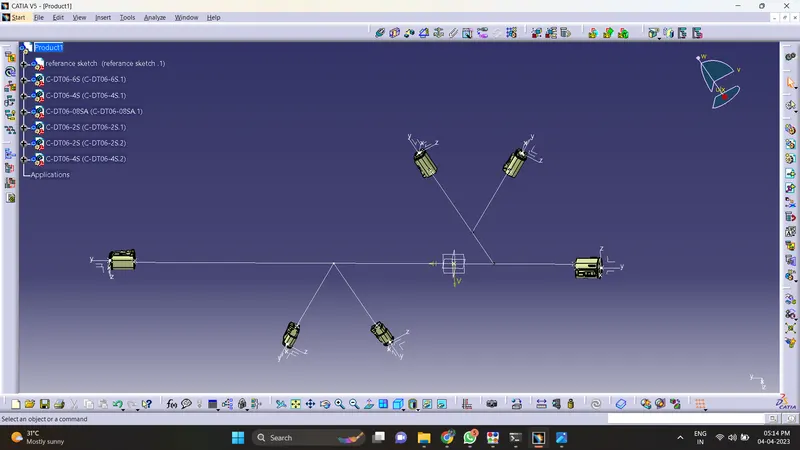

- Load all the connector in the elctrical assembly .
- For the manipulation of the connector go to the mechanical assembly design.
- Use the tool manipulation for the proper and required arrangement for the connector.
- define the referance point
define the connector and give terminals
defiine the bundle
define the connector and you can give the consruction
similarly give the all parts
procedure for electrical harnees design.
- After doing arrangment go to electrical harness assembly for harness bundle connection.
- In this process the harness is connected to the connector.
- First go to the geometric bundle tool select on that then select on the part name on the tree .
- Now the part is electricaly defined.
- Now go to the bundle segment then select the route definition.
then you can give routing defenition
after that you need to exit from the routing asembly

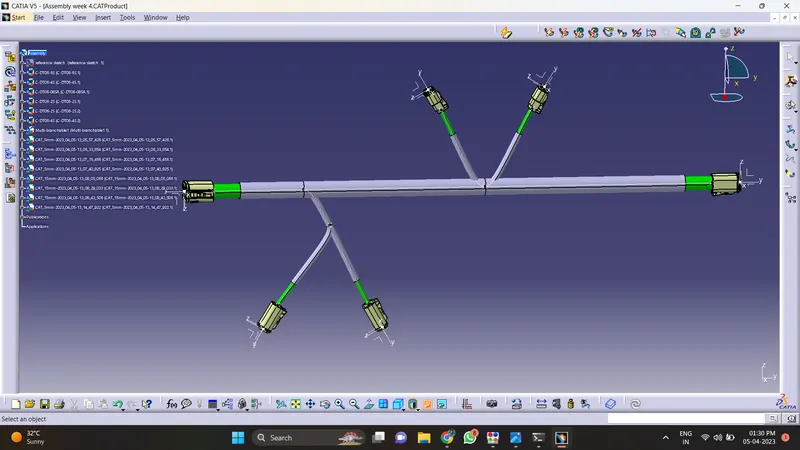

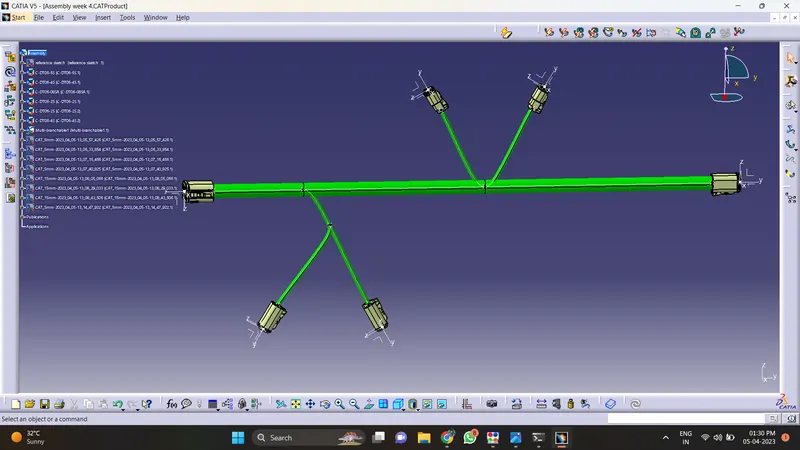

and make protection covering
in 5 mm and 15 mm
above 30mm with connector
