Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge
Aim:

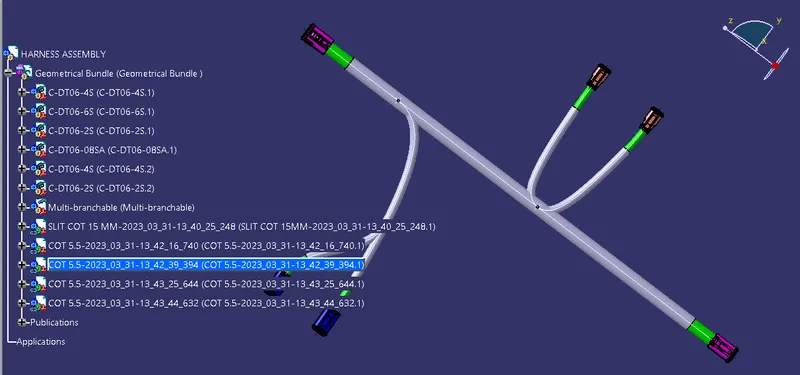

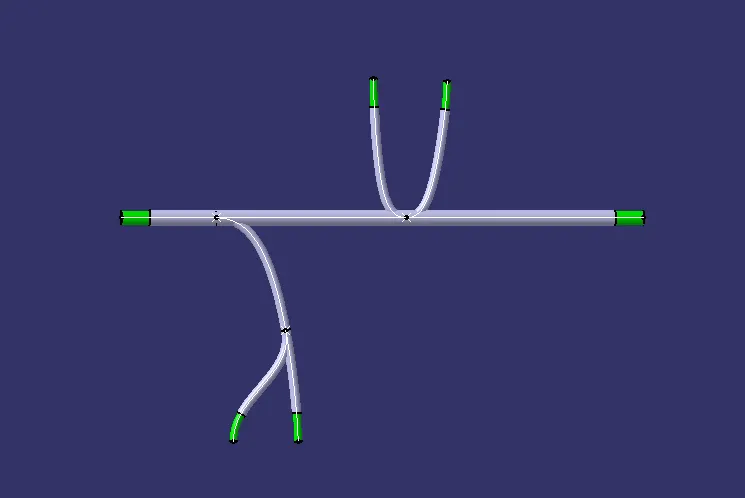

1) To Route the following harness layout in the Electrical workbench.
2) Add protective covering on all branches connected to DT06-2S & DT06-4S connectors.
Given:
CAD data of the following Connectors:
- DT06-4S
- DT06-6S
- DT06-2S
- DT06-08SA
Connectors Layout Design:

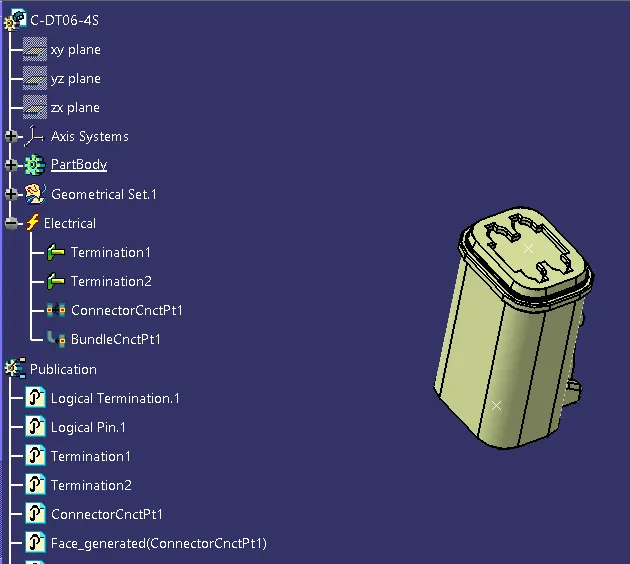

2. Convecting the Mechanical part into the Electrical part for that I had followed the following steps.

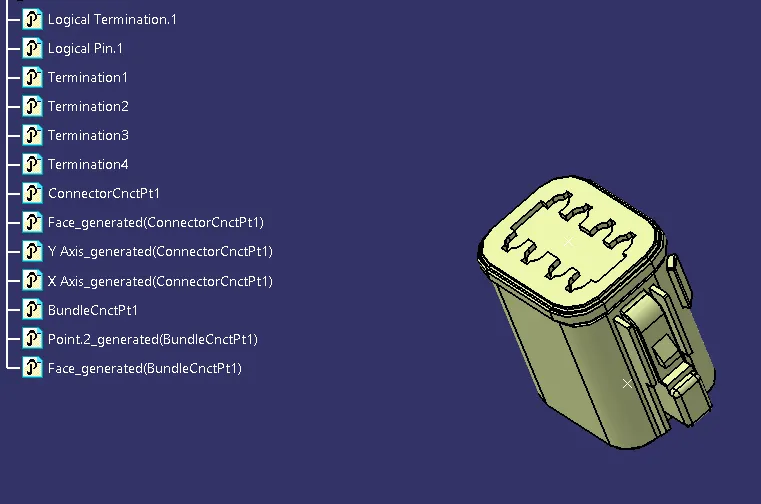

- DT06-4S

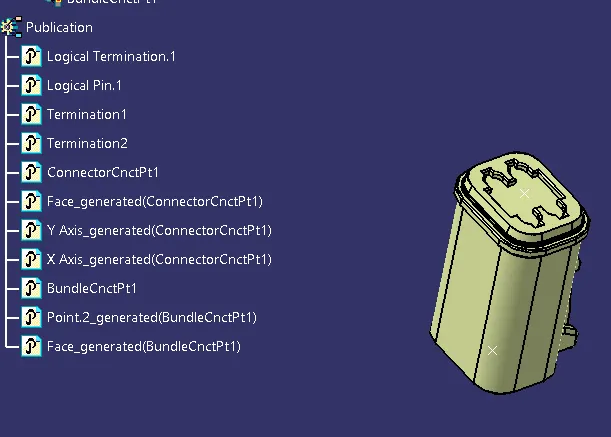

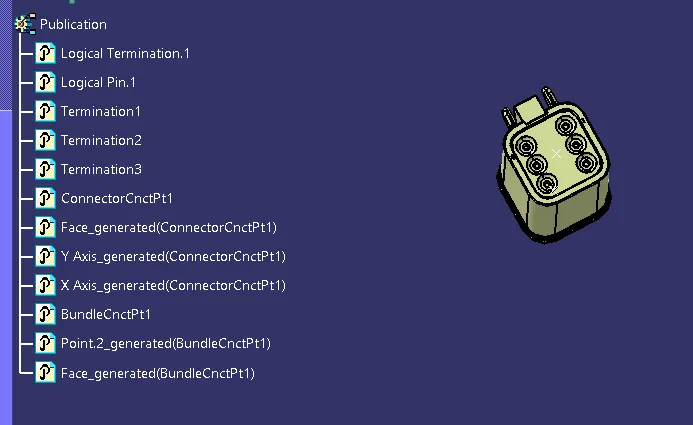

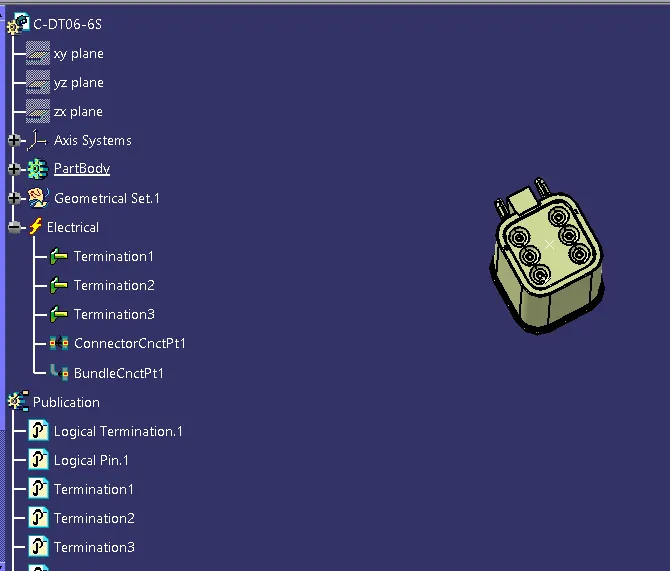

- DT06-6S

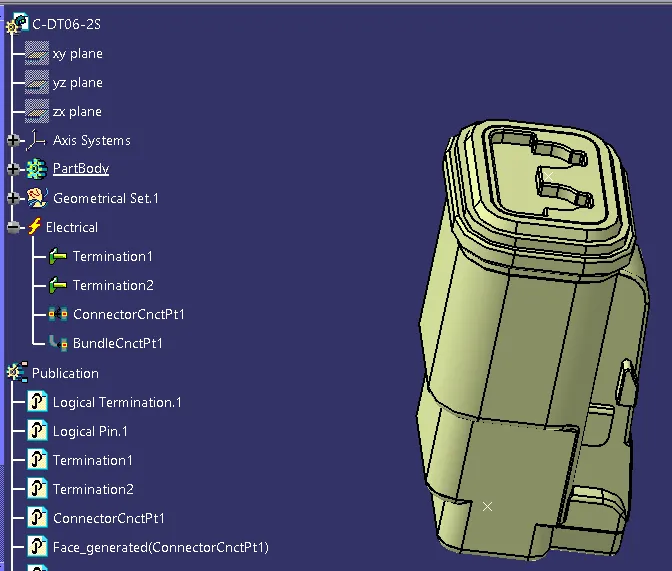

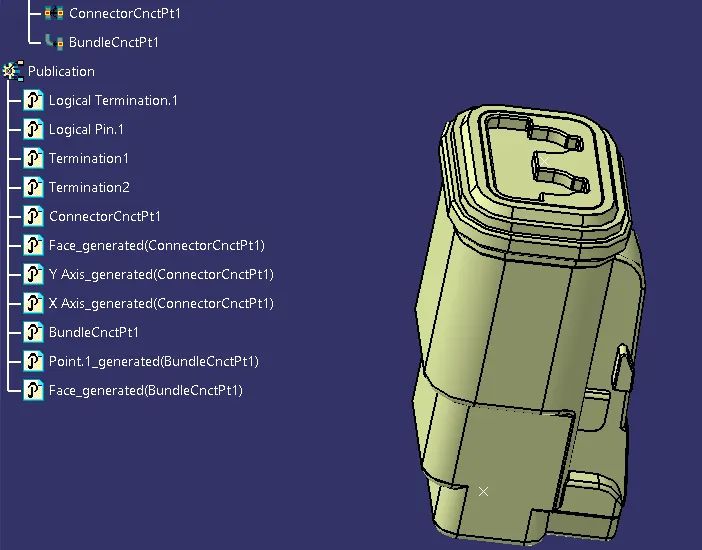

- DT06-2S

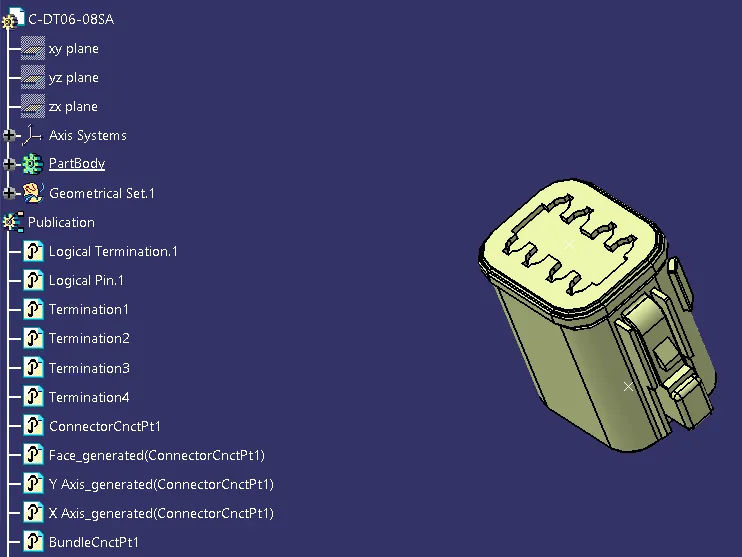

- DT06-08SA

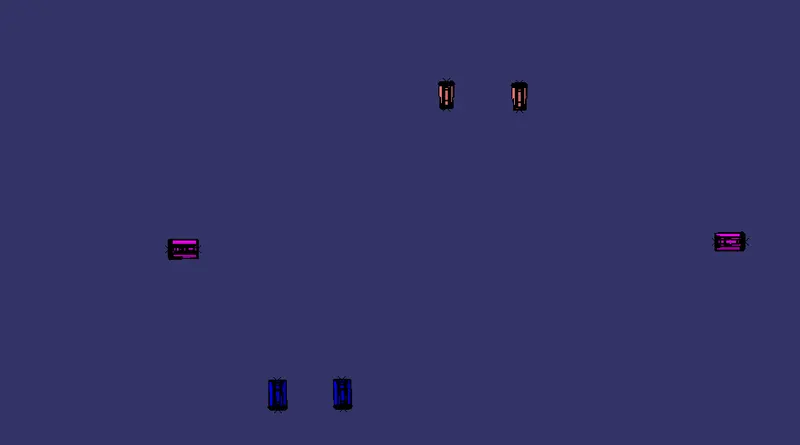

Arranging the Connectors by following the Layout
