Week 8 - Challenge 5 - Door Trim Lower

DOOR TRIM

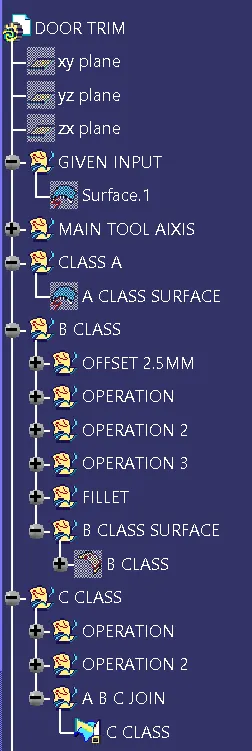

TREE STRUCTURE SET.

CLOSE SURFACE SET.

PUBLICATION SET.

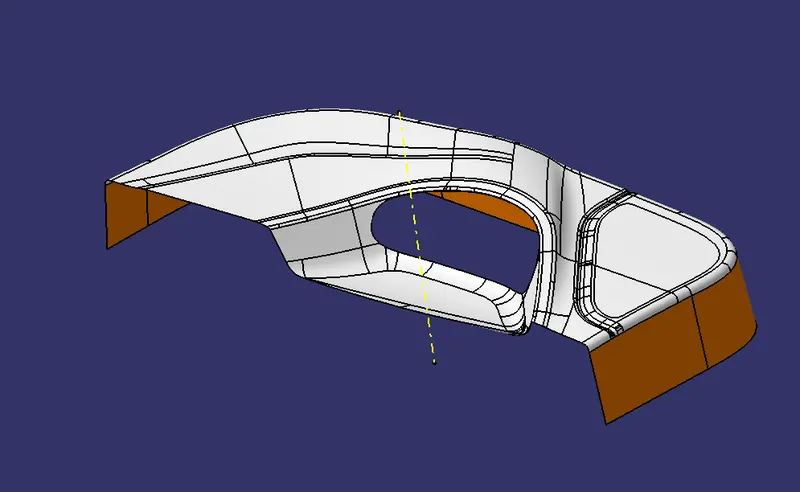

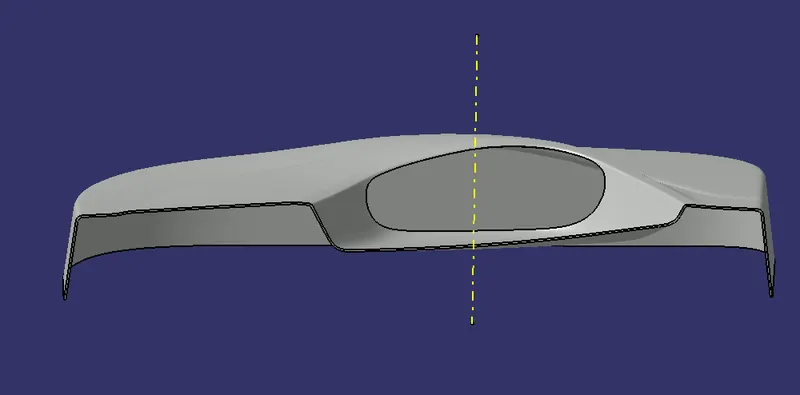

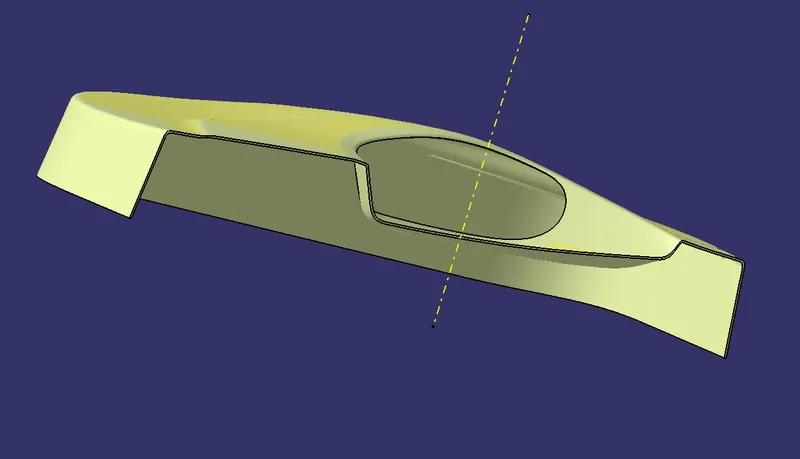

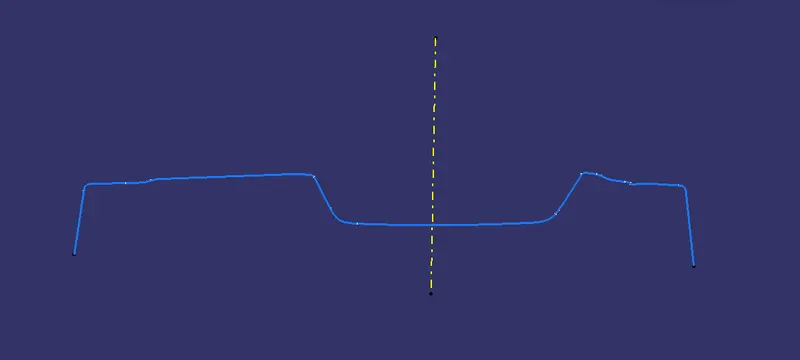

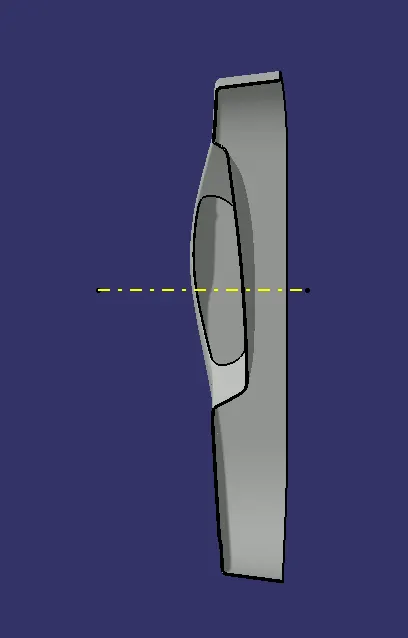

FRONT VIEW, SIDE VIEW, AND TOP VIEW OF SURFACE.

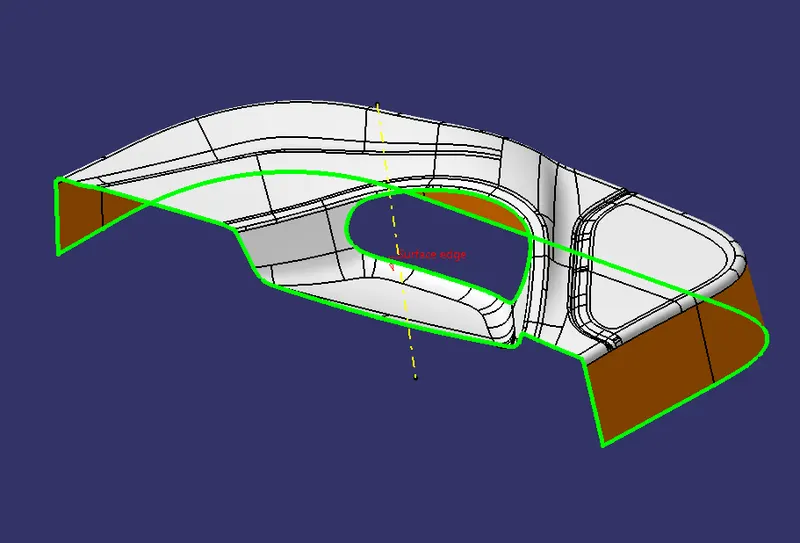

CHECK THE COMPLETE A SURFACE HAS NOT ANY OPEN BOUNDARY LINES.

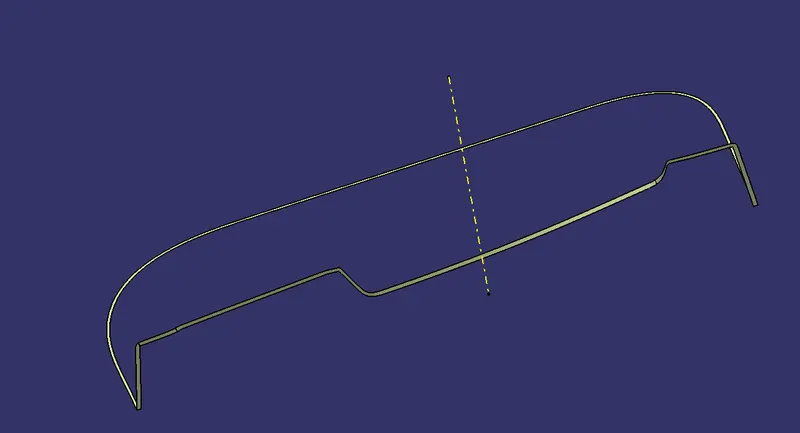

THEN I CREATE THE MAIN TOOL AXIS LINE WITH THE HELP OF (A SURFACE).

CLASS A SURFACE.

CLASS B SURFACE.

CLASS C SURFACE.

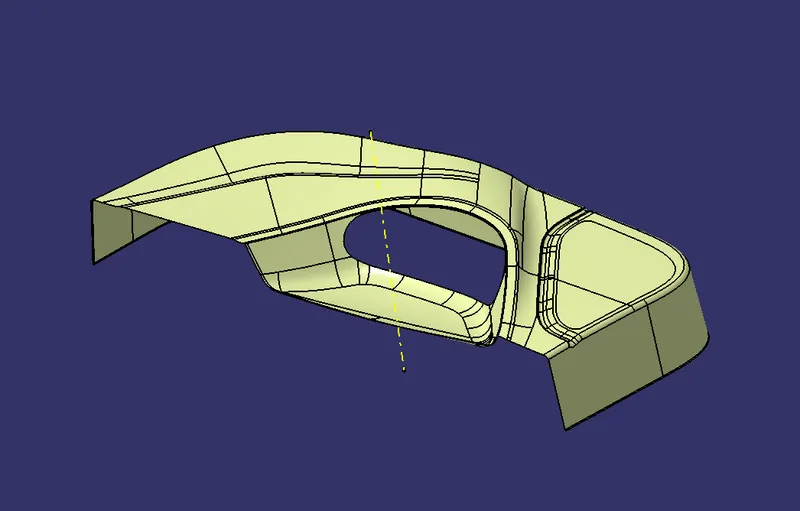

FINAL SURFACE AFTER TRIM OPERATION.

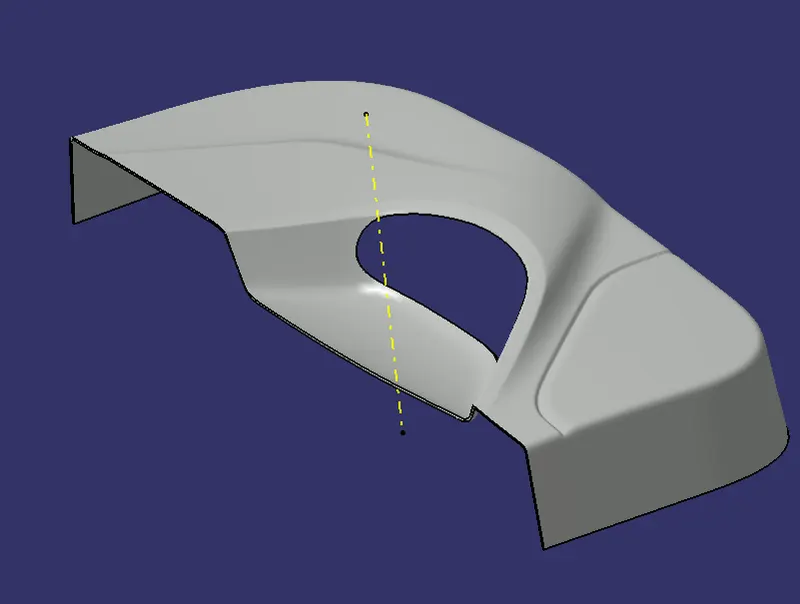

FINAL SOLID CLOSED SURFACE.

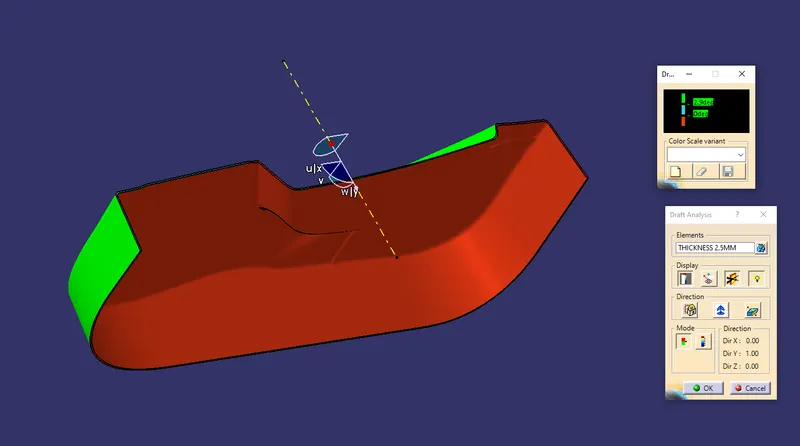

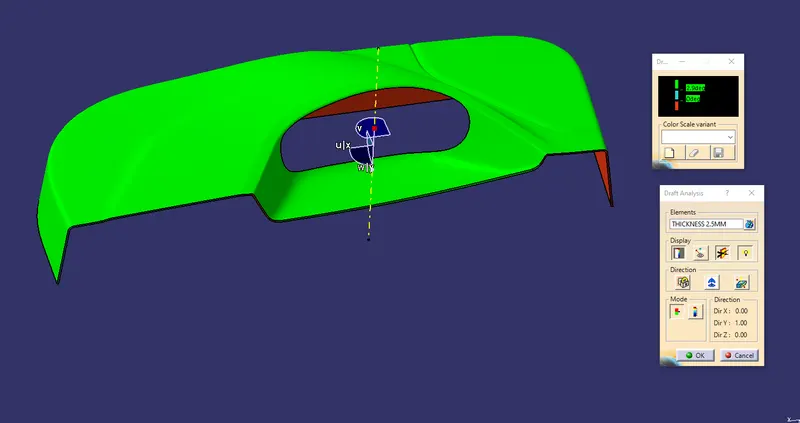

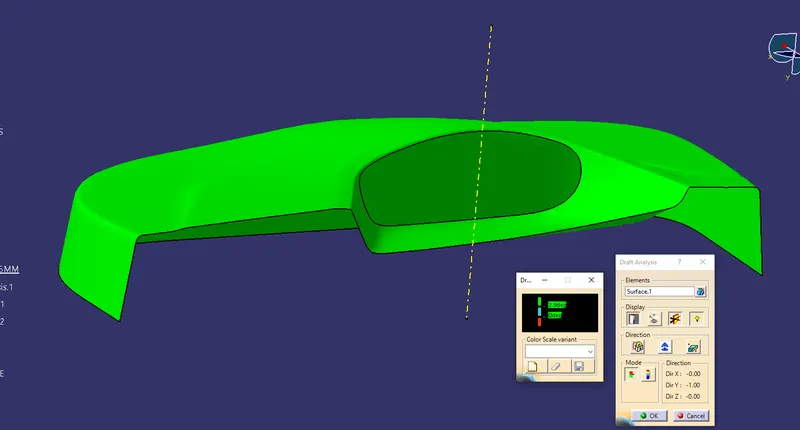

DRAFT ANALYSIS DONE AT 3 DEGREE DRAFT ANGLE.
