Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

AIM

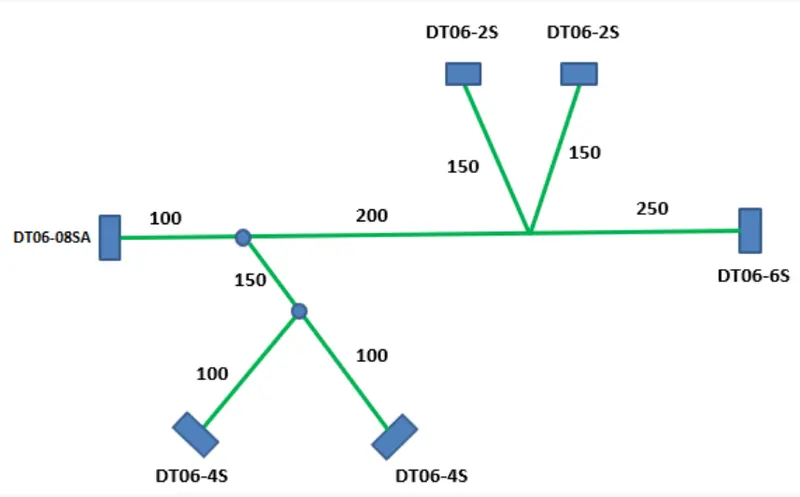

Route the following harness layout in electrical workbench .Make assumption for harness bundle diameter . Use following connectors as show in layout diagram.

Add protective covering on all branches connectrd to DT06-2S and DT06-4S connectors keep end extremity at 30mm.

Connector connection point:

Create midpoint on the contact face which will be normal to wire bunddle insertion.

Craete Axis System with respect to the point which we have created and defining the axis direction as shown below,

Switch to 'Electric Part Design

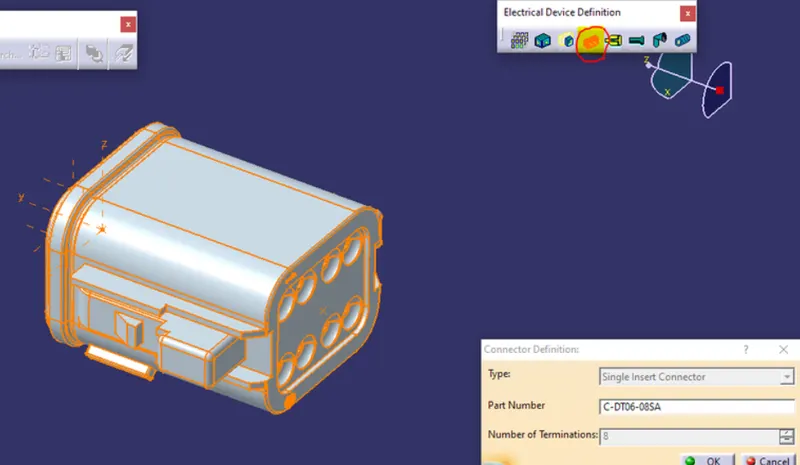

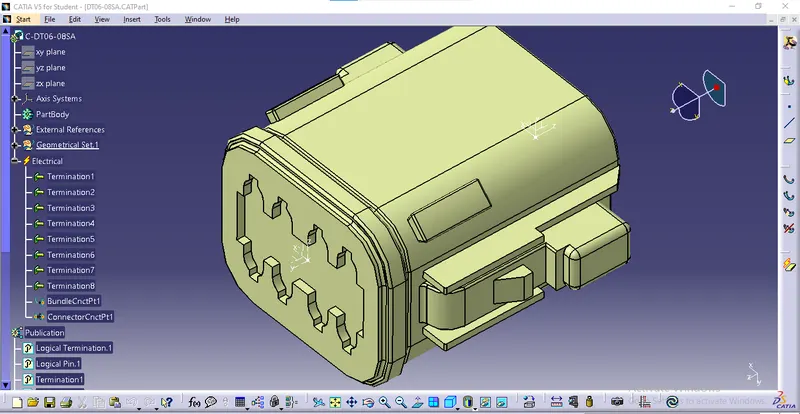

Define the part as connector in catia, give no. of termination as 8 because we have 8 entry points for wire.

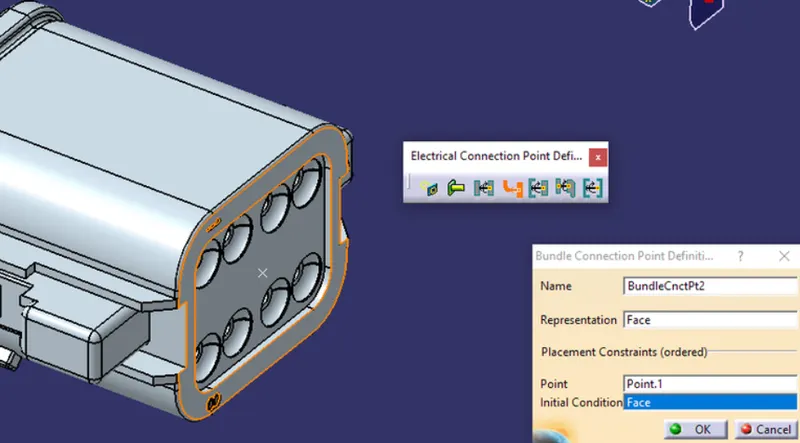

Define Bundle connection point

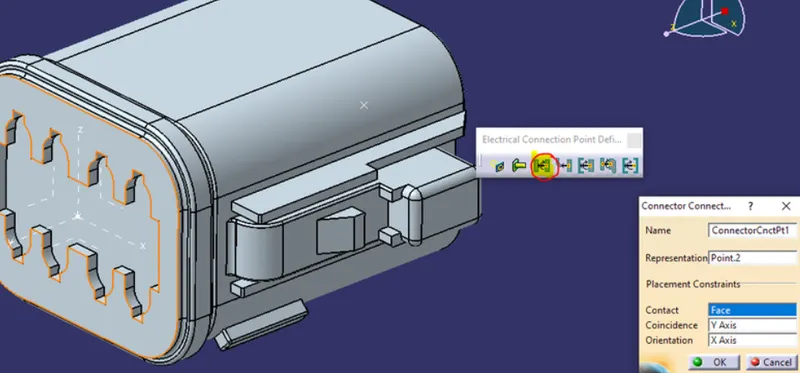

Define connector connection point

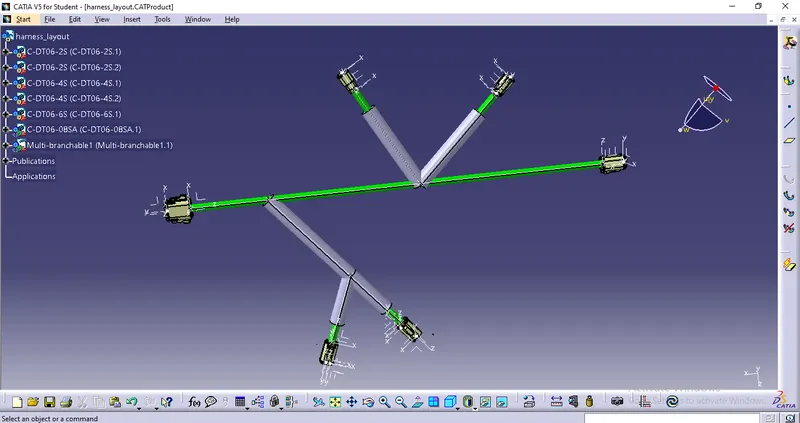

Final wire harness routing
