Section Modulus calculation and optimization

SECTION MODULUS

Ratio of total moment resisted by the section to the stress in the extreme fibre
It given us an idea about how much of bad the given syructure can take
If the section modulus increases the moments of resistance increases and hence its load bearing capacity
Section modulus depends only on the corrs section shape ofthe structure
For symmetric section the value of section modulus is for both above and below of centroid of the fiber

ELASTIC SECTION MODULI

The elastic section is defined as the ratio of the section and the distance from the neutral axis any give extreme fiber
It can also be defined in trems of the first moment of area
It is also often used to determine the extreme fiber elastic stresses as well as the yield moment of elastic section

SECTION

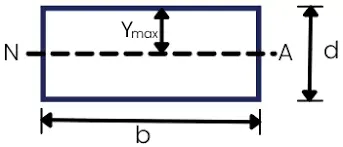

S=I/Y

Where

S-section modulus

I-moment of inertia value from the inertia analysis

Y-distance from neutral axis to outermost fiber in this case we will take it from the center to the outer edge of hemmed outer panel

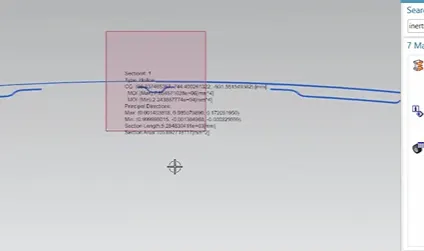

Moment of inertia (max)=7.654571028

Moment of inertia (min)=2.343887774

y=242.88

s=2.343887774/242.88

S=9.65039
