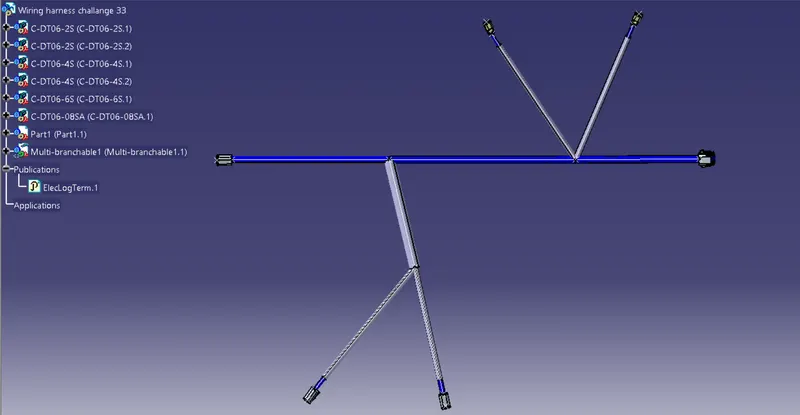

Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

Steps involved:

1)Mentioned Connectors are downloaded from Te.com.

2)Updation of required geomentrical parameters and Electrification are done.

3)Connectors are posisioned based on above image shown.

4)Routing is completed as per the above image shown.

5)Required insulations are added and its end extrimety values are given as mentioned above.
