Wiring harness design in CATIA V5 - 3D modeling Week 2 Challlenge



Steps involved While preparing this challange:

1)Connecter & Clip downloaded from te.com.

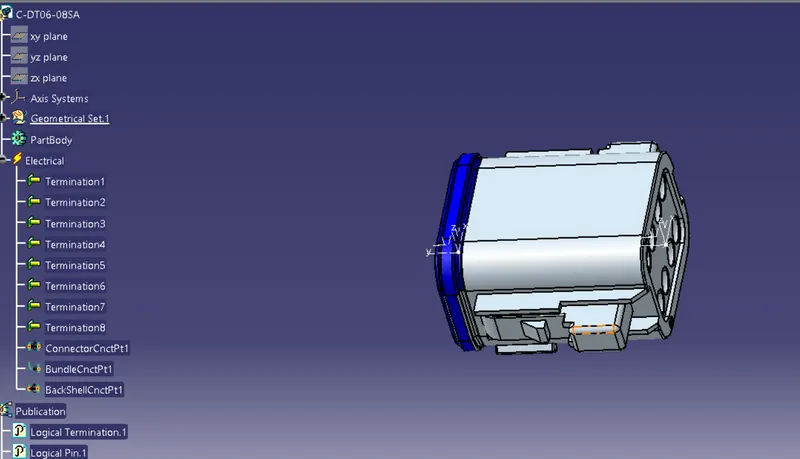

2)For the  connecters individulay Connecter connection point,Cavity connection point (Only for Tyco 174357)  and Bundle connection points are defined along with its Axis.

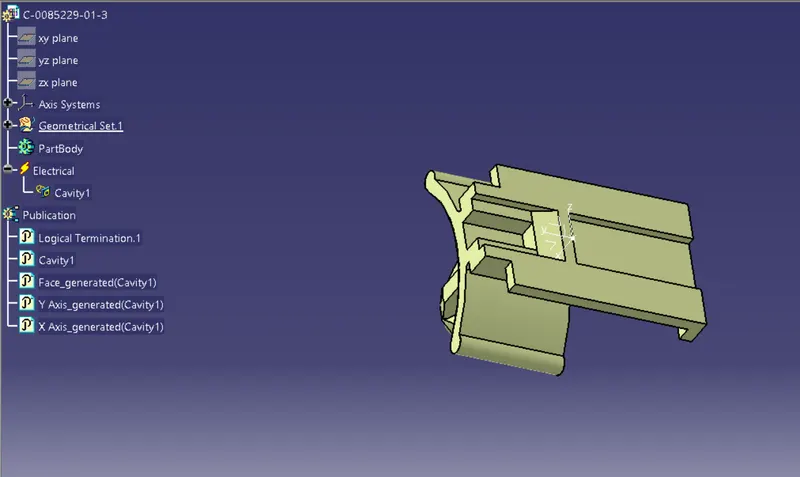

3)Same like clip is also defined with cavity along with its axis.

4)Connecter defined as Connecter and clip defined as clip.

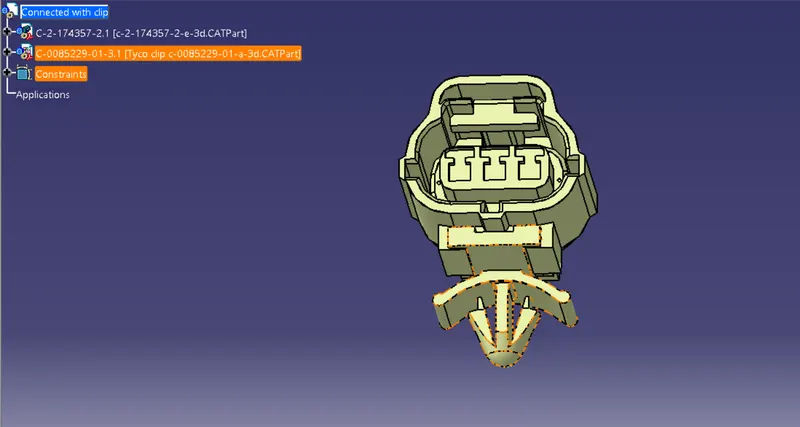

5)Then using connect electrical device option Connecter and clip is conected.
