Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

AIM:- Route the Wiring harness on Given car body and Prepare flatten view drawing in CATIA V5. Application of all Packaging rules, Industry best practices studied in this course shall be demonstrated in design. Apply Protection coverings as required. Available connector 3D data can be used, or you can download the connectors…

1. Identify each of the major elements in the above automotive wiring diagram.  Answer - The major elements are, Battery Generator Distributor Ammeter Fuse Ground/Earth Indicating Light/Beam light Starter Breaker Horn Light Switch/Selector Switch Junction Block 2.Explain the purpose and working of any three elements…

Objective: The objective of this project is to design the assembly of the Butterfly valve and apply the GD&T concepts to the various parts of the Butterfly Valve. Name of the Parts: 1. Body 2. Shaft-Stem 3. Top Flange 4. Disc Plate 5. Lever Handle 6. Nut Introduction -A Butterfly valve is a quarter-turn rotational…

  AIM- To route the wiring harness on given Engine and flatten view drawing in CATIA V5. OBJECTIVE- The objective of the project is to route the wiring harness on given Bugatti V16 Engine and prepare flatten view drawing in CATIA V5. All types of packaging rules have to be considered while routing the harness.…

Note :- In my Catia software Drafing Is Not opening So, The Mentor Saids Me To Send The Jpeg File You make in Student Version Aim - To Flatten the harness assembly completed in “ week 4 challenge”. Place the flattened view on drawing sheet. Ensure bundles with protective coverings has different visuals…

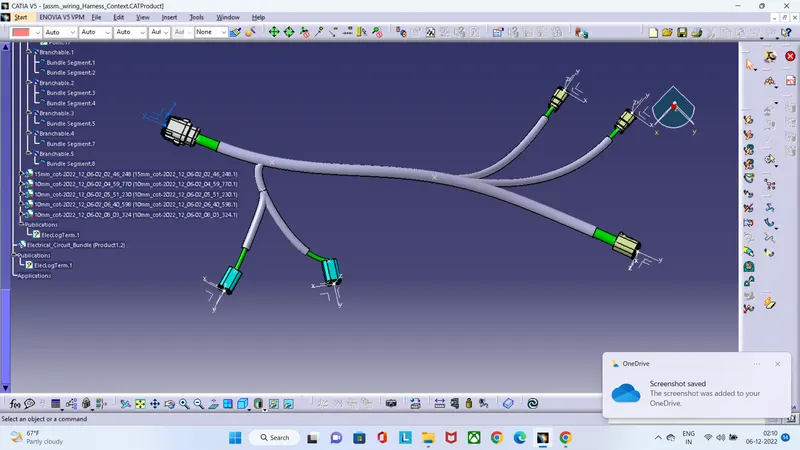

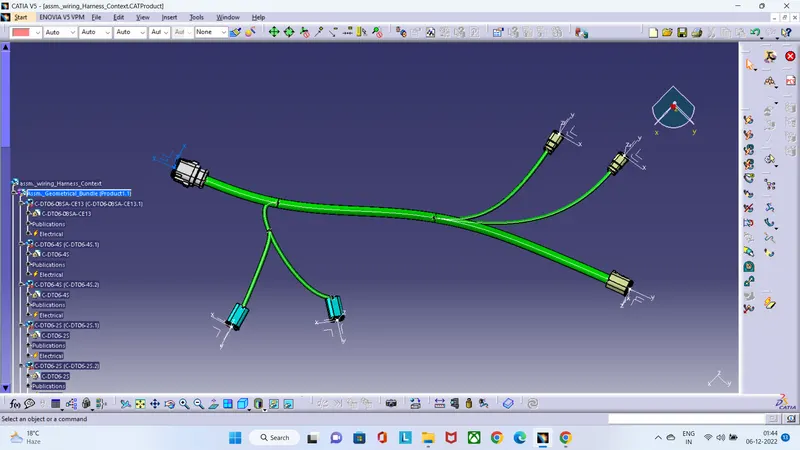

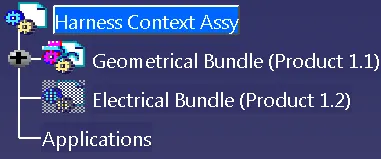

 AIM - To Route the following harness layout in Electrical workbench. Make assumption for harness bundle diameters. Use the connectors provided. After completion of routing. DESIGN OF WIRING HARNESS ROUTING IN CATIA V5 Check the bundle Continuity. Add snap of result in submission Add annotation to all connectors.…

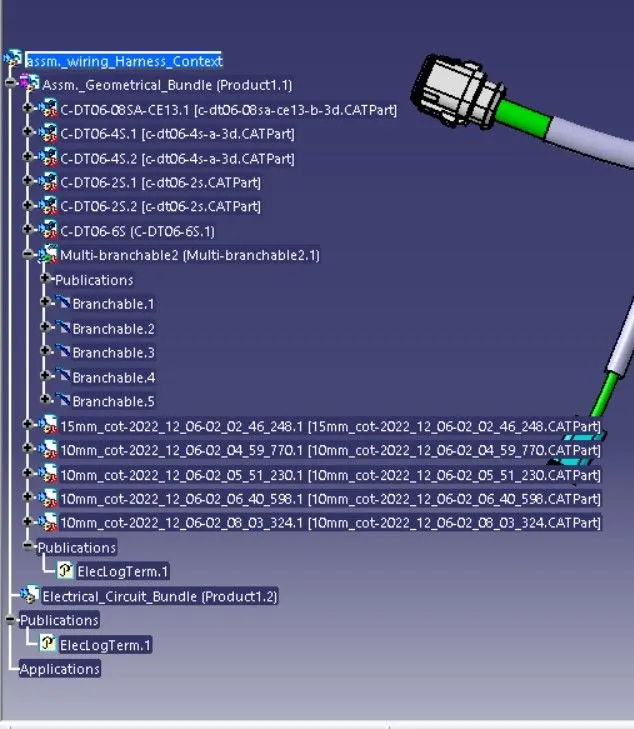

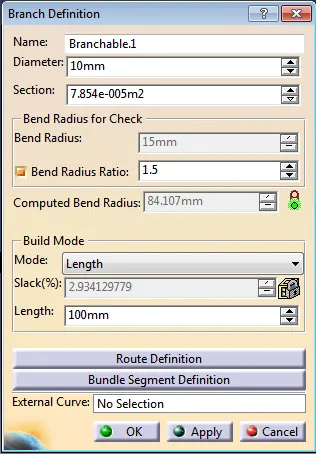

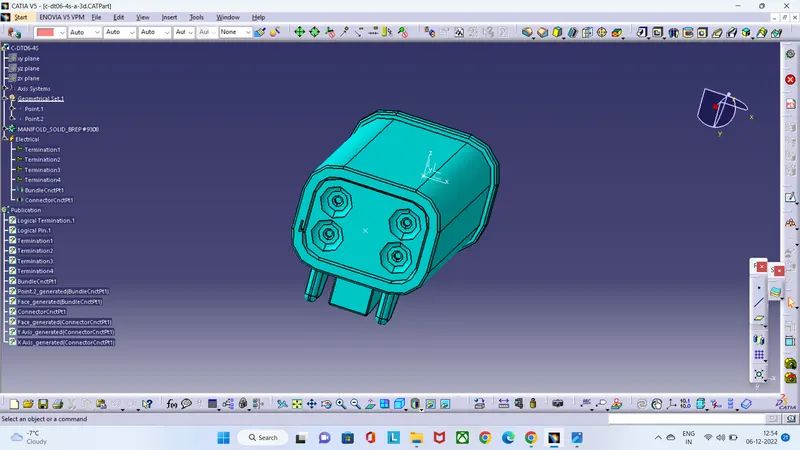

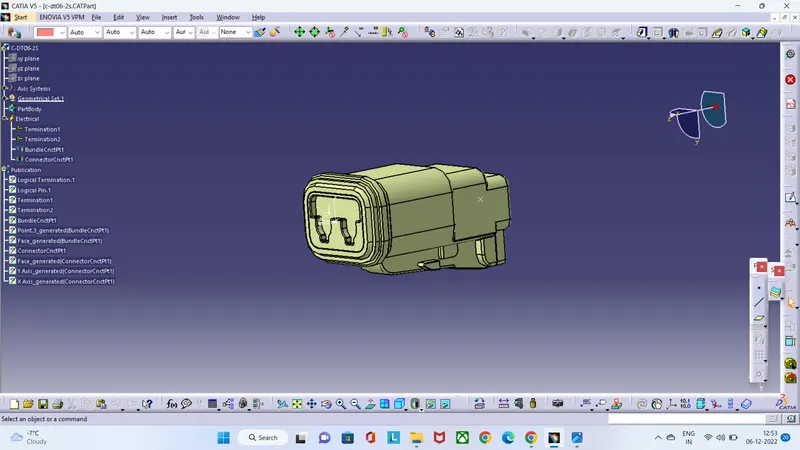

Objective: To Route the harness layout in Electrical workbench based on the given input.To add protective coverings on all branches connected to DT06-2S & DT06-4S connectors. Keep end extremity at 30mm (from connectors end). Download connector 3D data from www.te.com DT06-4S DT06-6S DT06-2S DT06-08SA DEFINIG…

AIM: To solve the above assignment questions and define the necessary electrical properties in the respective workbench. OBJECTIVE: To download the P-Clamp CAD data and define it as Electrical Support in the Electrical Part design workbench and also define the necessary electrical properties. To download the Backshell…

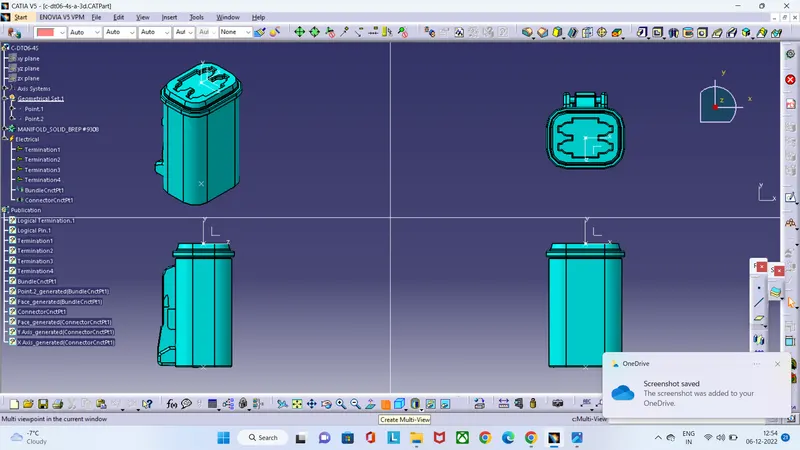

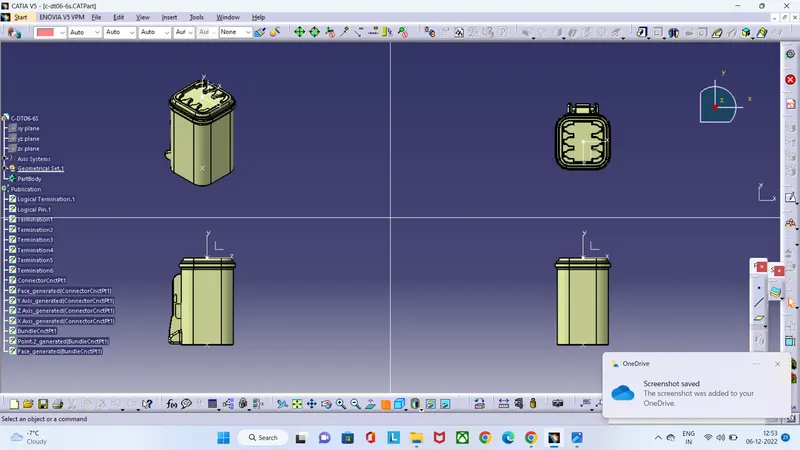

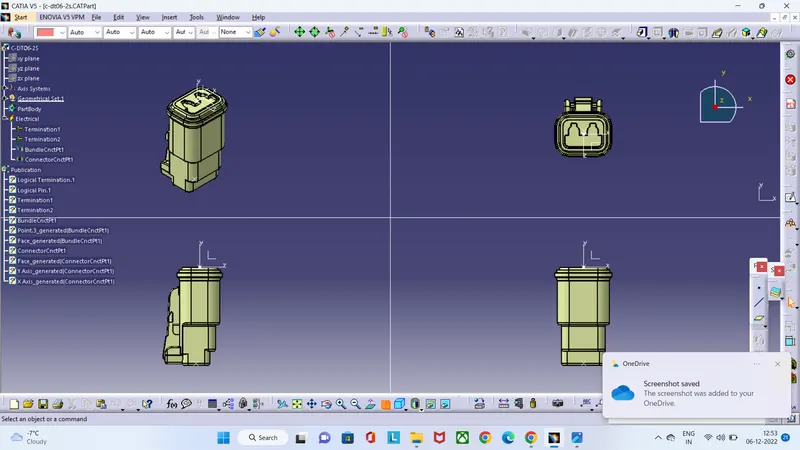

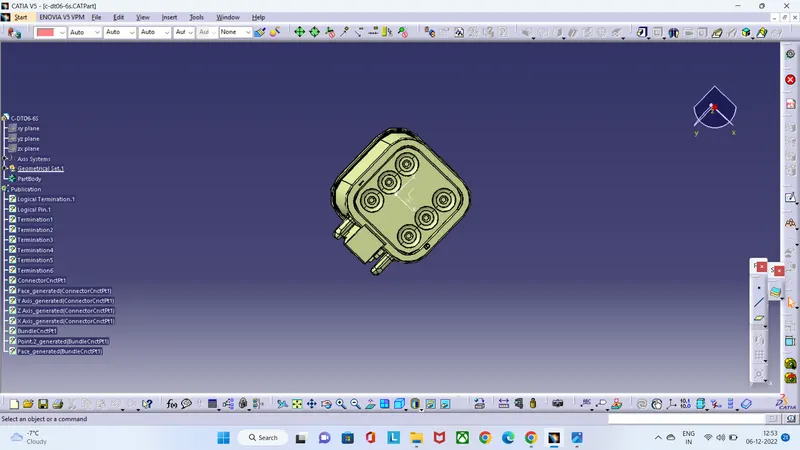

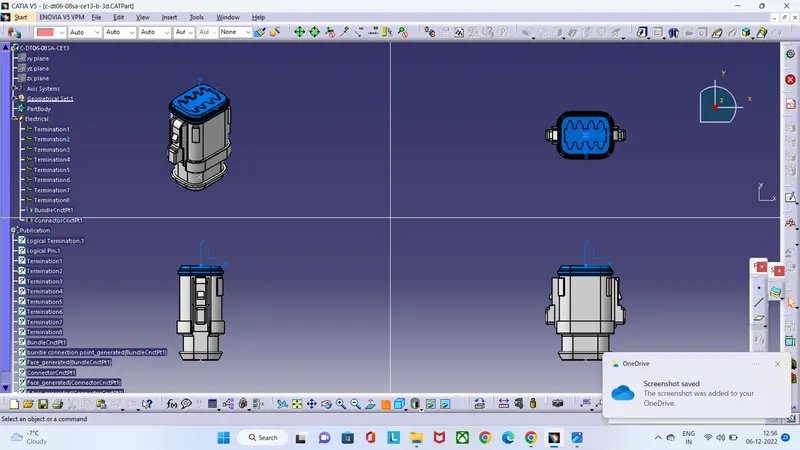

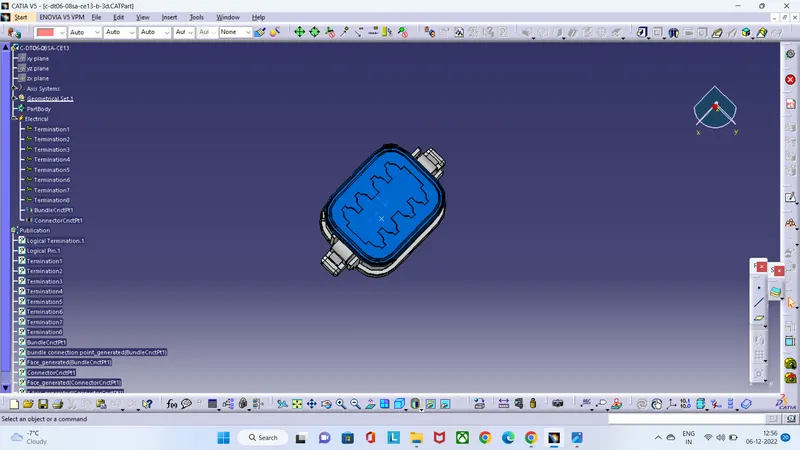

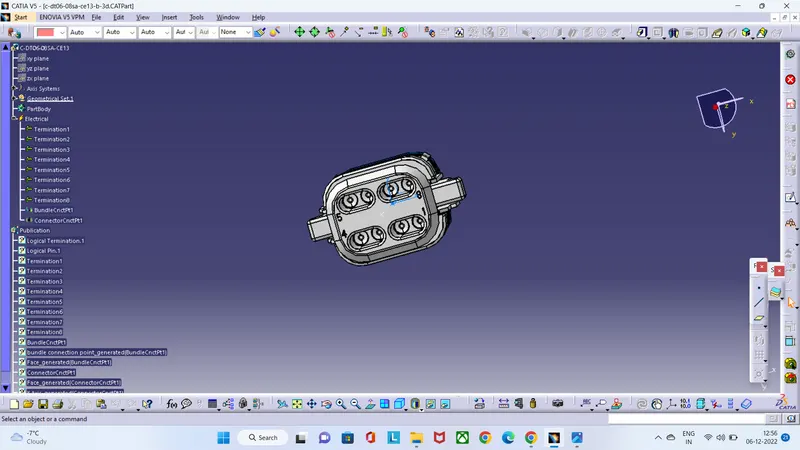

AIM: Defining Connectors and Clips using CATIA V5 Objective : Downloading the 3D CAD files form the te.com website and then defining the parts electrically and further creating a catalogue for the components. Deutsch DT06 – 08SA ( https://www.te.com/usa-en/product-DT06-08SA.html) Tyco 174357-2 (https://www.te.com/usa-en/product-2-174357-2.html?source=header-match)…

Aim: Use the provided styling surface to come up with a back door design, use appropriate design methodologies and provide the necessary reinforcements and embosses. What is back door of a car? A door which is located at the rear side of a car which gives access for the boot space to store luggage, spare wheel etc. These…

Aim -  Create an ASSEMBLY by developing the essential flanges for the outer roof and creating the reinforcements.For the Given Roof styling 1. Roof Assembly The conventional task of the roof panel is that of compartment shielding, passenger protection and connection of body sides, front and roof cross…

aim - Calculate the Wheel Arch gap at required points and check whether the car passes the European standard. Fender Fender is a part of an automobile, motorcycle or other vehicle body that frames a wheel well (the fender underside). Its primary purpose is to prevent…

OBJECTIVE : The main objective of this project is to design a fender using  a new age design software - NX - CAD INTRODUCTION : Design of any product starts from an requirement . The design engineer sketches the product based on the the requirement . Then the 2D sketch  with the proper dimensions is converted into the…

Aim - calculation of section modulus of hood design and also come up with improved section modulus Use the Section from your Hood design and calculate the Section Modulus using the formula  S = I/y  Where,  S = Section Modulus I = Moment of Inertia y = distance between the neutral axis and the extreme end…

Aim: To Design Hood outer panel, inner panel and the necessary reinforcements by following the Master section with the design parameter Introduction: Hood is the main component of a car at the front portion. It is used to decorate the car and add a luxurious look. The shape of the Hood is made aerodynamic in…

INTRODUCTION      You might know car underbody coating as undercoating, and that’s easier to say. This add-on is applied during the manufacturing or at your local car dealer center, as you must have understood while reading up till here that it is applied as a protective layer for the undercarriage.…

Aim: To prepare a report explaining what is benchmarking, Compare at least 4 vehicles and provide a proper conclusion for the report and suggest a suitable vehicle among the comparison made.  Theory: What is Benchmarking? It compares one's business process and performance metrics to the industry's bests and/or…

AIM - To create a door interior part from the inputs of class A surface along with master section by following the design rules followed in tier 1 and OEM industries in catia v5 SOFTWARE USED CATIA V5 OBJECTIVES Create a sketch by using Positioned sketch All the should be sketches should be Iso-Constrained Ensured Proper…

Objective: To create quick return mechanism and CV joint parts in part workbench or generative work bench and assemble themfollowing guidelines QUICK RETURN MECHANISM - A quick return mechanism is an apparatus to produce a reciprocating motion in which the time taken for travel in return stroke is less than in…

Aim:To Create a Pillar design with the help of the master section PROCEDURE: From the Given Class A surface, B Surface has been created by offset command By doing this there were many missing elements in the CLASS B surface  Sorted out each and every missing element in the Class B Surface with help of various commands…

Aim: Create the Door Trim Lower Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model Body of content: From the Given Class A surface, B Surface…

IM: To create the Screw boss and Dog House for the Centre console coin holder by considering the design rules.  OBJECTIVE: General Guidelines for Bosses:   Draft  - 0.5 degrees on walls of boss   Thickness -  Typically 40%* of the nominal wall at the base.   Height to Diameter…

  Aim      1. To create the Door Handle  Component from the given Class A surface      2. To Create the the tooling axis for the given Class A surface meeting the requirement of Draft angle.      3. To Attach B side feature in the component.      4.…

Objective: The main objective of this challenge is to design a Core and Cavity for a Switch Bezel' in CATIA V5 with the help of a surface workbench. Before we design the core and cavity, we should perform a draft analysis on the solid part body of the switch bezel.  Core Design: - Initially, I have taken…

NOTE - MY CAT FILE DOES NOT OPEN SO I AM USE THE STEP FILE  AIM : To create a Coin Holder plastic component through the given Class A surface and perfoming the draft analysis on the model objectives : To ensure proper tree structure is followed To keep the design as per requirement All the sketches should…

Aim - Create the Switch Bezel Plastic component through the given Class - A surface Objective -  The objective of the project is to design the switch bezel and to do a draft analysis for it by creating the required tooling direction with the help of Bisecting method Introduction - The control panel…

Aim - Create the Switch Bezel Plastic component through the given Class - A surface Objective -  The objective of the project is to design the switch bezel and to do a draft analysis for it by creating the required tooling direction with the help of Bisecting method Introduction - The control panel bezel is the frame part…

Aim - Create the Switch Bezel Plastic component through the given Class - A surface Objective -  The objective of the project is to design the switch bezel and to do a draft analysis for it by creating the required tooling direction with the help of Bisecting method Introduction - The control panel bezel is the frame part…

Aim - Create the Switch Bezel Plastic component through the given Class - A surface Objective -  The objective of the project is to design the switch bezel and to do a draft analysis for it by creating the required tooling direction with the help of Bisecting method Introduction - The control panel bezel is the frame part…

Aim - Create the Switch Bezel Plastic component through the given Class - A surface Objective -  The objective of the project is to design the switch bezel and to do a draft analysis for it by creating the required tooling direction with the help of Bisecting method Introduction - The control panel…
