Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge
Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

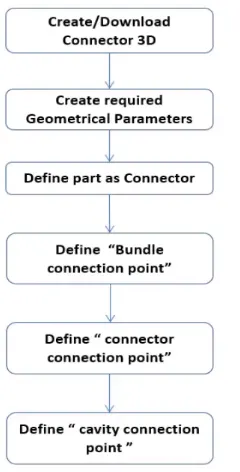

The following was defined for all the connectors:
- Connector connection point
- bundle connection point
- axis system at the connector connection point
- define all the connectors as electrical components

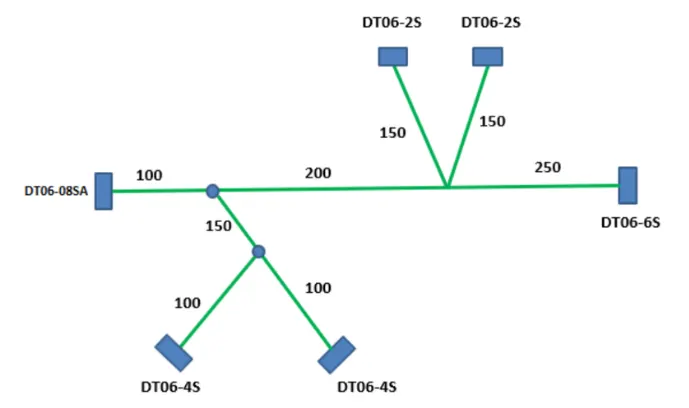

The connectors were assembled as the given diagram.

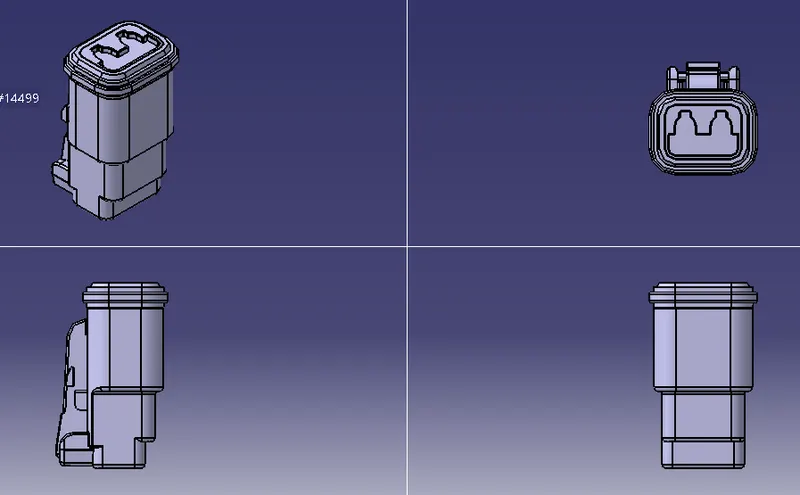

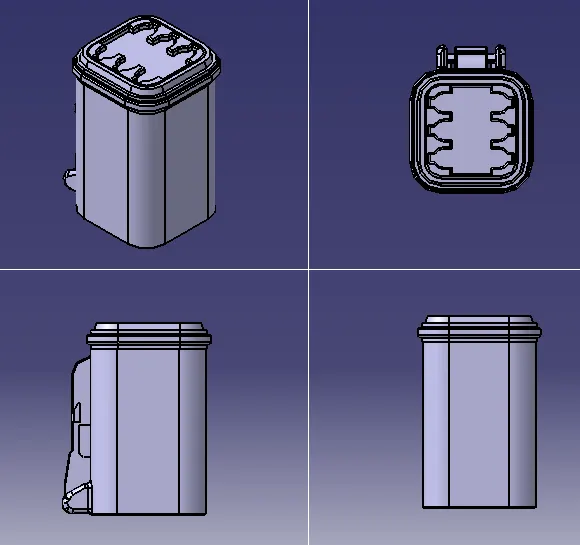

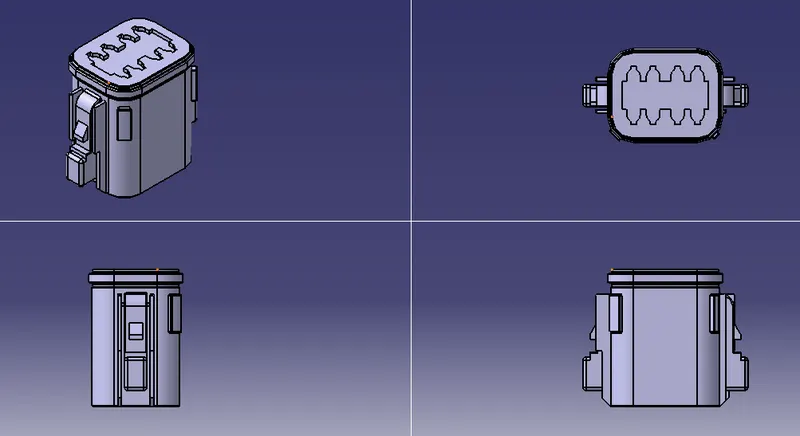

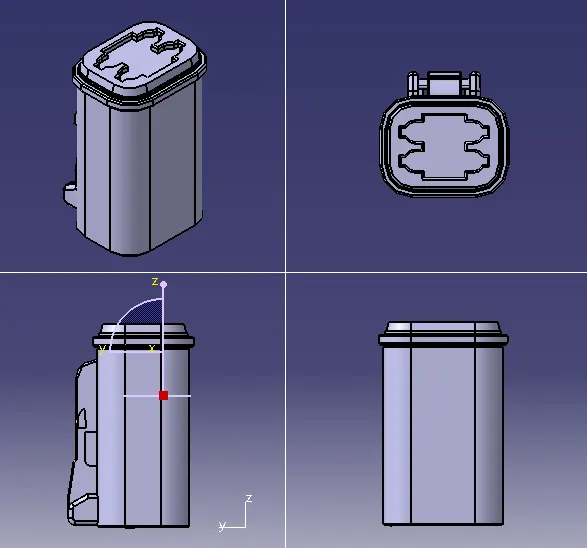

CAD data of the following Connectors:
DT06-4S
DT06-6S
DT06-2S
DT06-08SA

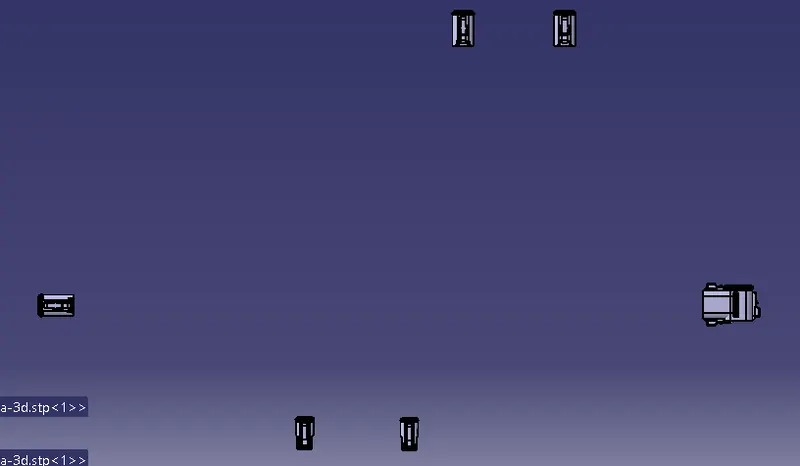

Connectors’ arrangement:

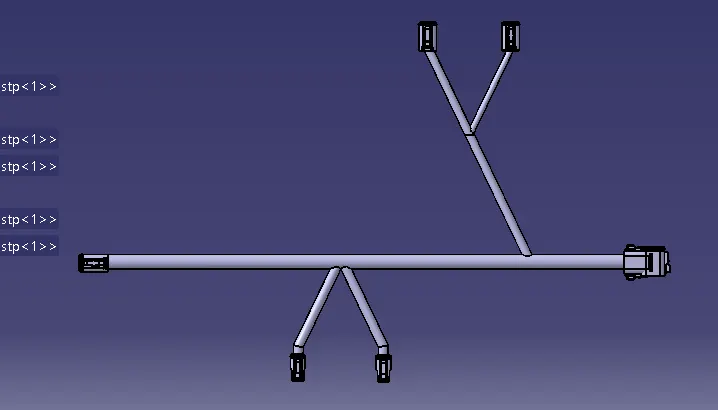

Multi-Branching to the connectors:

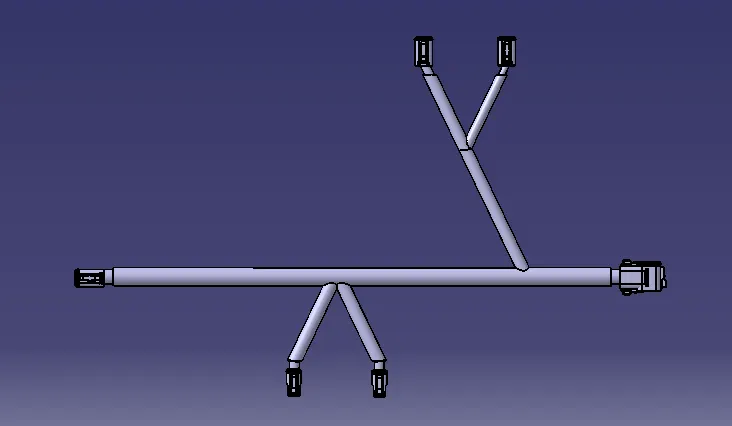

Protective covering:
