Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

Aim :-

1. To route the following harness layout in the electrical work bench with assumptions for harness bundle diameters.
2. Provide protective covers on all the branches connected to the components mentioned in the question with the extremity at 30mm.

Process:-

Download the following components as mentioned in the question

1. DT06-2S
2. DT06-4S
3. DT06-6S
4. DT06-08SA

Convert these mechanical parts into electrical components and define

• "Bundle Connection Point"
• "Connector Connection Point"
• "Cavity Connection Point"

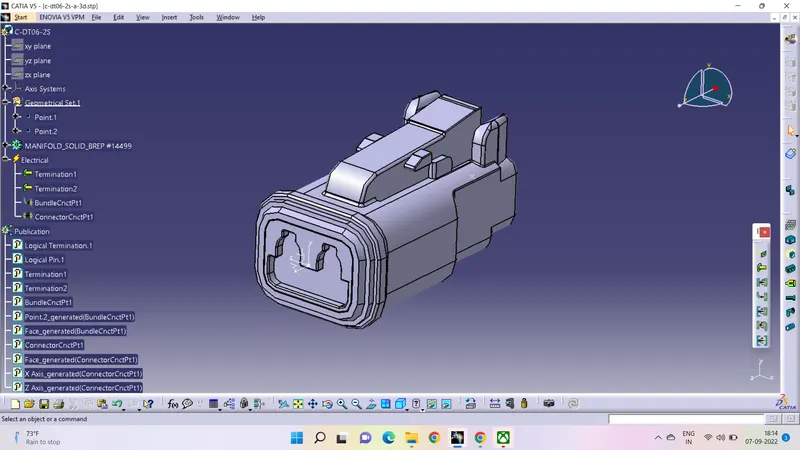

For DS06-2S

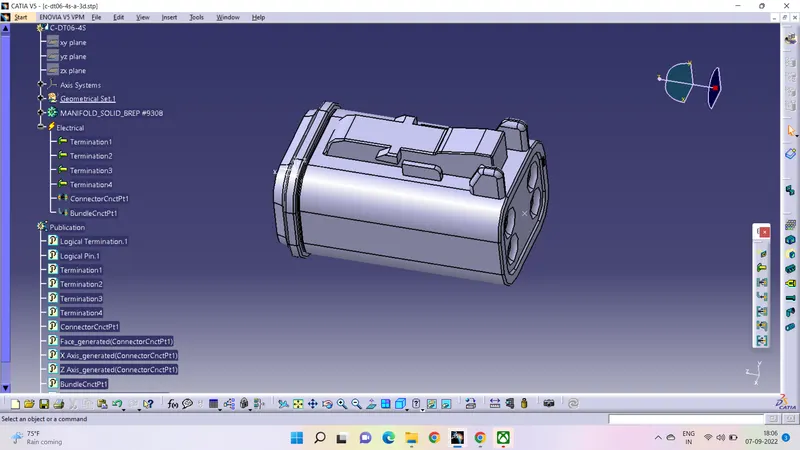

For DS06-4S

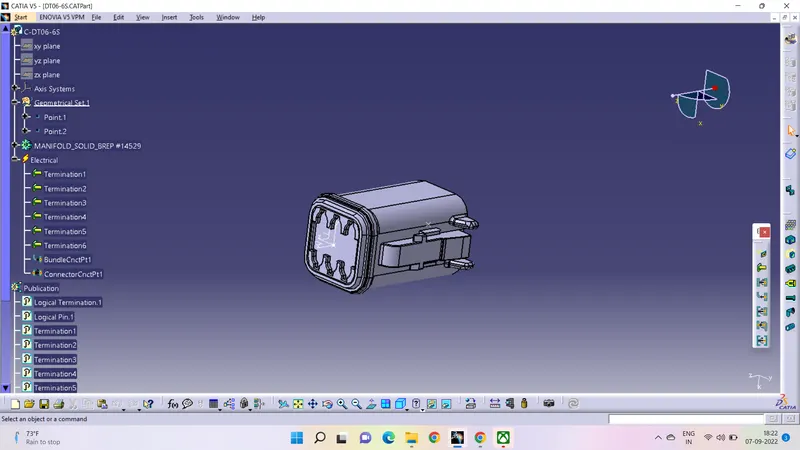

For DS06-6S

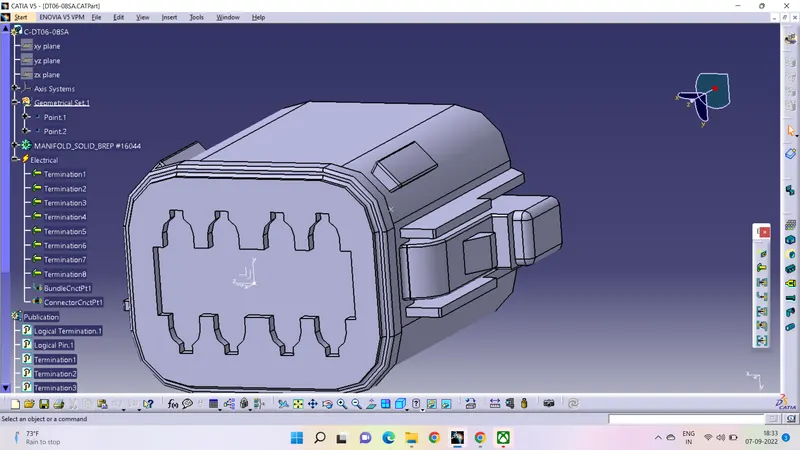

For DS06-08SA

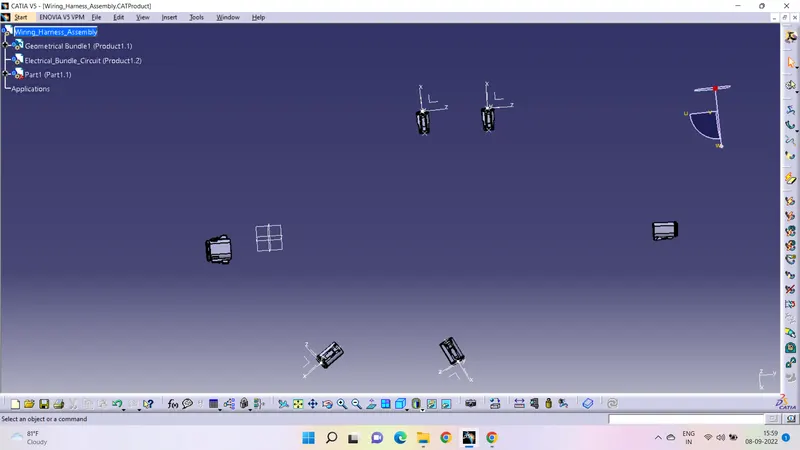

Arrange the defined electrical components as mentioned in the given question above.

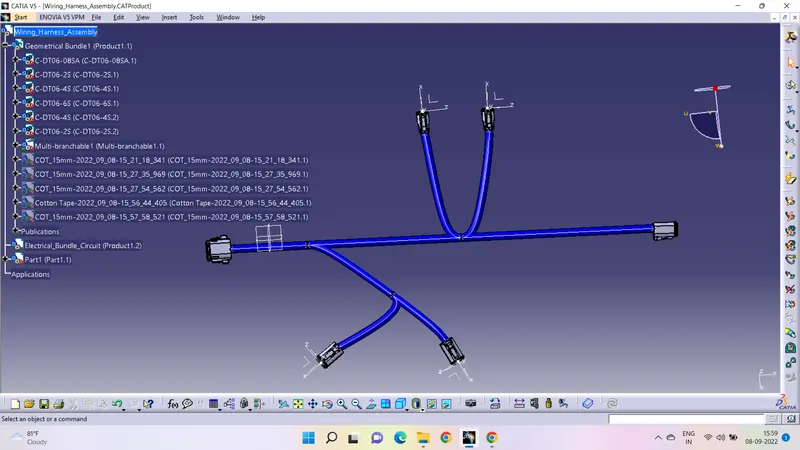

Create "Multi-Branching" to the connectors

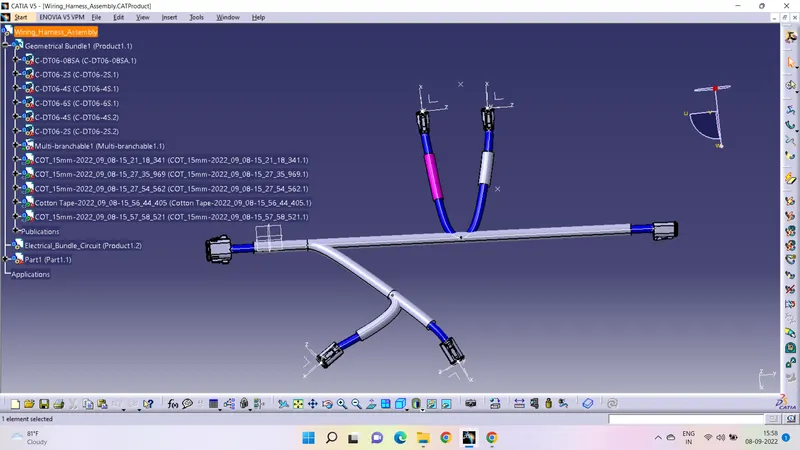

Add/Create Protective covering

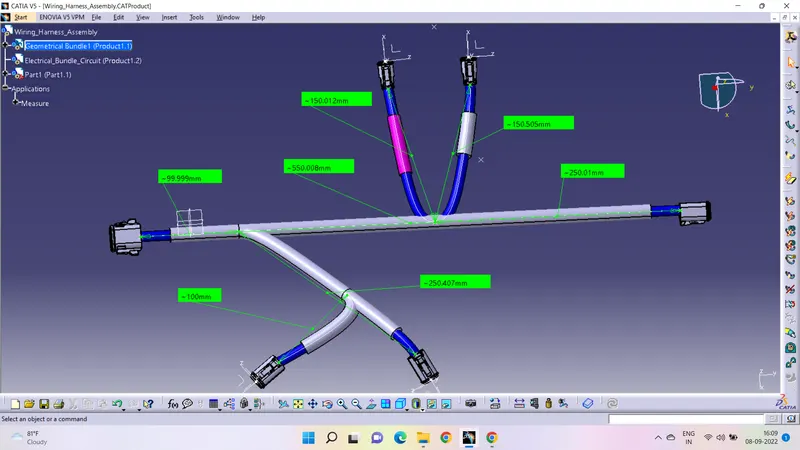

Finally check the dimensions as per the given layout.
