Challenge

Week 8 - Challenge 1 - Base Bracket Design

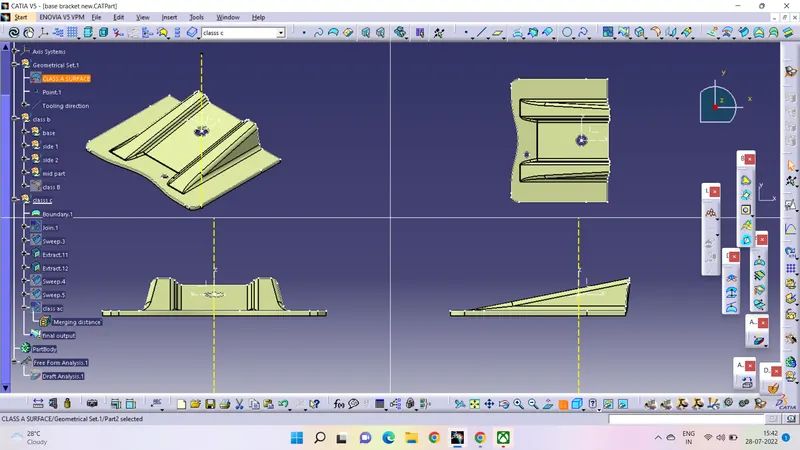

Tooling direction for the given class A is provided

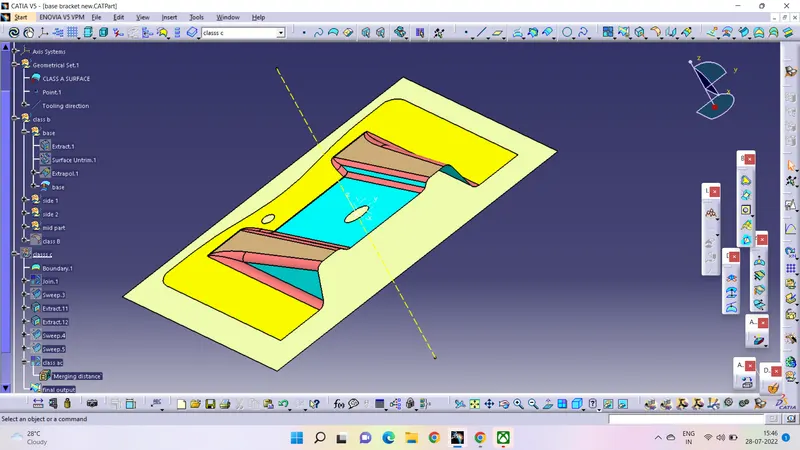

Base is created below the classs a

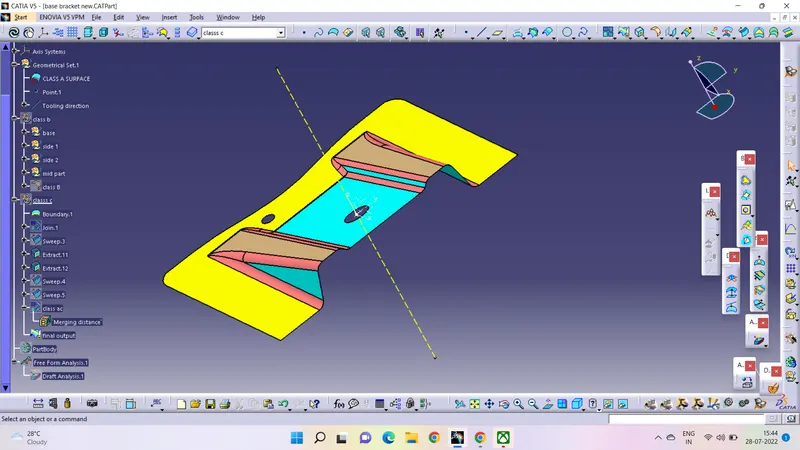

accordingly class b is created

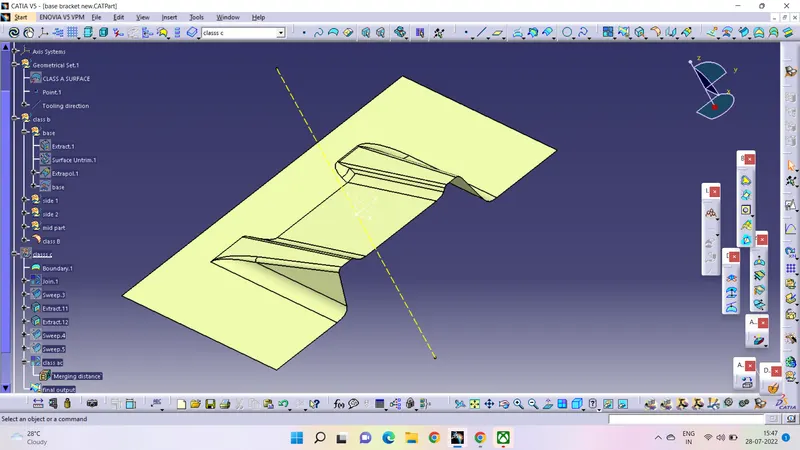

Class is developed (i couldnt make the class c with a draft angle of 3degrees even after many trails, so created with 0degree)

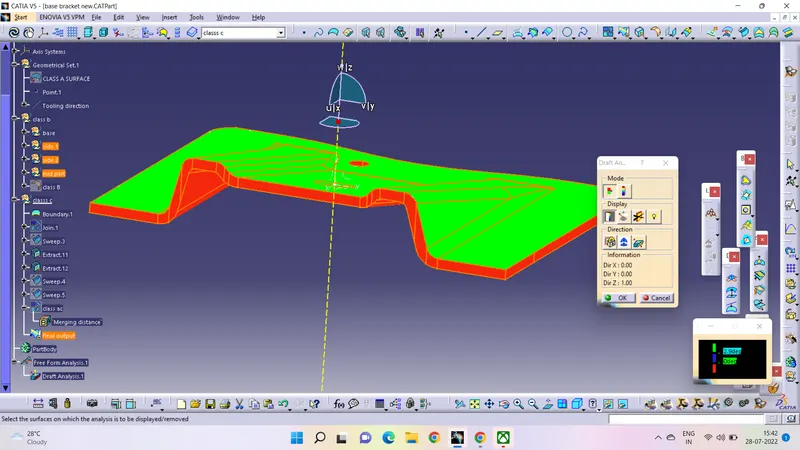

Draft analysis for the final output:-

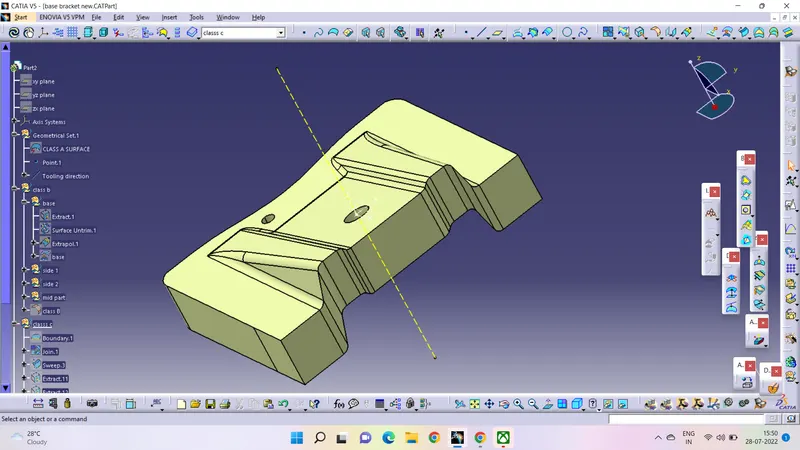

Base bracket in diff views:
