Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

• Aim:Download Deutsch DT06-08SA and Tyco 174357-2 connectors & Tyco 85229-1 clip data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip.



Connector Basics and terms:

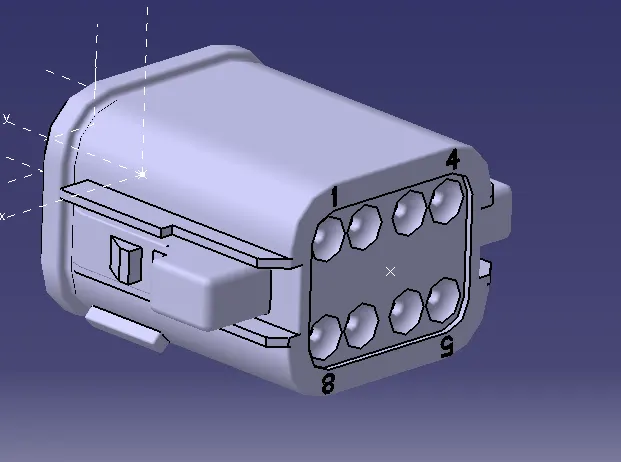

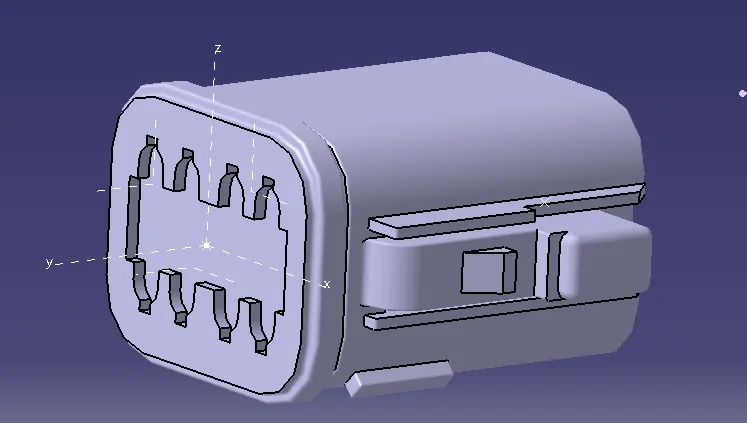

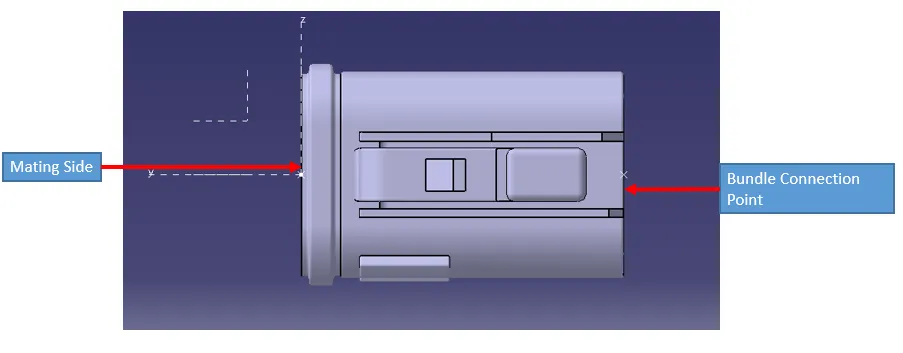

Deutsch DT06-08SA.

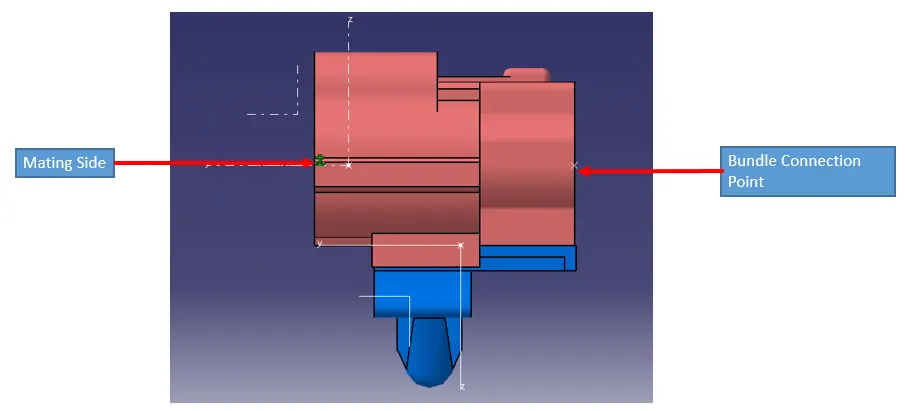

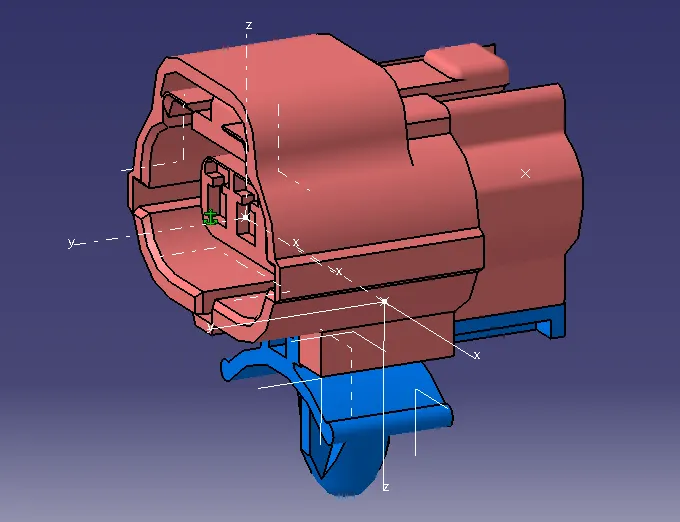

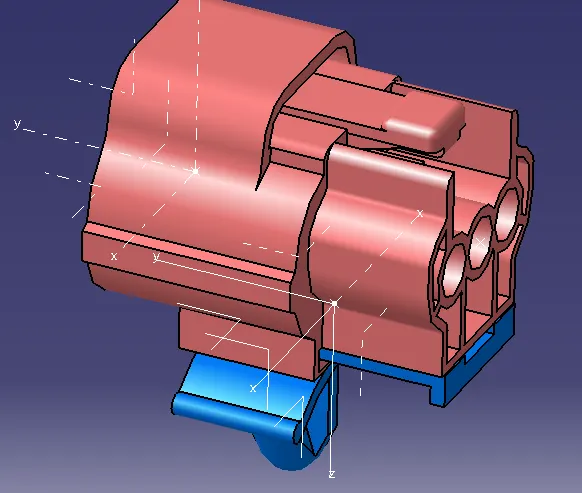

Tyco 174357-2 Connector and Tyco 85229-1 clip.

• Connector Definition:

Below parametrs are used to define the connector:

1.Geometry parameter:Points and Co-ordinate system(Axis).

2.Connector Connection Points:This point is used for the connection of one connector to another connector.

3.Bundle Connection Point:

4.Cavity Connection Point:This point is used to define the connection of a connector to a connector clip.This only applies to connectors which have the mounting feature for a connector clip.

• Connectors are defined electriucally as below:

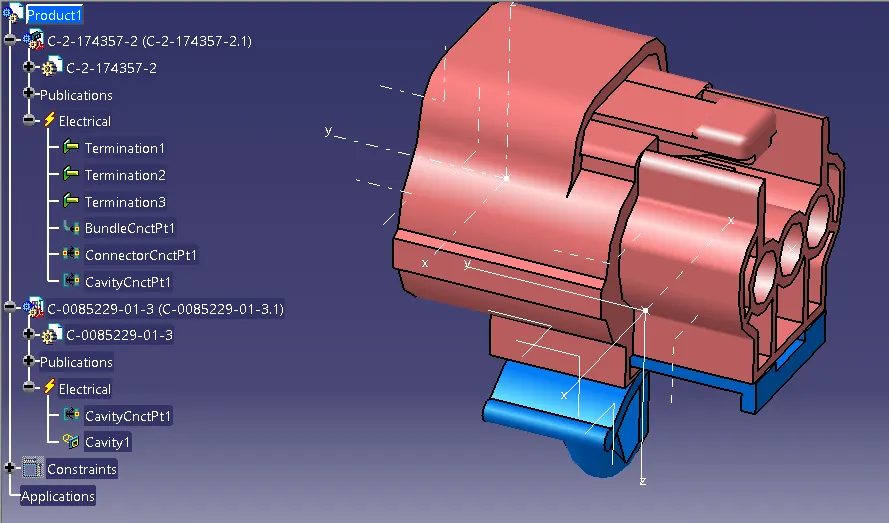

1.Tyco 174357-2 Connector and Tyco 85229-1 clip.

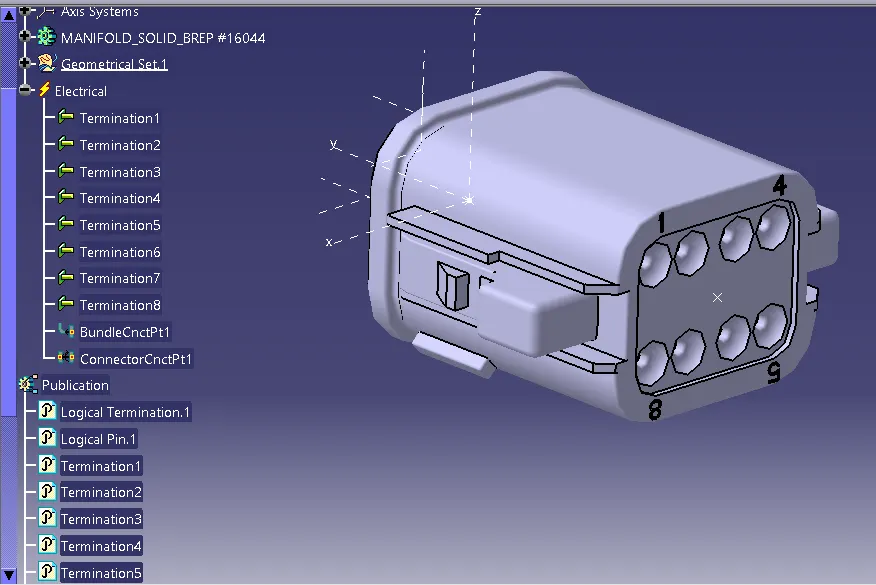

2.Deutsch DT06-08SA.
