Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

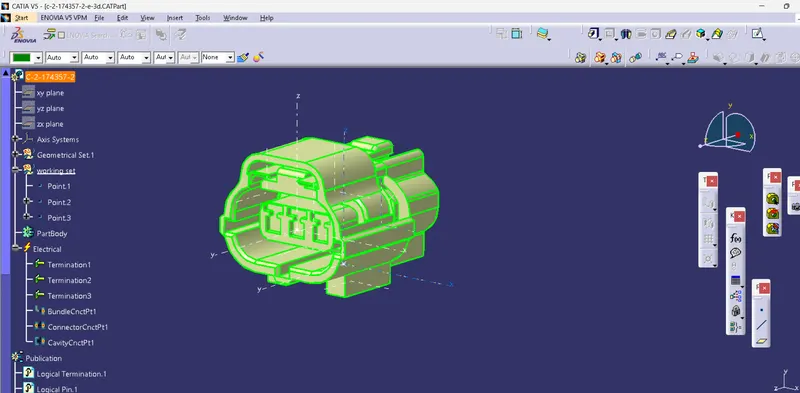

Tyco 174357-2:

catalogue:

Tyco 85229-1 –

CATALOGUE:

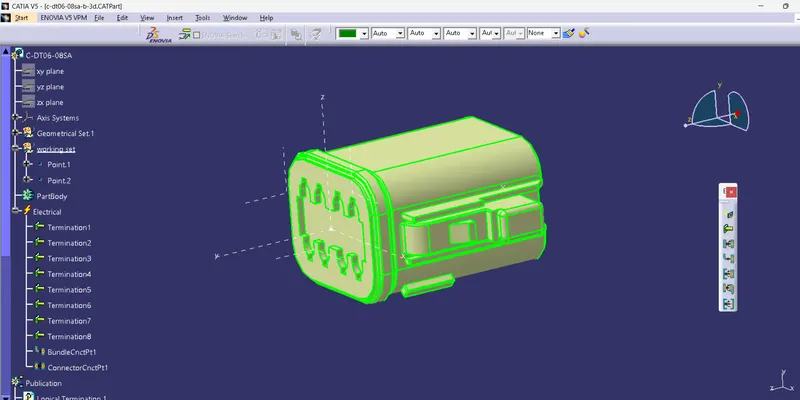

Deutsch DT06 – 08SA:

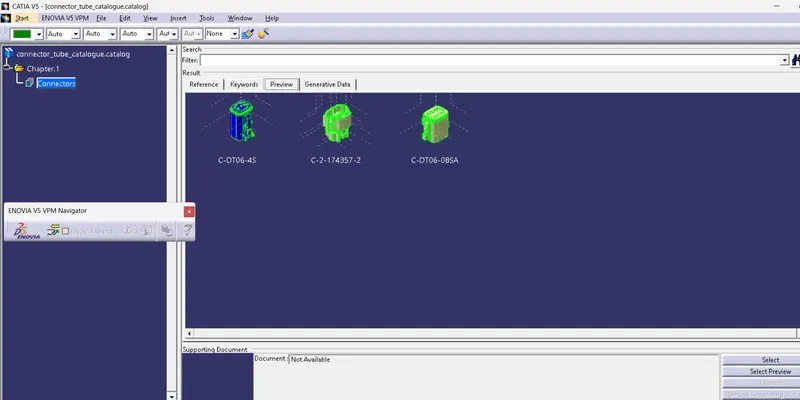

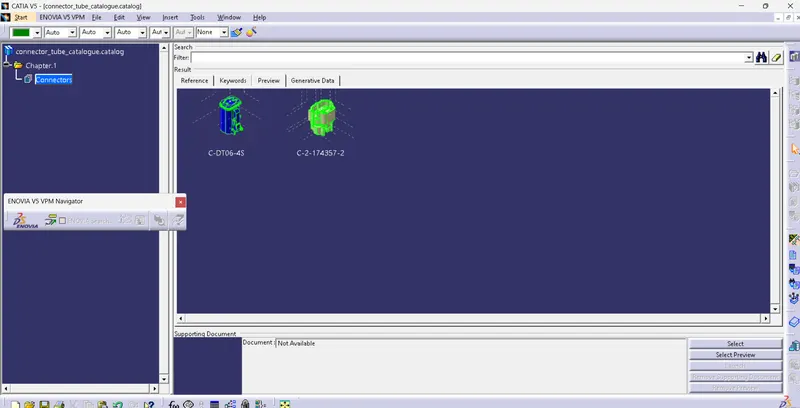

product catalogue:

Design rules:

step 1: Download the 3D connector CAD file.

step 2:create req. geometry parameters such as points.

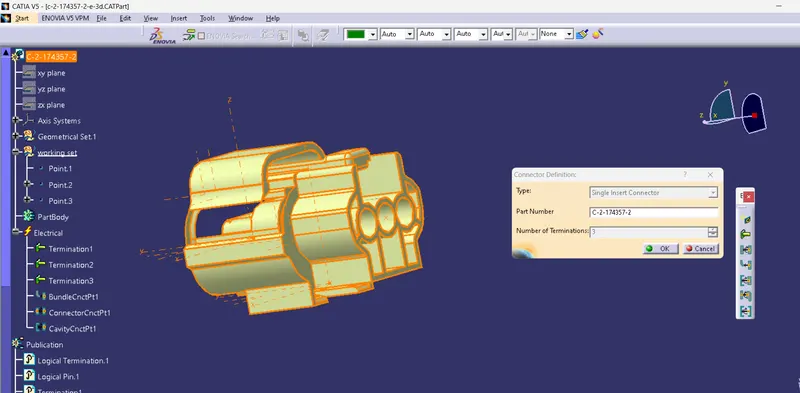

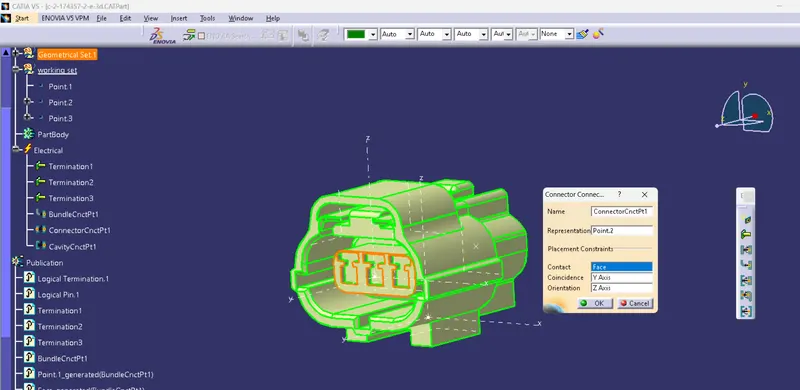

step 3: Define the part as a connector

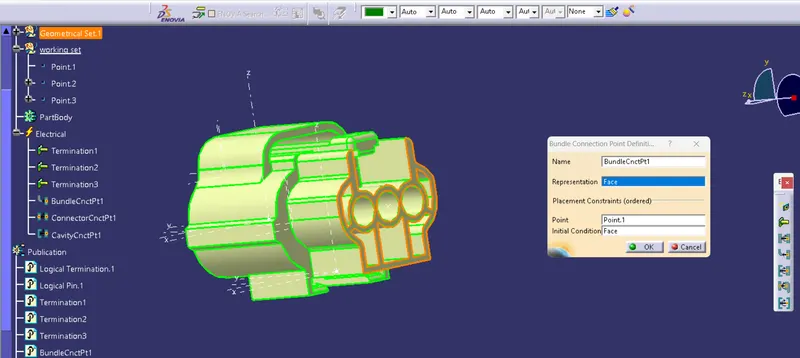

Step 4: Define bundle connection point.

Step 5: define the connection connector point.

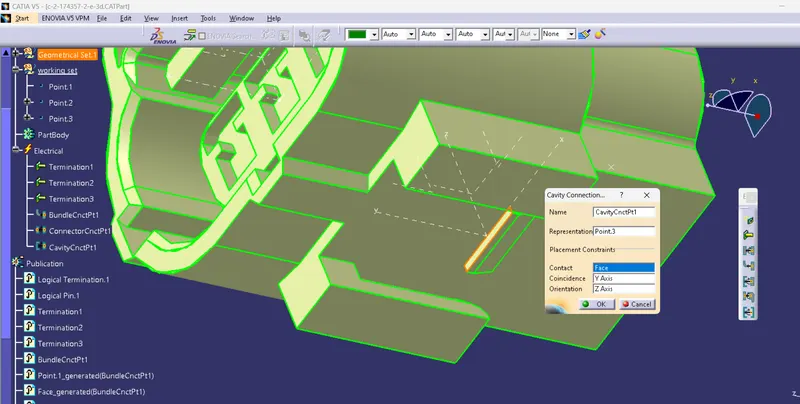

step 6: define the cavity connection point.

definitions:

To define part as a connector: Wire harness connectors provide an uninterrupted electronic signal between a wire harness and a power source. Plugs are typically male, while jacks are usually female.

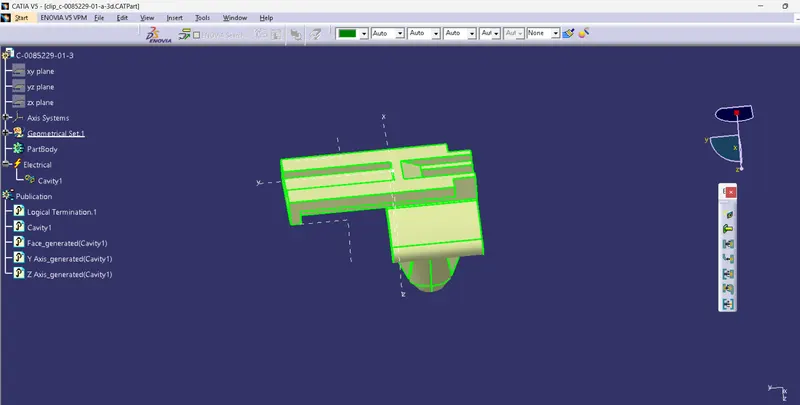

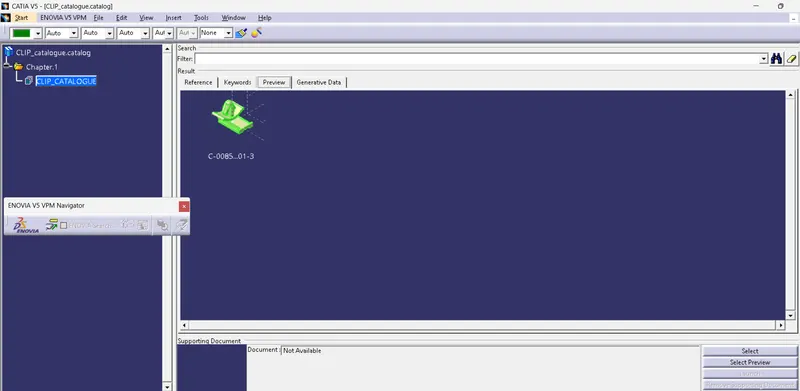

Clip: Automatic Harness Clips offer a simple and secure method of attaching cables to panels and other surfaces. When the cable is pushed inside, it automatically activates the locking features which causes it to close.
