Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

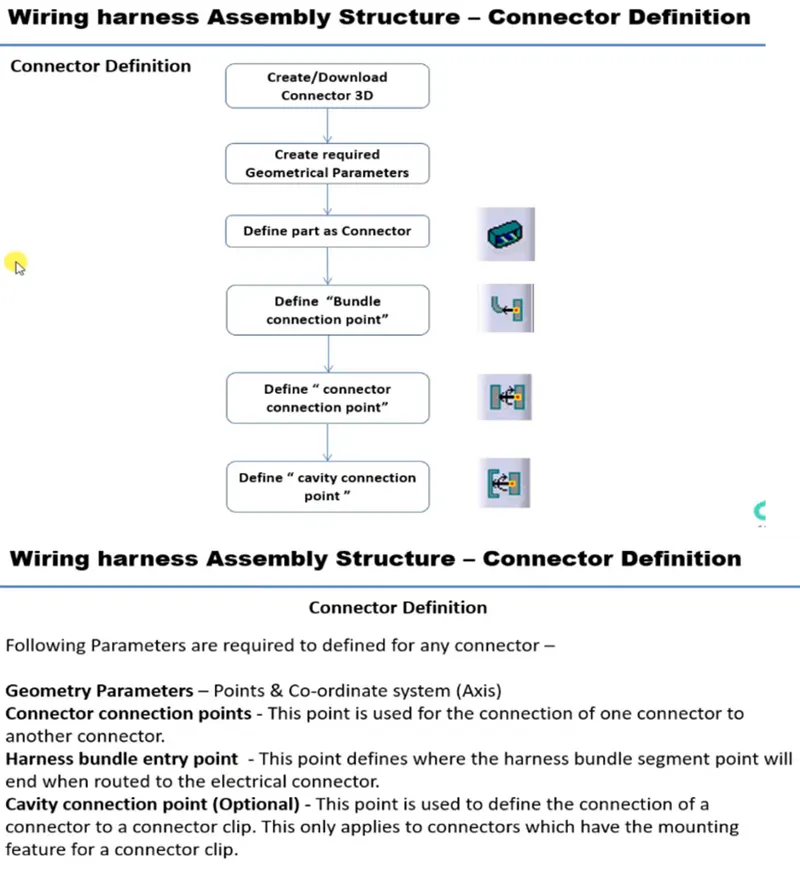

Q1. Download following connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip.
1.Deutsch DT06 – 08SA
- Connector connection point
Create midpoint on the contact face which will be normal to wire bunddle insertion.

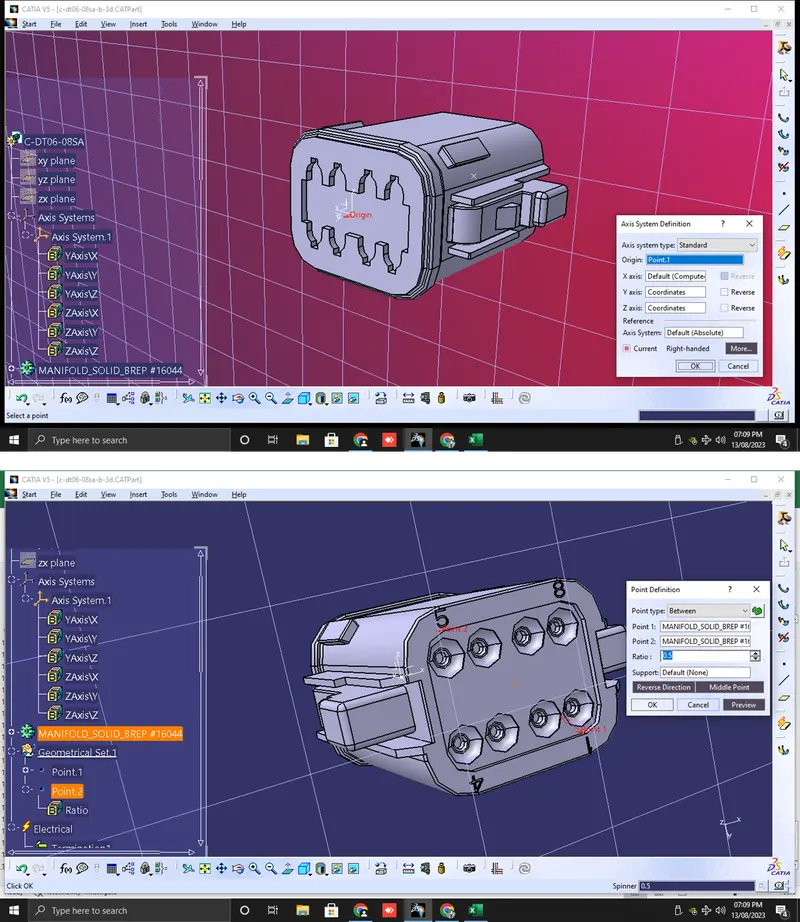

- Craete Axis System with respect to the point which we have created and defining the axis direction as shown below,
- Define Bundle connection point.
- Define connector connection point.
2.Tyco 174357-2

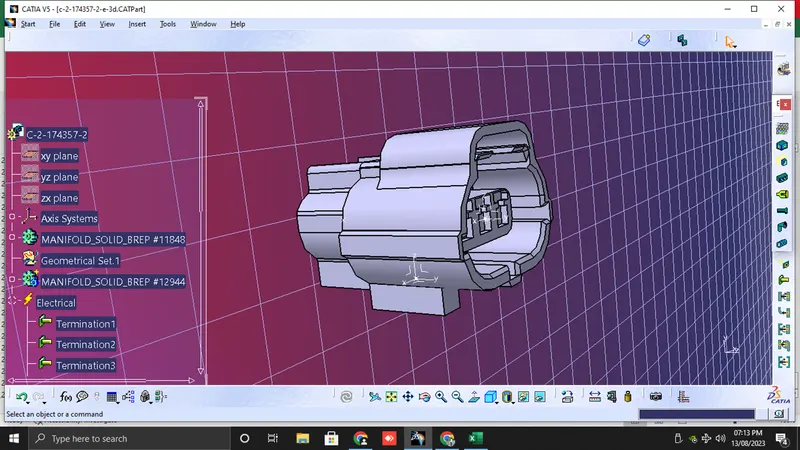

- Connector connection point
Create midpoint on the contact face which will be normal to wire bunddle insertion.
- Craete Axis System with respect to the point which we have created and defining the axis direction as shown below,
- Define Bundle connection point.
- Define connector connection point.
3. Tyco 85229-1
- Create midpoint

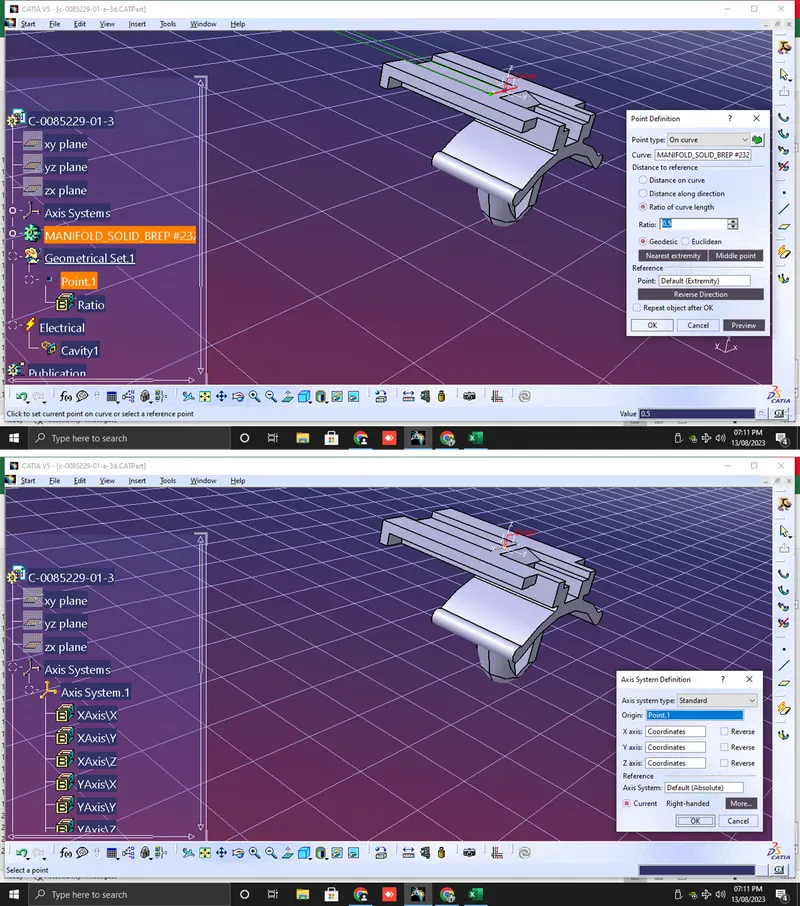

- create cavity connection point
- create cavity connection axis system and orientation should be same as in connector
- Switch to Electric part design and define part as Mounting Equipment
- Define cavity connection point
Elctrical Assembly Design:

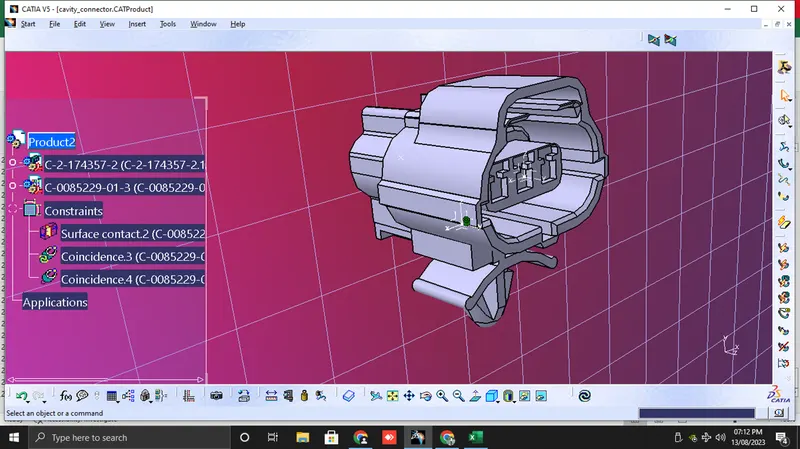

- Import Connector and cavity / mounting clip.
- Select Defing Eelectric connection
- select cavity and then connector.
