Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

STEPS

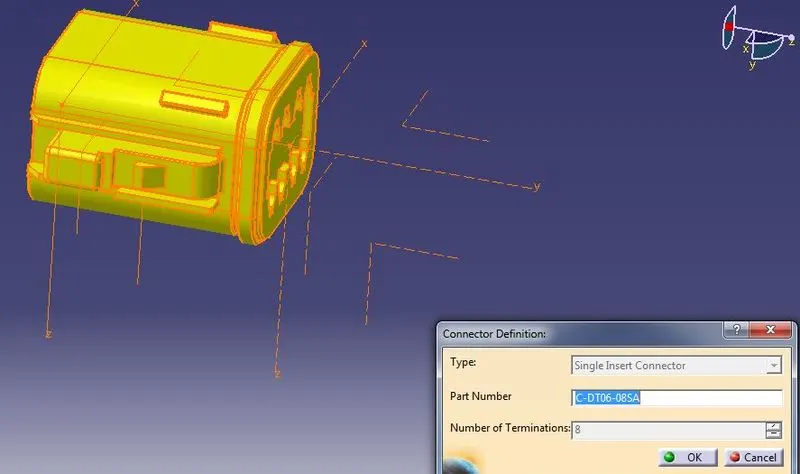

1. C-DT06-08SA CONNECTOR

•    DOWNLOAD THE 3D CONNECTER

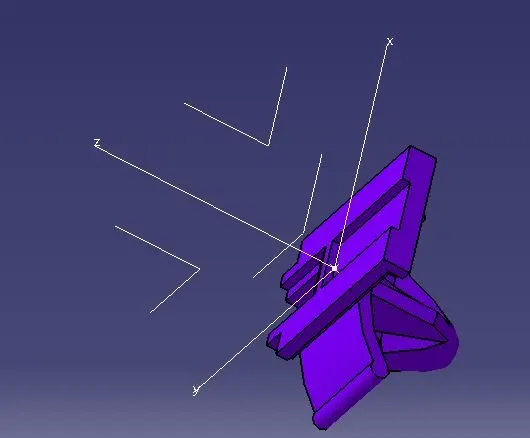

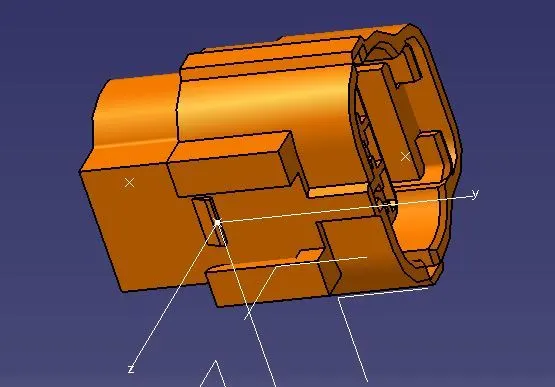

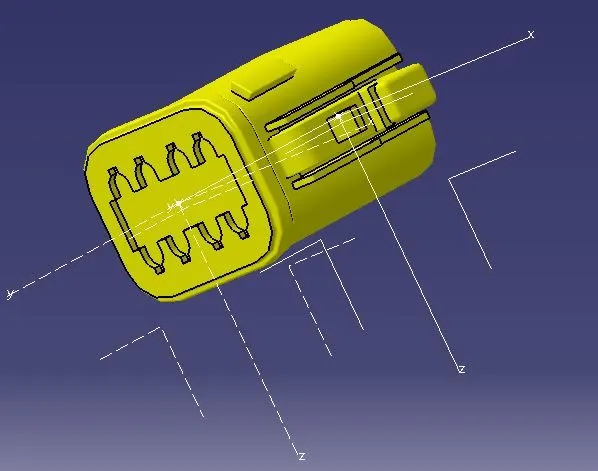

• GEOMETRICAL  PARAMETERS LIKE POINT FOR THE CONNECTING AREA WITH AXIS AND CREATING THE POINT AND AXIS TO THE BUNDLE AREA ARE CREATED.

                WHERE

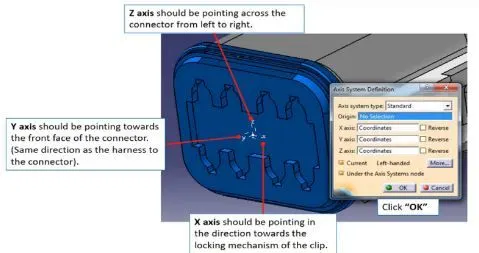

                        Y- AXIS  SHOULD FACES THE DIRECTION OF CONNECTION

                       X - AXIS SHOULD FACES THE DIRECTION OF MECHANICAL CLIP

                       Z - AXIS SHOULD FACES THE DIRECTION OF CONNECTOR LEFT TO RIGHT

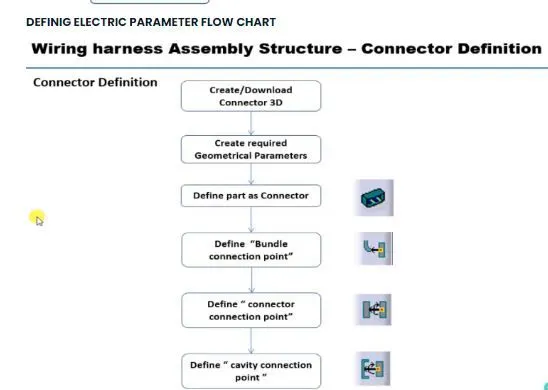

• DEFINE THE PART AS THE CONNECTOR

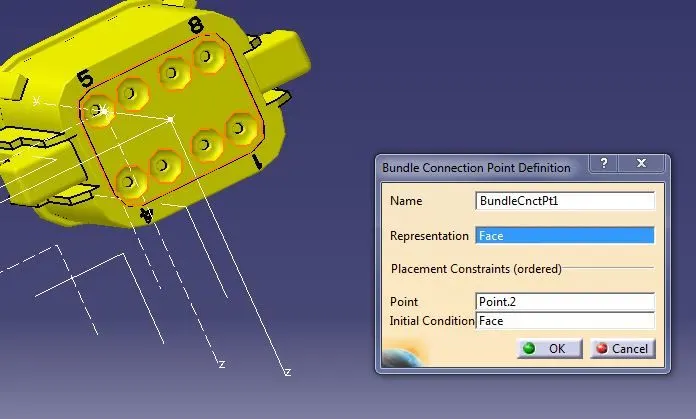

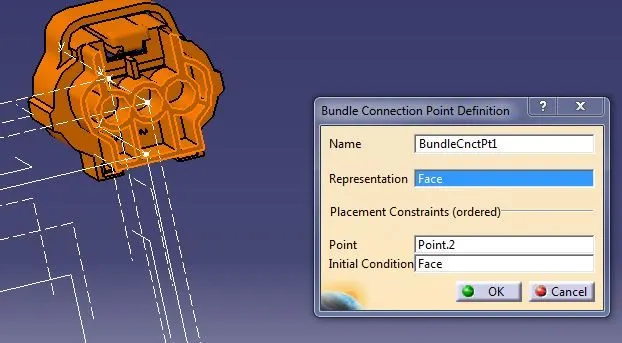

• DEFINE THE BUNDLE CONNECTION POINT

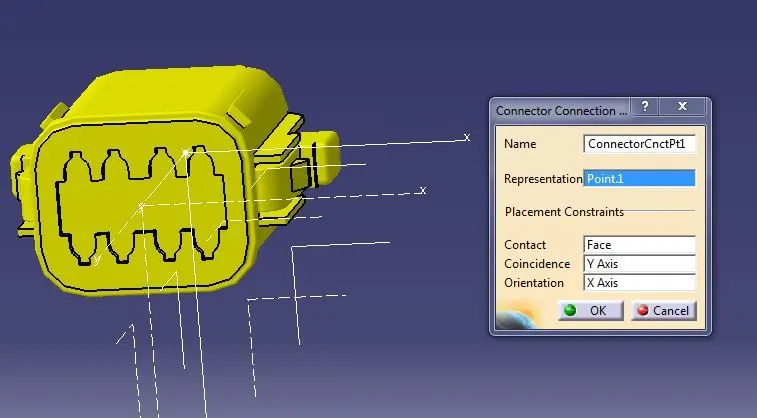

• DEFINE THE CONNECTOR CONNECTION POINT

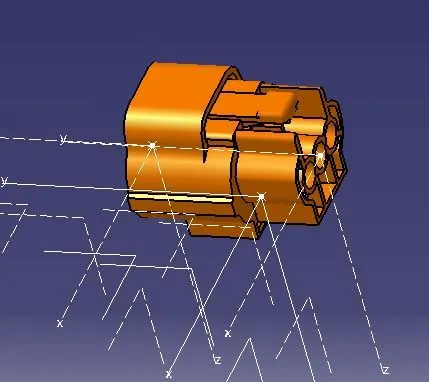

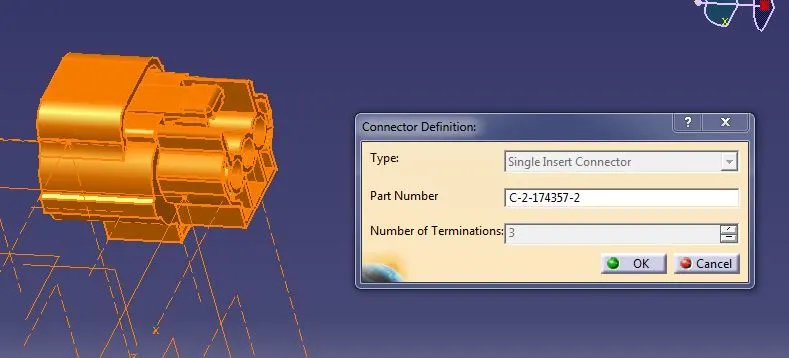

2. C-2-174357-2 CONECTER

•  DOWNLOAD THE 3D CONNECTER
• • GEOMETRICAL  PARAMETERS LIKE POINT FOR THE CONNECTING AREA WITH AXIS AND CREATING THE POINT AND AXIS TO THE BUNDLE AREA ARE CREATED.

                  WHERE

                          Y- AXIS  SHOULD FACES THE DIRECTION OF CONNECTION

                         X - AXIS SHOULD FACES THE DIRECTION OF MECHANICAL CLIP

                         Z - AXIS SHOULD FACES THE DIRECTION OF CONNECTOR LEFT TO RIGHT

• DEFINE THE PART AS THE CONNECTOR
• DEFINE THE BUNDLE CONNECTION POINT

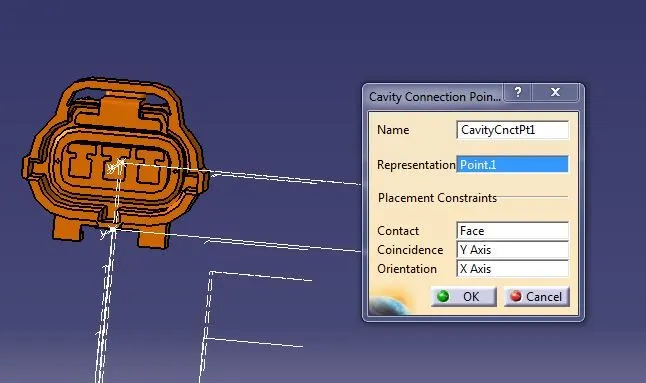

• DEFINE THE CAVITY POINT

3. C-0085229-01-3

• DOWN LOAD THE 3D PART
• GEMONTRIC PARAMETER LIKR POINT AND AXIS ARE CREATED.

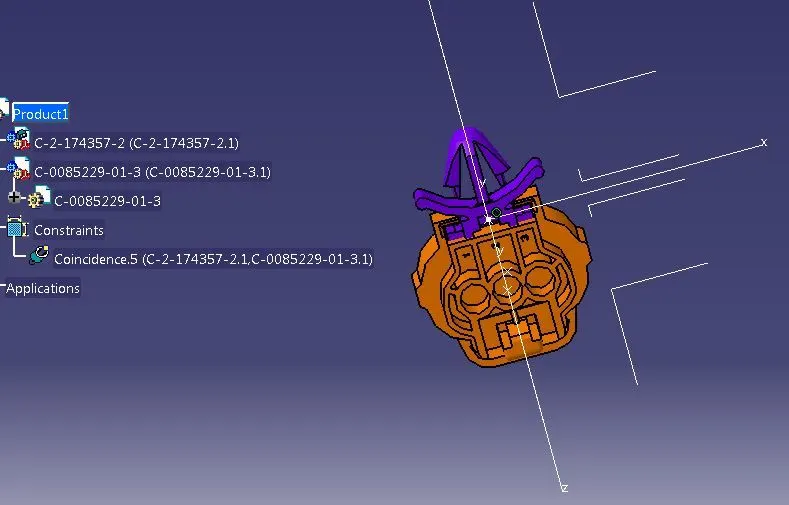

ASSEMBLE THE C-2-174357-2 CONECTER AND PART C-0085229-01-3

 CREATE THE GEMONTRIC PARAMETER FOR BOTH THE PART AND COINCIDE IT THEN WE GOT THE ASSEMBLED VIEW.

FINAL OUTPUT

RESULT

 AS PER THE GIVEN TASK REPORT IS COMPLETED
