Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

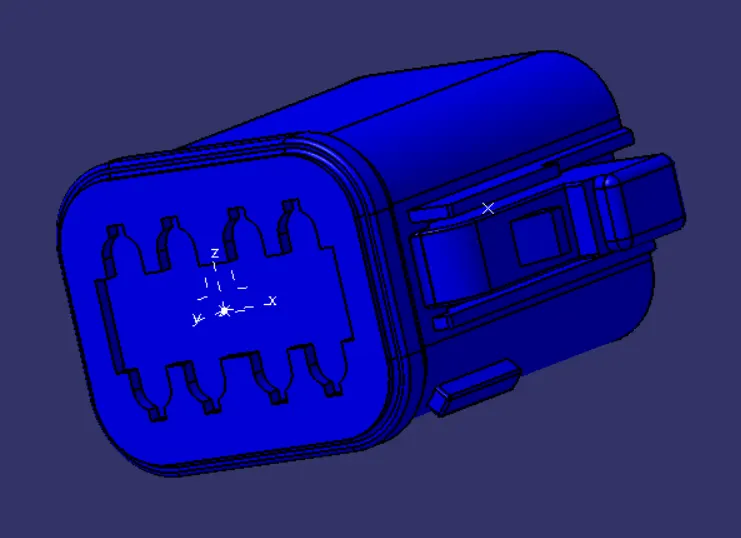

1. Deutsch DT06 – 08SA

The required points are created and bundle connection point and connector connection points are defined. The axis system is also created at the mating side. The part is added to the connectors family catalog.

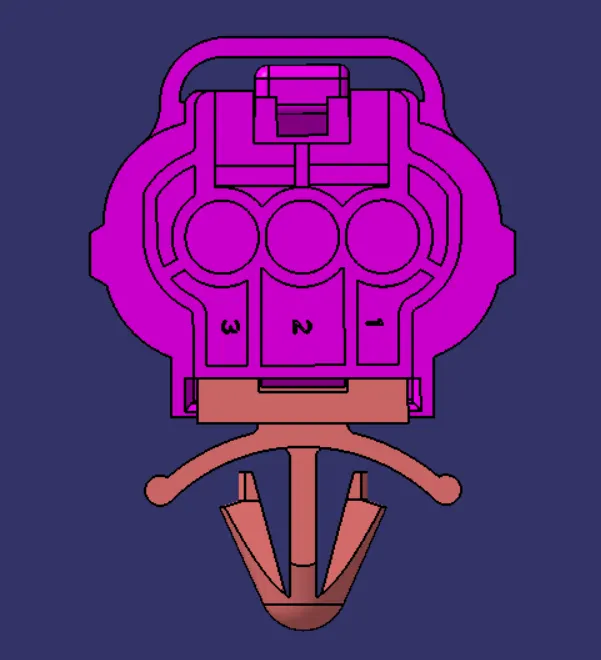

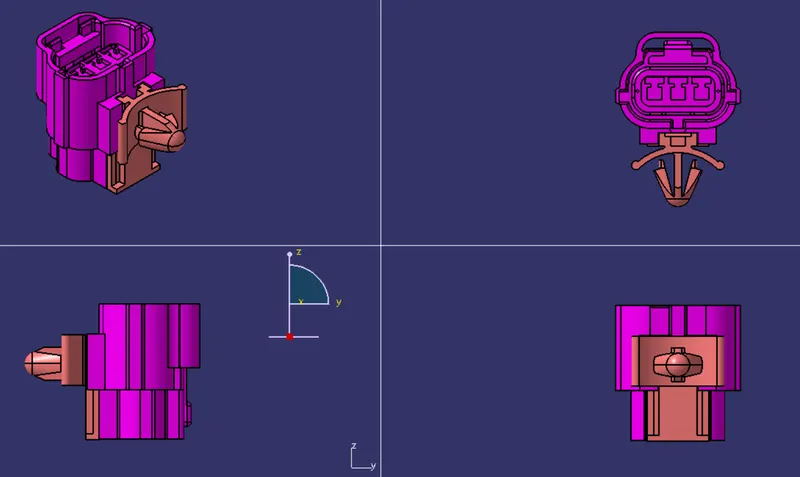

2. and 3. Assembly

The same procedure is followed for the two parts and assembled using the electrical assembly design.
