Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

Wiring harness design in CATIA V5 - 3D modeling

Parameter for defining any connectors

• Geometry Parameters - Point & Coordinate system (Axis)
• Connector connection points - This point is used for connection of one connector to another connector.
• Harness Bundle entry point - This point defines where the harness bundle segment point will end when routed to an electrical connector.
• Cavity connection point - this point is used to define the connection of connector to connector clip. This only applies to connectors with the mounting features for a connector clip.

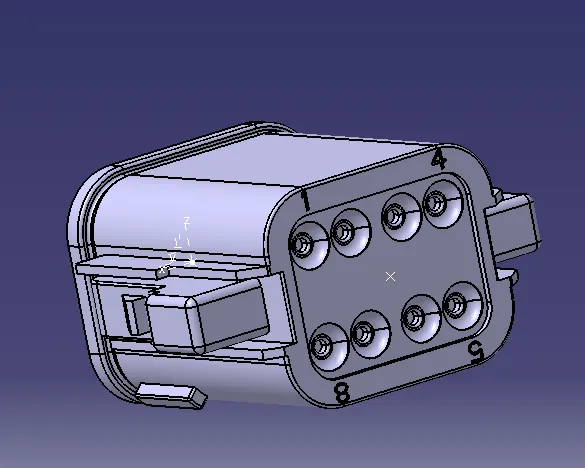

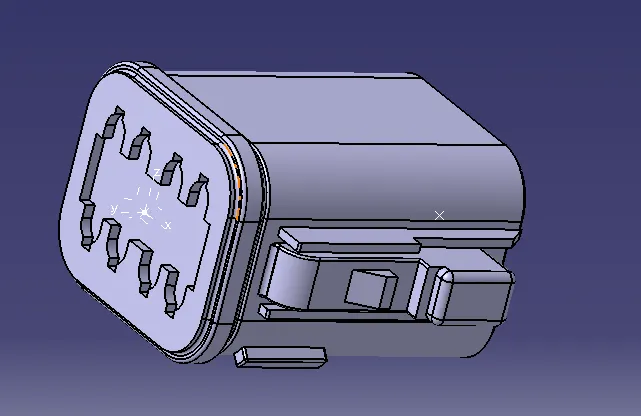

Deutsch DT06 – 08SA

- Connector connecting point with connector axis.

- Harness Bundle entry point.

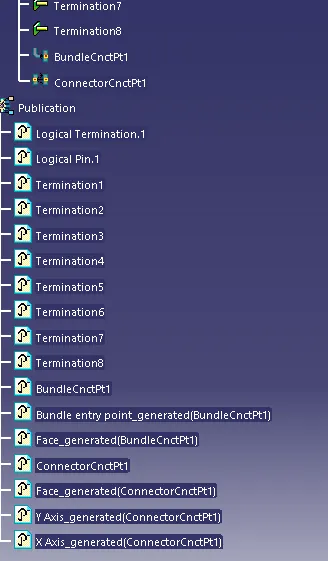

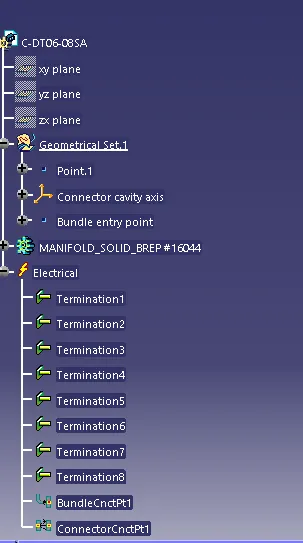

- Design tree

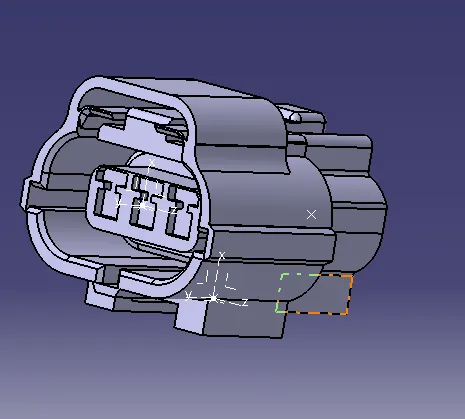

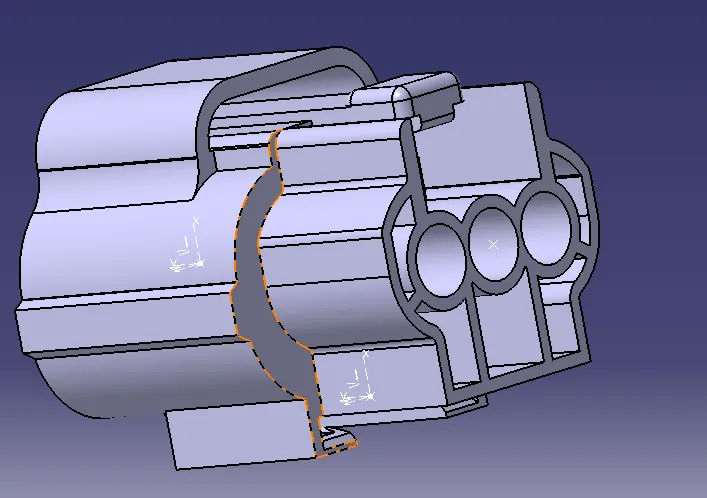

Tyco 174357-2

- Connector connecting point with connector axis.

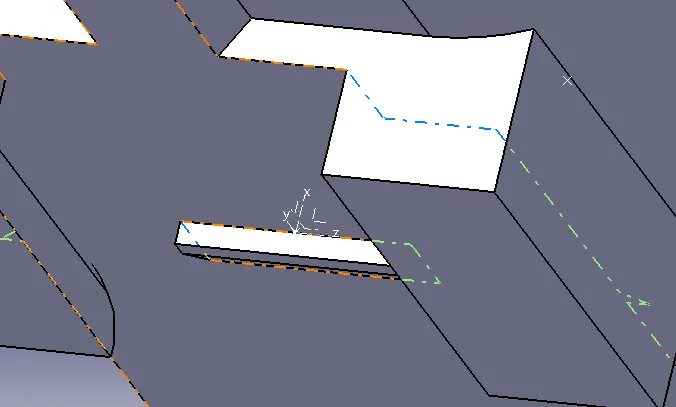

- Cavity connection point with Cavity axis

- Harness Bundle entry point.

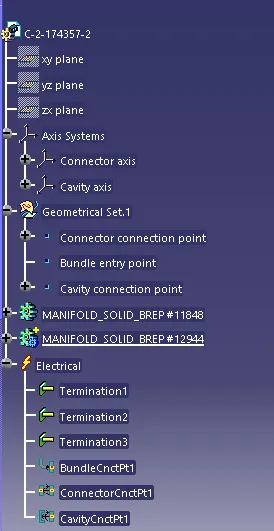

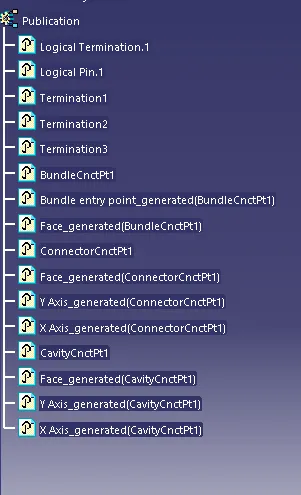

Design Tree

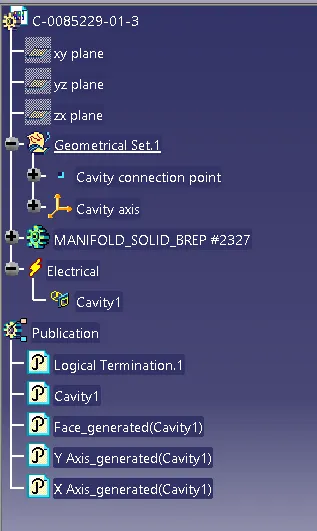

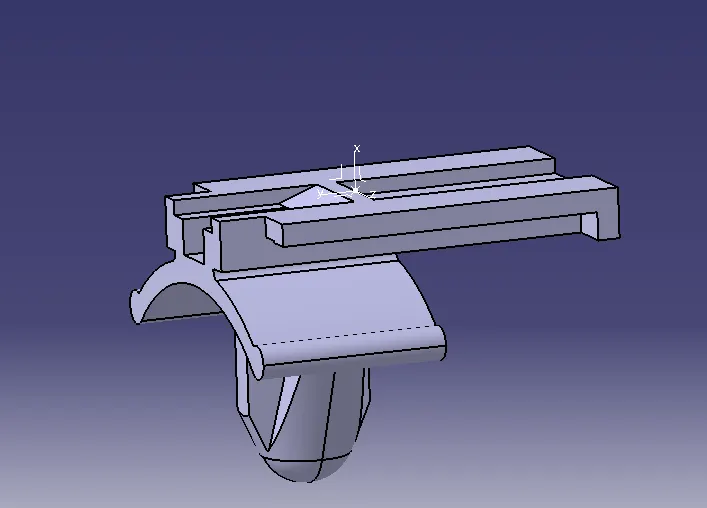

Tyco 85229-1

A catalog was made the connectors and the mounting was added to it. The file is included in the zip file for your reference.
