Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge
*AIM- Define given connectors & connector clip as an Electrical Connector and add their necessary properties using Electrical Part design workbench in CATIA V5
*OBJECTIVE- Using CATIA V5's electrical part design workbench, this project's main goal is to first download the provided files from Tyco Electricals, then define them as electrical connectors or other equipment, and last give them all the necessary electrical attributes.
These are the steps required to do this project-
Create the required geometrical parameters for connector
- Create a bundle entry point
- If connector accommodates clip then define a geometrical parameter for the clip
- Define part as a connector or mounting equipment
- Create bundle connection point
- Create a connector connection point
- Create a cavity connection point if there is a clip
*CONTENT-
There are two connectors, one with clip attachment feature (TYC0 174357-2) and the other one is without it (Deutsch-DT06-08SA). The third part is the clip (TYCO 85229-1)
*CONNECTOR 1- Without Clip attachment- C-DT06-08SA-

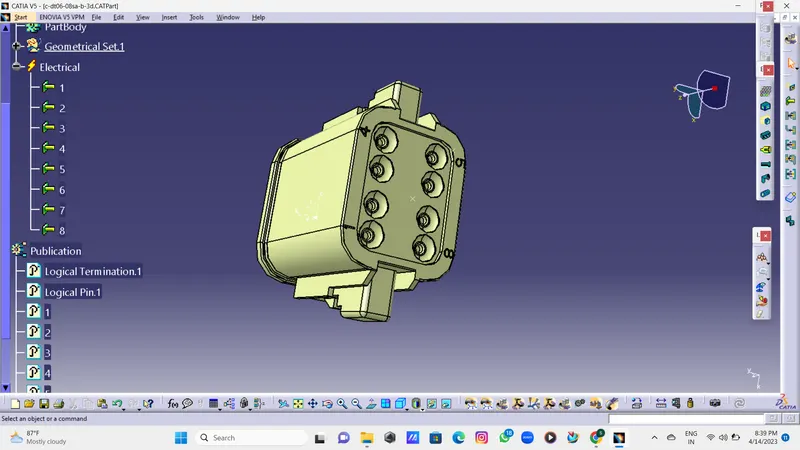

Fig. 1- Defining the Geometrical Parameter to the part

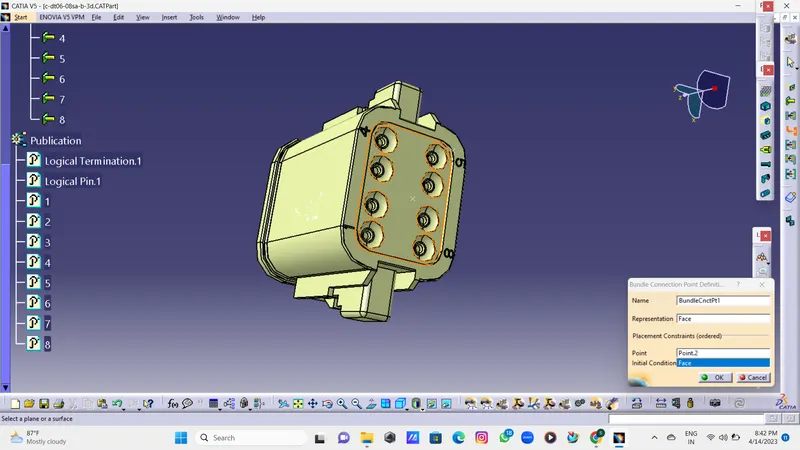

Fig. 2- Defining Bundle entry point

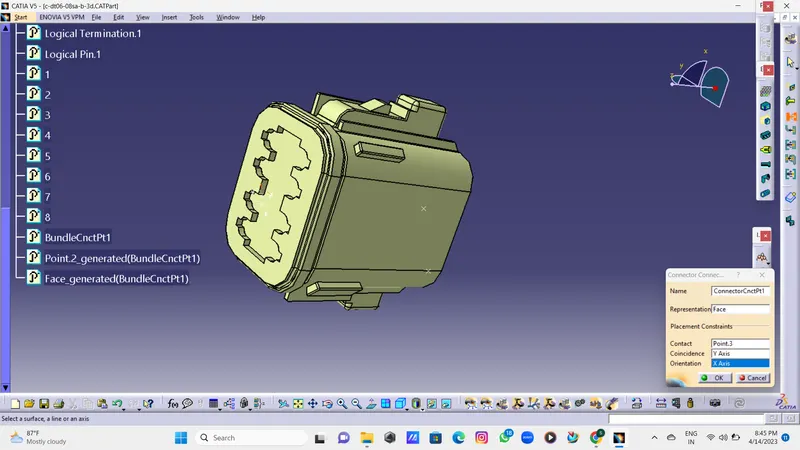

Fig. 3- Defining part as a Connector connection point
*CONNECTOR 2- With Clip attachment- C-2-174357-2-E-3D –
*STEPS-1- Defining the Geometrical Parameter to the part
2- Defining Bundle entry point
3- Defining the Geometrical Parameter for clip or cavity attachment
4- Defining part as a connector

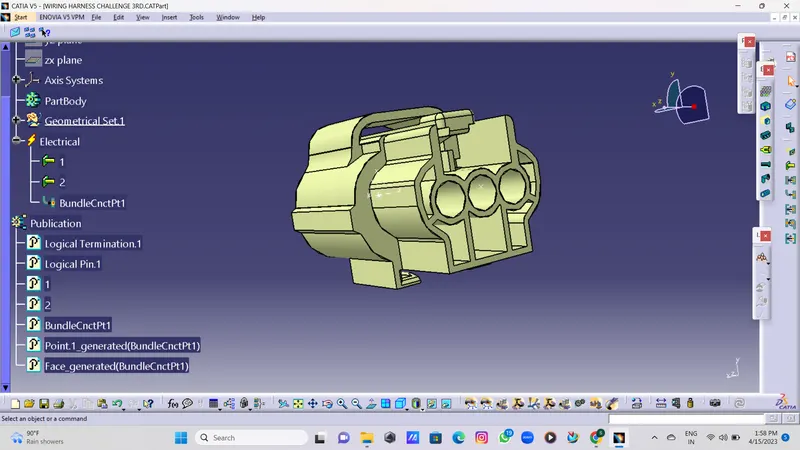

5- Defining Bundle Connection Point

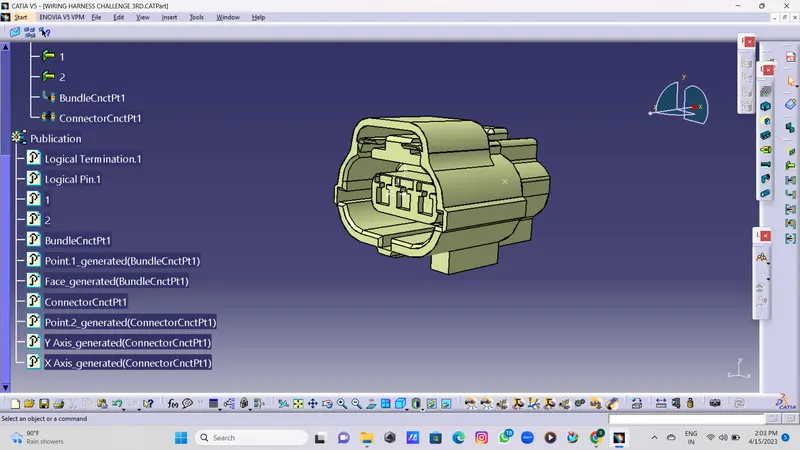

6- Defining Connector Connecting Point
7- Defining Cavity Connection Point
*CLIP 2- C-0085229-01-A-3D-
Fig. 1- Defining the Geometrical Parameters to the part
Fig. 2- Defining part as mounting equipment (clip)
Fig. 3- Defining Cavity
CLIP AND CONNECTOR ELECTRICAL ASSEMBLY-
CONCLUSION-The connectors and the clip were both classified as electrical mounting equipment and electrical connectors, respectively. The components were given all the essential geometrical and electrical qualities.
