Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

AXIS SYSTEM

1. TOOK A POINT ON THE MEETING SURFACE FOR THE AXIS SYSTEM
2. ORIGIN OF THE AXIS SYSTEM IS THE NEW POINT
3. Y-AXIS TOWARDS THE TOOP
4. X-AXIS TOWARDS THE LOCKING DIRECTION
5. Z-AXIS TOWARDS THE MEETING DIRECTION

TOOK A POINT ON THE ENTRY CONNECTION POINT

1. TOOK POINT USING BETWEEN COMMAND

1.ELECTRICAL TERMINATION:

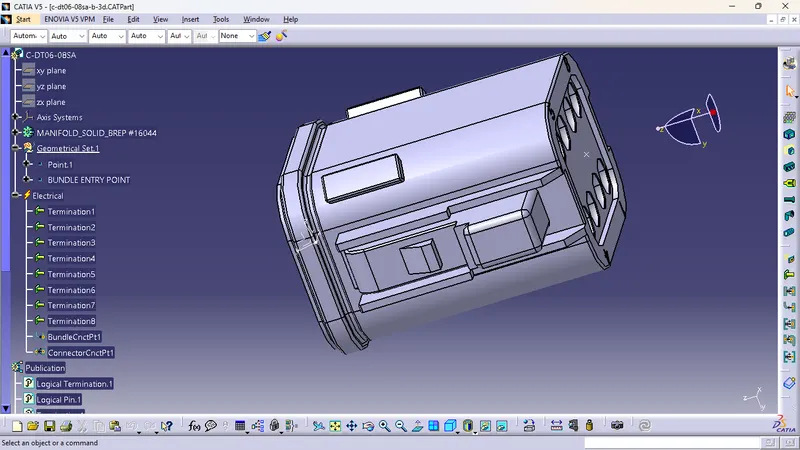

CLICKED ON A CONNECTOR DEFINATION THE CLICKED ON CONNECTOR BODY AND DEFINED THE NUMBER OFTERMINATION WHICH IS 8

2. DEFINE BUNDLE CONNECTION POINT

CLICK ON ICON AND SELECT THE CONNECTOR BODY .

1. REPRESENTATION SELECT THE FACE
2. THEN SELECT THE POINT
3. INITIAL CONDITION FACE

3. CONNECTOR CONNECTION POINT ICON
4. CLICK ON THE OPTION THEN CLICK ON THE CONNECTOR BODY
5. REPRESENTATION SELECT THE MEETING POINT
6. CONTACT- FACE
7. COINCIDENCE-Y-AXIS
8. ORIANTATION-X-AXIS
