Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

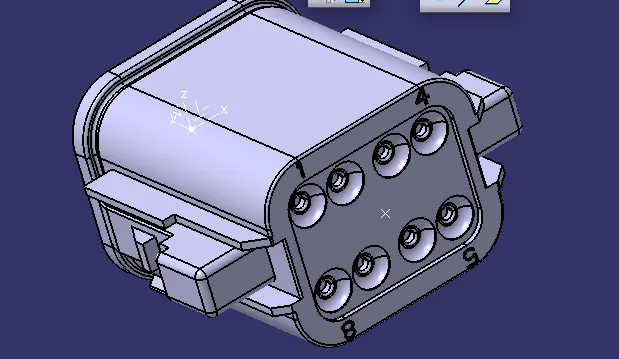

Deutsch DT06 – 08SA

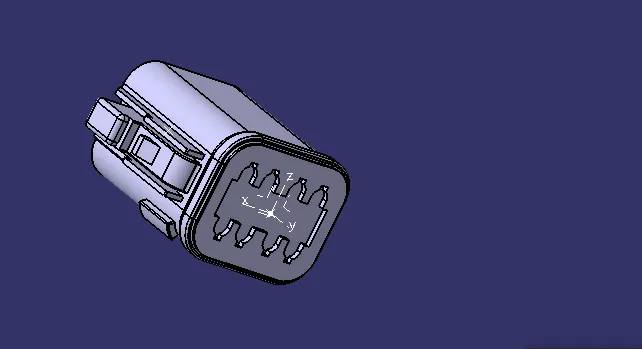

We are taking the model previously provided in the te link pointing the connector point and axis tpo the determination to where the connector is going to connect at the centre point and create the axis system to be created with that point and allocate it to be bundle entry point with the count of terminals. After allocating the required data to the given connector it is ready to create the bunddle and its joining portion
