Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge
Design Approach:

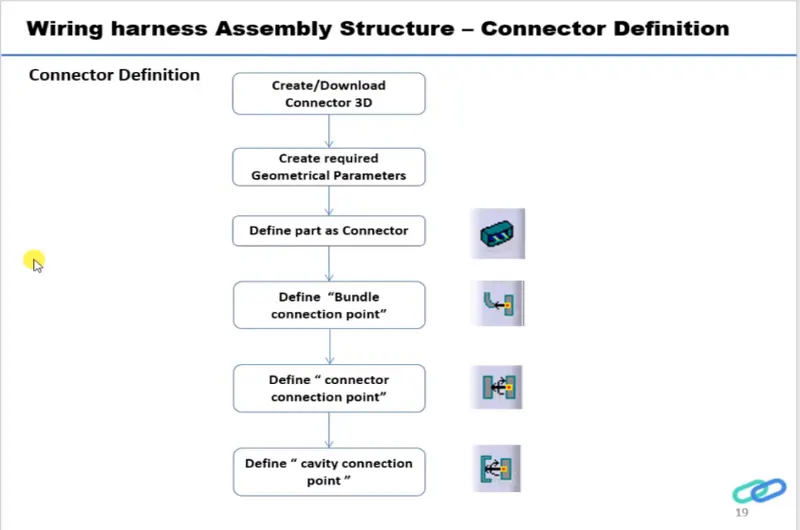

CONNECTOR DEFINATIONS IN CATIA V5

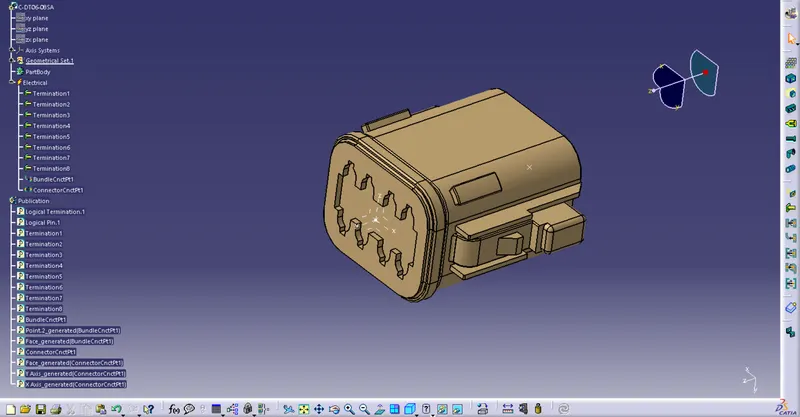

1) Deutsch DT06 – 08SA:
Steps To Construct the Model:
- create Bundle entry point
- create Connector connection point
- create Connector connection axis system
- Switch to Electric part design and define part as connector
- Define Connector connection point and bundle entry point

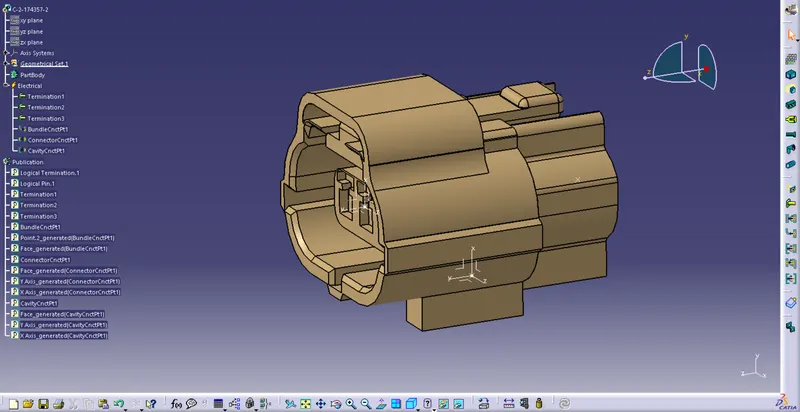

2) Tyco 174357-2:
Steps To Construct the Model:
- create bundle entry point
- create Connector connection point
- create Connector connection axis system
- create cavity connection point
- create cavity connection axis system
- Switch to Electric part design and define part as connector
- Define Connector connection point and bundle entry point

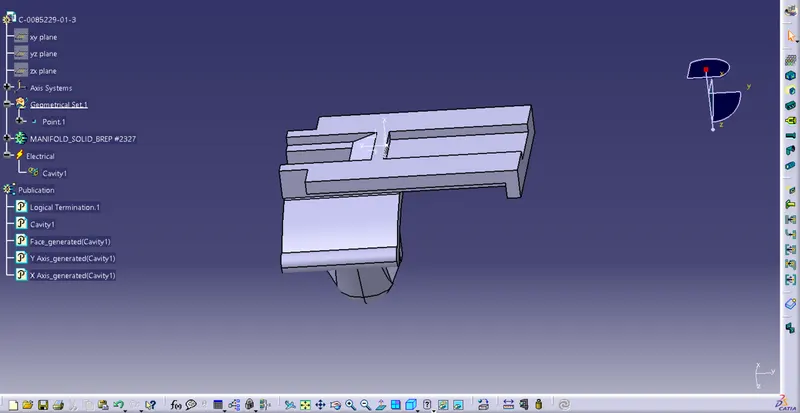

3) Tyco 85229-1:
Steps To Construct the Model:
- create cavity connection point
- create cavity connection axis system and orientation should be same as in connector
- Switch to Electric part design and define part as Mounting Equipment
- Define cavity connection point

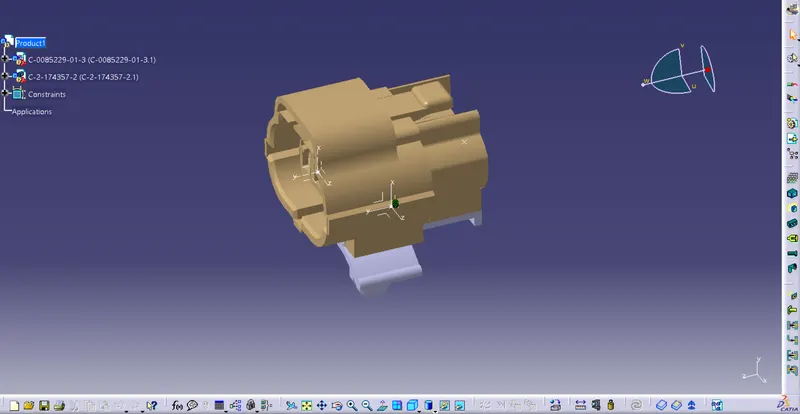

Connector and Mounting Assembly
Conclusion:
Thus, all the 3d Parts are downloaded also define it as electrical connector using Electrical Part design Workbench,then define all the necessary properties to Connectors & Clip.
