Week 9 Tension and Torsion test challenge

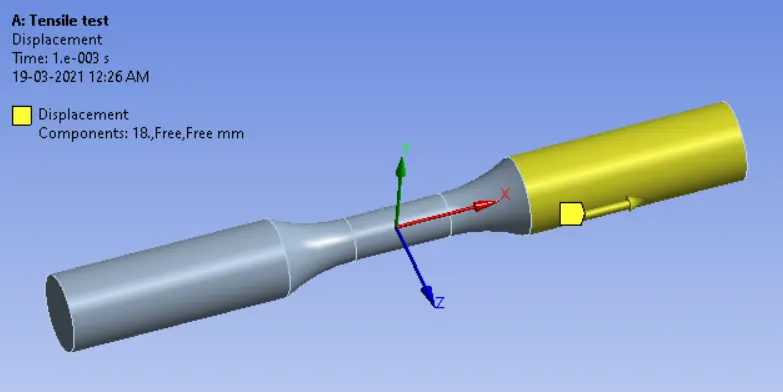

Objective of challenge: To perform a Explicit dynamic analysis of tension and torsion test on the specimen. For the tension test, displace one end of the specimen to 18mm while keeping the other fixed and for the torsion test, need to displace one end of the specimen to an angle of 1200 degree. Find out the total deformation, equivalent stress and temperature of the specimen.

Simulation setup configuration as follows:

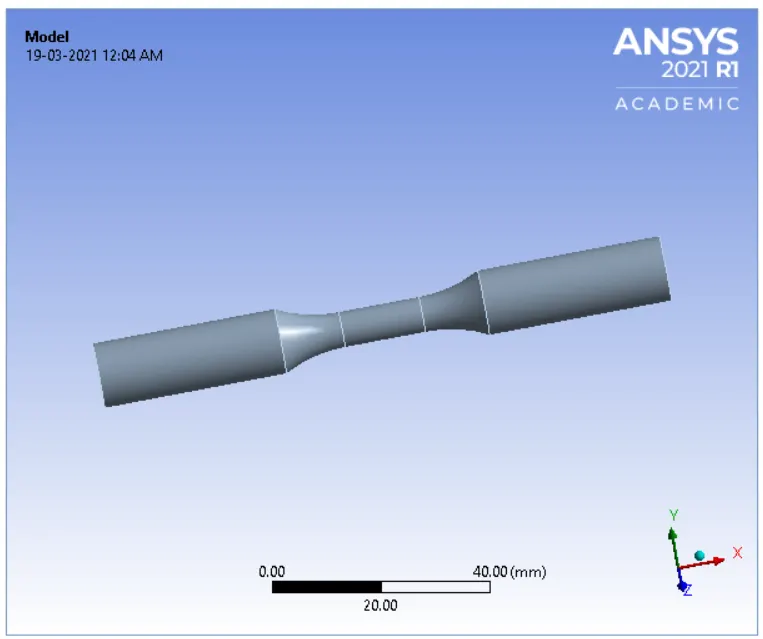

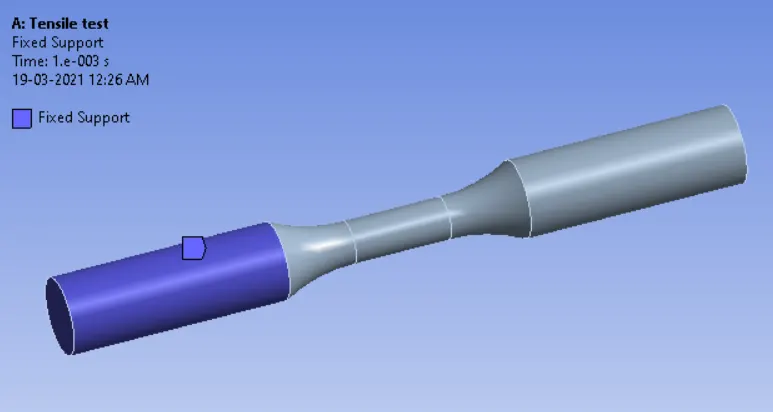

1. Model as follows

2. Part names are specified as

3. Material applied for both tests

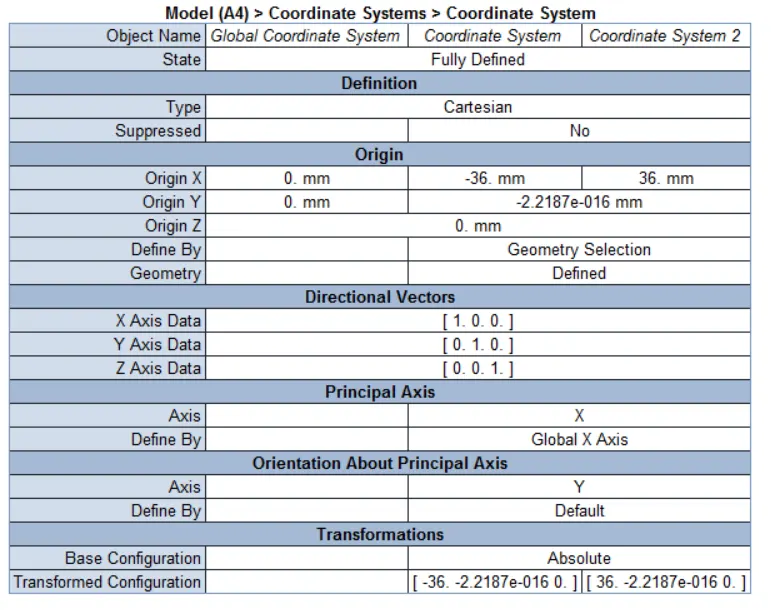

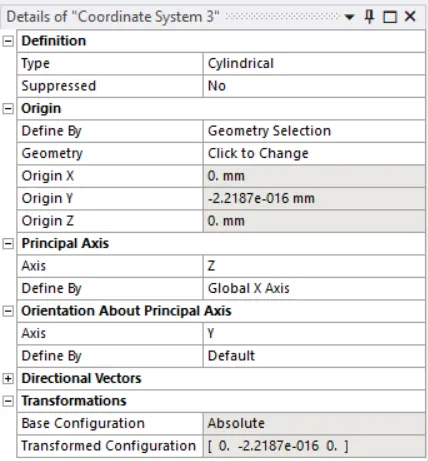

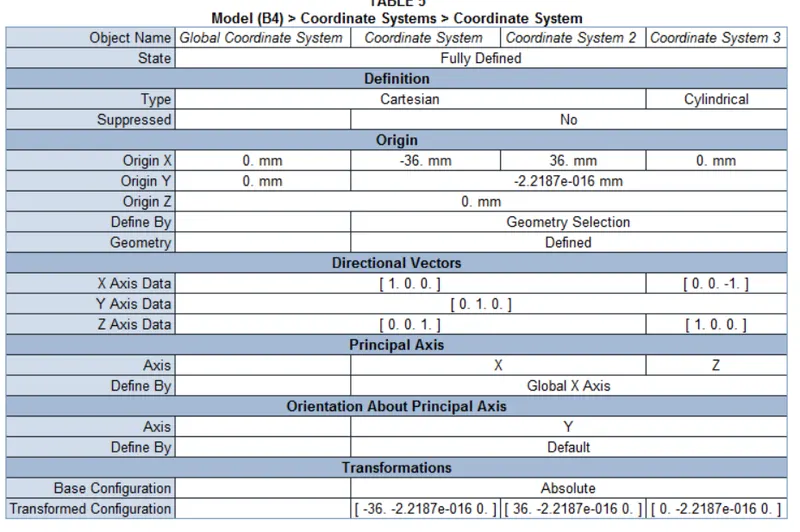

4. Coordinate systems configured as

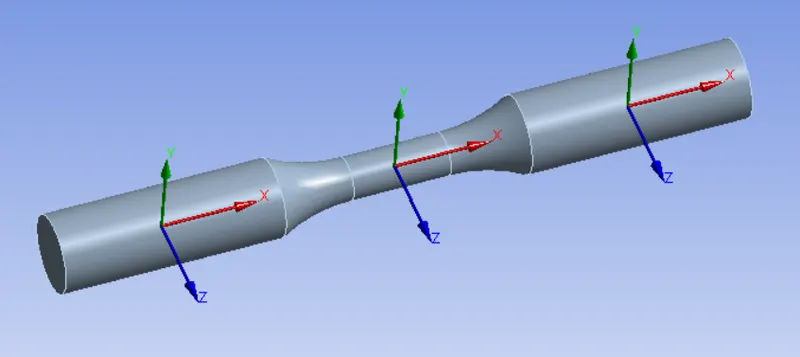

For Tensile test

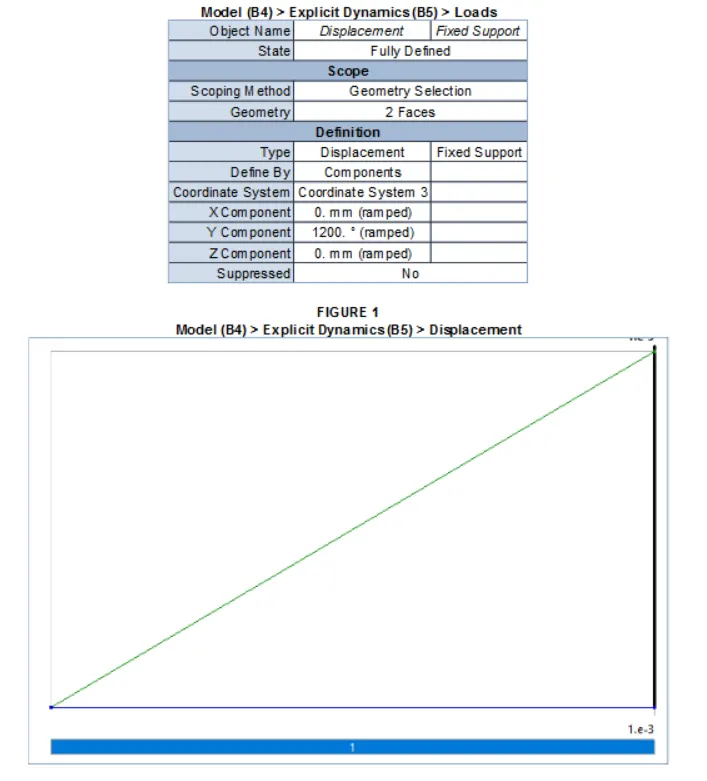

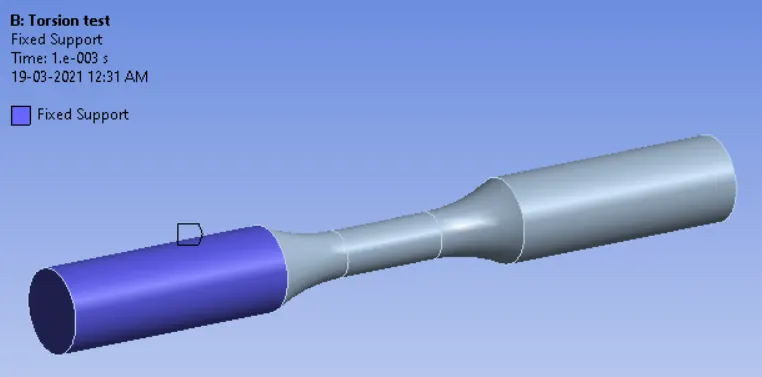

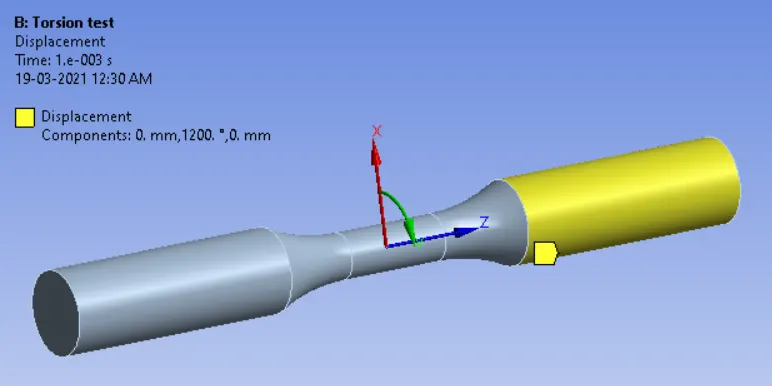

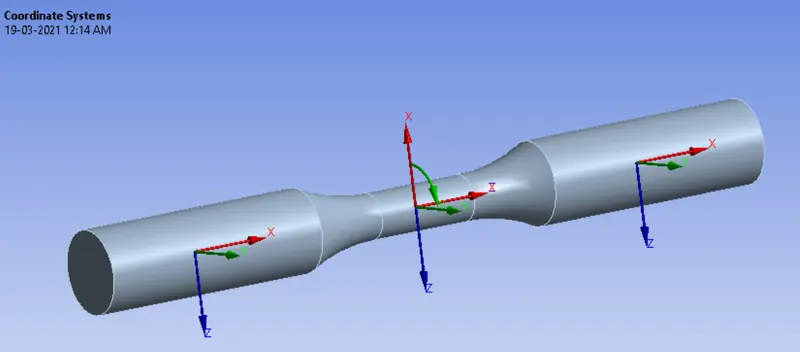

For Torsion test

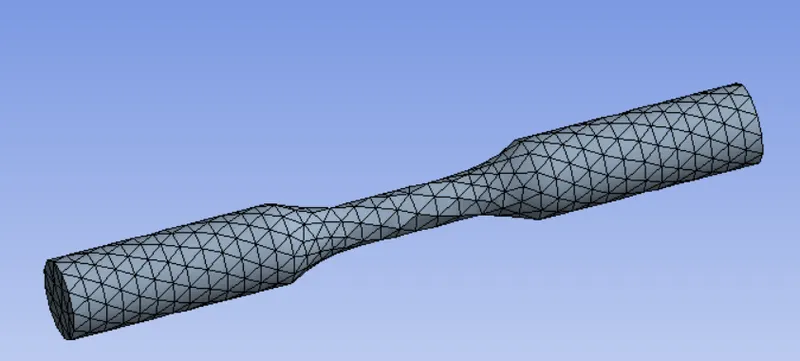

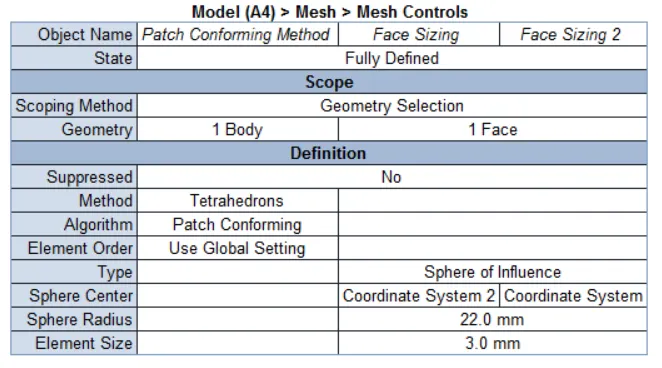

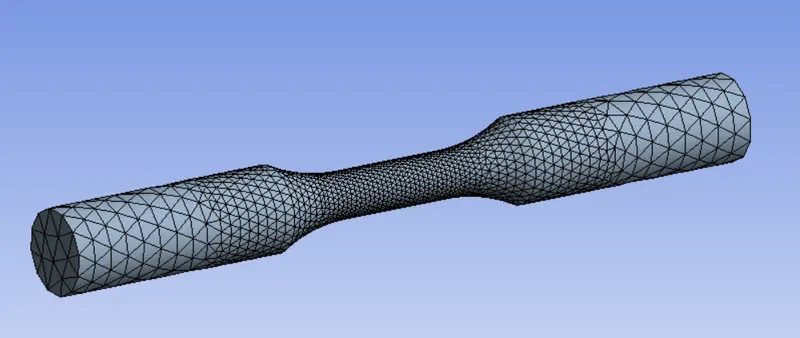

5. Mesh size is configured as

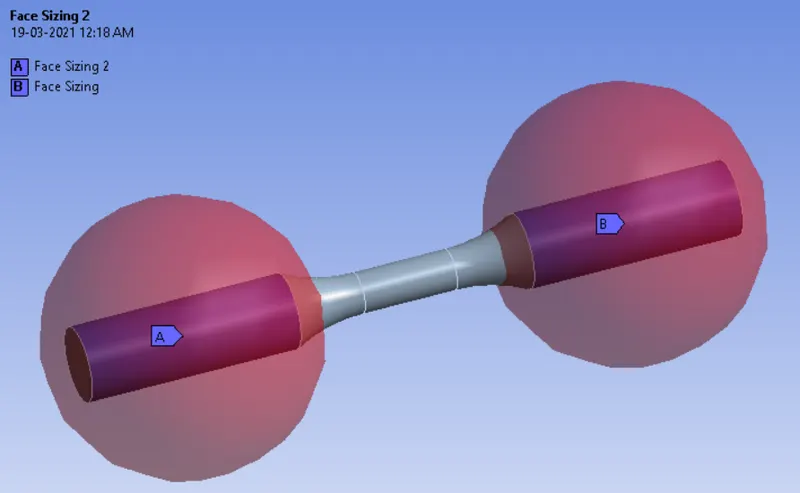

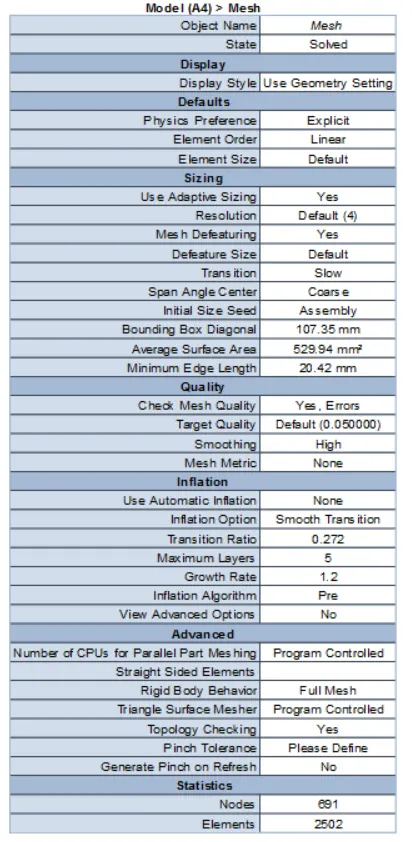

For Tensile

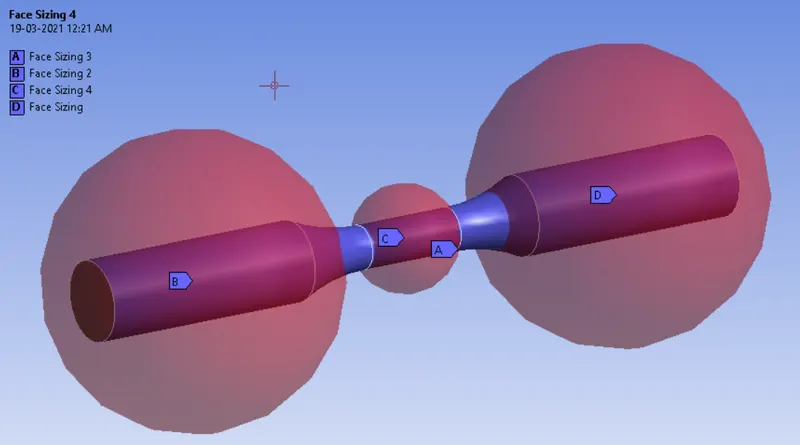

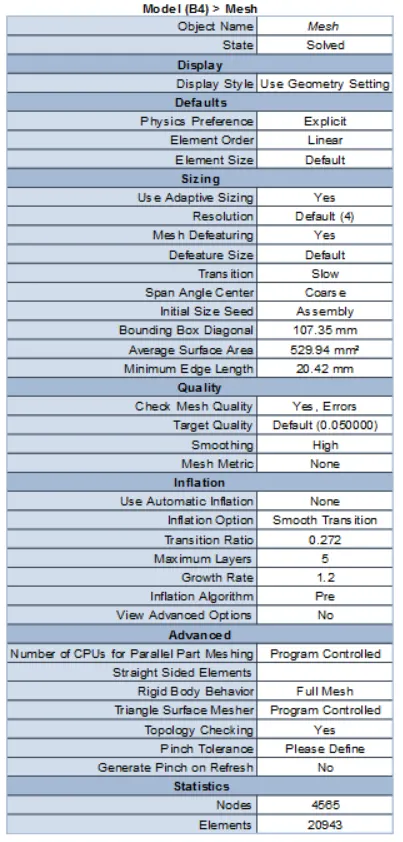

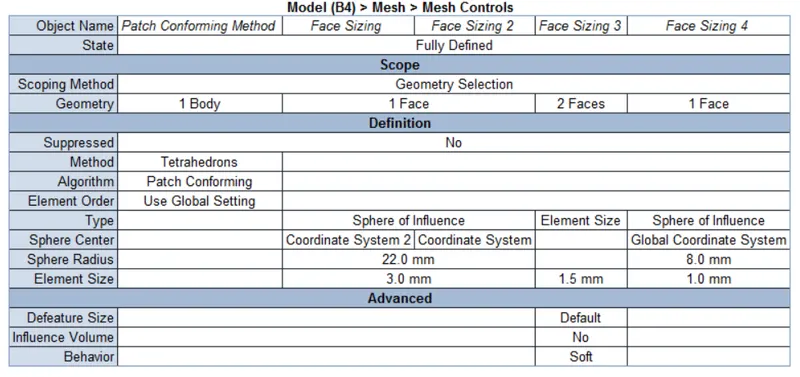

For Torsion

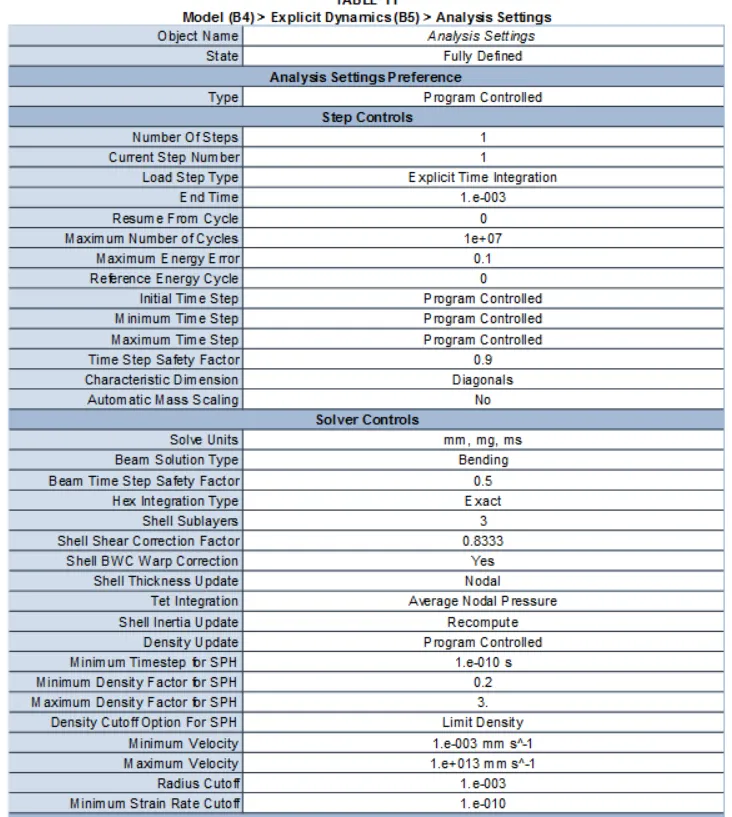

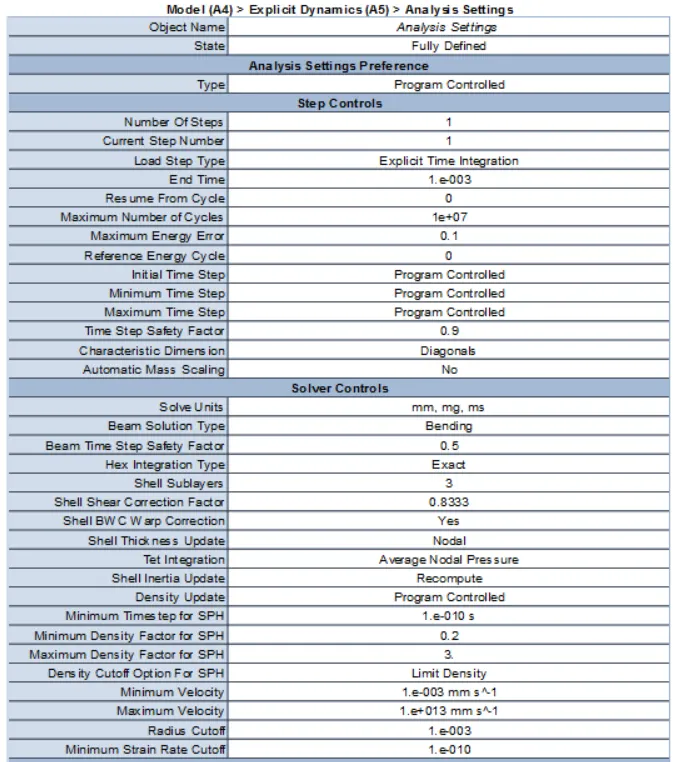

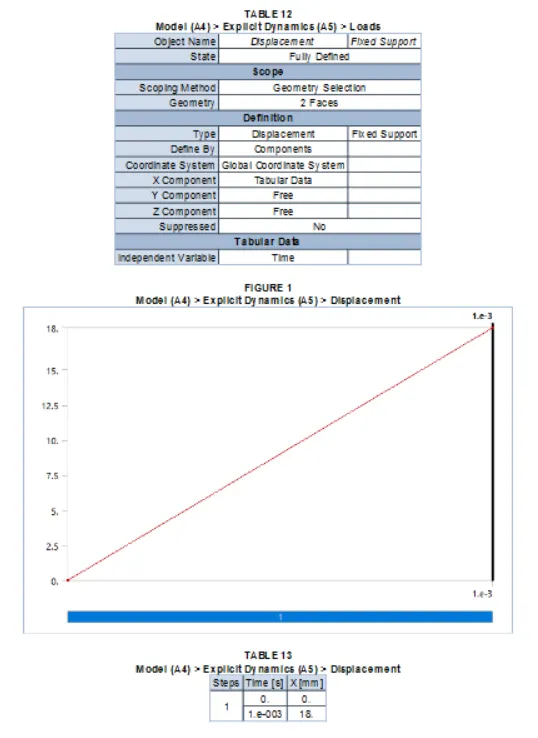

6. Analysis settings are configured as

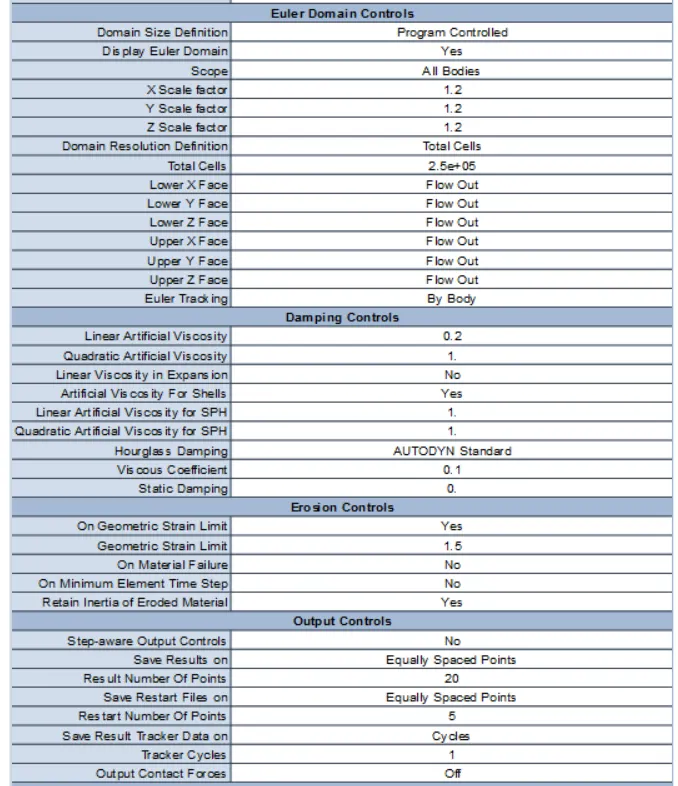

For Tensile

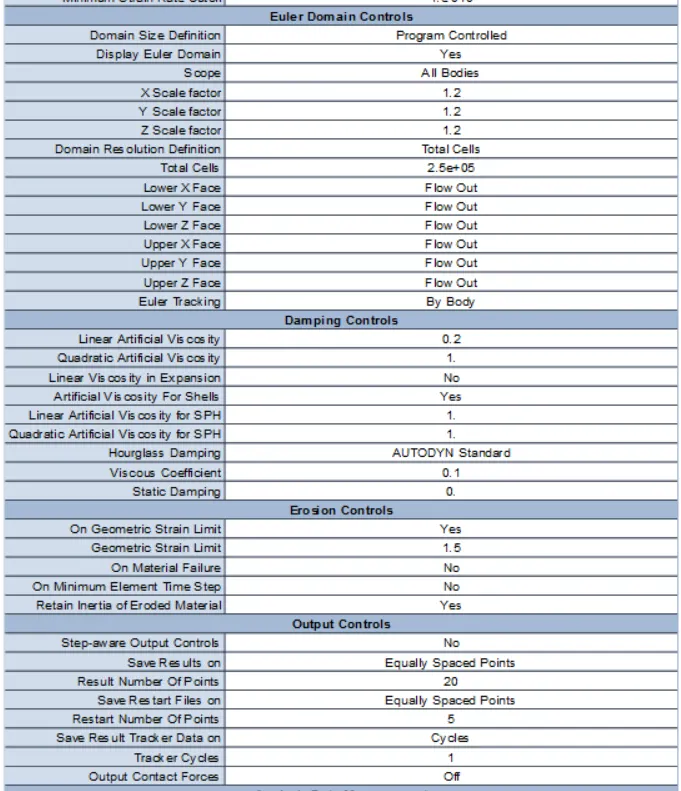

For Torsion

Explicit dynamic simulation results are as follows:

Description	Tensile test	Torsion test

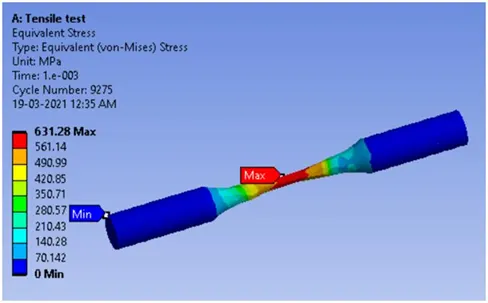

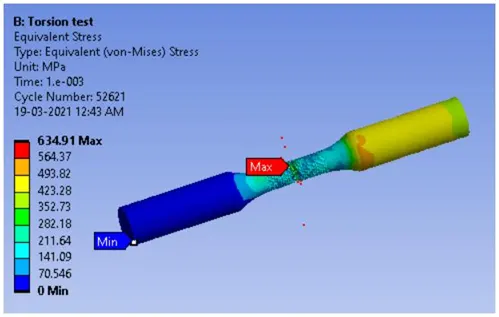

Equivalent stress	Max 631.28 Mpa	Max 634.91 Mpa

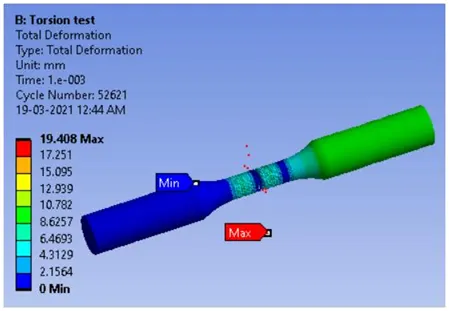

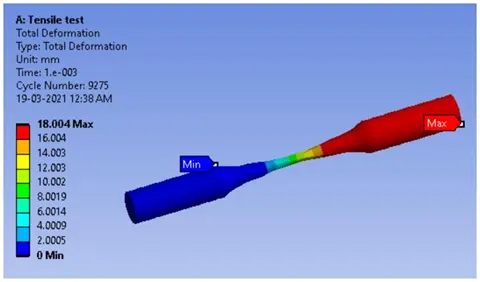

Total deformation	Max 18.004 mm	Max 19.408 mm

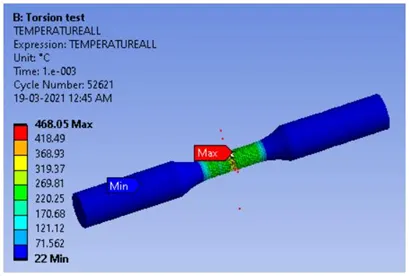

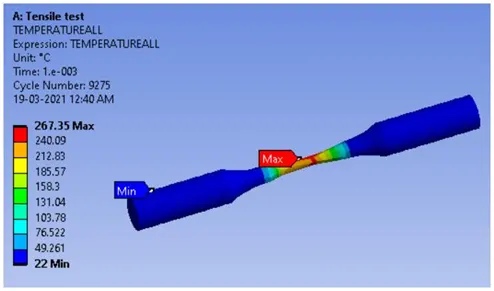

Temperature	Max 267.35°C	Max 468.05°C
