Week 2 Bevel Gear Challenge

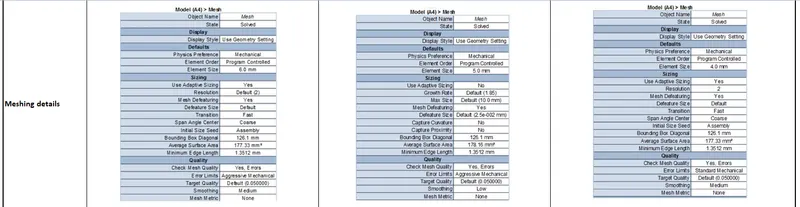

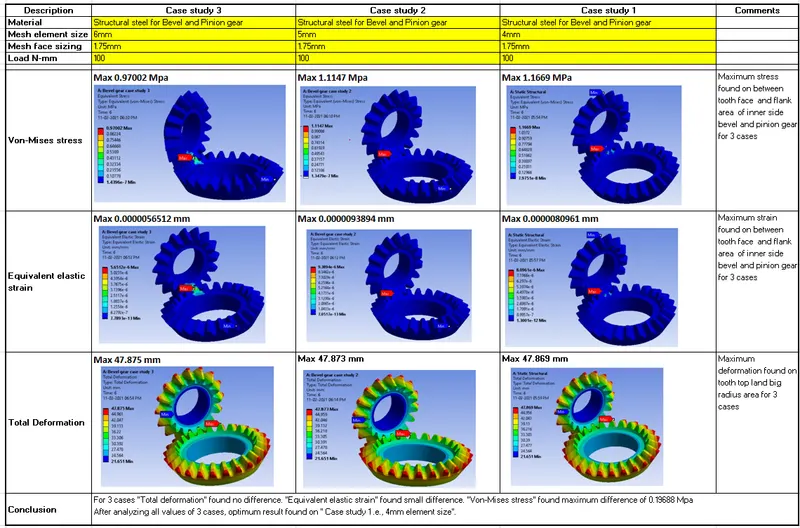

Objective of challenge: To perform the simulation of bevel gear and execute it in 3 mesh sizes of 6mm, 5mm and 4mm. Tabulate the obtained results and compare the values of Von-Mises stress, Equivalent elastic strain and Total Deformation. Finally provide the conclusion and present findings in an organized manner.

Grid dependecy test: Grid dependency test is a method used in FEA to get the optimum results by reducing mesh density for provided component. Simulation starts with greater mesh element size and then we reduce the mesh element size step by step till we get the optimum result.
