Week 9 Tension and Torsion test challenge

AIm-To perfrom the tension and torsion test.

Explict dynamic analysis was done on a given specimen of material steel 1006 by keeping one end fixed and other end was displaved by 18 mm and subquently total deformation,equivalent stress,and temperature of specimen is calculated.

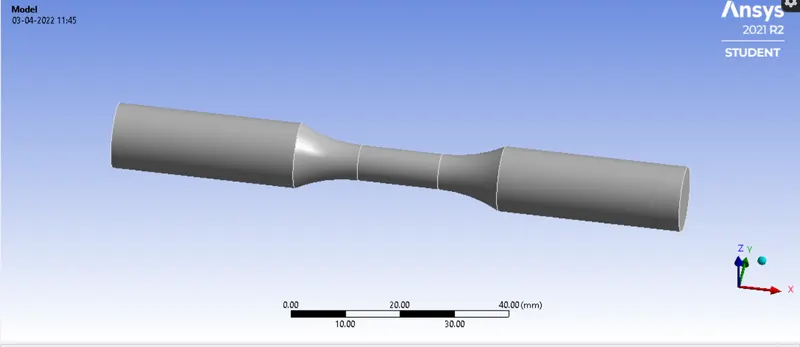

The cad model was set is as follows

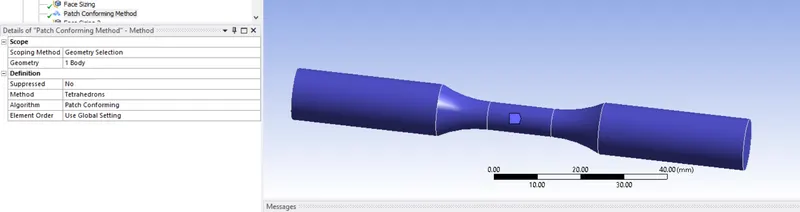

patch confirming method was used foe meshing

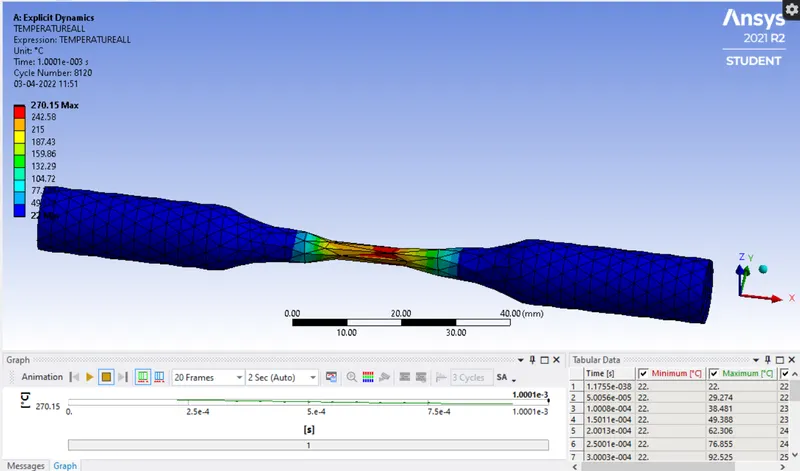

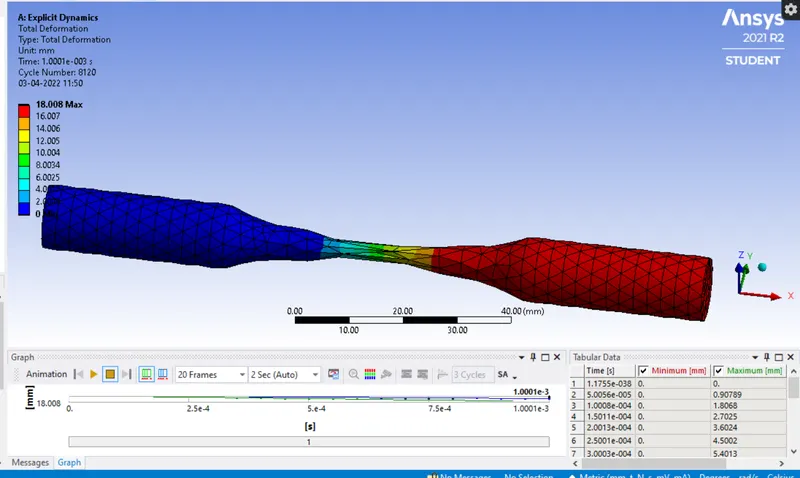

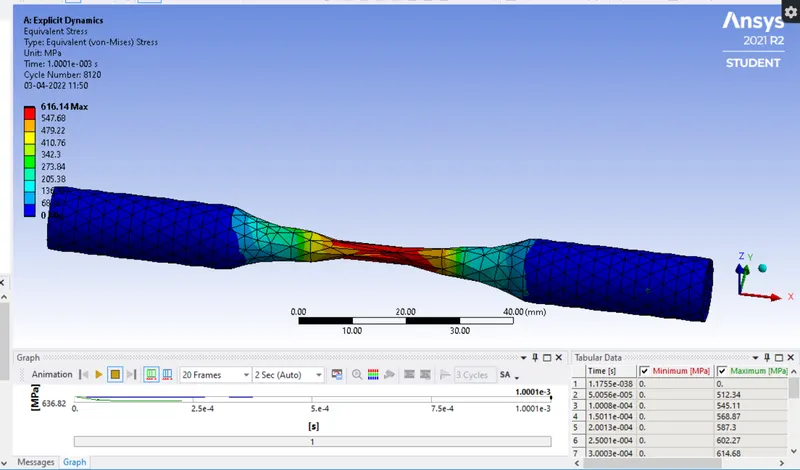

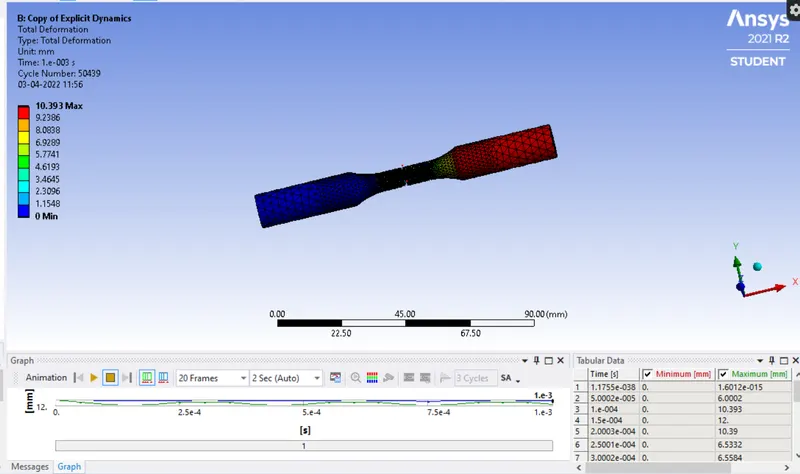

Result Analysis

Torsion Test

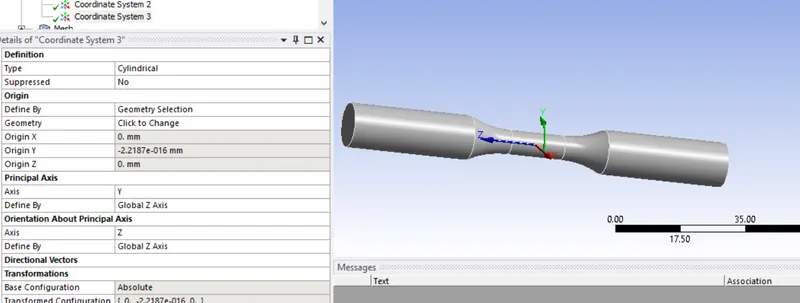

For torsion test also same cad model eas chossen and the new cyclidical cordinate axies is created.

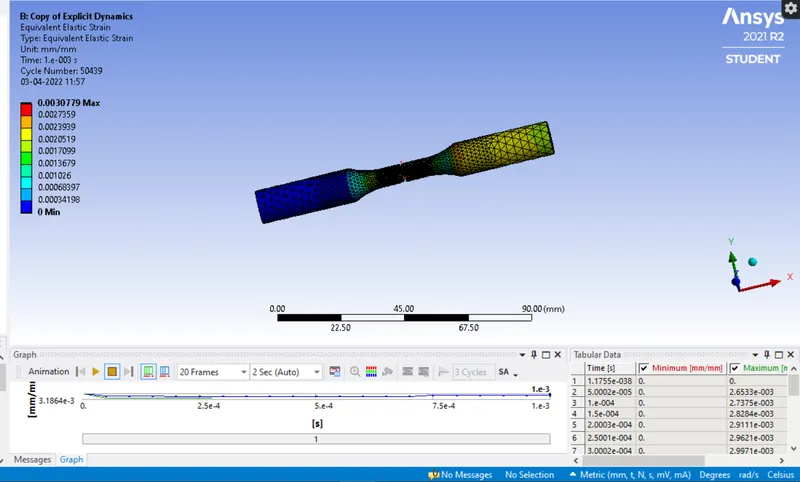

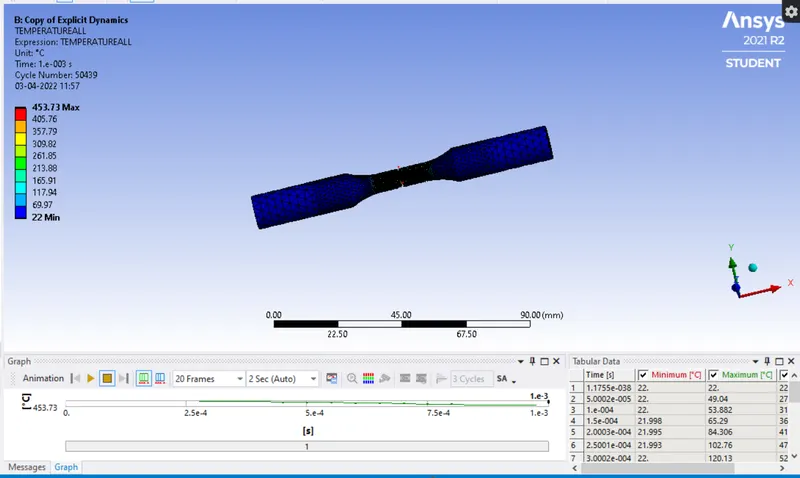

Results ans analysis

conclusion= The temperture in the torsional test is high due to high shear stress and the the equivalent stress,strain and the total deformation is high in torsion test due high shear strength.
