Week 9 - Project - Master Section Development

Q1) PROCEDURE:- Initially download connector 3D files from given link Define connectors and give all electrical properties  in "Electrical Part Design" workbench create a catalogue and add all the connectors in to that catalogue Then import all the connectors in to harness assembly design create a multi-branchable…

   Q1) The input data is downloaded from the provided link and prepared a model with the downloaded input 2D sketch Defined it as a mounting equipment create 3 points and 3 planes to give the electrical properties to it those three planes are used as a entry plane,exit plane,andbase plane then give electrical…

                                                               ASSEMBLY OF ELECTRICAL DEVICES CONNECTOR:- It is an electro-mechanical device used to join electrical…

                                                                      BENCH MARKING   1.MARUTHI SUZUKI VITARA BREZZA Vehicle Specs: 1.3-litre diesel - 89bhp and 200Nm - 24.3 kmpl Price Range:  ₹ 7.26 lakh - ₹ 9.70 lakh Total estimated maintenance cost for 6 years: Rs. 27962 2. FORN ECOSPORT   Vehicle Specs: 1.5-litre petrol…

  Underbody coating is the sprayed application of a wax or rubber-based composite onto the entire underside of the vehicle. It's designed to create a rust-proof layer between the underside of the vehicle and the water, ice, and salt of the road. Undercoating provides a more comprehensive…

                                                              DESIGN OF BACK DOOR   Objective:-  Designing a back door using all engineering design rules by…

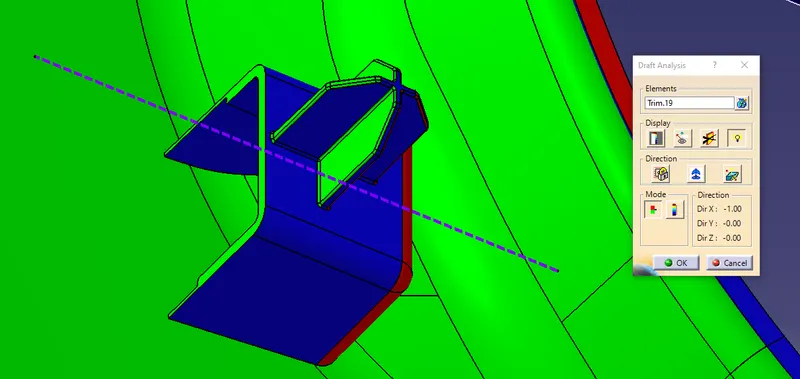

DEVELOPMENT OF A DOOR TRIM PANEL:-   OBJECTIVE :-                           Developing the door trim panel by using the given master sections and giving required B-side features by following the engineering standards.  DOOR TRIM PANEL :-   …

                                                                      DESIGN OF ROOF BY USING   OBJECTIVE :- Designing a roof by by using the given styling surface creating bow roof's, front an rear roof rails and centre roof rail by taking the given master sections as a reference checking draft analysis and section modulus…

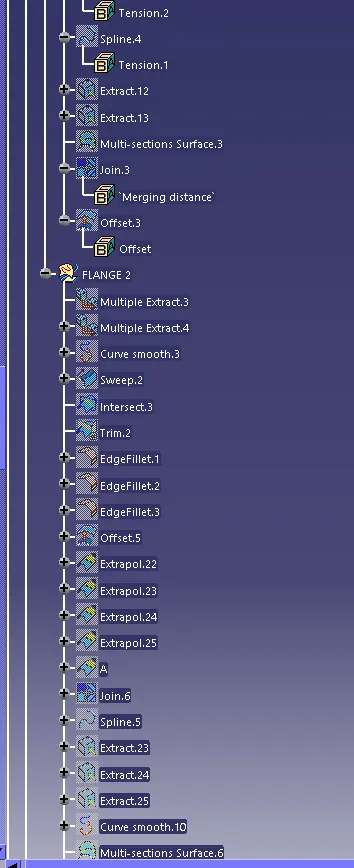

                                                                                      DESIGN OF FENER  …

  Section modulus:-               It is a ratio of total moment resisted by the section to the stress in extreme fibre.If section modulus increasesthen moment of resistance increases an hence its load bearing capacity.        Section modulus(S) = I/Y Where,…

                                                                 DESIGN OF HOOD Contents:-   OBJECTIVE INTRODUCTION DESIGN REQUIREMENTS DESIGN APPROACH…

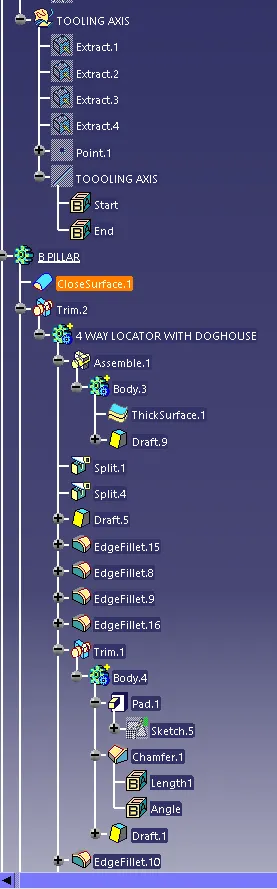

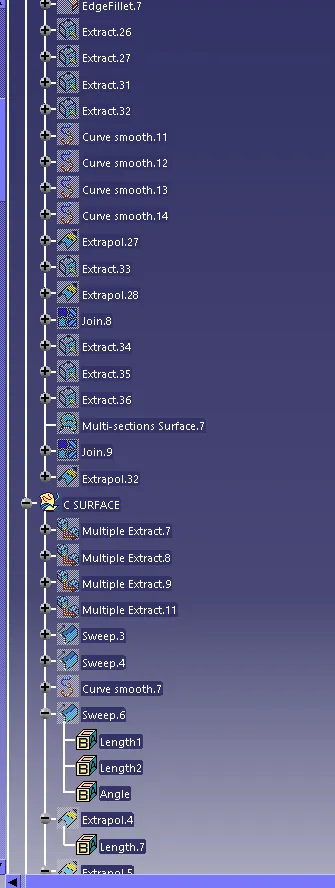

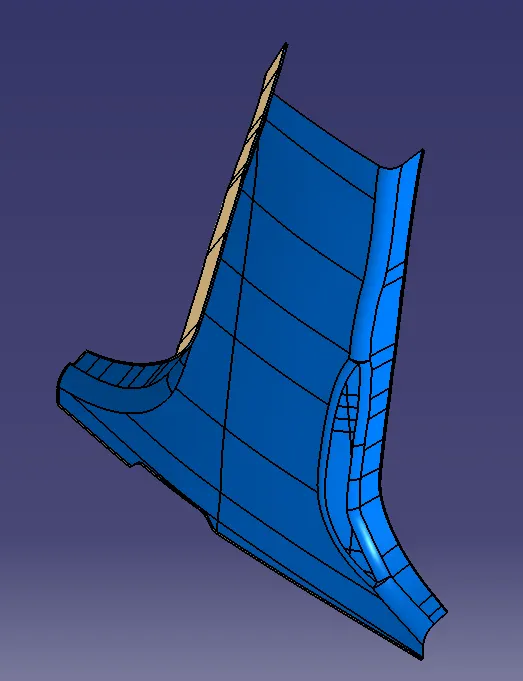

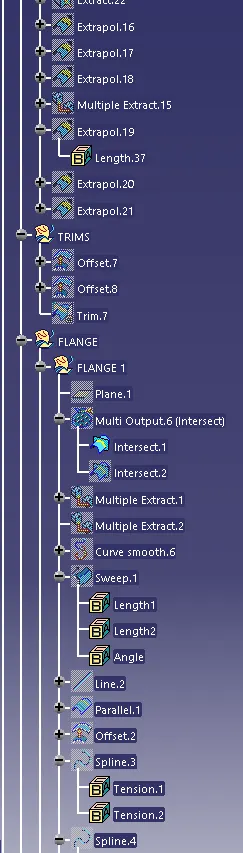

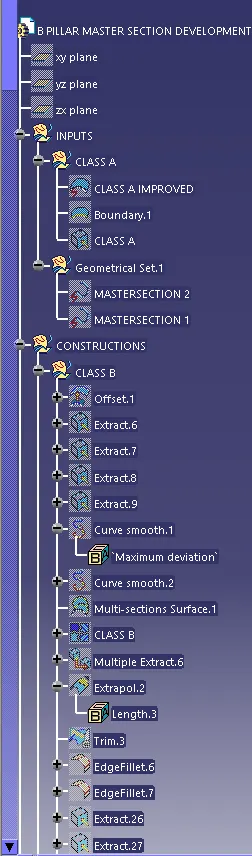

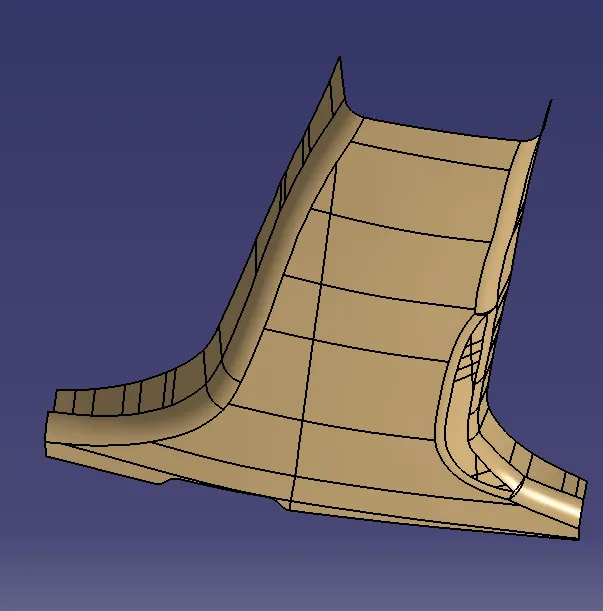

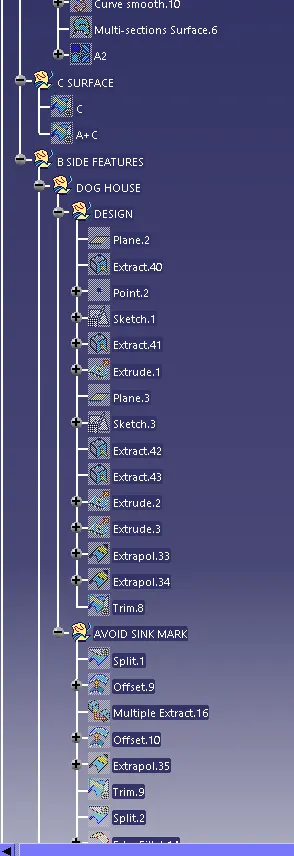

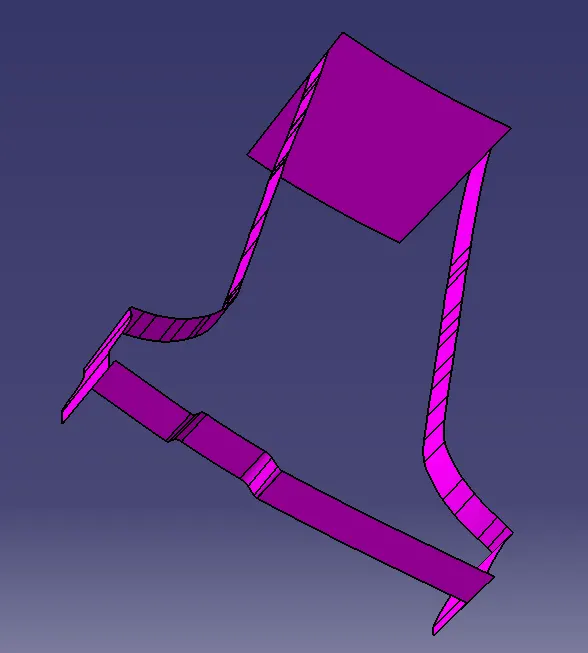

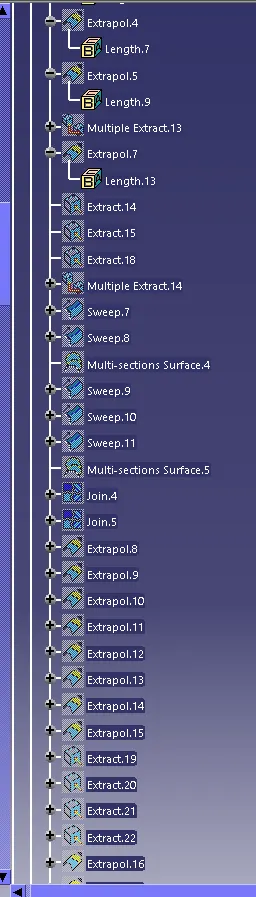

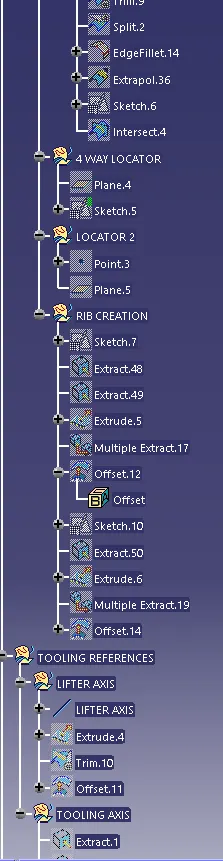

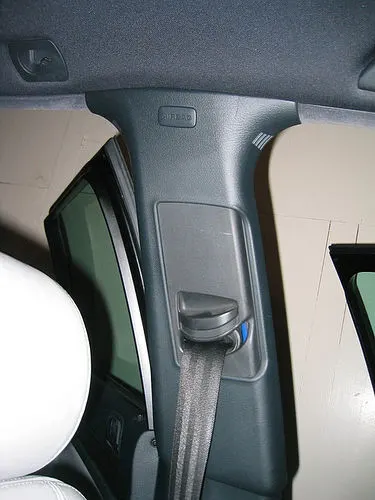

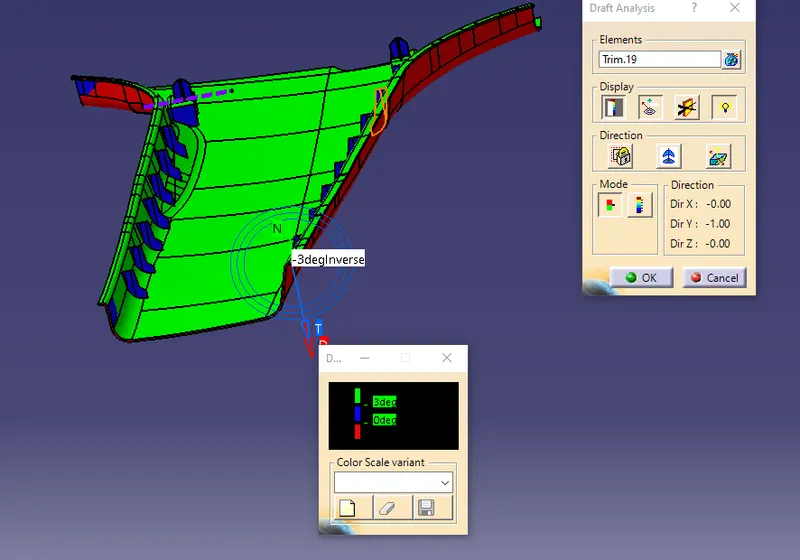

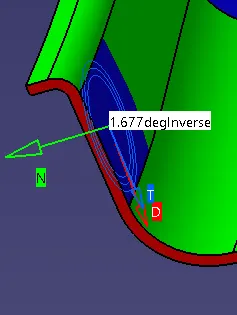

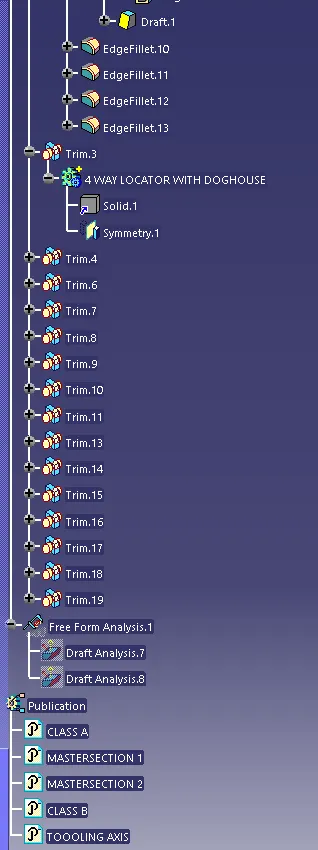

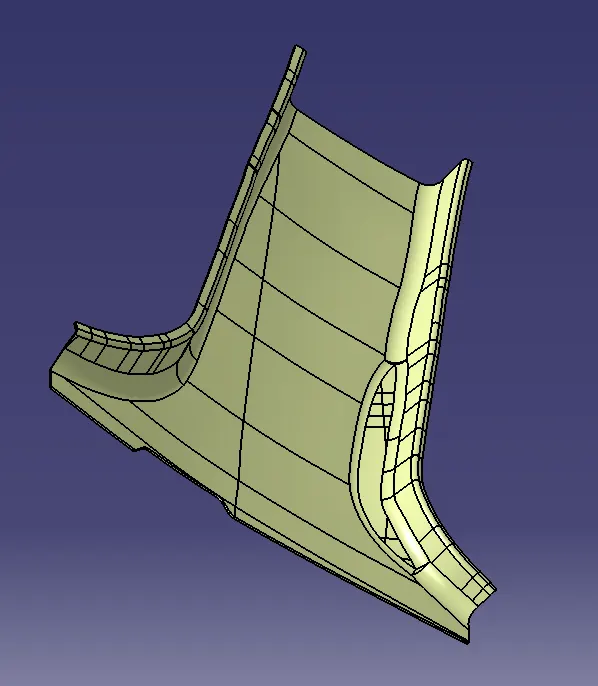

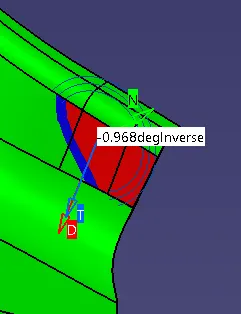

DESIGN OF B-PILLAR                 B-PILLAR :-                        It is a vertical supporting element for the front door. the pillars in automobile generally designated by the letters A,B,C and D(for large vehicles).…

DESIGN OF COIN HOLDER :-                                                                COMPLETE FEATURE OF DESIGN OF COIN HOLDER DESIGN PROCEDURE:-  Initially…

DESIGN OF DOOR ARM REST :-     DOOR ARMREST :-                                                             It is a inside feature of a car door which gives a comfort…

 DESIGN OF DRIVER DOOR APPLIQUE:-            Door applique :- An applique is cover which is fastened to a door surface for styling purpose and also used for covering of uneven or irregular surfaces of door.                      …
