Week 9 - Project - Master Section Development

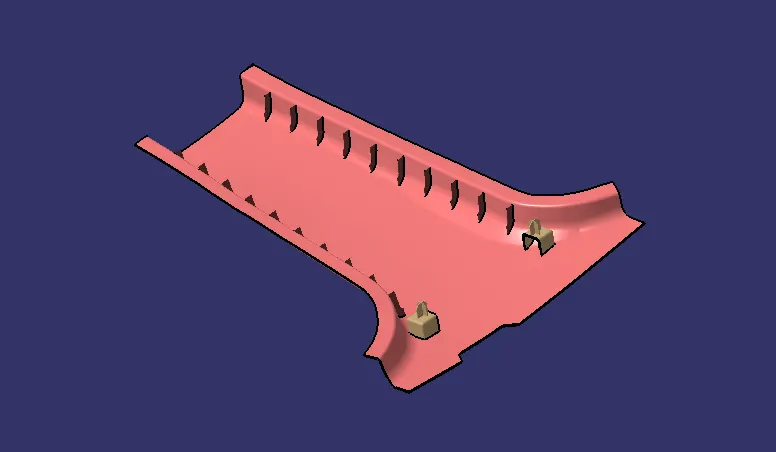

PICTURE OF 3D CAD MODEL OF B-PILLAR WITH ATTACHEMENTS OF RIBS, DOG HOUSE AND 4 WAY LOCATORS.

DEVELOPED B SURFACE FROM CLASS A SURFACE BY OFFSETING 2.5MM.

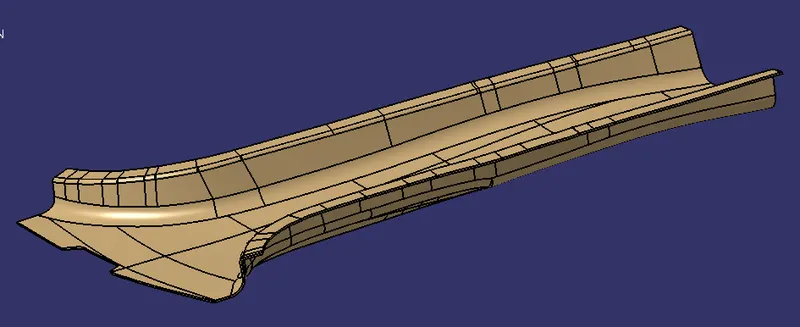

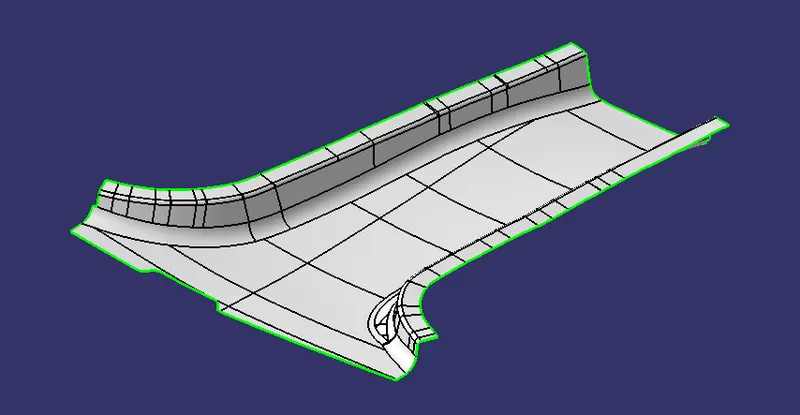

Fully finished surface of B pillar

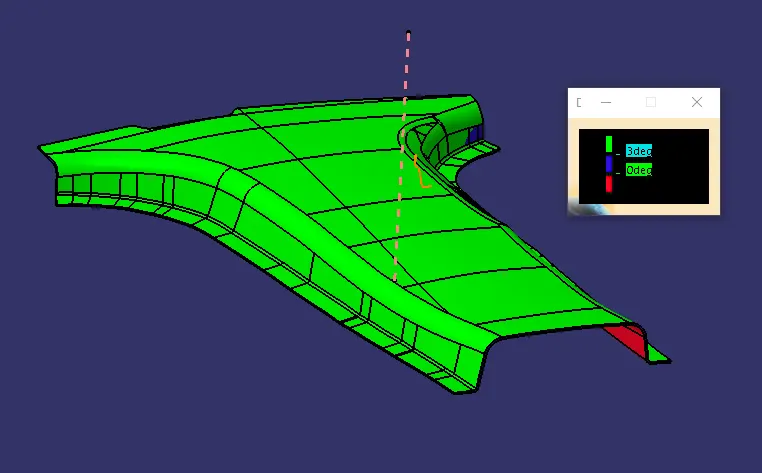

FEATURE DRAFT ANALYSIS

All areas in green are with minimum 3 deg draft except the areas shown below for class A surface

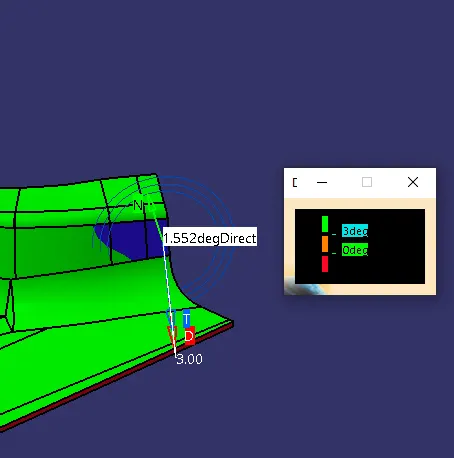

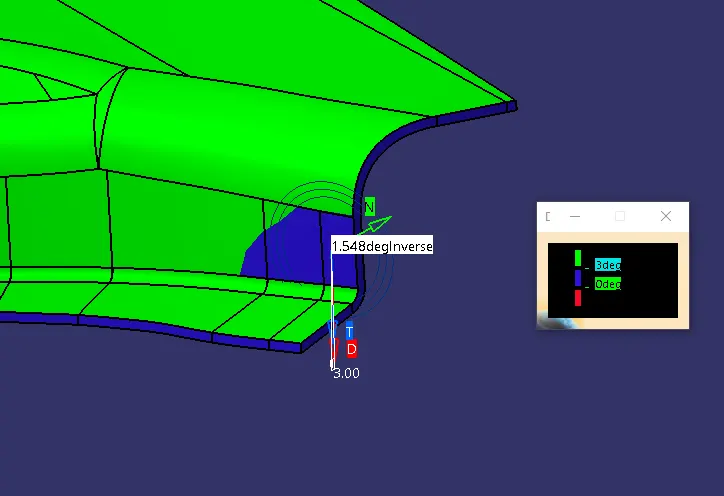

Minimum draft for this area is 1.5 deg

draft analysis for class B surface

All areas are with minimum 3 deg draftexcept for areas shown in below picture

Minimum draft analysis for this area is 1.5 deg

DRAFT ANALYSIS FOR ATTACHEMENTS

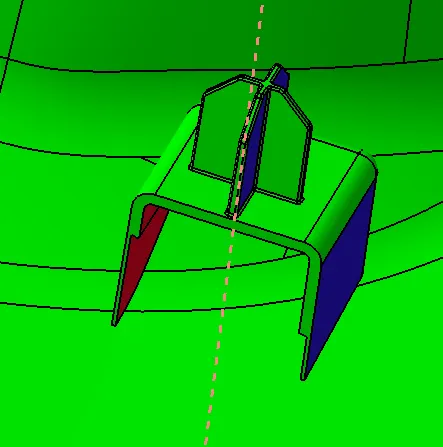

Draft analysis for DOG HOUSE WITH 4 WAY LOCATOR IS WITH 0.5 deg Minimum( with main tooling axis)

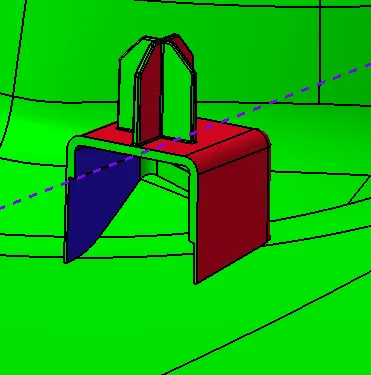

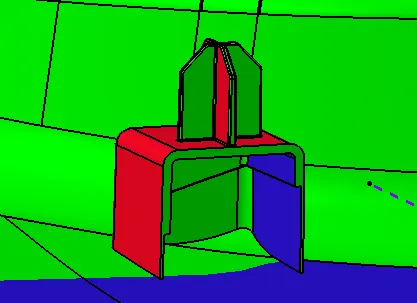

with side core tooling axis

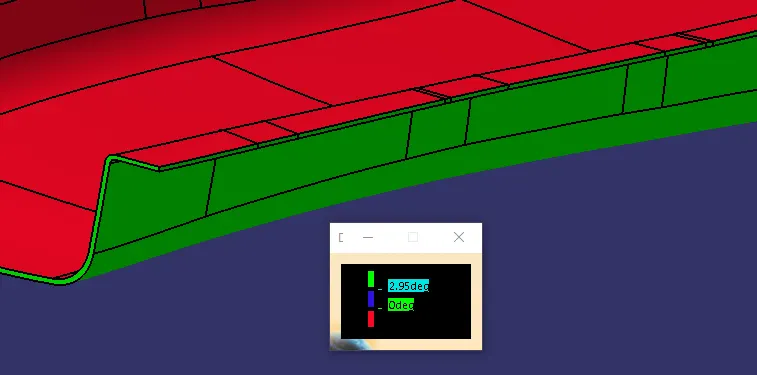

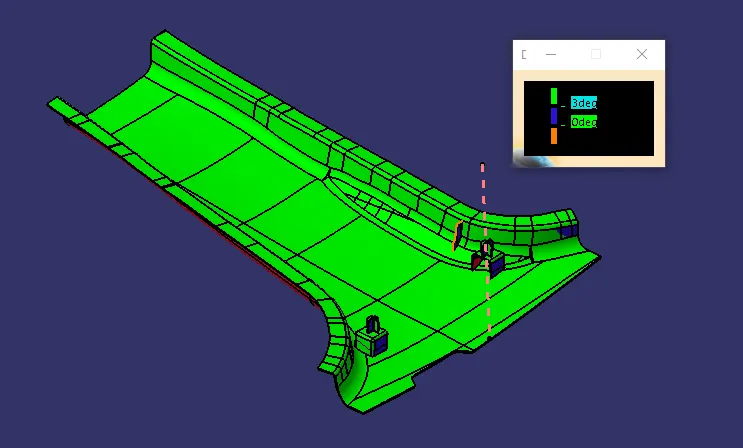

DRAFT ANALYSIS FOR CLASS C SURFACE

ALL AREAS FOR CLASS C IS IN GREEN WITH MINIMUM OF 2.95 deg.

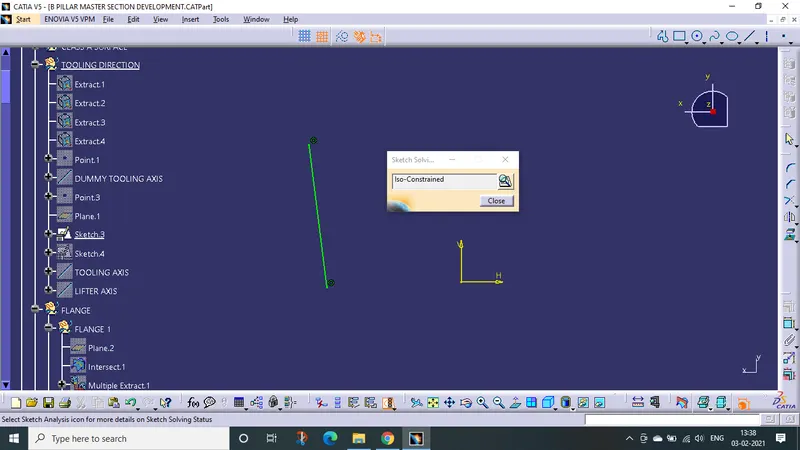

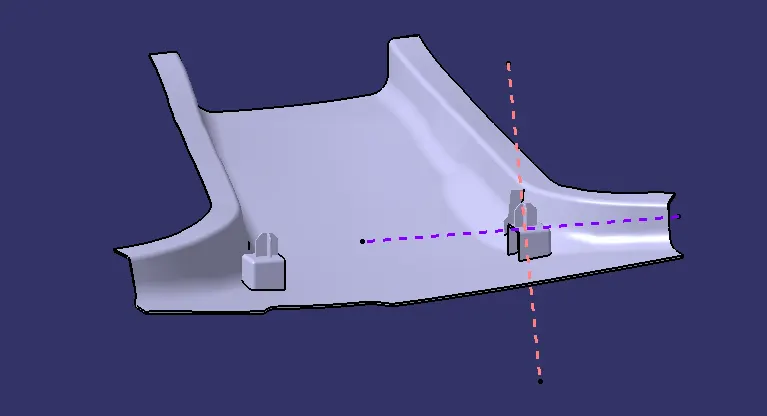

IMAGE OF MAIN TOOLING AXIS WITH LIFTER AXIS

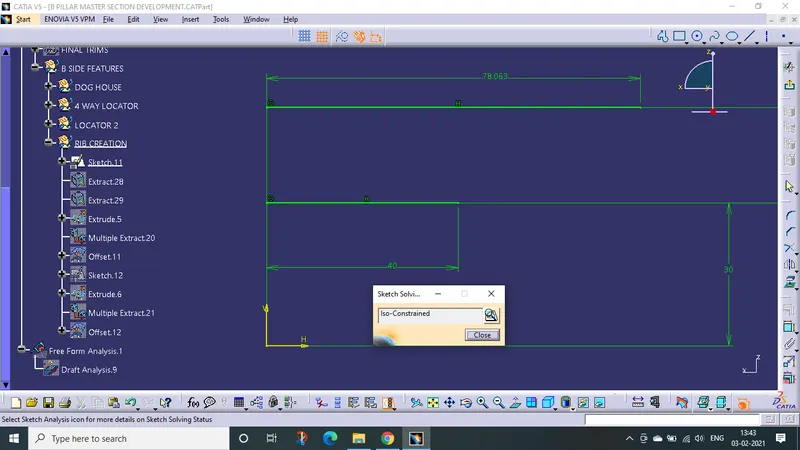

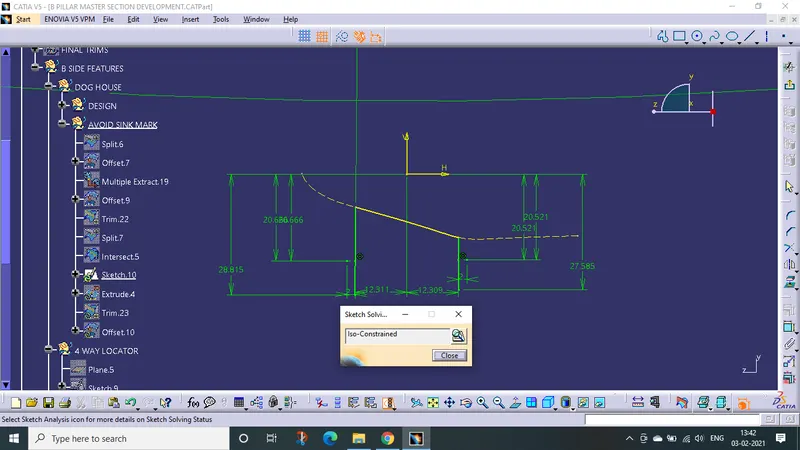

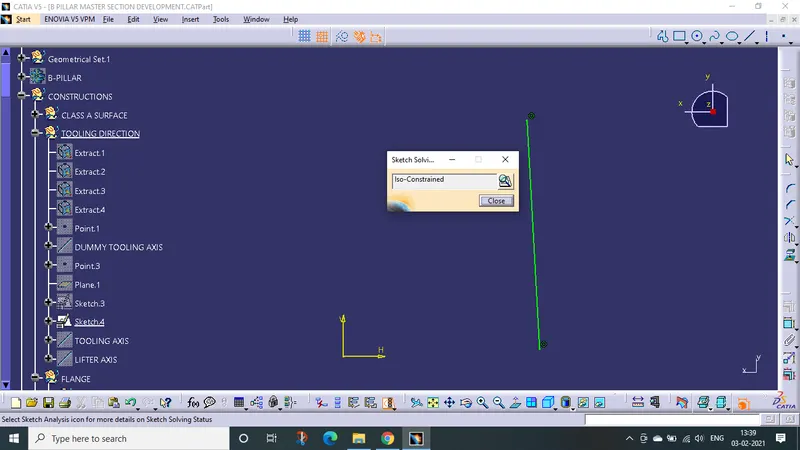

IMAGES OF FULLY CONSTRAINT SKETCHES

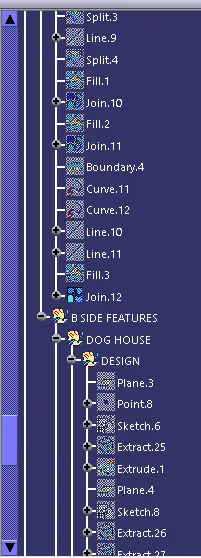

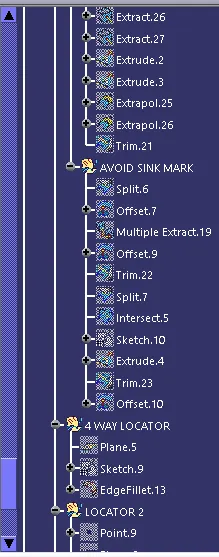

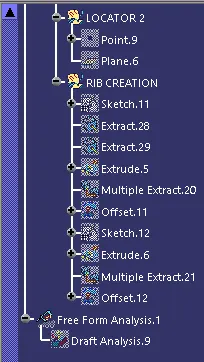

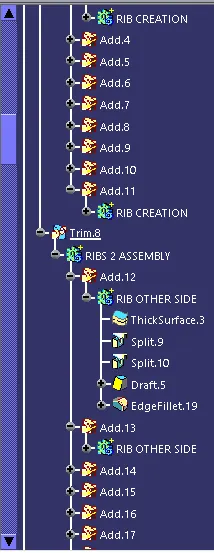

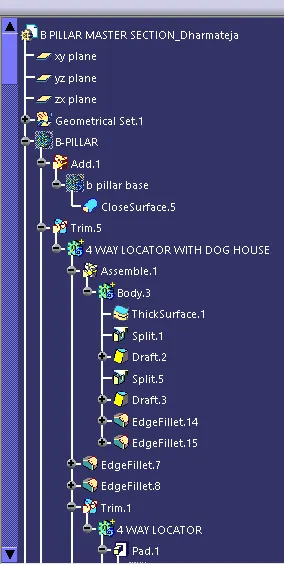

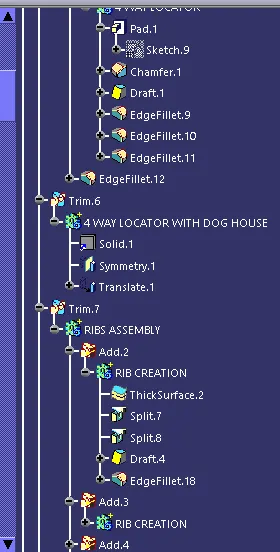

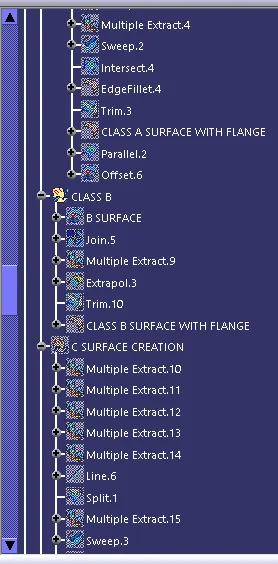

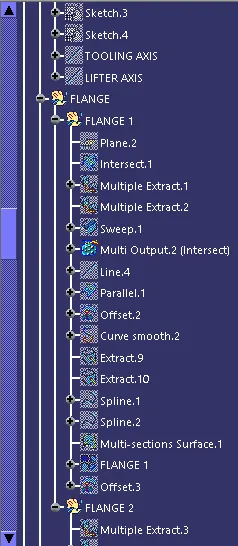

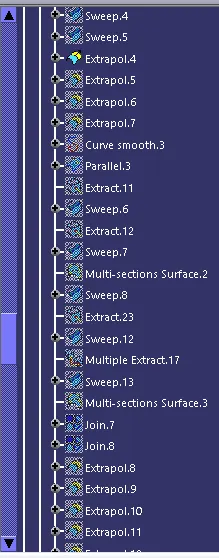

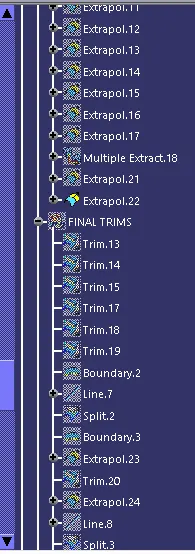

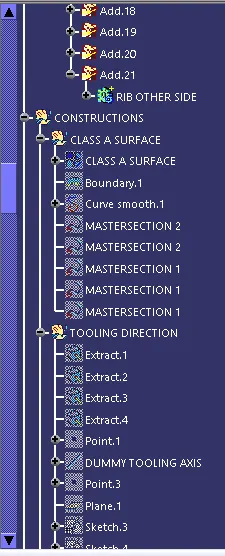

IMAGES OF DETAILED TREE STRUCTURE
