Week 9 - Project - Master Section Development

Aim

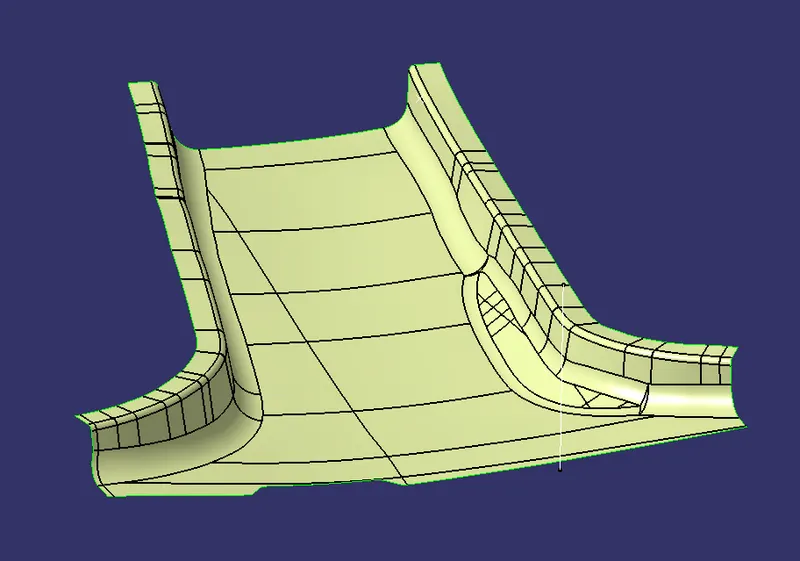

To create B pillar with the given master section

Input

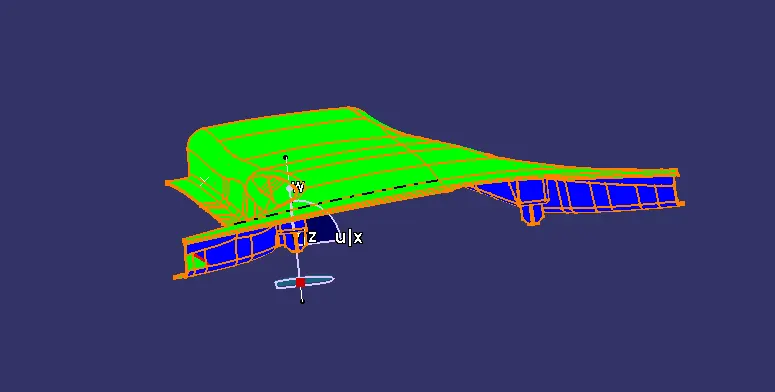

Class A

Master section for flange, dog house, 4 way located.

Flange

In the B pillar the flanges are created through the master section.

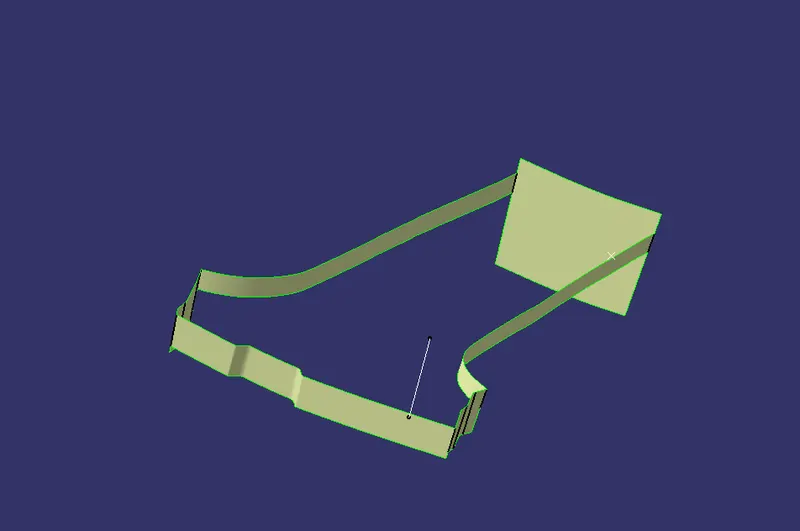

We need to create a boundary

Then sweep it by 3 deg with tooling axis as draft direction

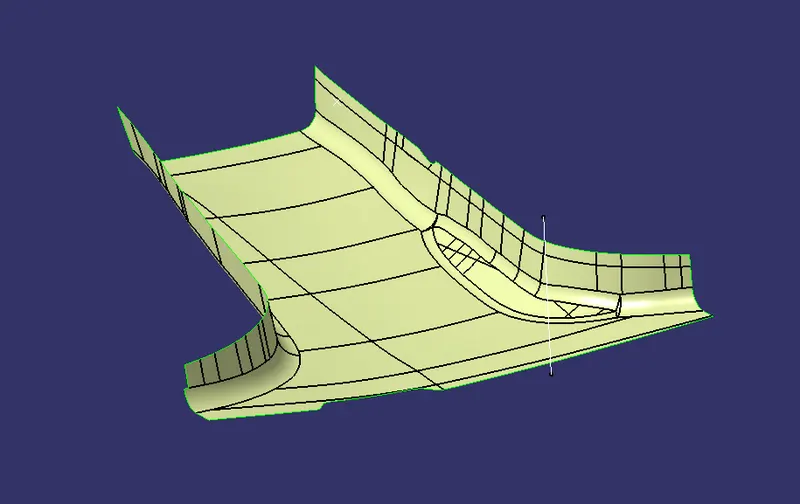

B Surface

The B surface is created with the improved A surface

Offset it to 2.5 mm which is the thickness of the part

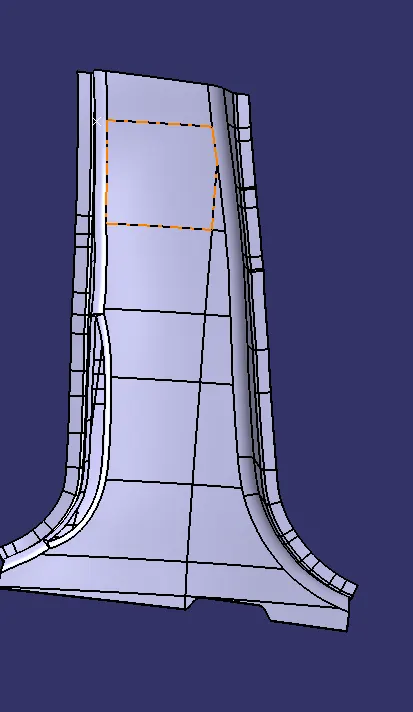

C surface

Dog house

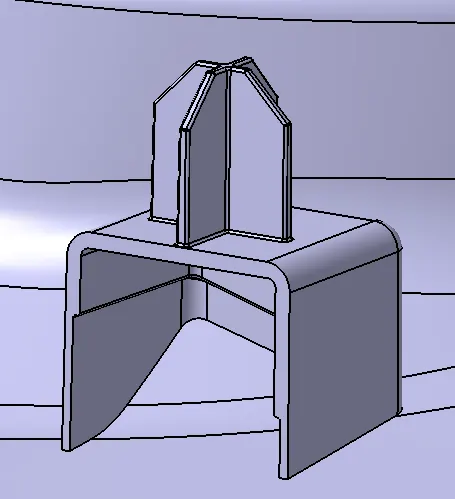

4way locater

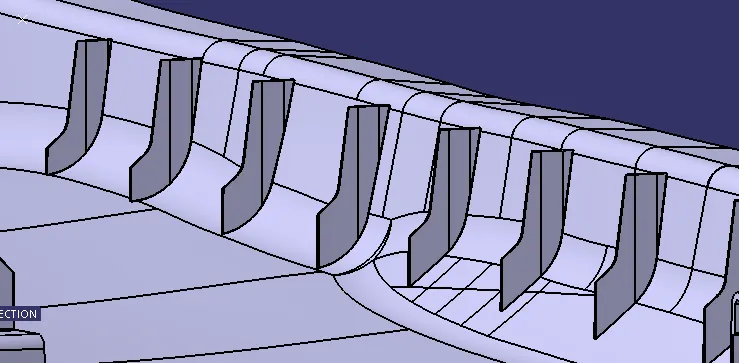

RIBS

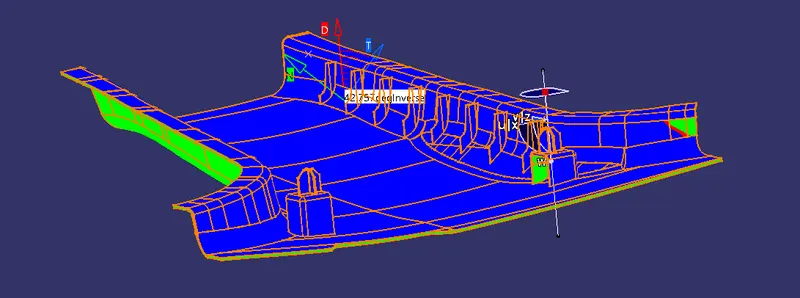

DRAFT ANALYSIS

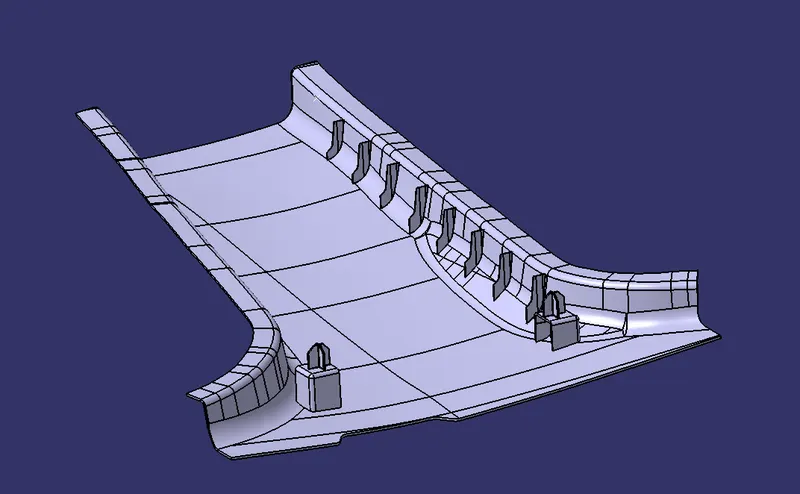

FINAL PART
