Week 9 - Project - A pillar Design with Master Section

FORMATION OF CLASS B

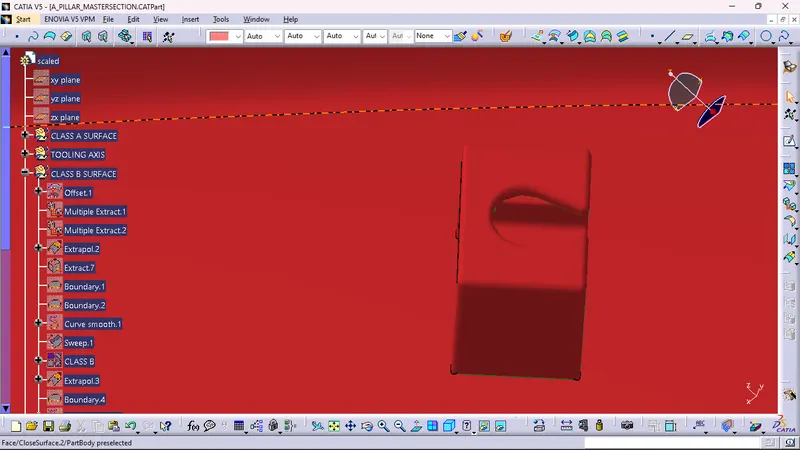

1. first i took a point on the surface then i took a line normal to the surface.

2. then offset the surface in inner direction 2.5mm.

3. then i worked on the side fillets which broke during offet with spline.

4. extracted the edgs of the surface and fill with multisection surface.

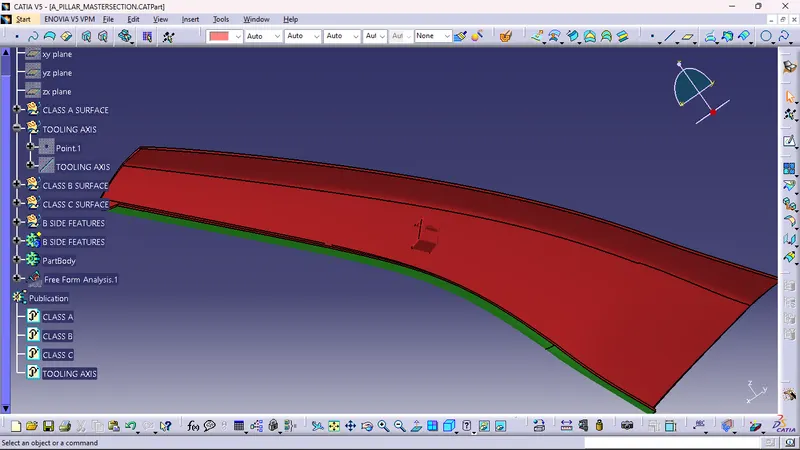

FORMATION OF CLASS C SURFACE

1. extracted the boundary of class a .

2. then with the sweep command profile type line , with reference surface angle 87deg.

3. then join the sweep and class a.

4. and then trim join with class b.

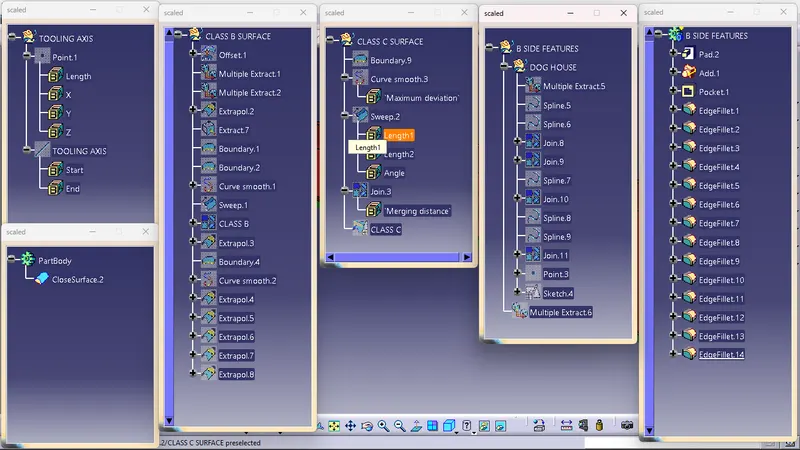

FORMATION OF B SIDE FEATURES

1. first i extracted the upper line and lower line using multiple extract.

2. then connect the line using spline and joind with together.

3. then using a pad command formed a solid surface.

4. similarly created the in side of the dog house.

5. then using a poket i create a top of the dog house
