Week 9 - Project - A pillar Design with Master Section

A- piller Master section challange

Class A surface :

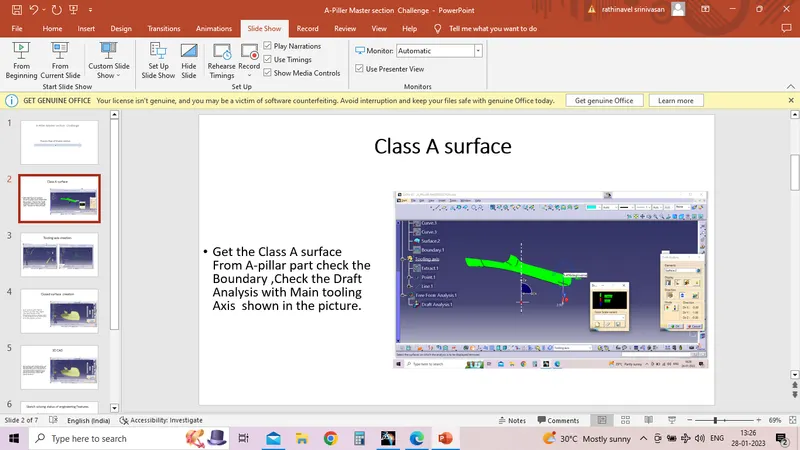

Get the Class A suface from A-pillar Part and check the boundery for Quality of Class A surface Any defect in Class A surface We will improve Class A surface After Get the Class A surface.

Tooling Axis:

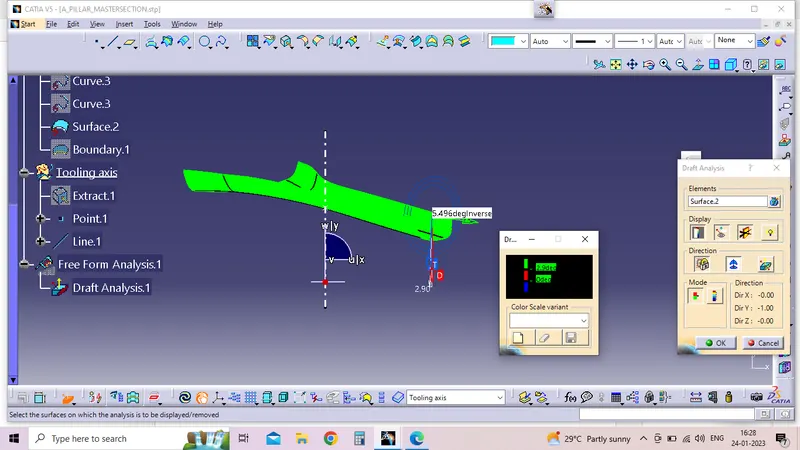

I'm Take On the surface Method Extrat the Surface,Point on the surface Draw the line with Point and Direction method This the line My Tooling axis.

Side core Axis:

This is get from the Master section Curves with respect to Three point Methad Take the Plane& draw the line through point Direction method This line is the side core Axis line.

Draft analayis:

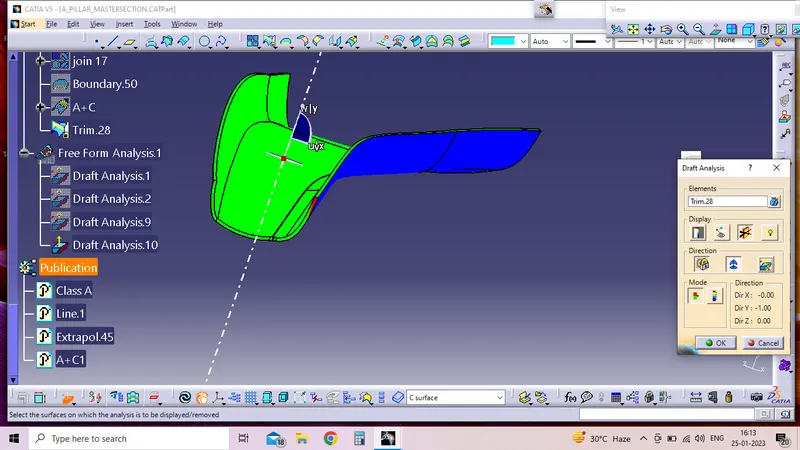

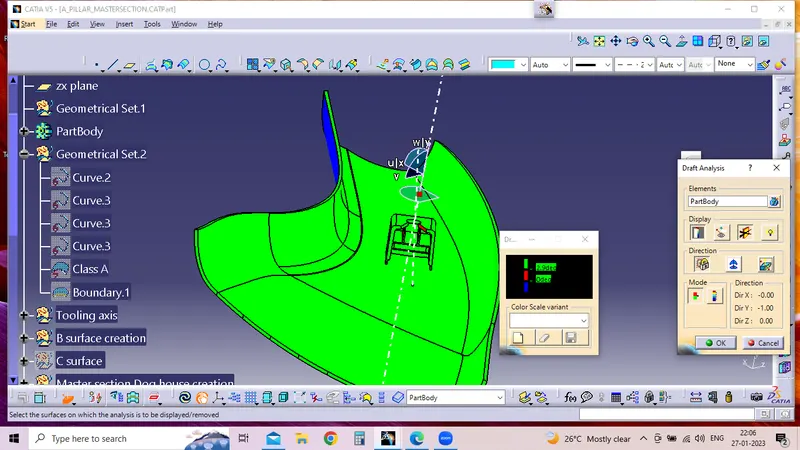

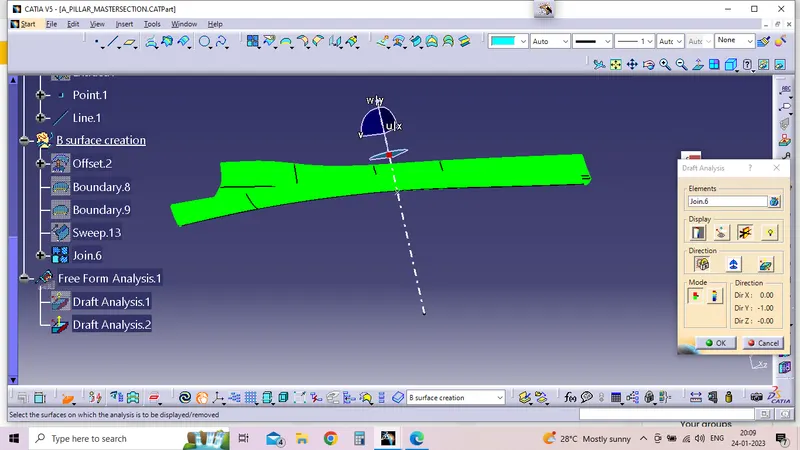

My tooling axis with respect Clearing a Class A& Bsurface &C surface and also Closed Surface in 2.9 Degeree draft angle.

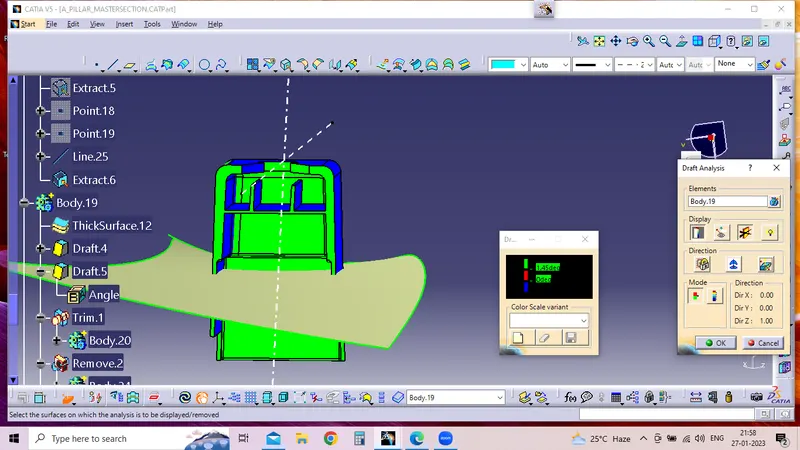

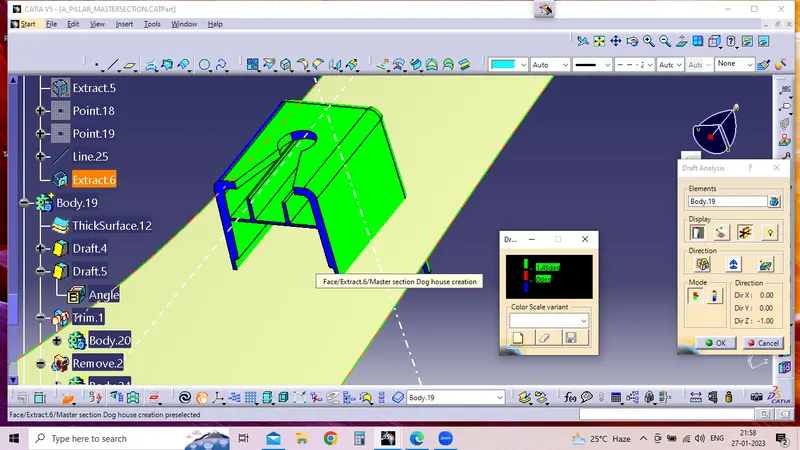

Dog house area draft Clearing with respect to side core Axis 1.45 degree draft angles.
