Week 8 - Challenge 3 - Coin Holder Design

                                                   Coin Holder challenge

Class A surface.

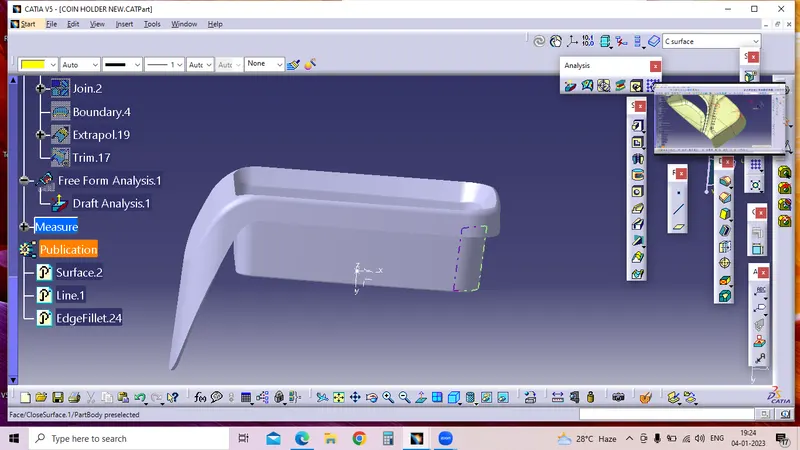

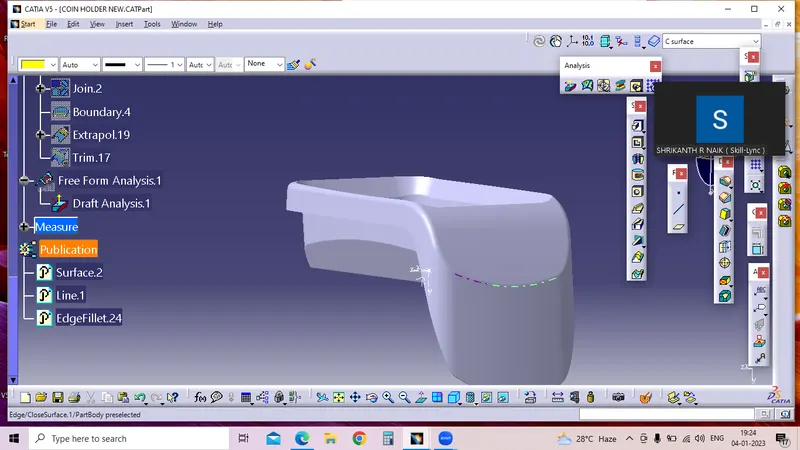

Class A surface get in from Coin Holder and boundery check for any gap in a Class A surface.

Tooling Axis:

Tooling axis must creating for the Core And cavity Moving dirctions. Based my Class A Surface Take a tooling Axis On the Surface  method. Pick the base surface Center point Provided by the way to On the surface  after draw the line with Point And Direction method  that the line my tooling axis .This line is a Tooling axis.

• X-Y-Z method.
• On surface method
• Byesetting method

Draft analayis:

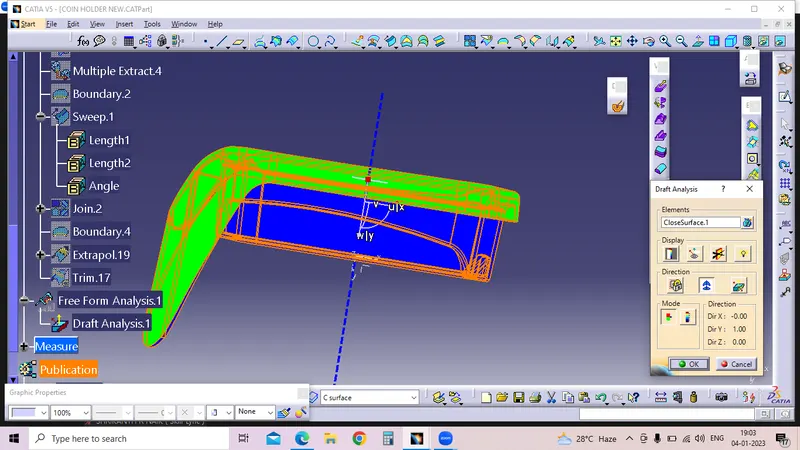

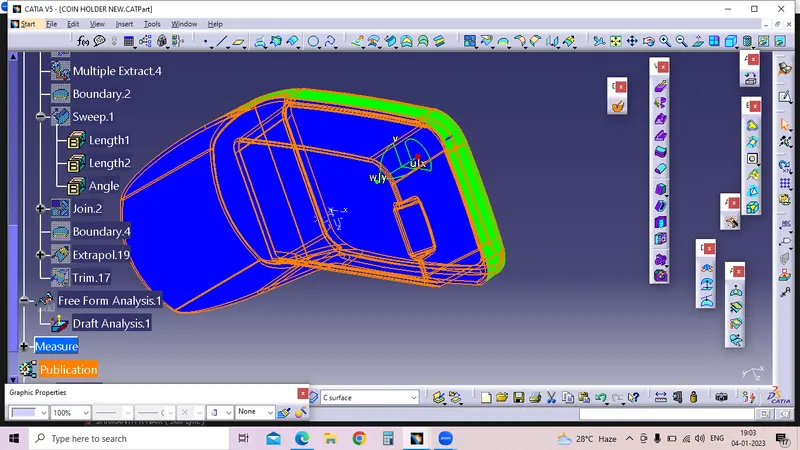

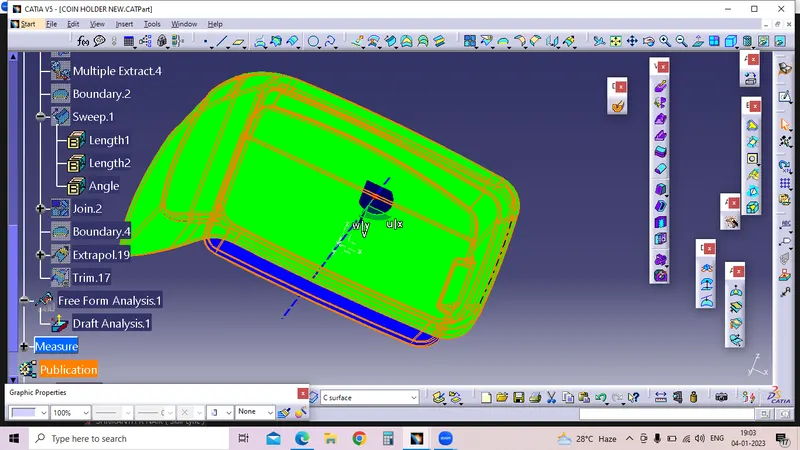

Tooling axis with respect check the Draft analayis done The scalor scale given in green with 3 deegrees after completing closed surface one time check with Surface &Tooling axis  this also given scolur scale  is green with 3 degrees.
