Week 8 - Challenge 1 - Base Bracket Design
Base Bracket Challenge

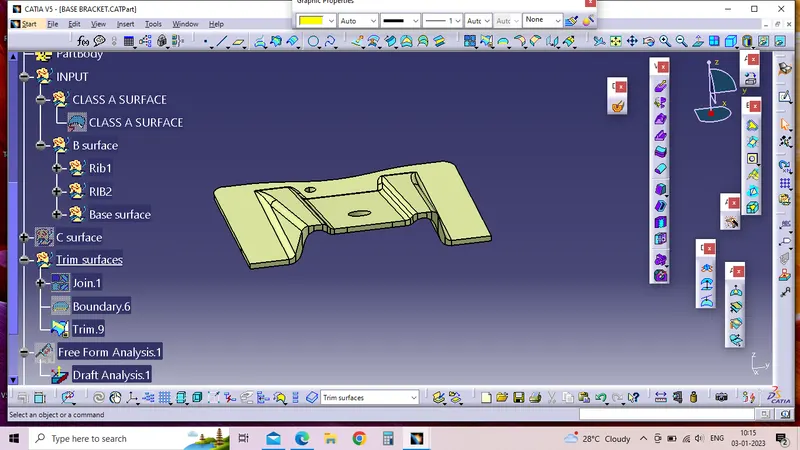

Class A surface.
Class A surface get in from base bracket and boundery check for any gap in a Class A surface.
Tooling Axis:
Tooling axis must creating for the Core And cavity Moving dirctions.Three mothod have Here Get in Class A Surface intersect A Class A created Byesetting Line Method also Created two lines .With respectivtly Draft analayis.Tooling axis is created One hole surface Draw the line Z dirctions. This line is a Tooling axis.
- X-Y-Z method.
- On surface method
- Byesetting method
First two methed will try the tooling axis Not get in the Tooling axis after only go the Byesetting methods.
Byesetting mothed is costly one and also is a crictial method rearly used one Intersect a Class A surface With respect thorugh Plane Get in a Surface line this line not have 0 degree line we are created Parrell to the center line with respectly must have some angle. Draw the line with angle to the tooling axis line.

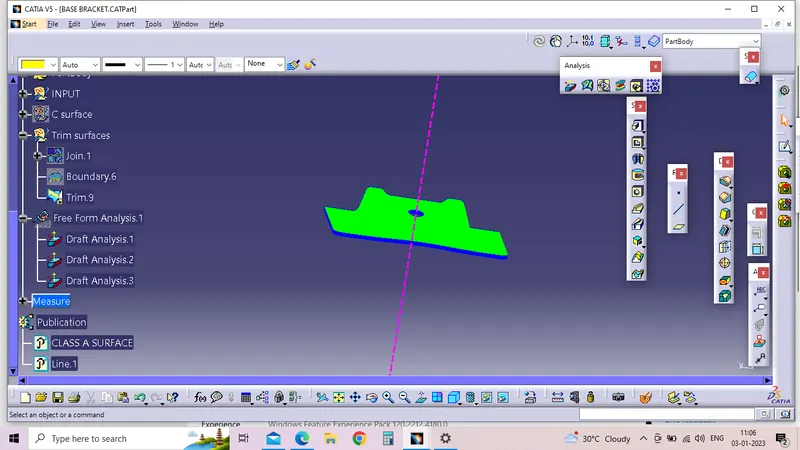

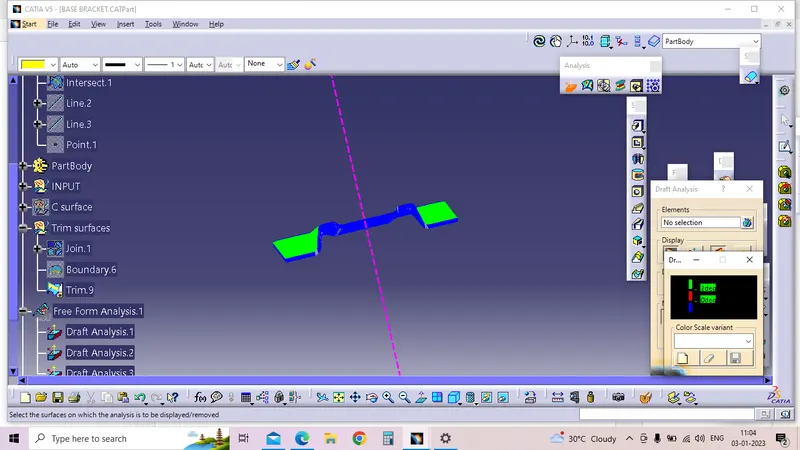

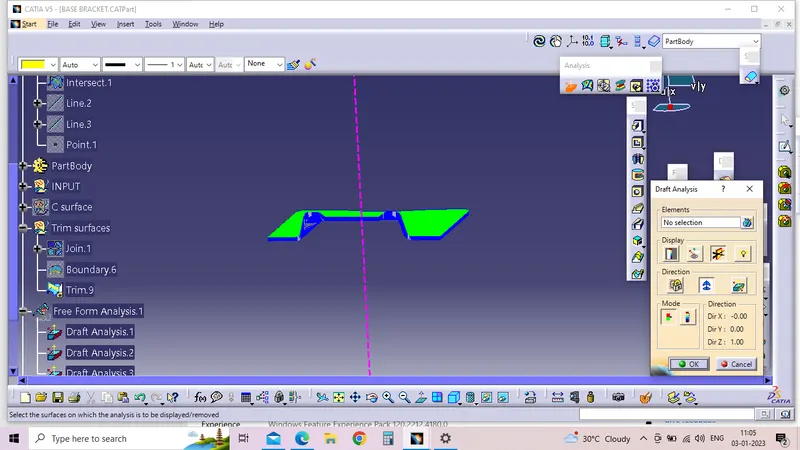

Draft analayis:
Tooling axis with respect check the Draft analayis done The scalor scale given in green with 2deegrees after completing closed surface one time check with Surface &Tooling axis this also given scolur scale is green with 2 degrees.
