Week 8 - Challenge 2 - Switch Bezel Design

Switch Bezel challange

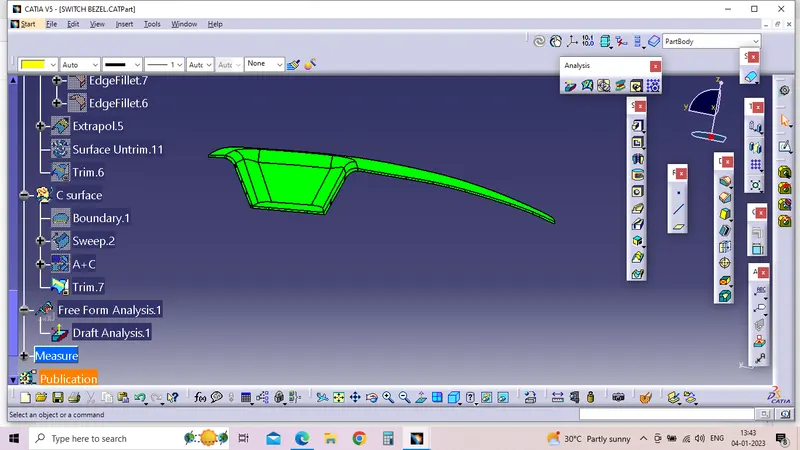

Class A surface.

Class A surface get in from Switch Bezel and boundery check for any gap in a Class A surface.

Tooling Axis:

Tooling axis must creating for the Core And cavity Moving dirctions.On here I will take On surface method.

• X-Y-Z method.
• On surface method
• Byesetting method

First two methed will try the tooling axis Not get in the Tooling axis after only go the Byesetting methods.

Byesetting mothed is costly one and also is a crictial method rearly used one Intersect a Class A surface With respect thorugh Plane Get in a Surface line this line not have 0 degree line we are created Parrell to the center line with respectly must have some angle. Draw the line with angle to the tooling axis line.

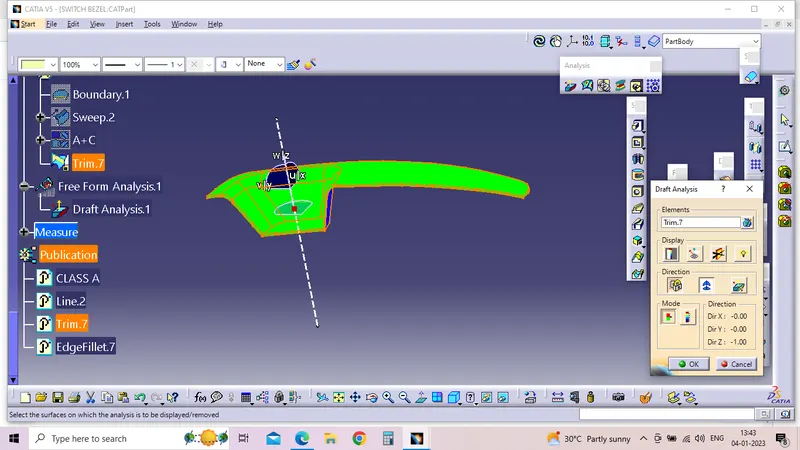

Draft analayis:

Tooling axis with respect check the Draft analayis done The scalor scale given in green with 1deegrees after completing closed surface one time check with Surface &Tooling axis this also given scolur scale is green with 1 degrees.
