Week 9 - Project - A pillar Design with Master Section

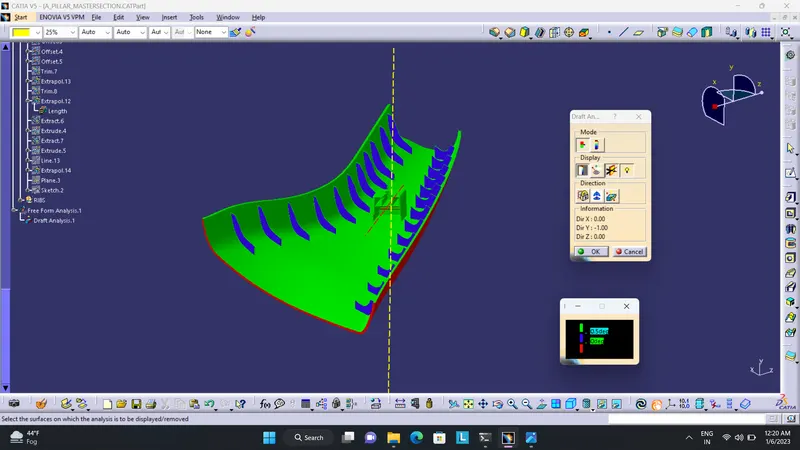

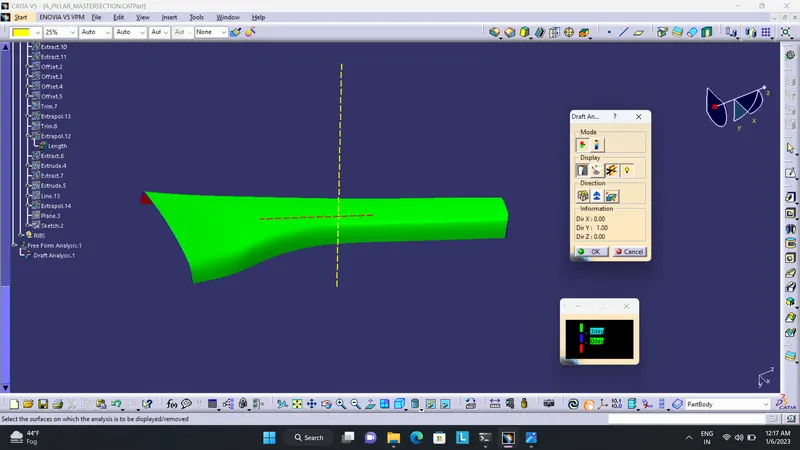

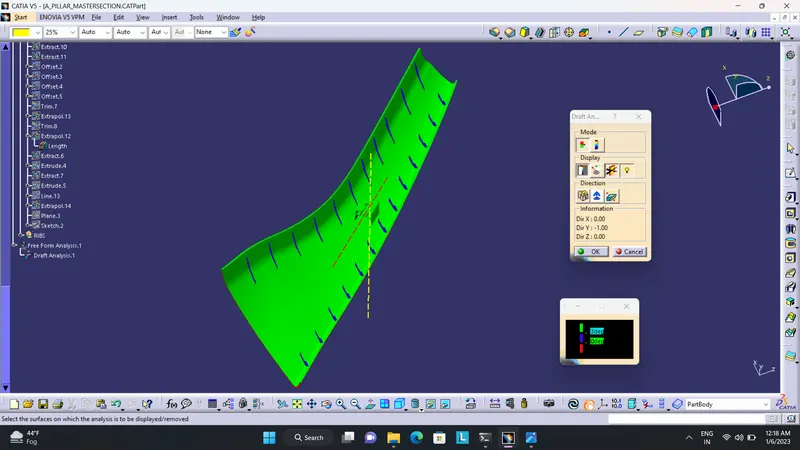

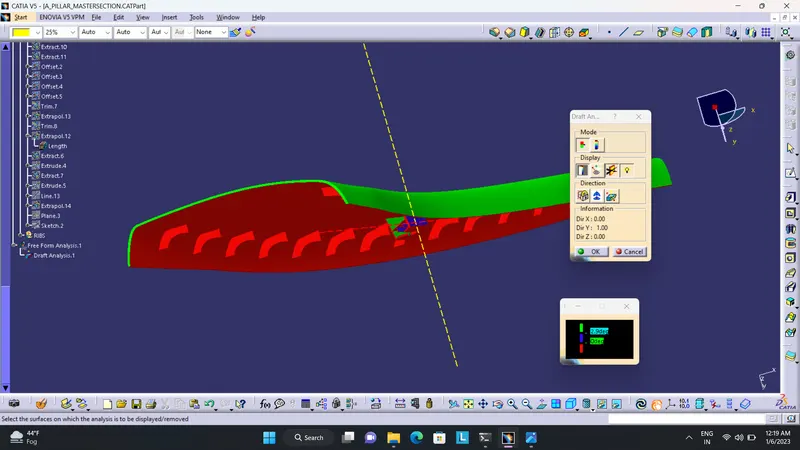

DRAFT ANALYSIS REPORT:-ALL CLASS A SURFACE HAVE DRAFT ANGLE UP TO THREE DEG.

ALL CLASS B SURFACE HAVE DRAFT ANGLE UPTO 3DEG.

ALL CLASS C SURFACE HAVE ANGLE UP TO 2.9 DEG.

ALL RIBS WALL HAVING DRAFT ANGLE UPTO 0.5 DEG.

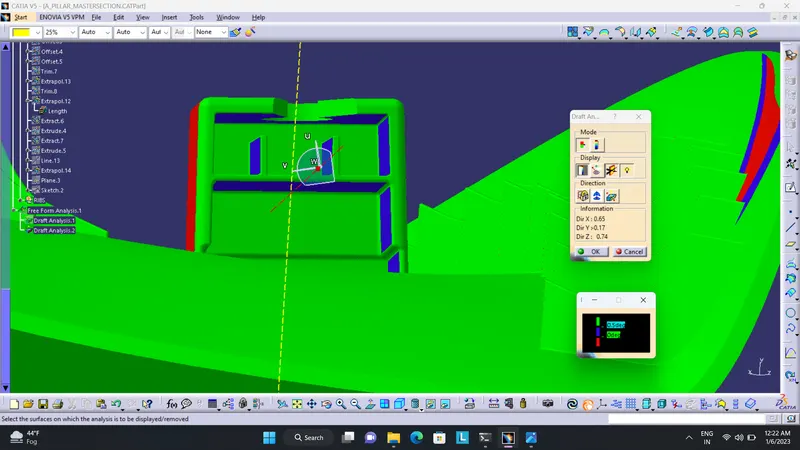

DRAFT ANALYSIS ON LIFTER AXIS:-IN DOG HOUSE BLUE COLORED WALL HAVE 0.5DEG. DRAFT ANGLE AND GREEN COLORED WALL HAVE MORE THEN O.5 DRAFT ANGLE
