Week 9 - Project - A pillar Design with Master Section

                      A PILLAR DESIGN WITH MASTER SECTION

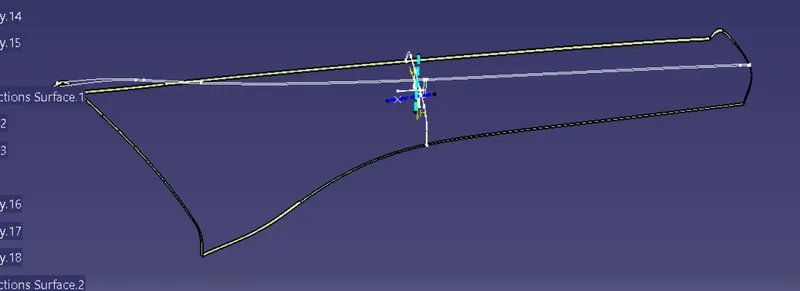

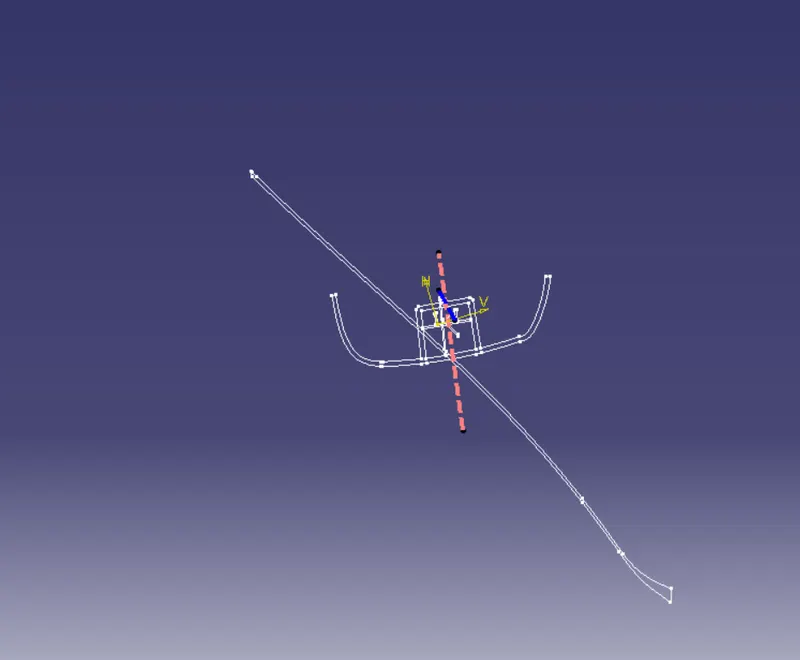

 REFERENCE FOR CLASS A, CLASS B & CLASS C SURFACE.

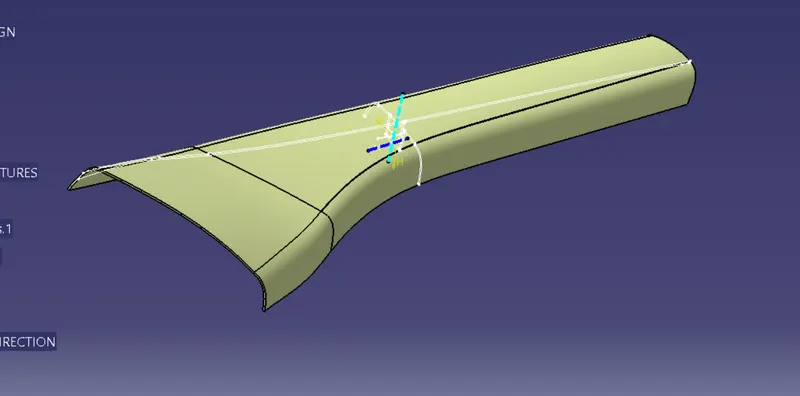

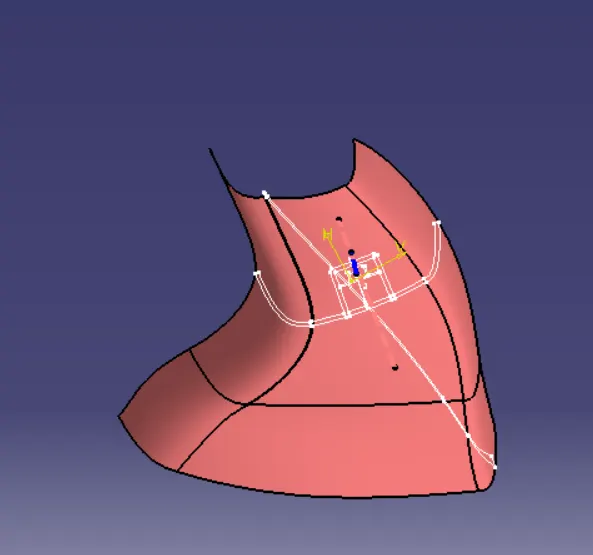

CLASS A SURFACE

                 check the surface quality

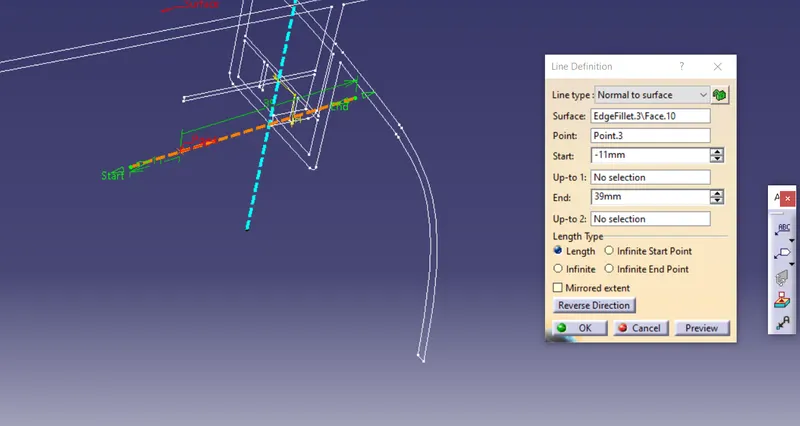

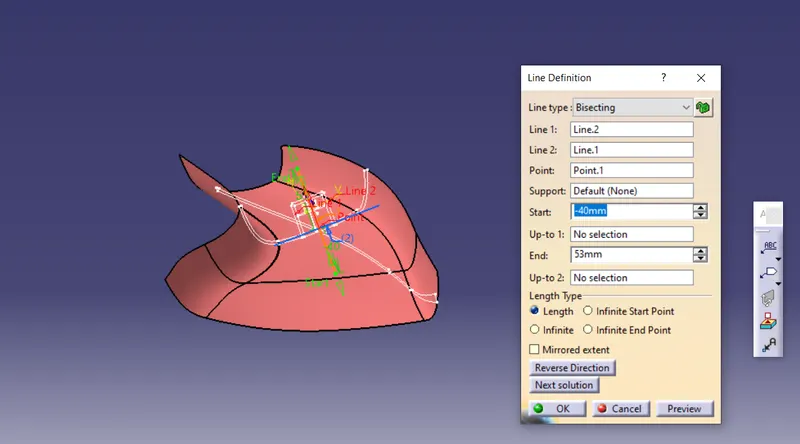

TOOLING AXIS

        create the two lines with the master section, bisecting the line & create the tooling axis.

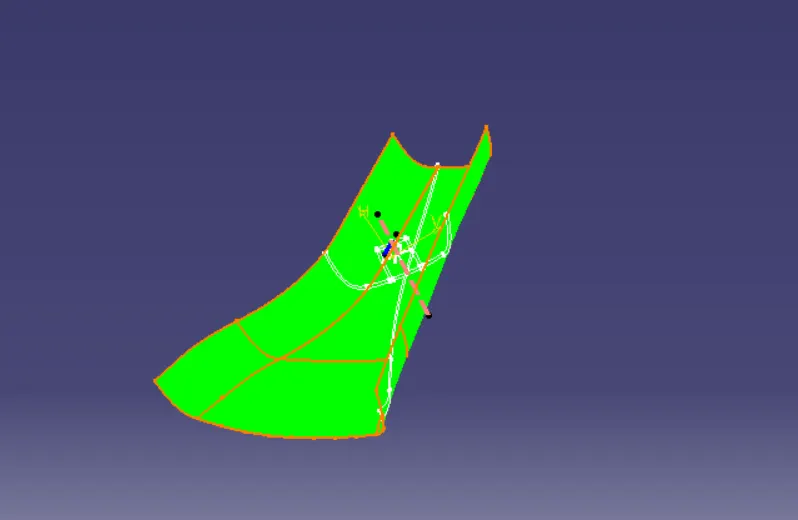

DRAFT ANALAYSIS

        Draft analysis for class A surface

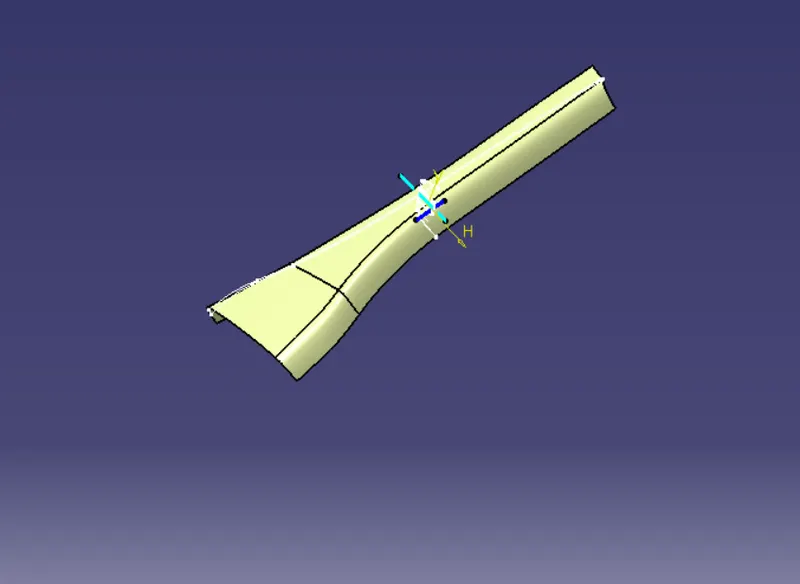

CLASS B SURFACE

 Create B surface offset form the class A surface as per master section.

CLASS C SURFACE

 create the surface with swept & multi section surfaces.

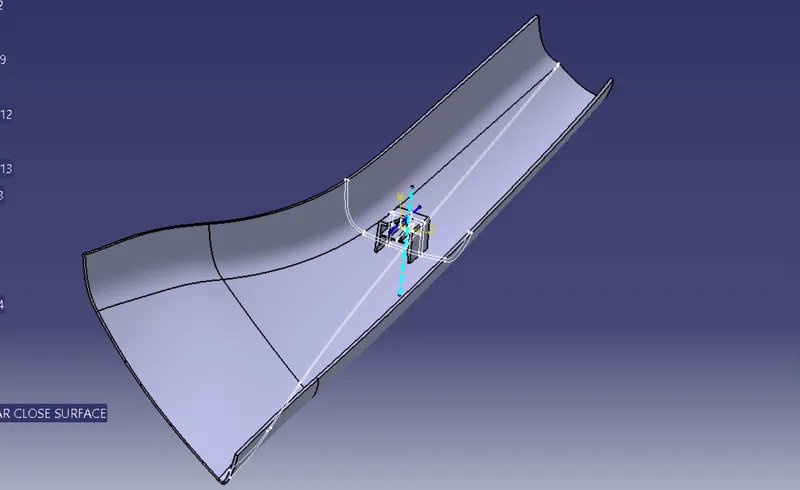

FINAL SURFACE

Join the surfaces without any boundary.

SIDE CORE AXIS

      create side core axis using master section.

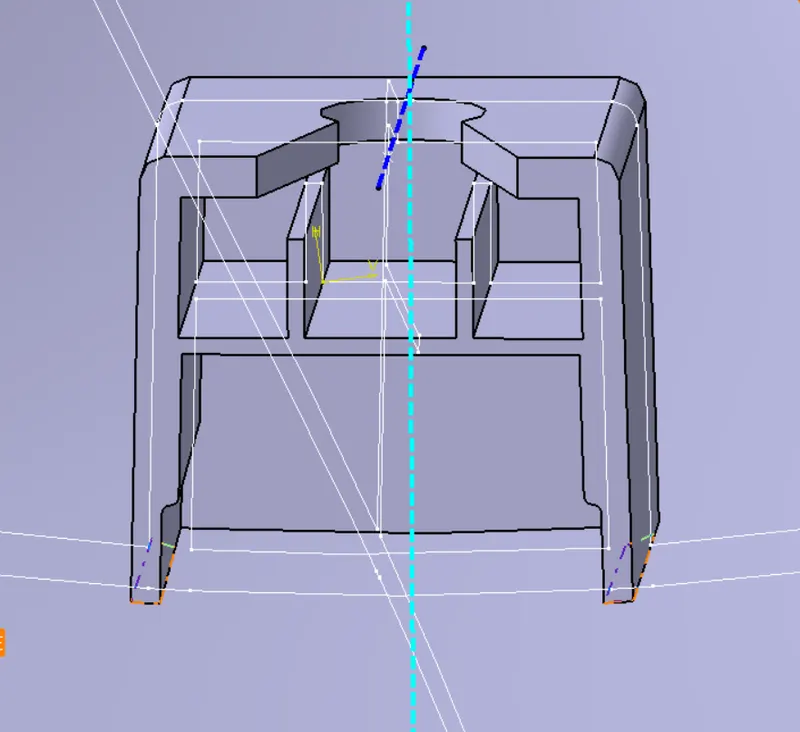

DOG HOUSE & RIBS

  Create the dog house & ribs as per master section.

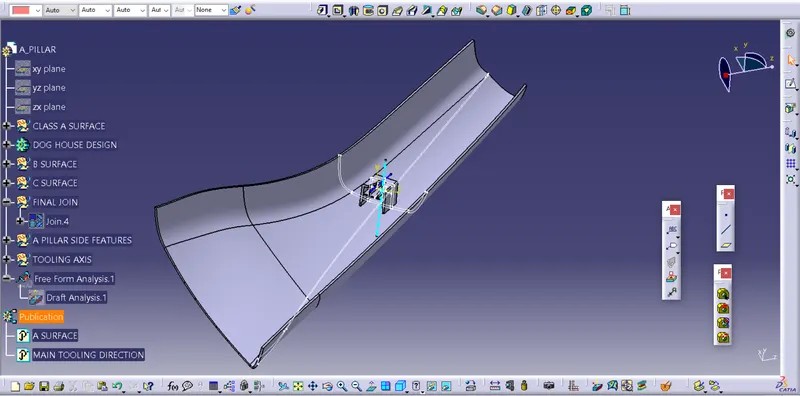

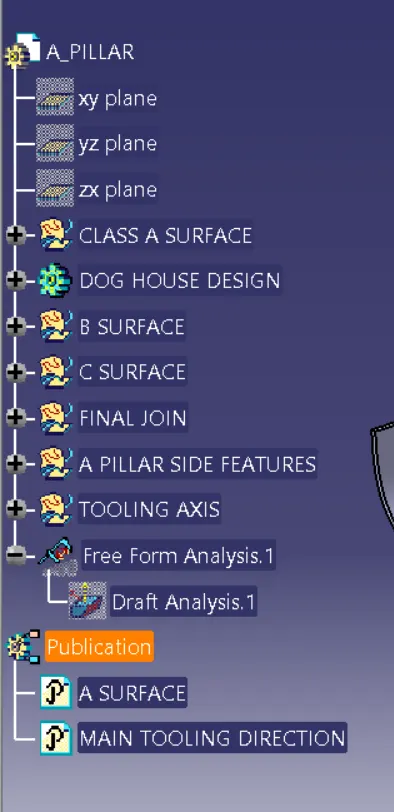

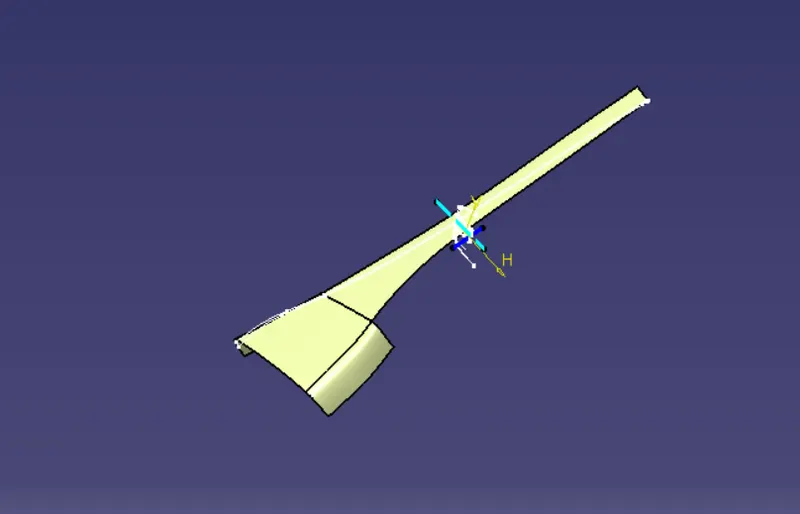

FINAL IMAGES OF A PILLAR MASTER SECTION:
