Week 9 - Project - A pillar Design with Master Section

A PILLAR DESIGN WITH MASTER SECTION

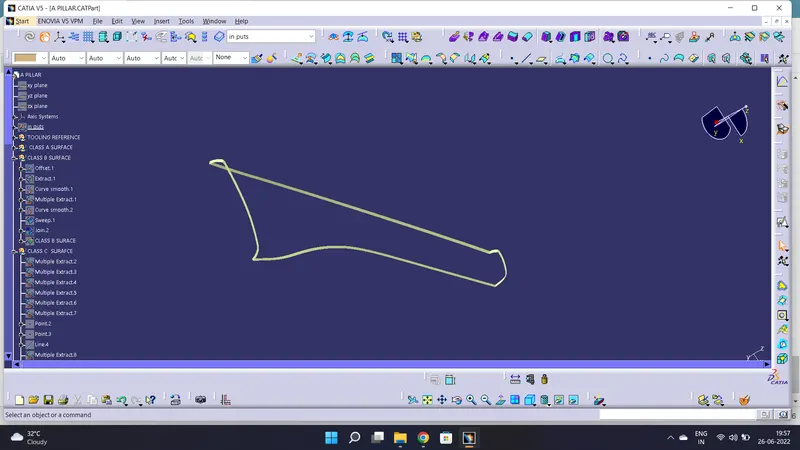

MASTER SECTIION

REFERENCE FOR CLASS A, CLASS B & CLASS C SURFACE.

CLASS A SURFACE

check the surface quality

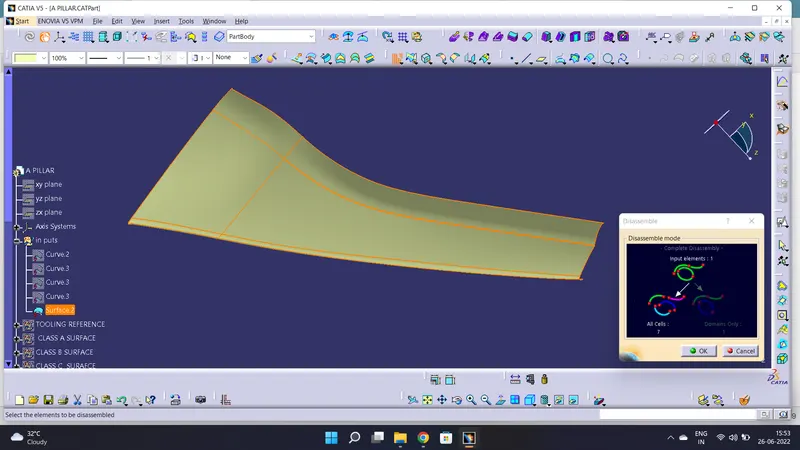

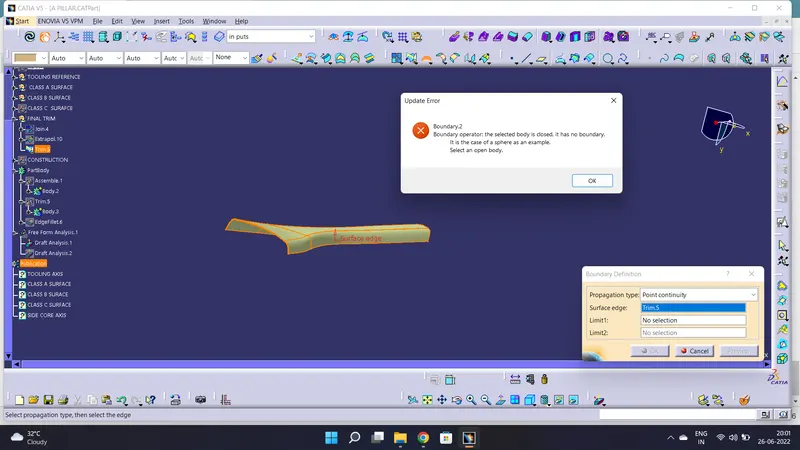

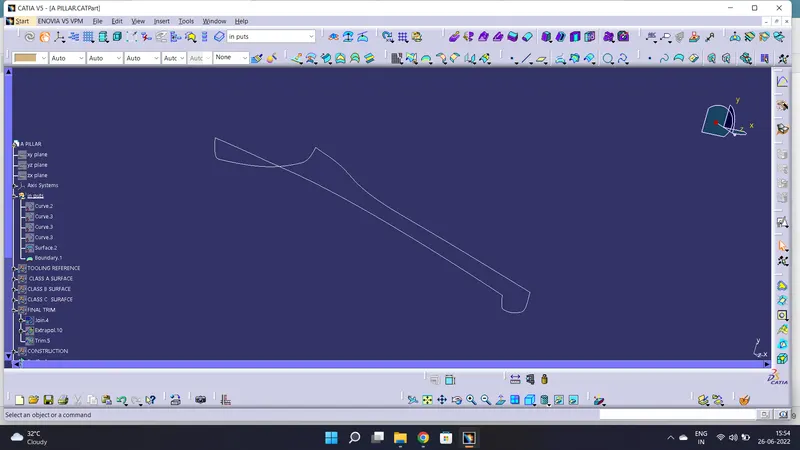

check the any patches available in surface with boundary

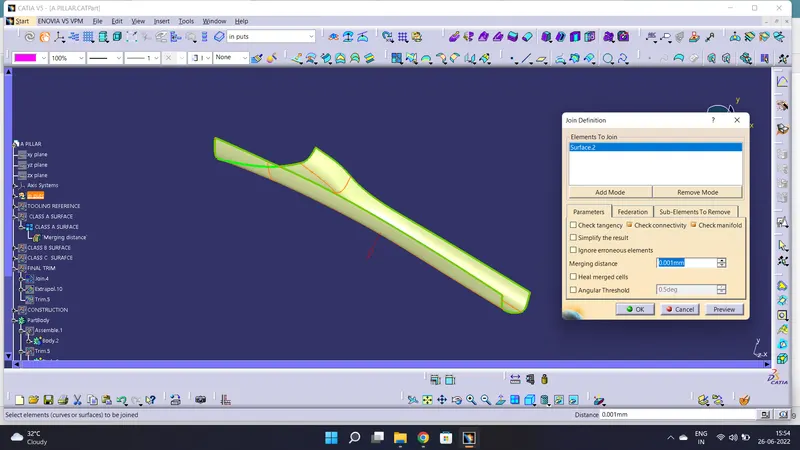

let's join the surface

TOOLING AXIS

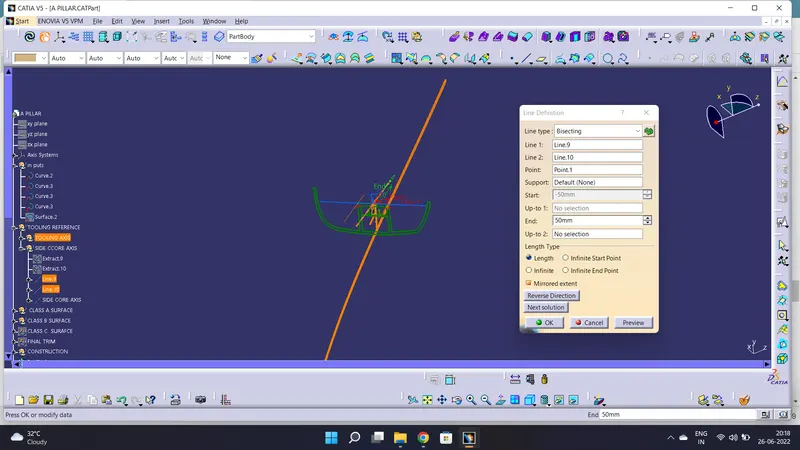

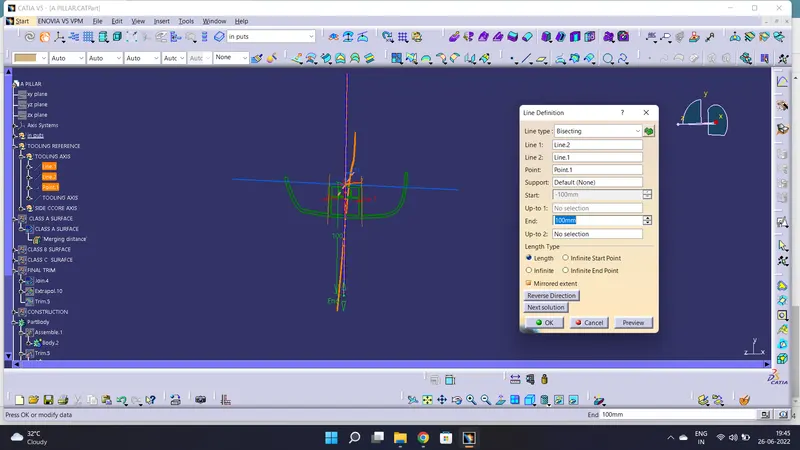

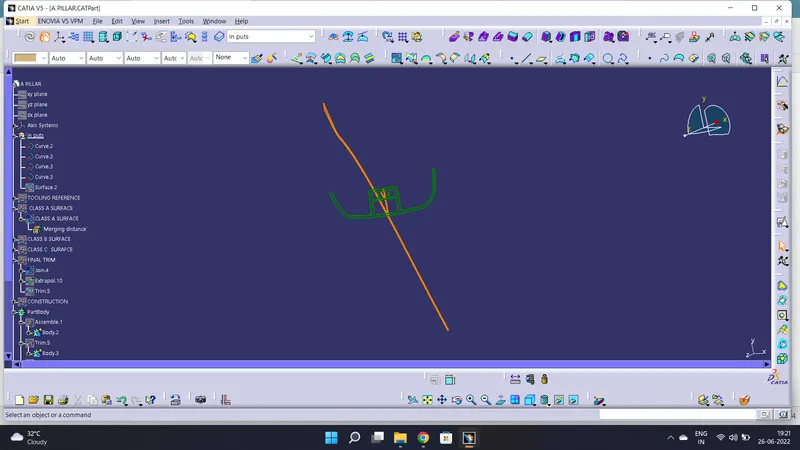

create the two lines with the master section, bisecting the line & create the tooling axis.

DRAFT ANALAYSIS

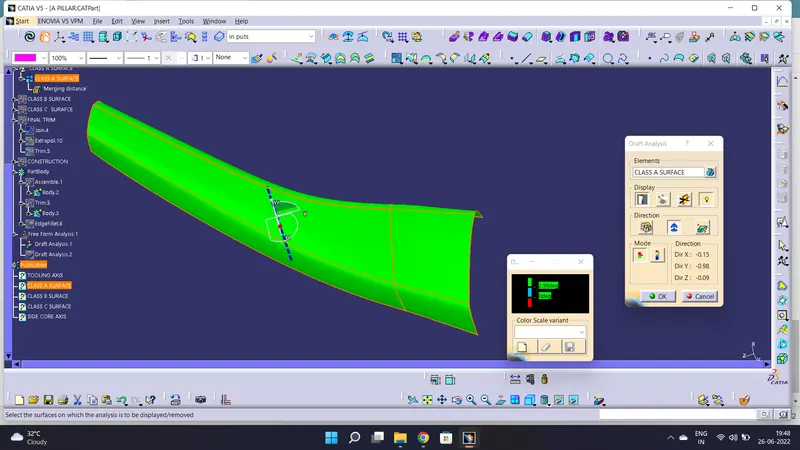

Draft analysis for class A surface

CLASS B SURFACE

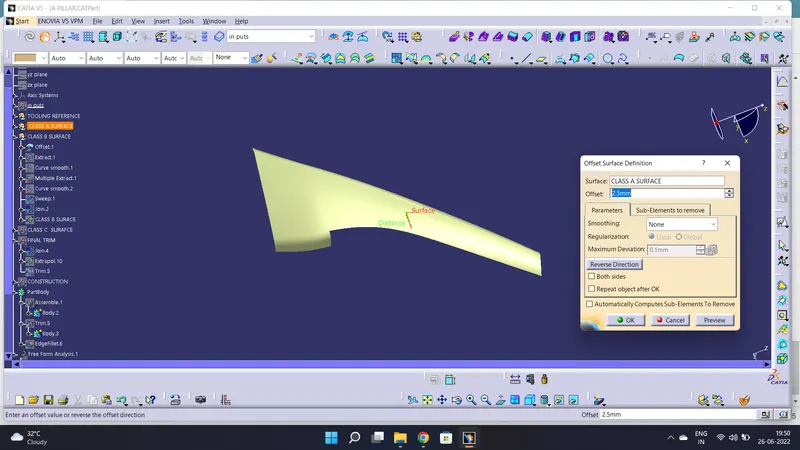

Create B surface offset form the class A surface as per master section.

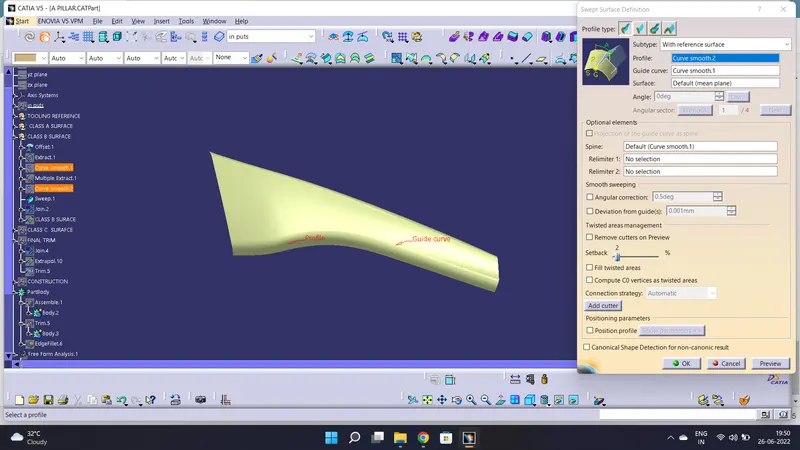

missing surfaces create with swept surface.

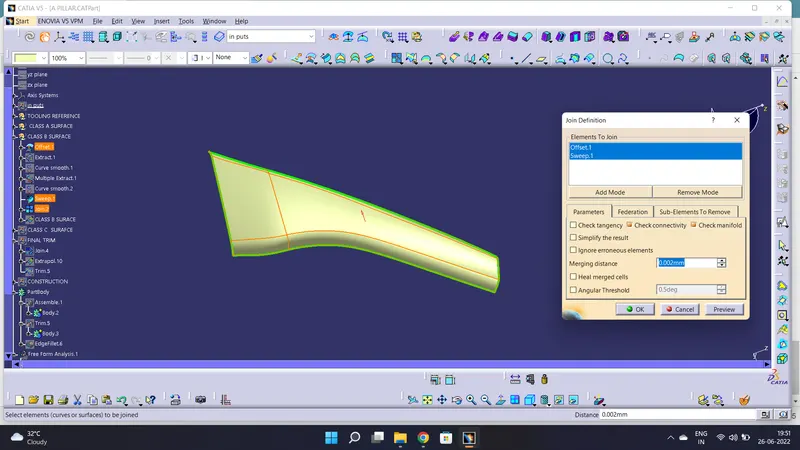

let's join the surfaces & create the class B surface.

CLASS C SURFACE

create the surface with swept & multi section surfaces.

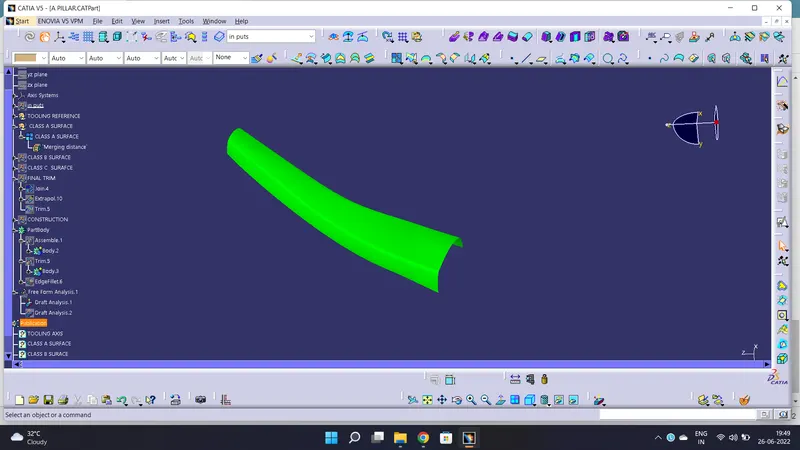

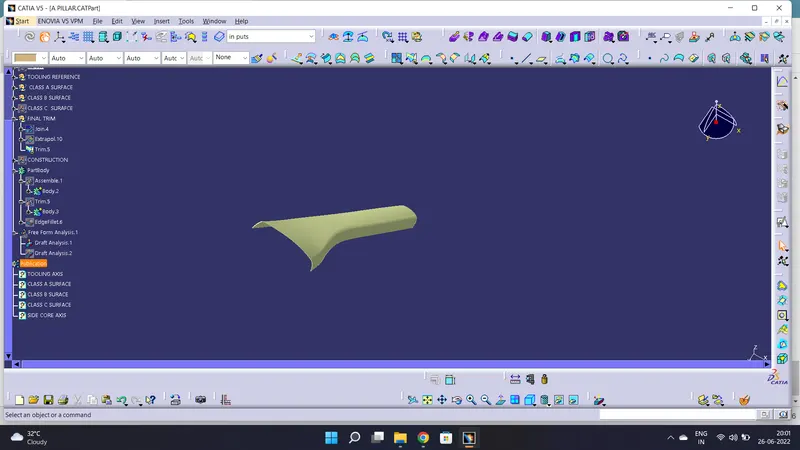

FINAL SURFACE

Join the surfaces without any boundary.

SIDE CORE AXIS

create side core axis using master section.

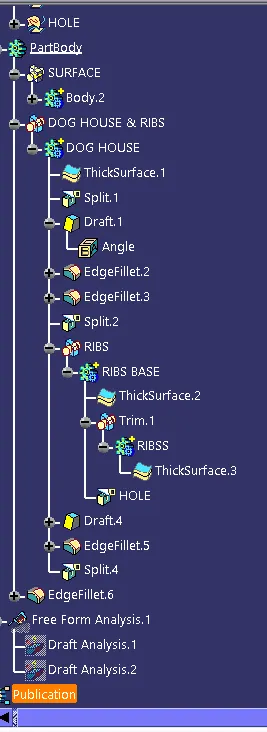

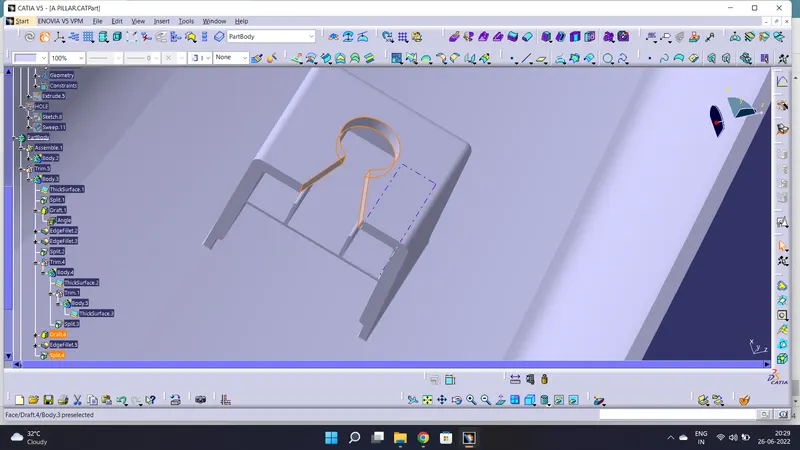

DOG HOUSE & RIBS

Create the dog house & ribs as per master section.

DOG HOUSE

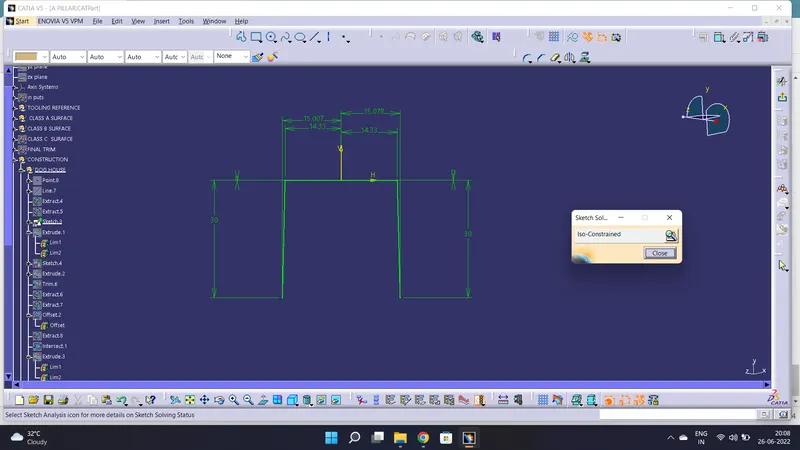

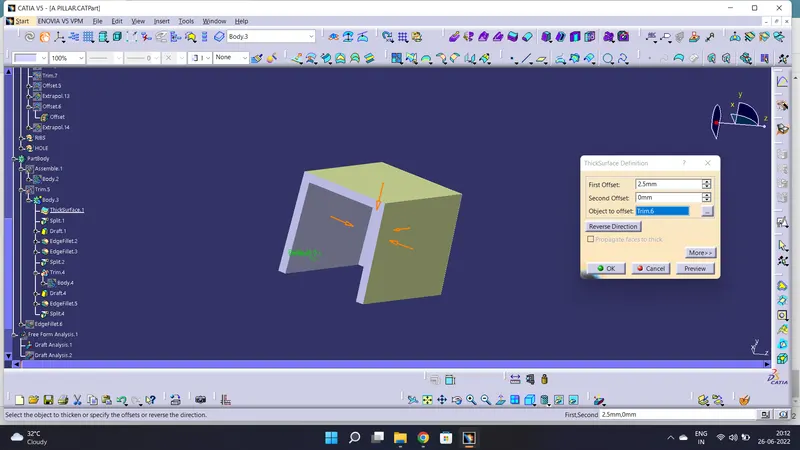

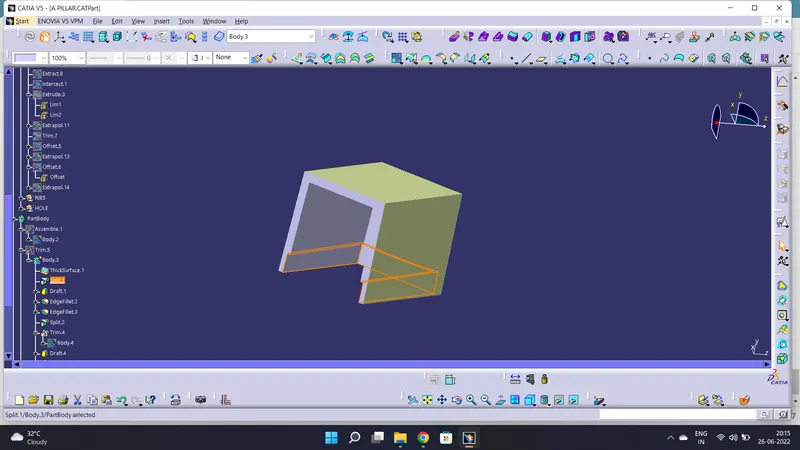

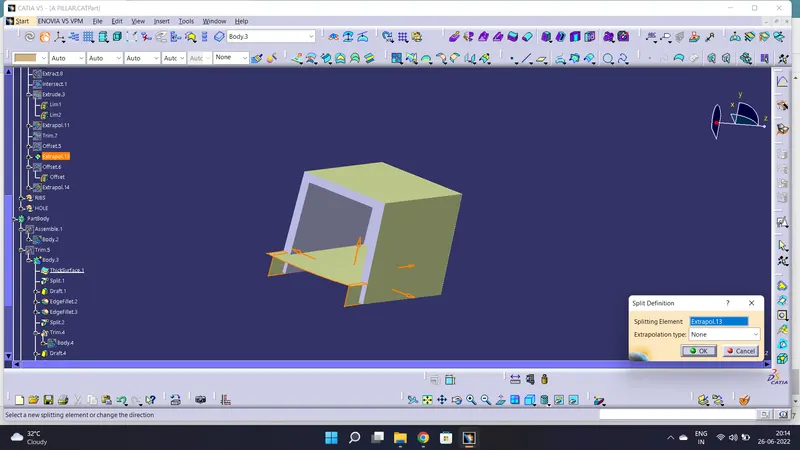

Extrude the sketch convert to sloid.

to reduce the sink marks.

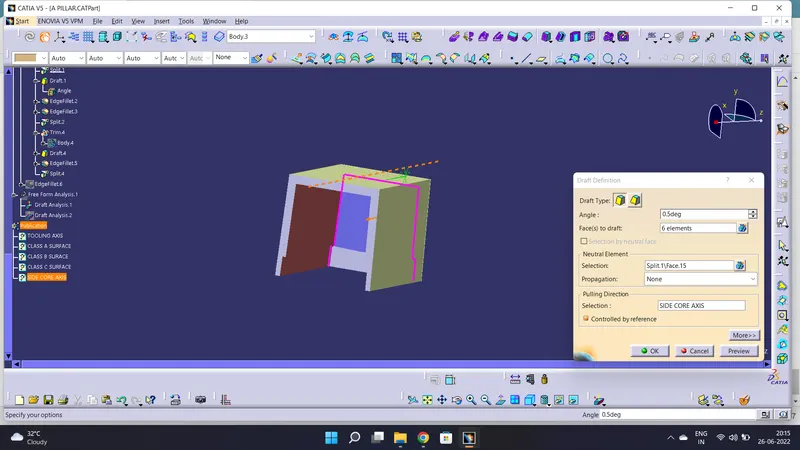

draft to the dog house using side core axis.

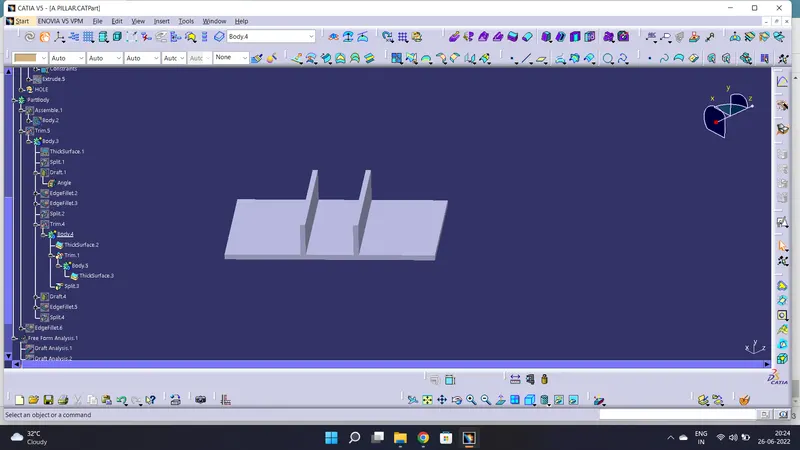

RIBS

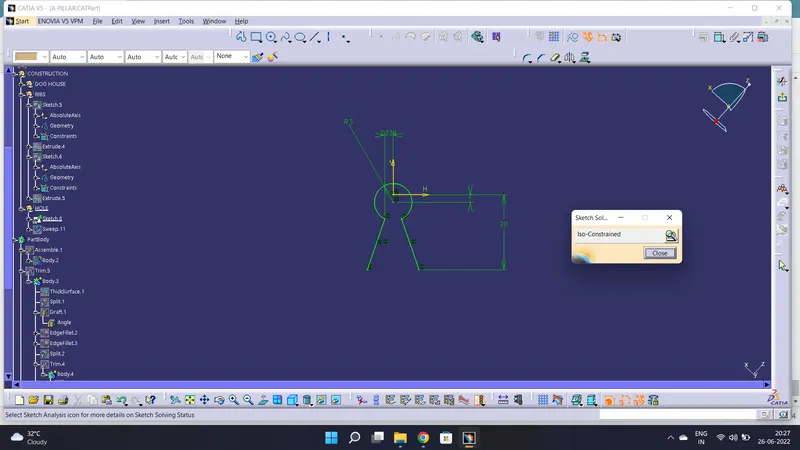

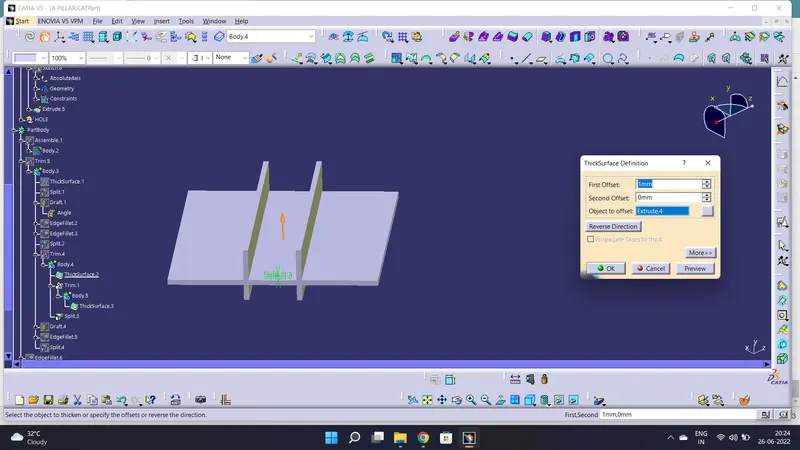

Extrude the sketch convert to sloid.

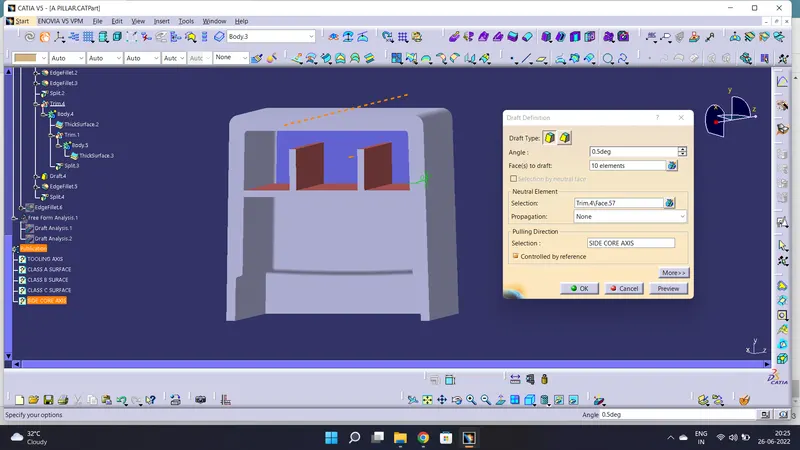

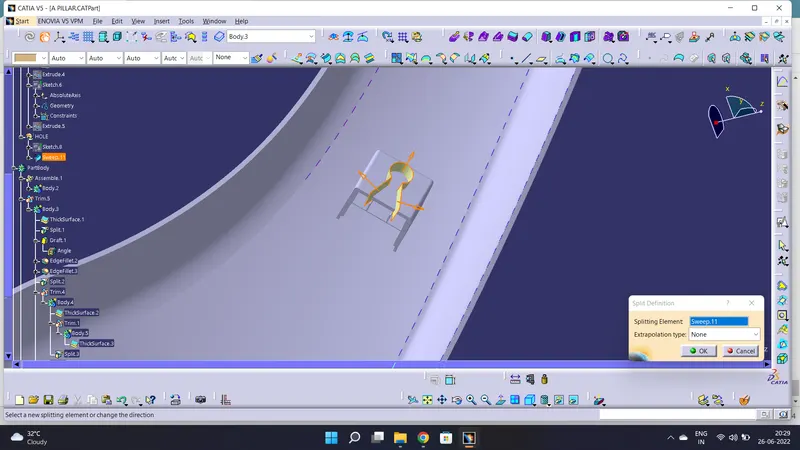

DRAFT TO RIBS USING SIDE CORE AXIS

DOG HOUSE TOP PROFILE

GIVEN FILLETS TO THE DOG HOUSE & RIBS AS PER MASTER SECTION.

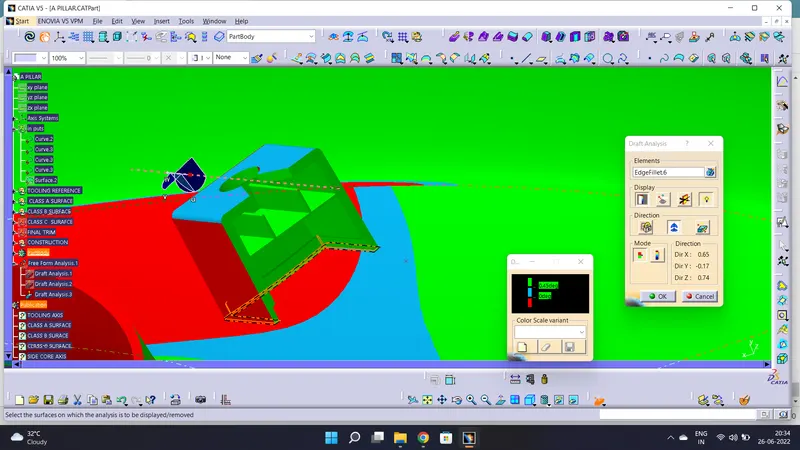

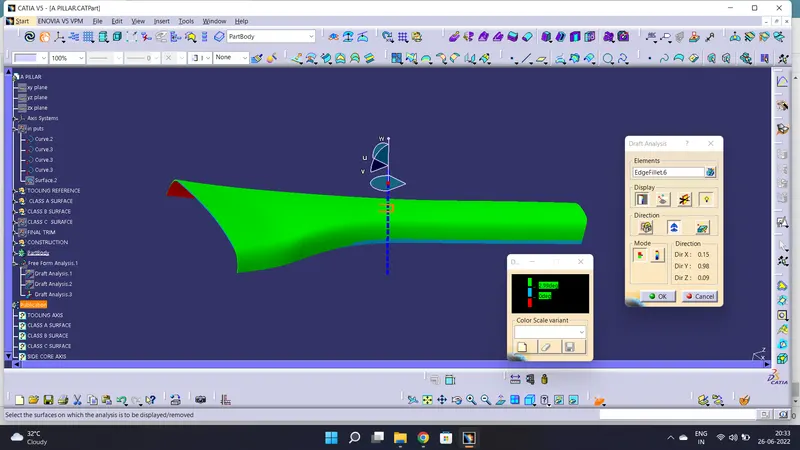

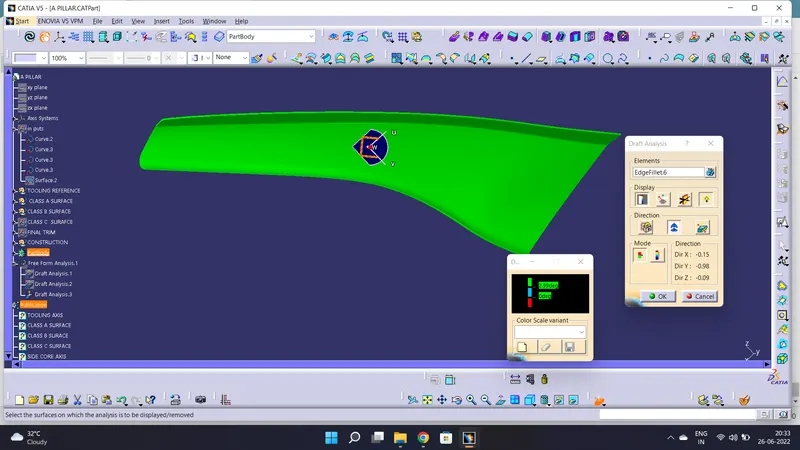

DRAFT ANALYSIS FOR SOLID SURFACE

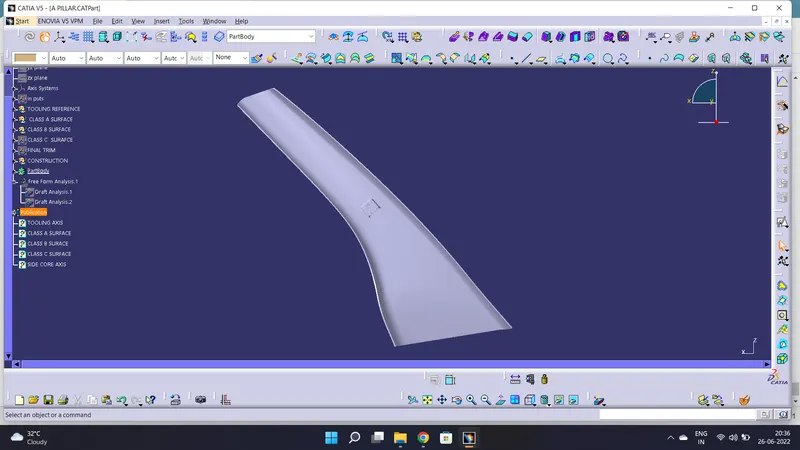

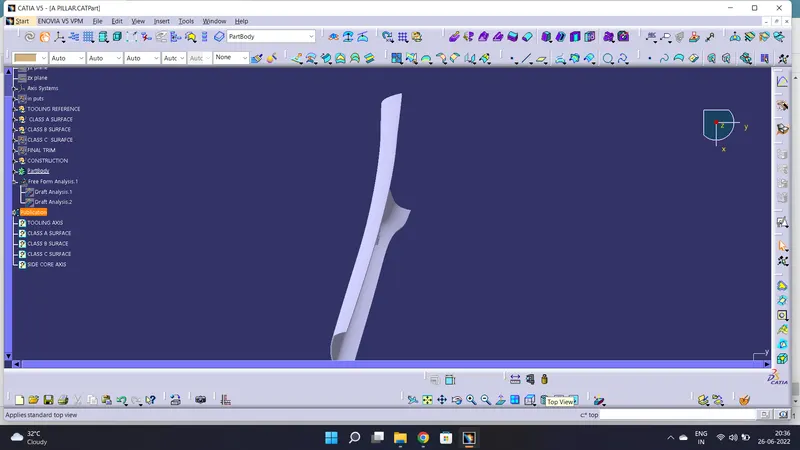

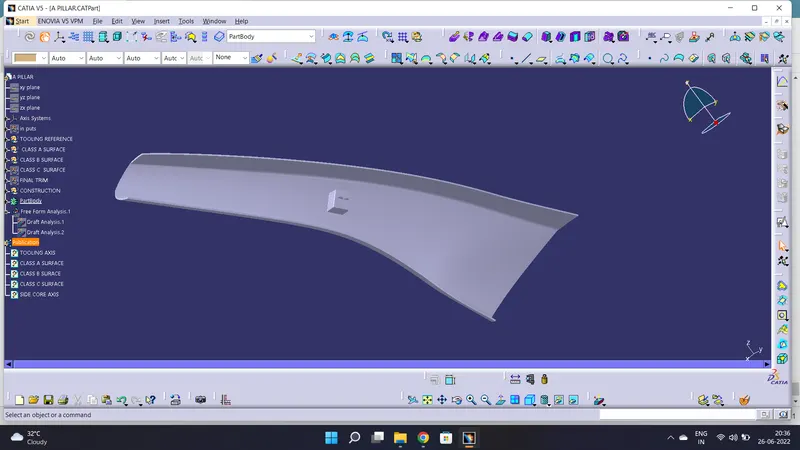

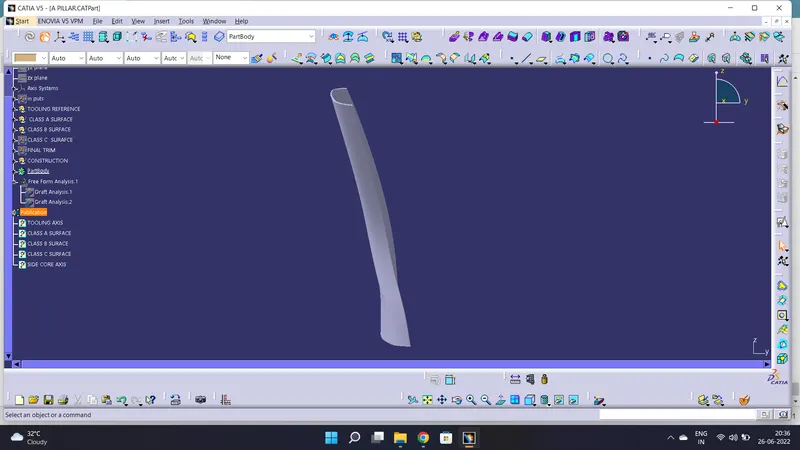

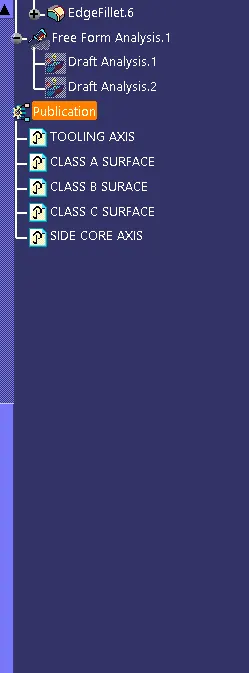

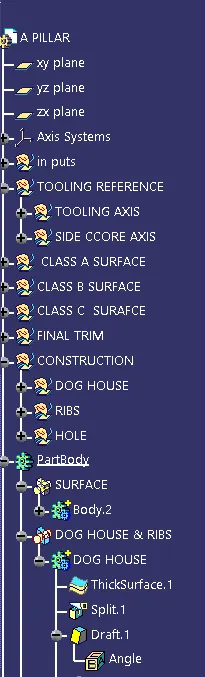

VIEWS
