Week 9 - Project - A pillar Design with Master Section

DESIGNING A PILLAR USING MASTER SECTION

INTRODUCTION

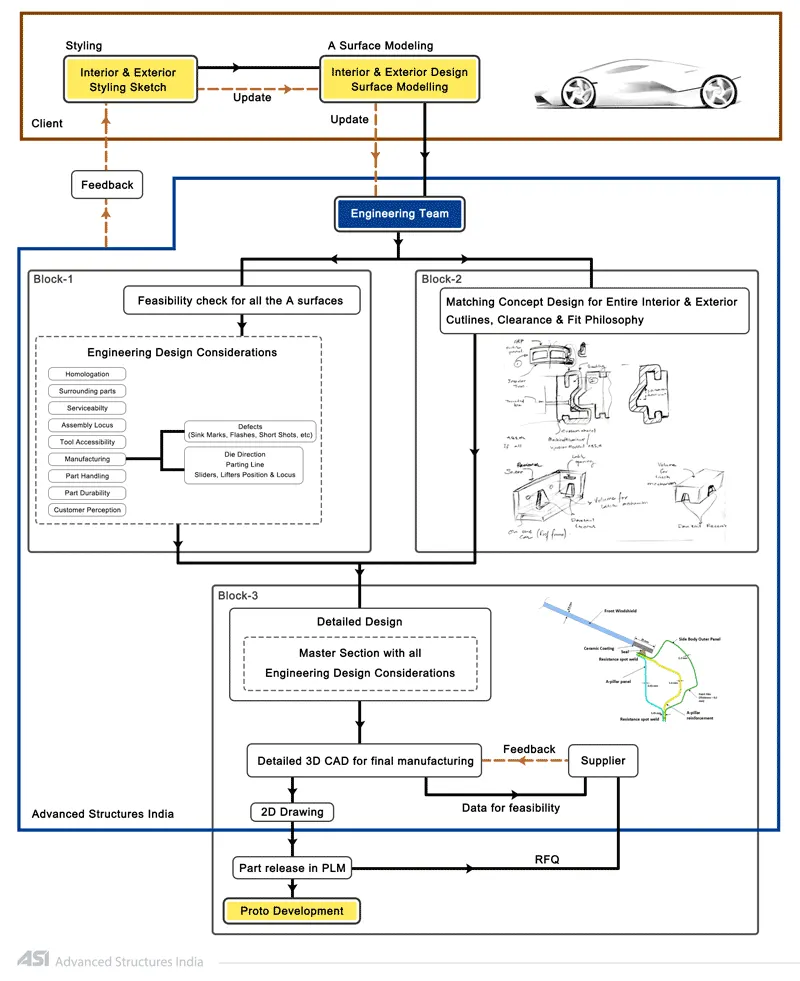

MASTER SECTION: Master sections development takes place during feasibility check and concept validation stages of the product life cycle. These are typically the guides for design requirements and which decides the component packaging after the development of the concept design, i.e class A surfaces.

Master section helps us to decide the feasibility of the concept design, the clearances, the packaging and the fixation strategy of a component before converting the concept design into a solid 3D engineering design.

During the period of vehicle concept design the evaluation of the master section performance depends mainly on the reference vehicle data and experience of structure design engineer.

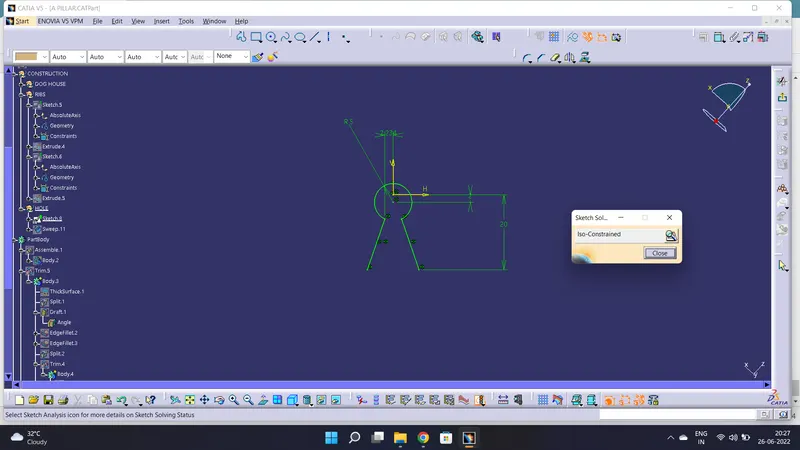

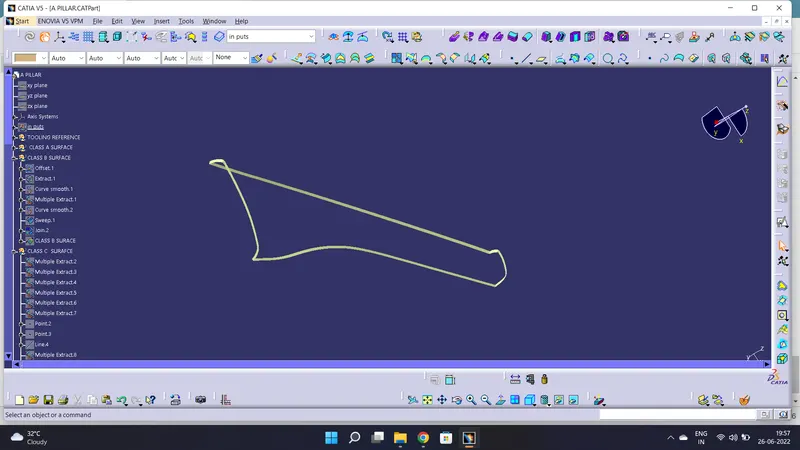

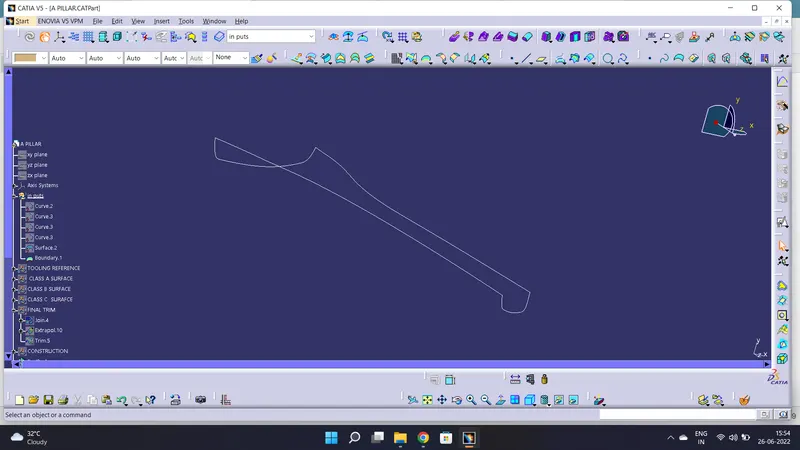

MASTER SECTIION

REFERENCE FOR CLASS A, CLASS B & CLASS C SURFACE.

CLASS A SURFACE

check the surface quality

check the any patches available in surface with boundary

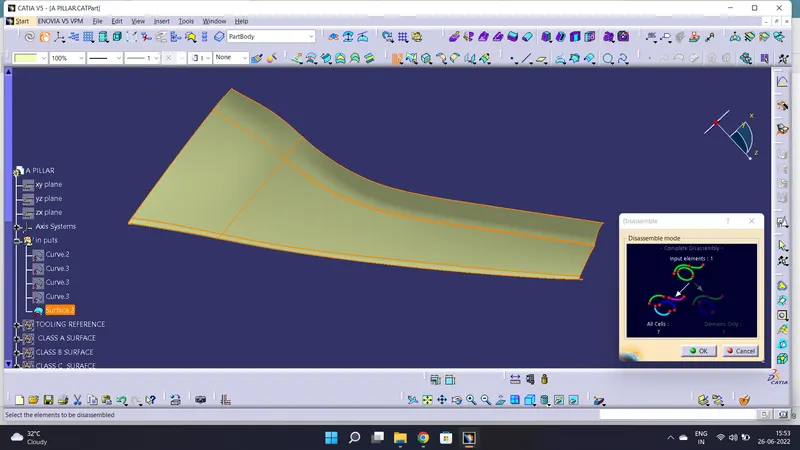

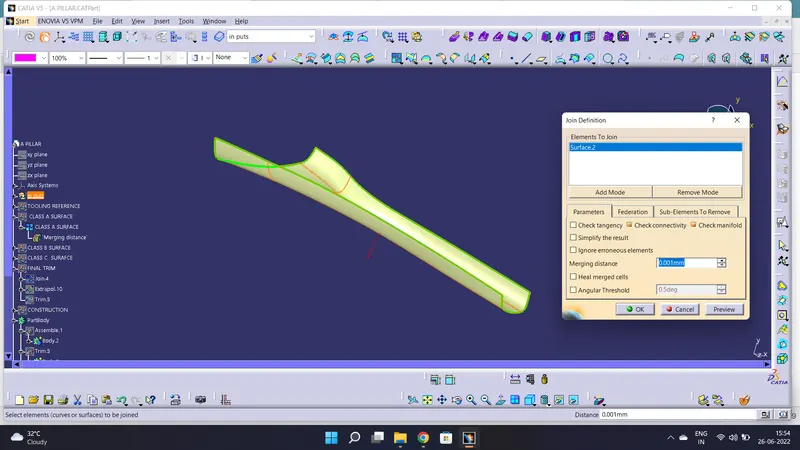

let's join the surface

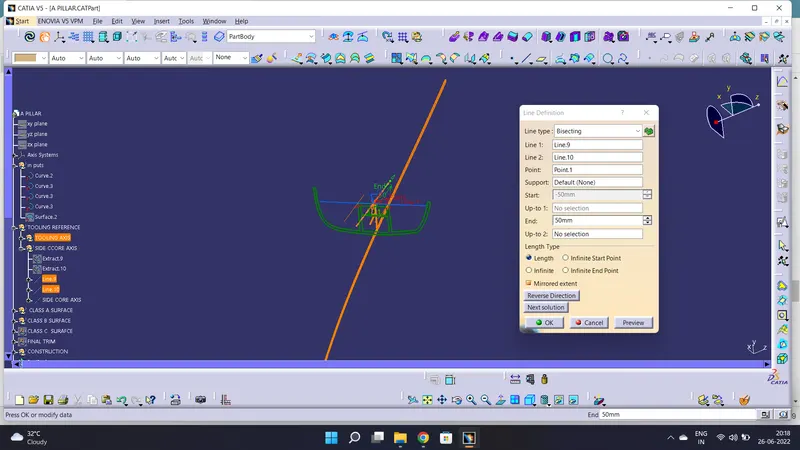

TOOLING AXIS

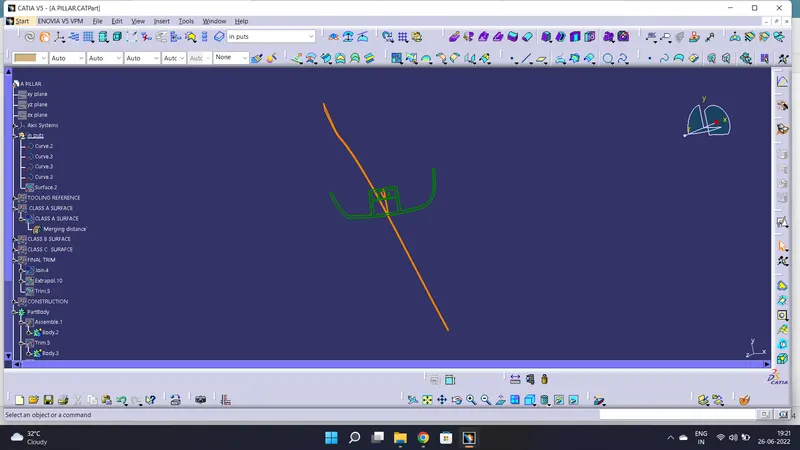

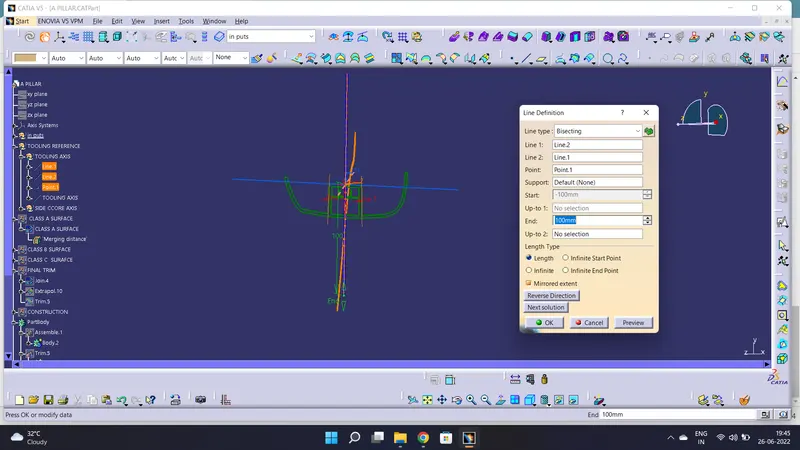

create the two lines with the master section, bisecting the line & create the tooling axis.

DRAFT ANALAYSIS

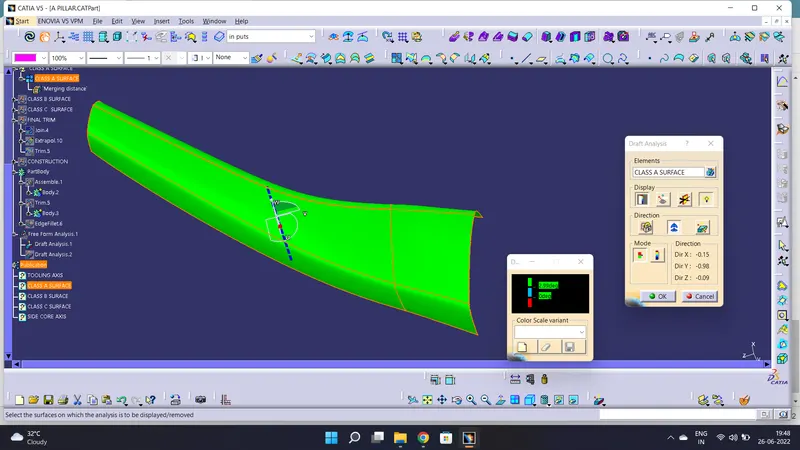

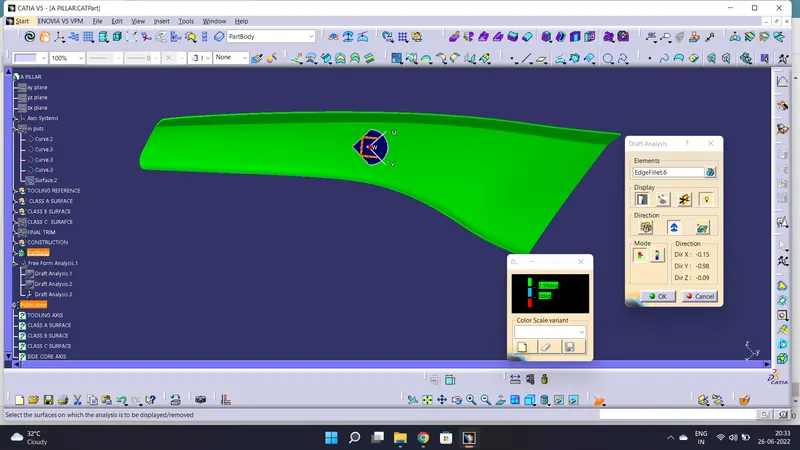

Draft analysis for class A surface

CLASS B SURFACE

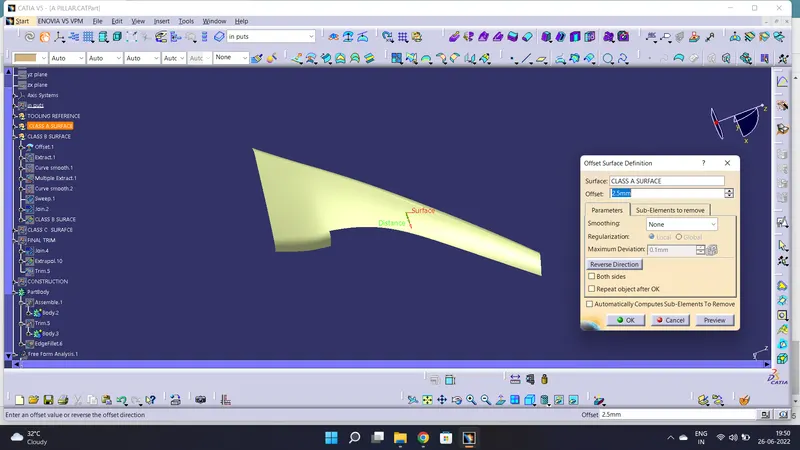

Create B surface offset form the class A surface as per master section.

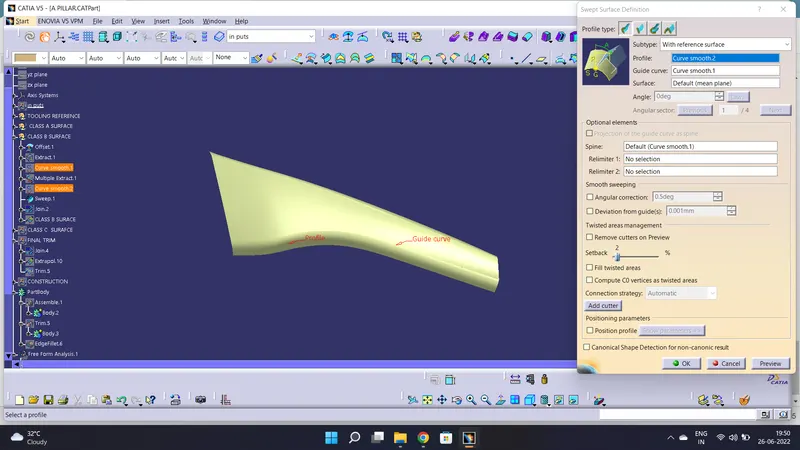

missing surfaces create with swept surface.

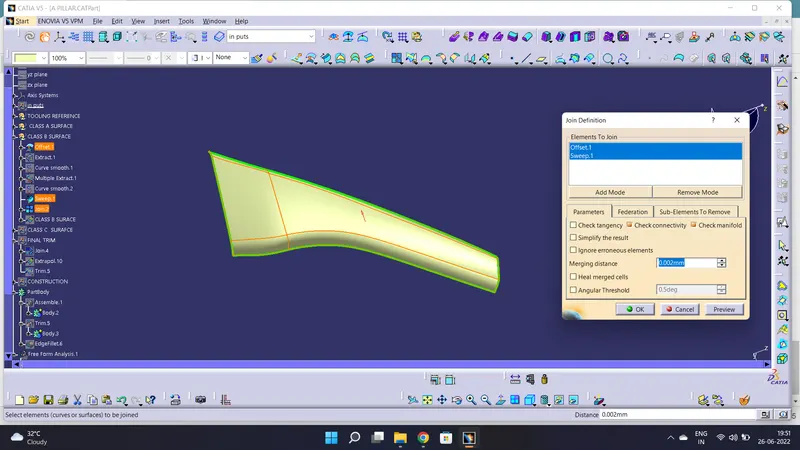

let's join the surfaces & create the class B surface.

CLASS C SURFACE

create the surface with swept & multi section surfaces.

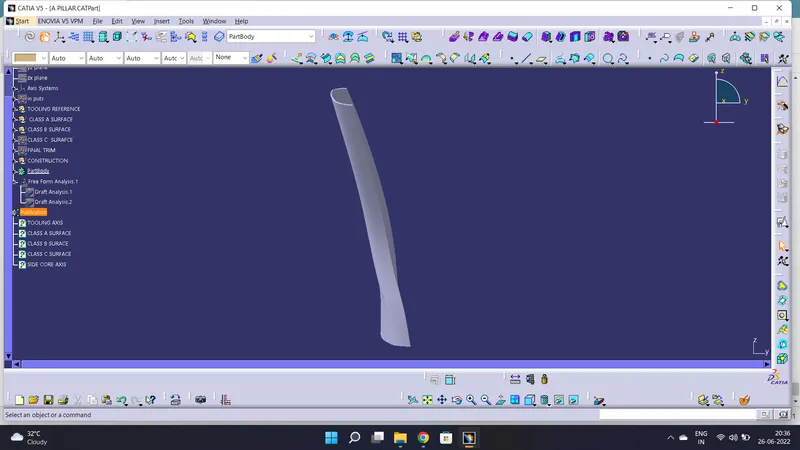

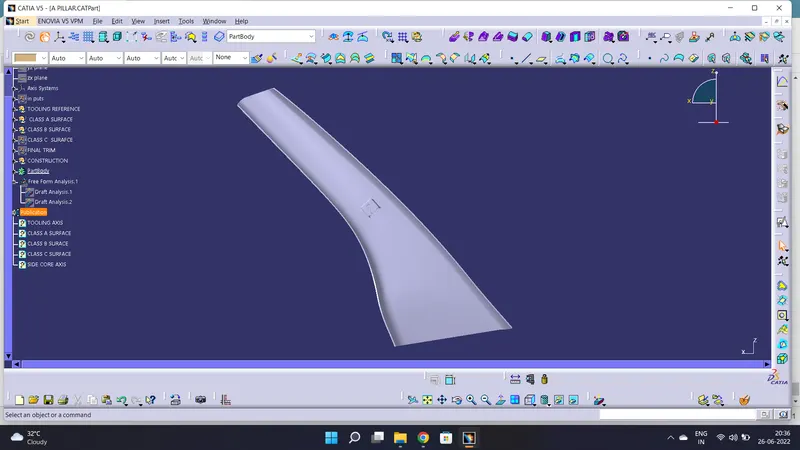

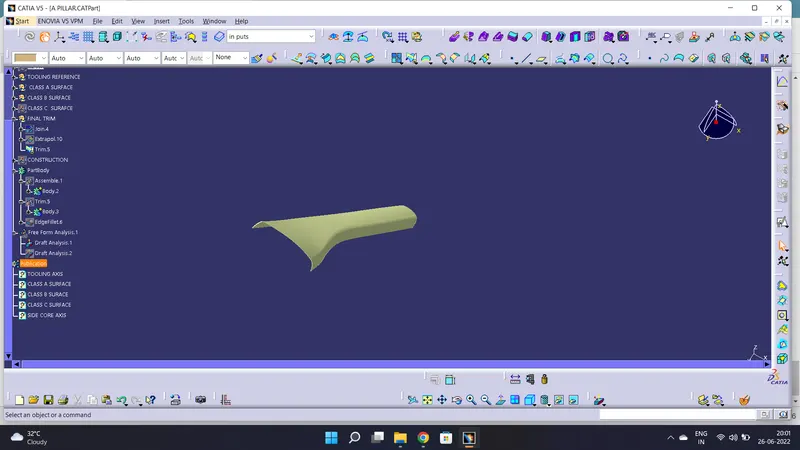

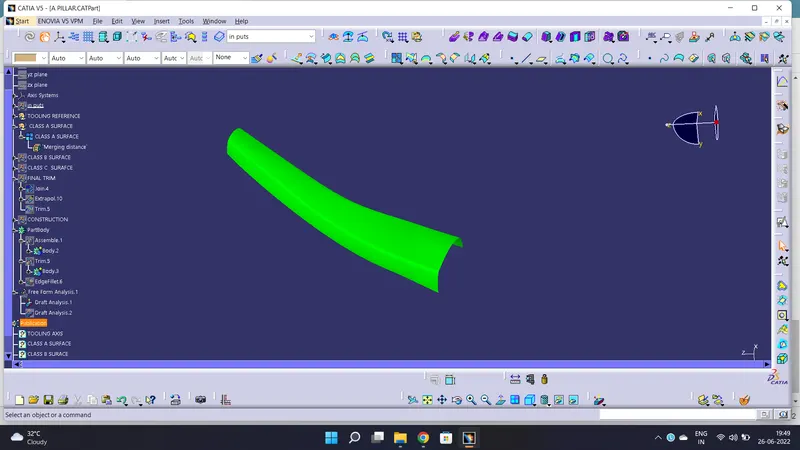

FINAL SURFACE

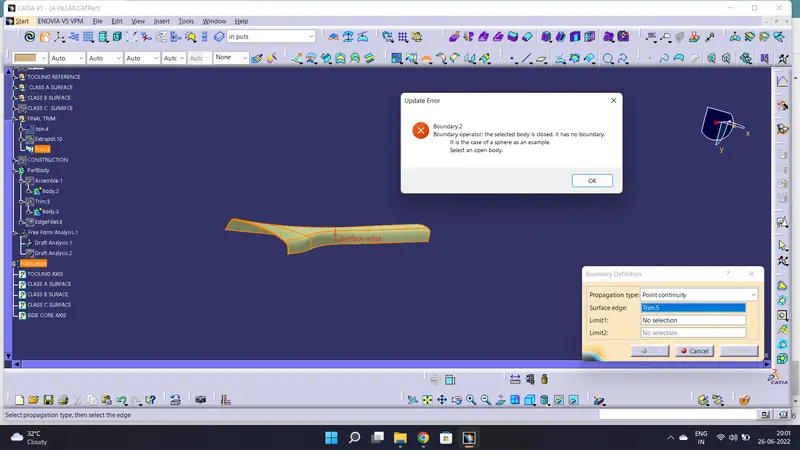

Join the surfaces without any boundary.

SIDE CORE AXIS

create side core axis using master section.

DOG HOUSE & RIBS

Create the dog house & ribs as per master section.

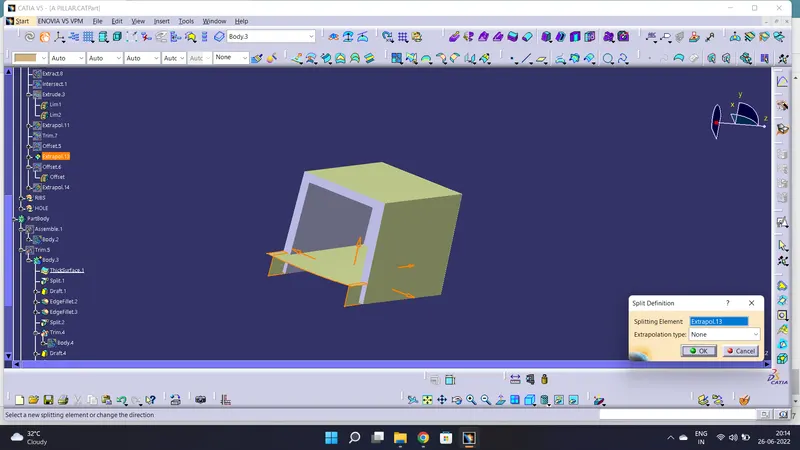

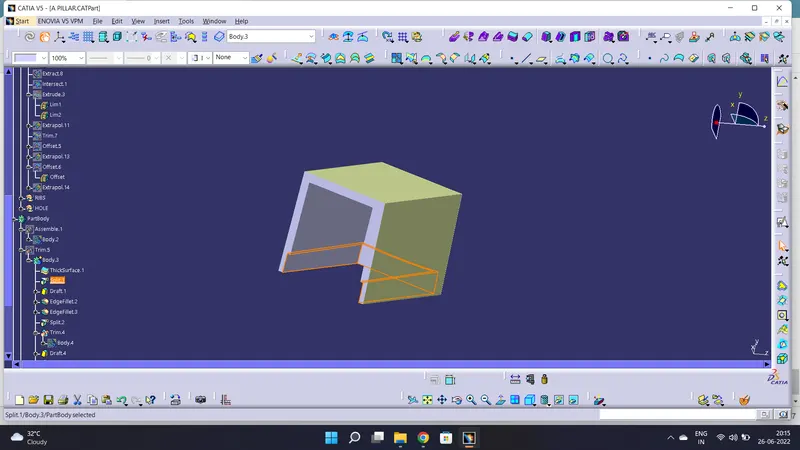

DOG HOUSE

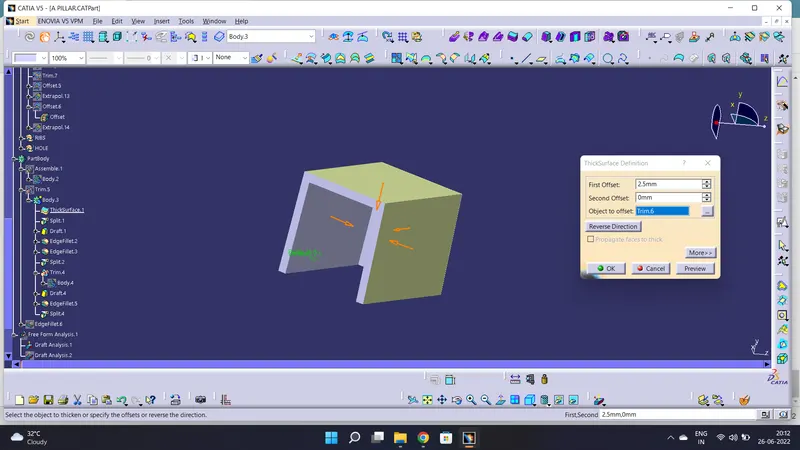

Extrude the sketch convert to sloid.

to reduce the sink marks.

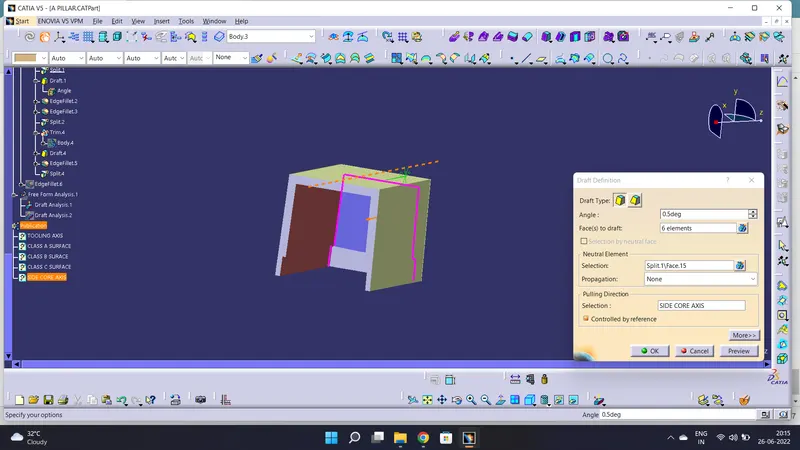

draft to the dog house using side core axis.

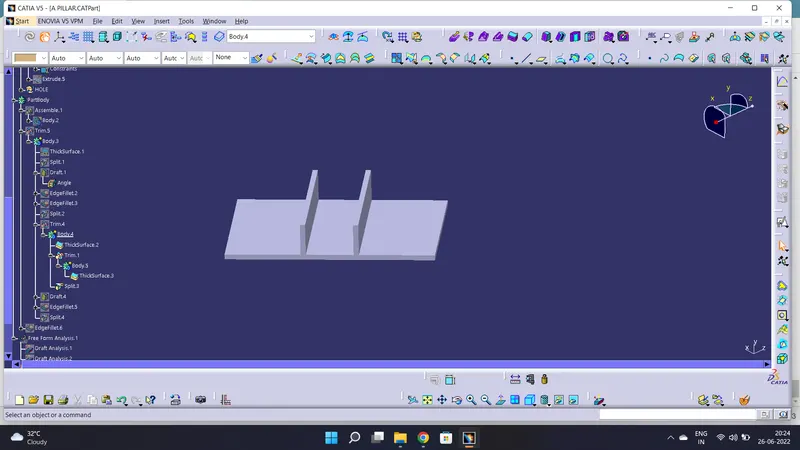

RIBS

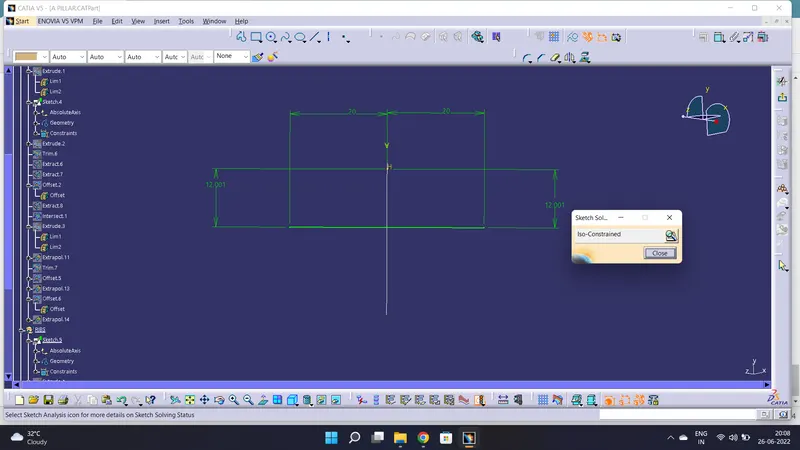

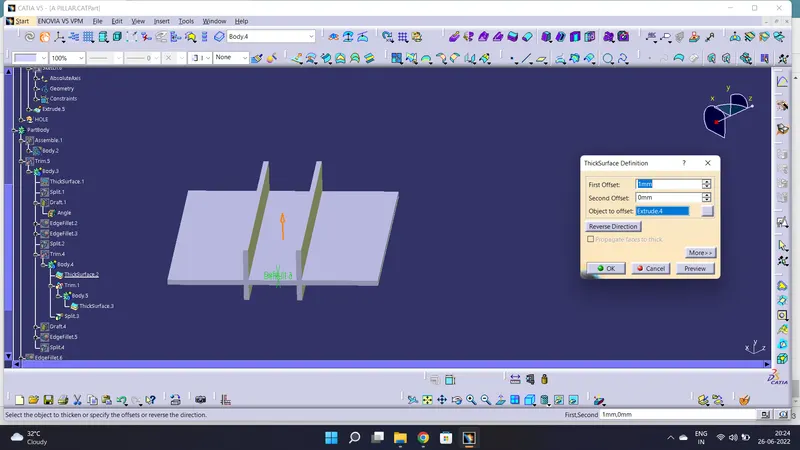

Extrude the sketch convert to sloid.

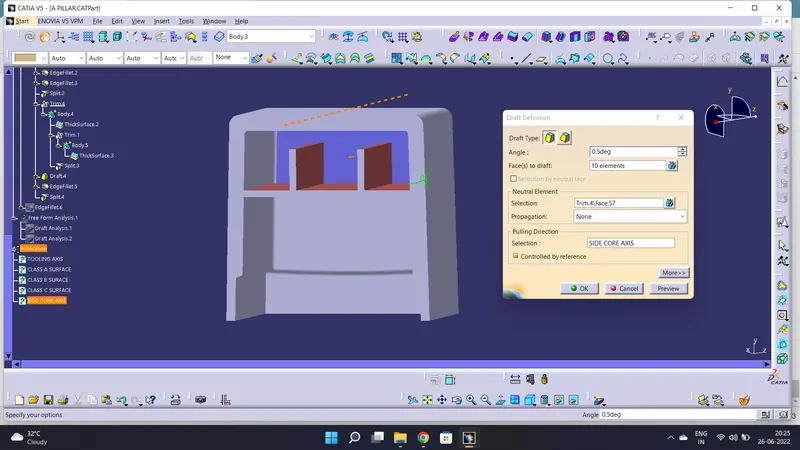

DRAFT TO RIBS USING SIDE CORE AXIS

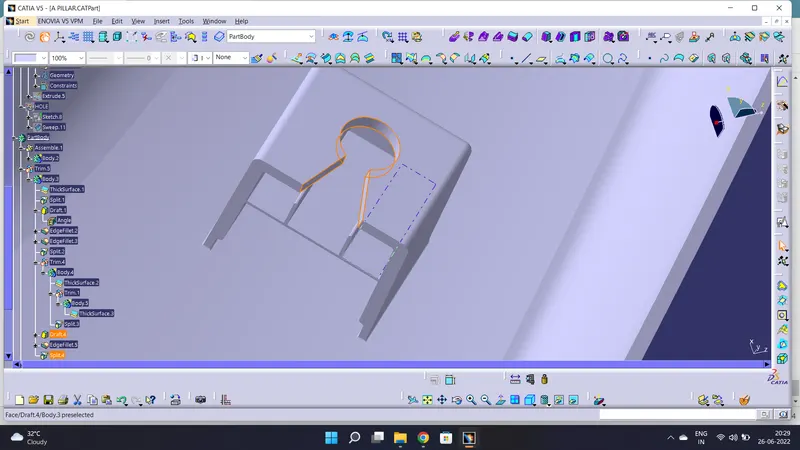

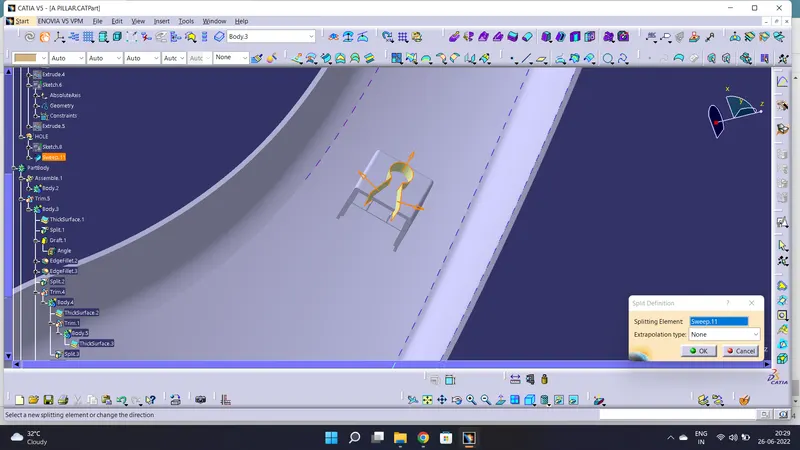

DOG HOUSE TOP PROFILE

GIVEN FILLETS TO THE DOG HOUSE & RIBS AS PER MASTER SECTION.

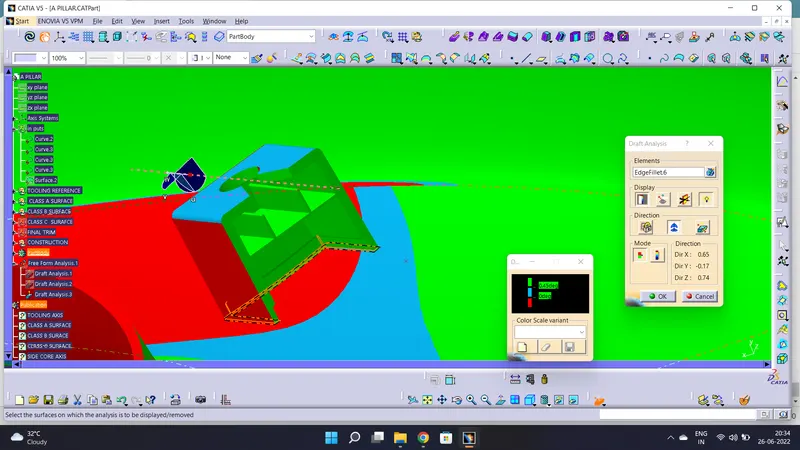

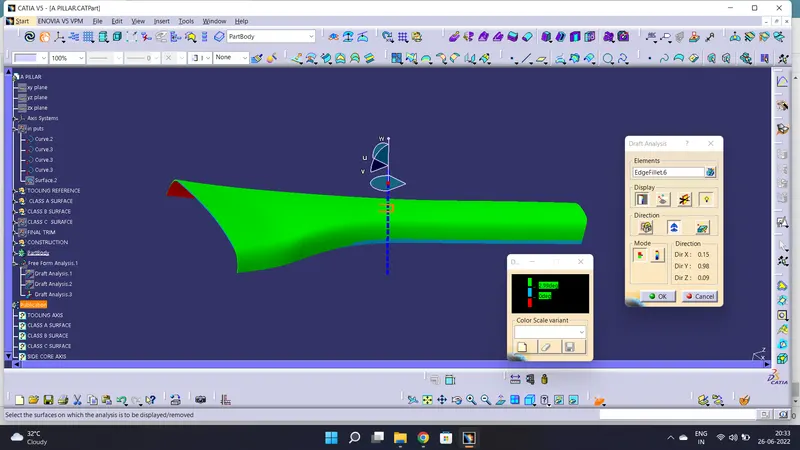

DRAFT ANALYSIS FOR SOLID SURFACE

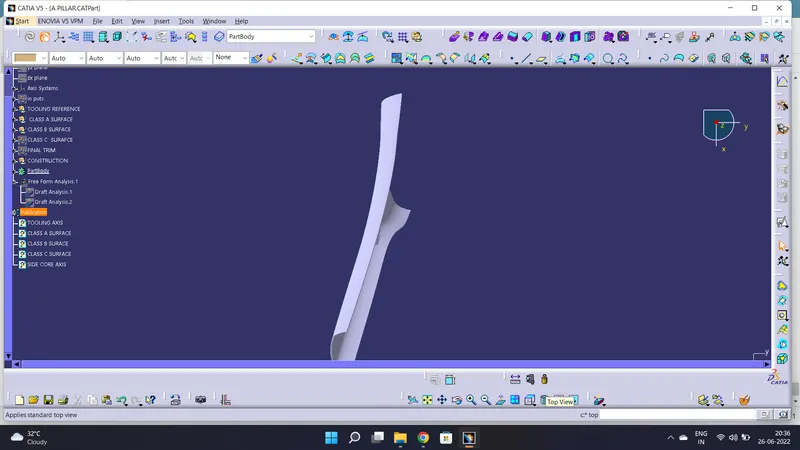

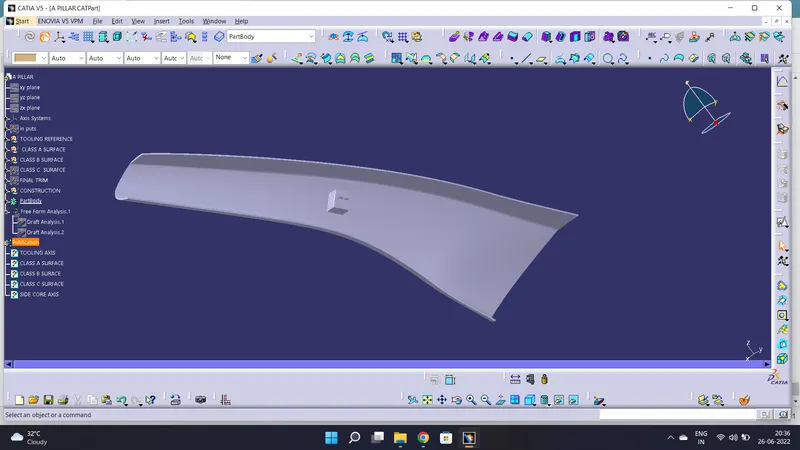

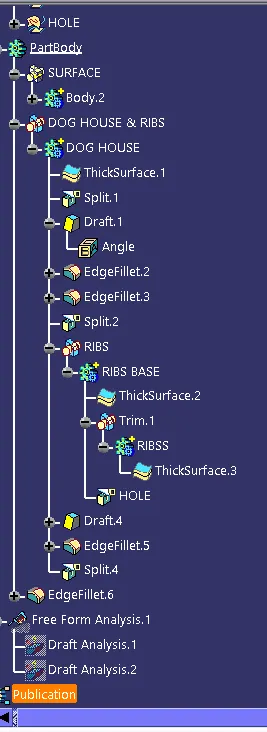

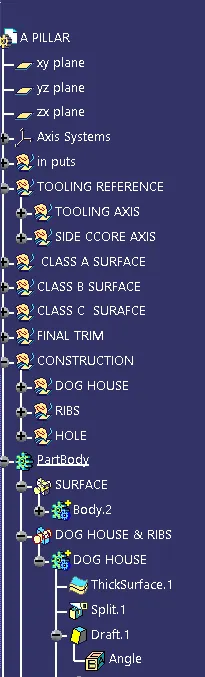

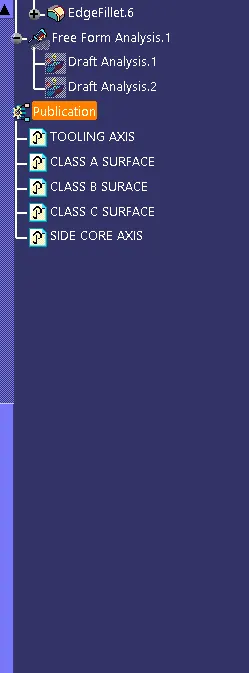

VIEWS
