Week 9 - Project - A pillar Design with Master Section

A PILLAR MASTERSECTION

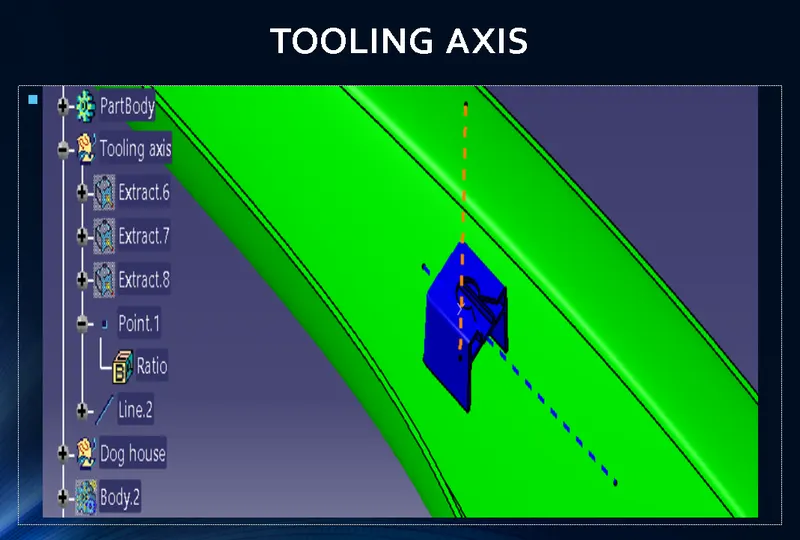

first a surface offseted 2.5 mm then unoffseted surface creat smooth curve and used sweep command and join it.then creat tooling axis with bisecting line.

draft analysis use material mode and checked the draft in draft command

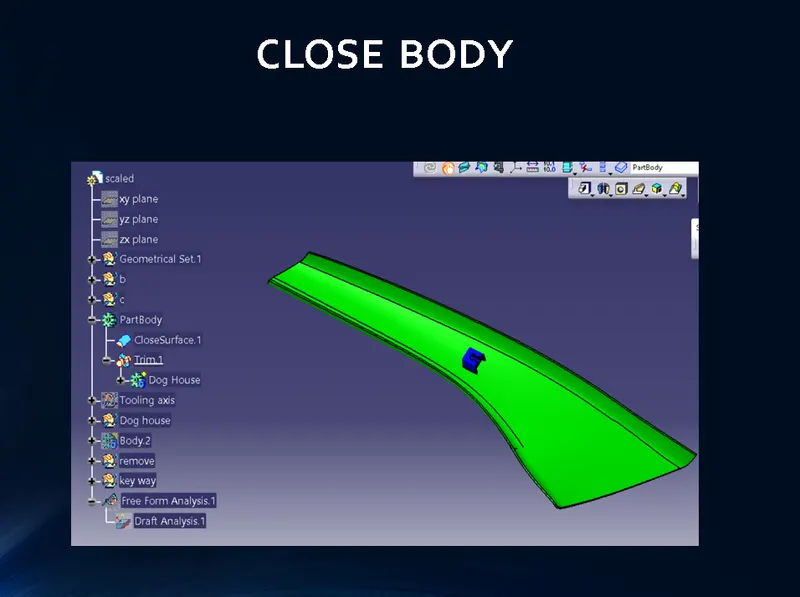

for c surface creat a boundary a and b surface then creat line between two boundary for c surface then used sweep command with two guide curves and join a,b and c surface then close surface command used in new part body

Dog house

creat sketch for dog house as per the attached drawing and pad it then drafted it, then used fillet command same other part add and remove in dog house to creat dog house.
