Week 8 - Challenge 3 - Coin Holder Design

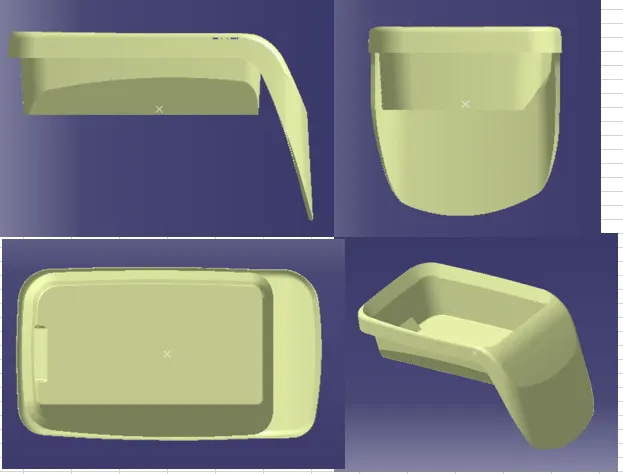

COIN HOLDER

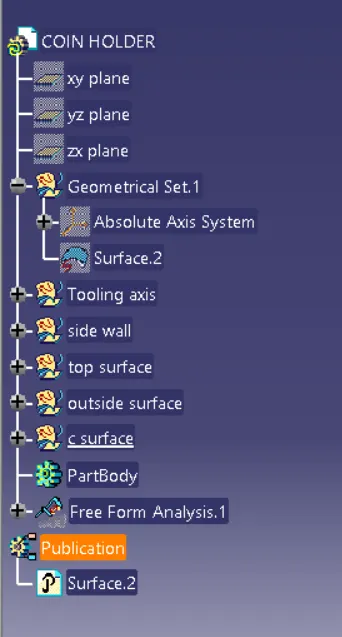

first creat tooling axis than extract side wall suraface than untrim and extrapolate than trim one by one

base surfacce extract -extrapolate than trim with side wall than offset command used and edge fillet command used

top surface extract - extrapolate - trim with side wall and offset 2.5 out side,

out surfacce extract - extrapolate - trim with top surface and offset it insiade 2.5 mm.

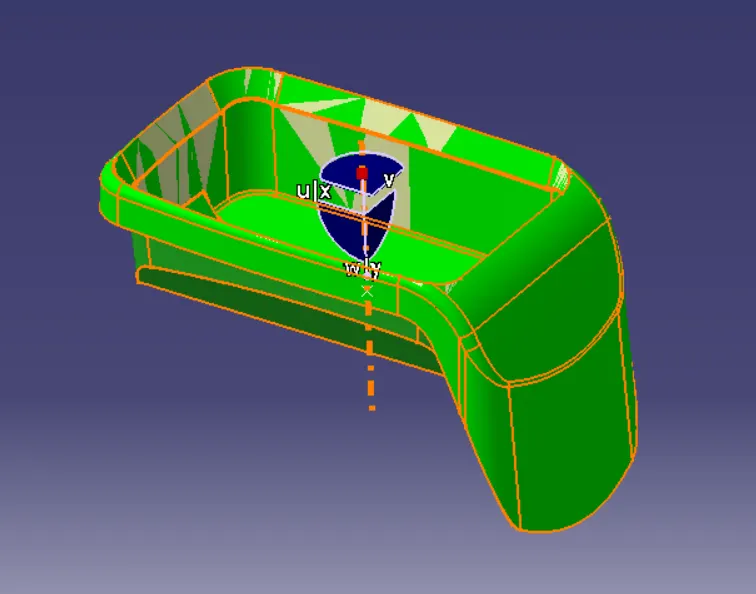

create boundary command and sweep the A surface boundry thand c surface trim the b surfe and a surface than join it.
