Week 8 - Challenge 4 - Bumper

Bumper

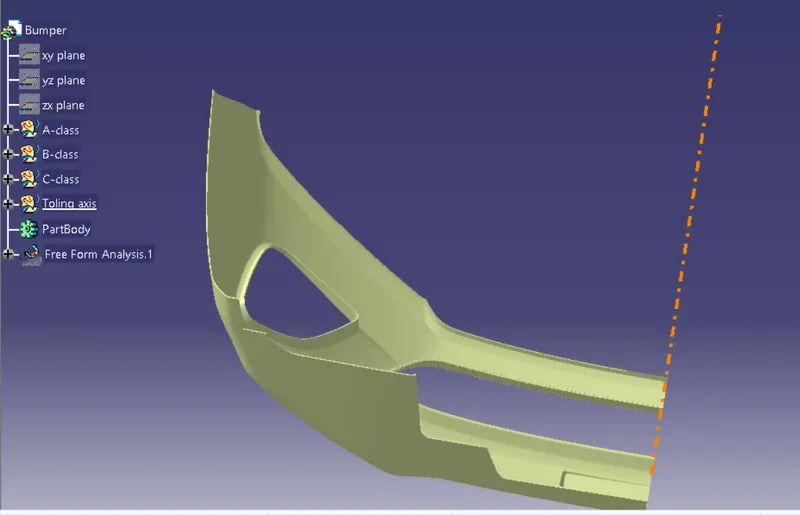

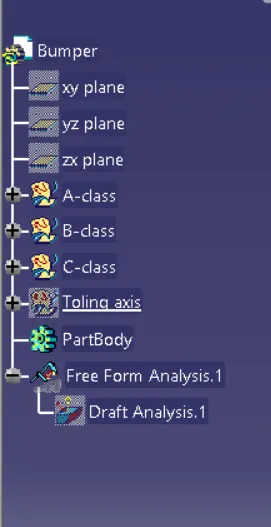

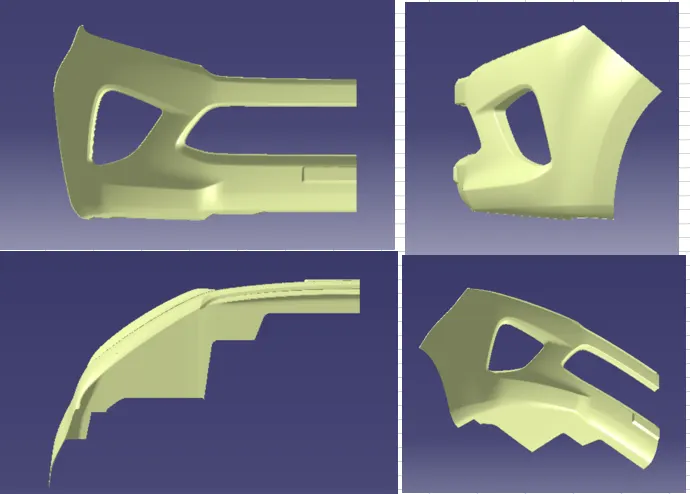

first creat a tooling axis on axis point then extract the surfece and offset 2.5 mm all surfaces then join all together and creat B-class

for c-class creat boundry of A surface and sweep the boundary with 90 deg. and 5mm then trim c-class and B-class and join a surface.
