Week 9 - Project - A pillar Design with Master Section
B-PILLAR MASTER SECTION
STEPS FOR THE CAT PART
- CREATE A TOOLING AXIS IN THE CAT PART WITH BISECTING LINES
- CREATE A OFFSET FOR THE CLASS A SURFACE TO BECOME B SURFACE
- WHILE OFFSETTING THE CLASS A THERE WERE SOME PATCHES, SO WE RECTIFIED THE PATCHES.
- NOW, WE CREATE C SURFACE USING THE SWEEP COMMAND.
- THEN JOIN THE C SURFACE WITH THE CLASS A SURFACE.
- THEN JOINED CLASS A&C TRIM WITH THE B SURFACE.
- USING THE CLOSE SURFACE COMMAND TO MAKE THE SURFACE TO SOLID BODY.
- AFTER CHECKING THE DRAFT ANALYSIS DRAFT IS 3 DEG LIMIT.
- NOW WE CREATE THE DOG HOUSE AND RIB
- THE EXTENDED PARTS ARE CUT IT OUT AND BECOME A SINGLE-PART BODY.
- AGAIN WE ANALYSE THE DRAFT USING THE DRAFT ANALYSIS METHOD.
TOOLING AXIS
THE TOOLING AXIS IS CREATED BY USING THE MASTER SECTION
CLASS A SURFACE
B SURFACE
WHILE OFFSET SOME ERRORS COME, FOR EXAMPLE, THE GAP BETWEEN THE JOINING IN THE SURFACE

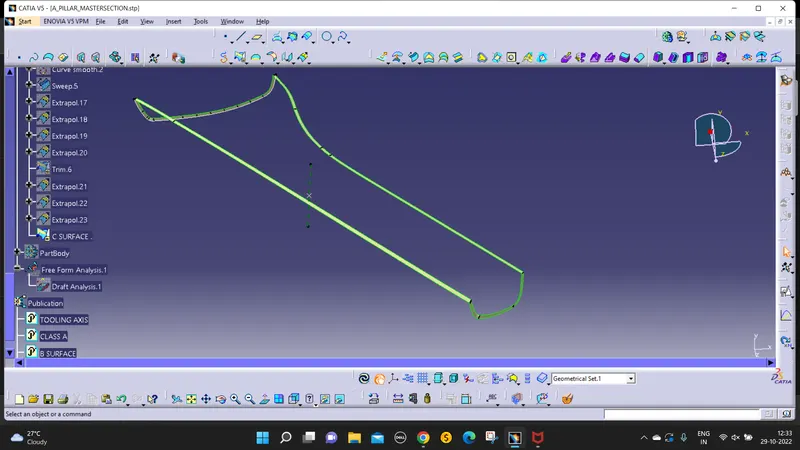

C SURFACE
IN THIS SURFACE, CLASS A JOINS WITH C SURFACE TO MAKE A CLOSE SURFACE

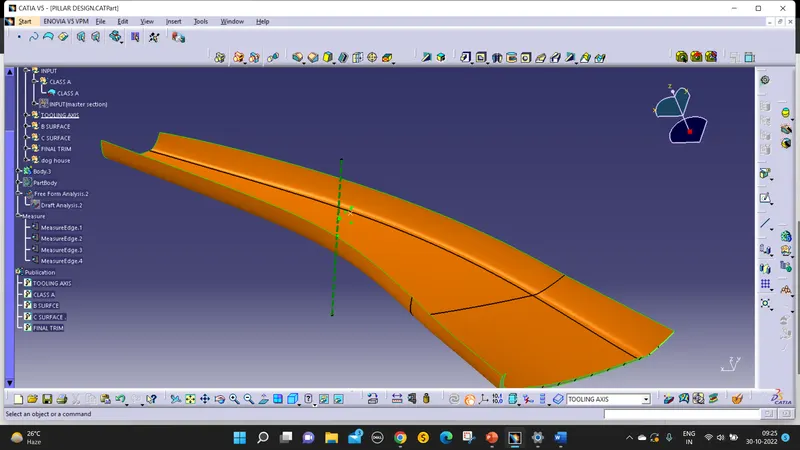

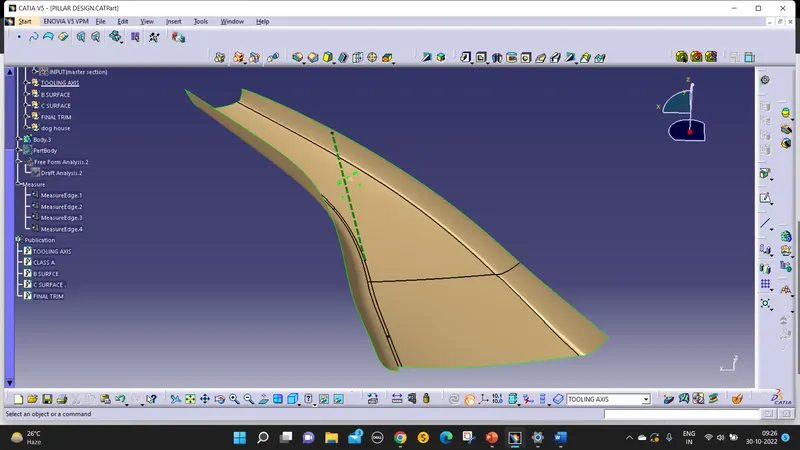

FINAL PART
AFTER CLASS A JOINS WITH C SURFACE, THE JOINED SURFACE TRIMS WITH THE B SURFACE TO MAKE A CLOSE SURFACE

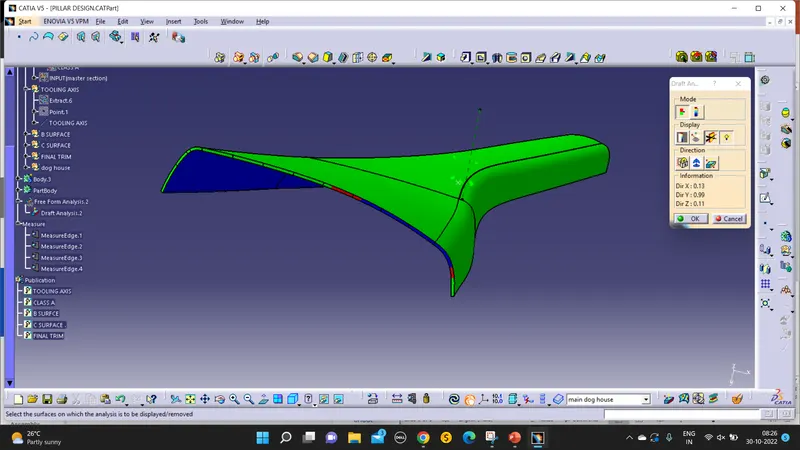

DRAFT ANALYSIS
THE NOMINAL DRAFT IS 3 DEGREES

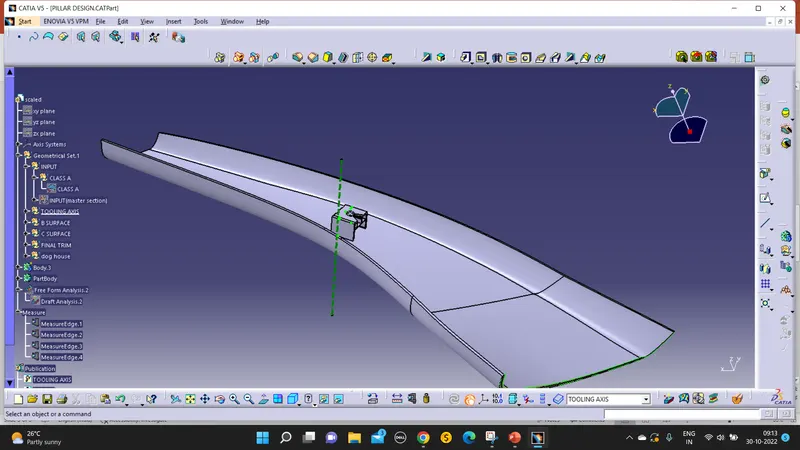

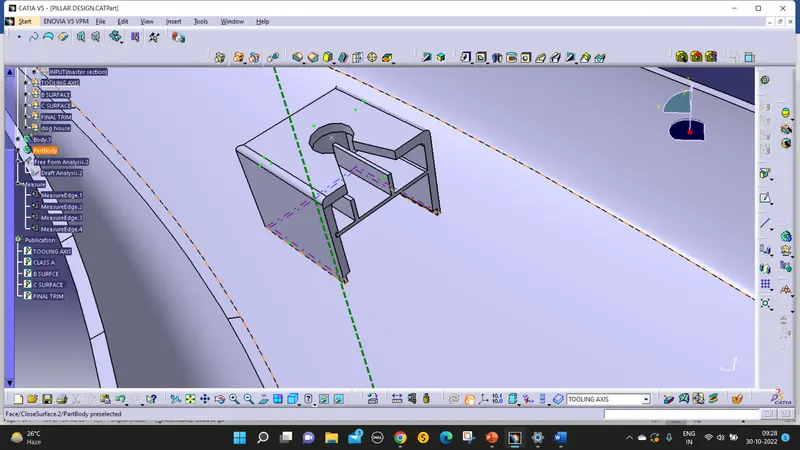

DOG HOUSE CREATION AND RIBS

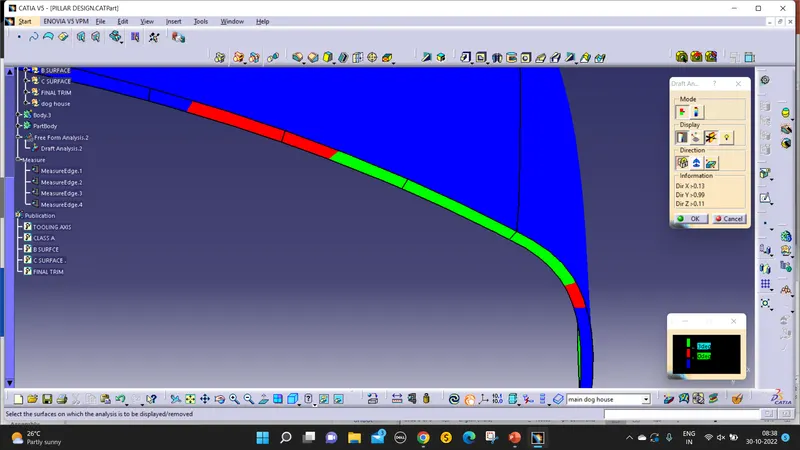

MINIMUN DRAFT IS 3 DEG AND 0.5 DEG
THE DRAFT BLUE AND GREEN SHOW THE 3 DEG
AND THEN 0.5 IS RED

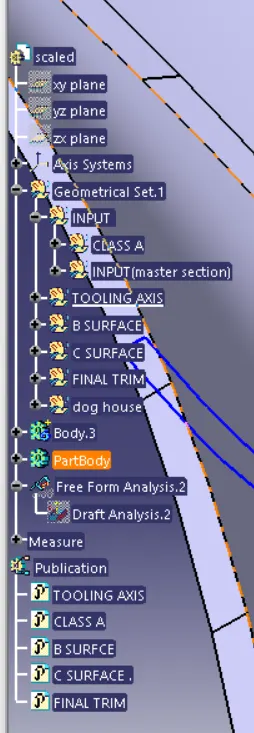

GEOMETRICAL TREE
THESE ARE THE PROCEDURE FOR THE B PILLAR MASTER SECTION COMMANDS AND TOOLS
