Week 8 - Challenge 6 - Core & Cavity Design

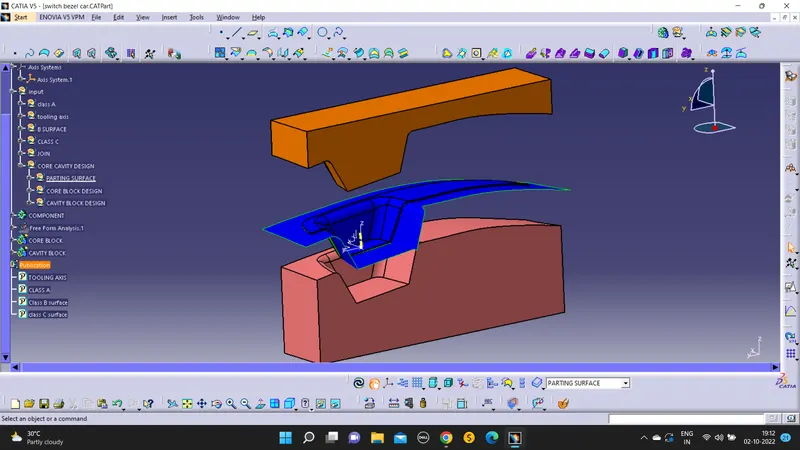

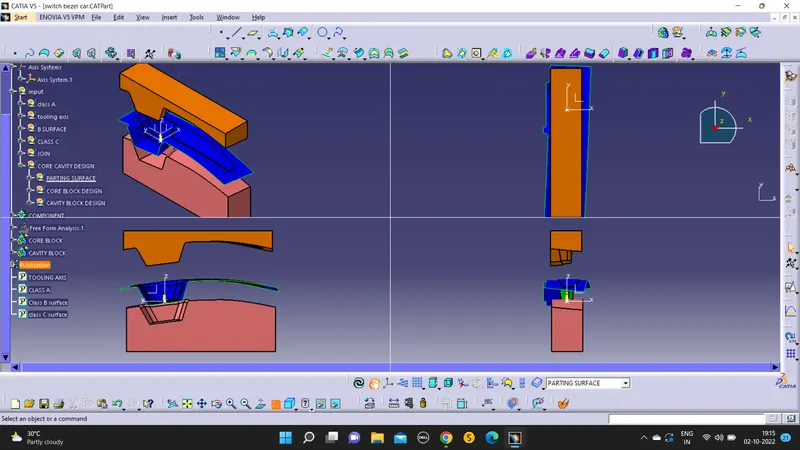

CORE AND CAVITY BLOCK

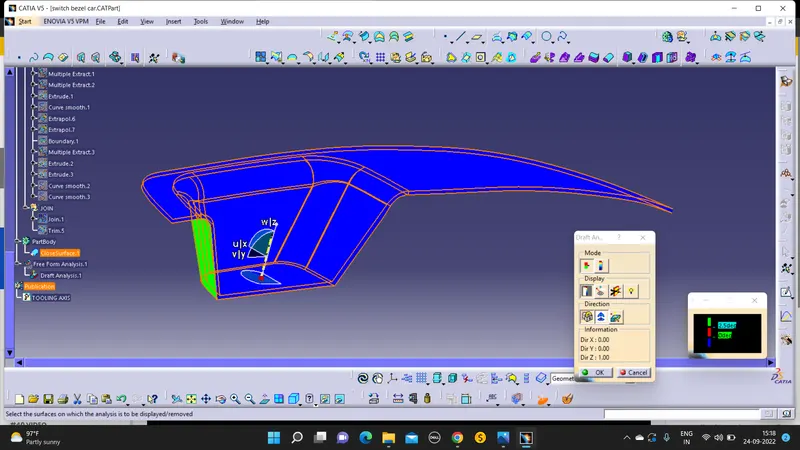

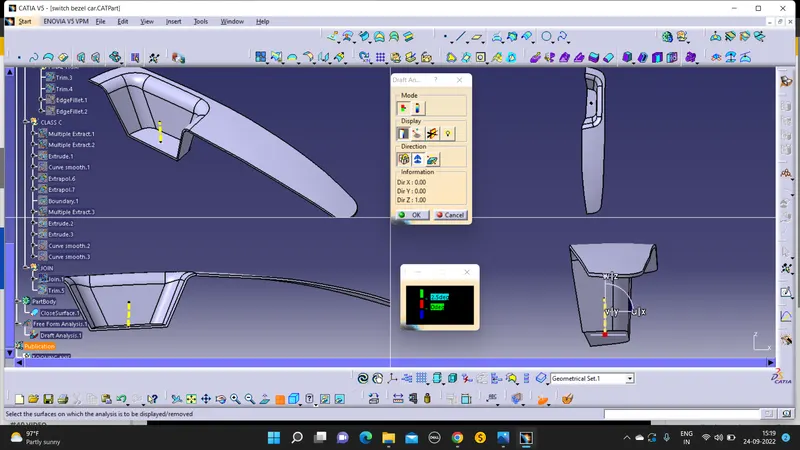

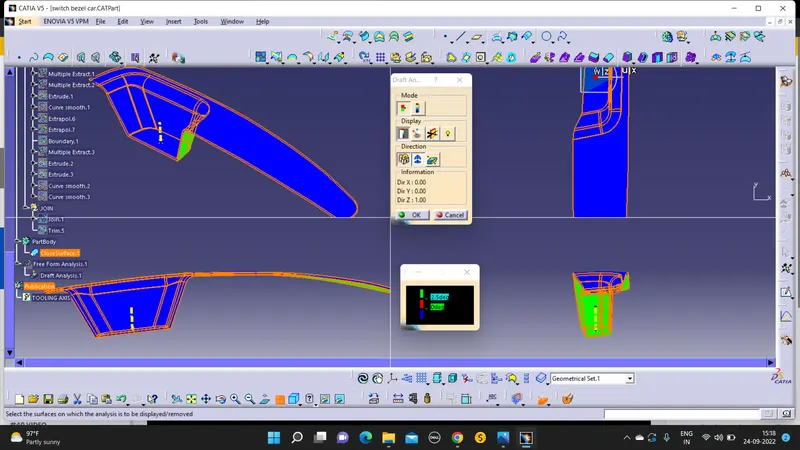

DRAFT ANALYSIS OF THE SWITCH BEZEL

DRAFT ANALYSIS OF QUICK ANALYSIS METHOD IS USED.

THE GREEN COLOUR INDICATES THAT THE CRAFT ANGLE IS GREATER THAN 3deg.

THE BLUE COLOR INDICATES THAT THE DRAFT AGLE IS LESS THAN ZERO degrees.

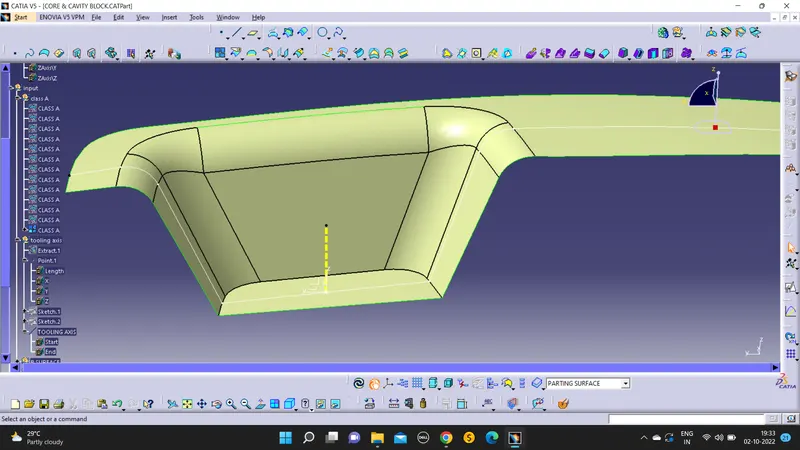

TOOLING AXIS

IN THIS METHOD THE TOOLING AIS IS CREATED BY USING THE BISECTING LINE METHOD.

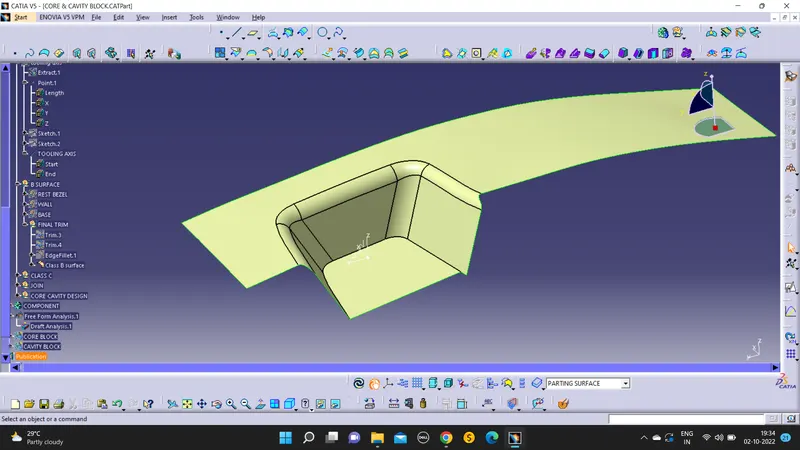

B SURFACE

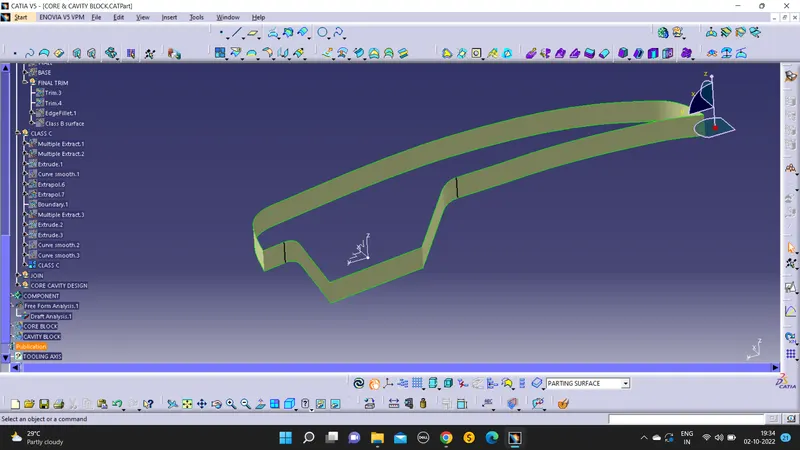

C SURFACE

FINAL PART

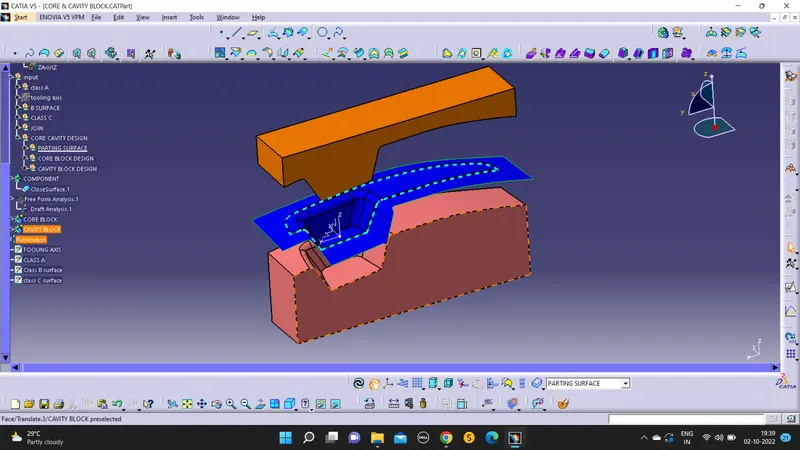

CORE AND CAVITY

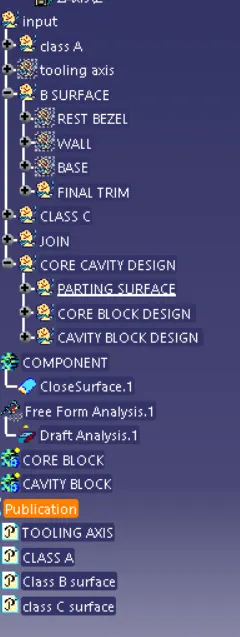

TREE
